Machine overview

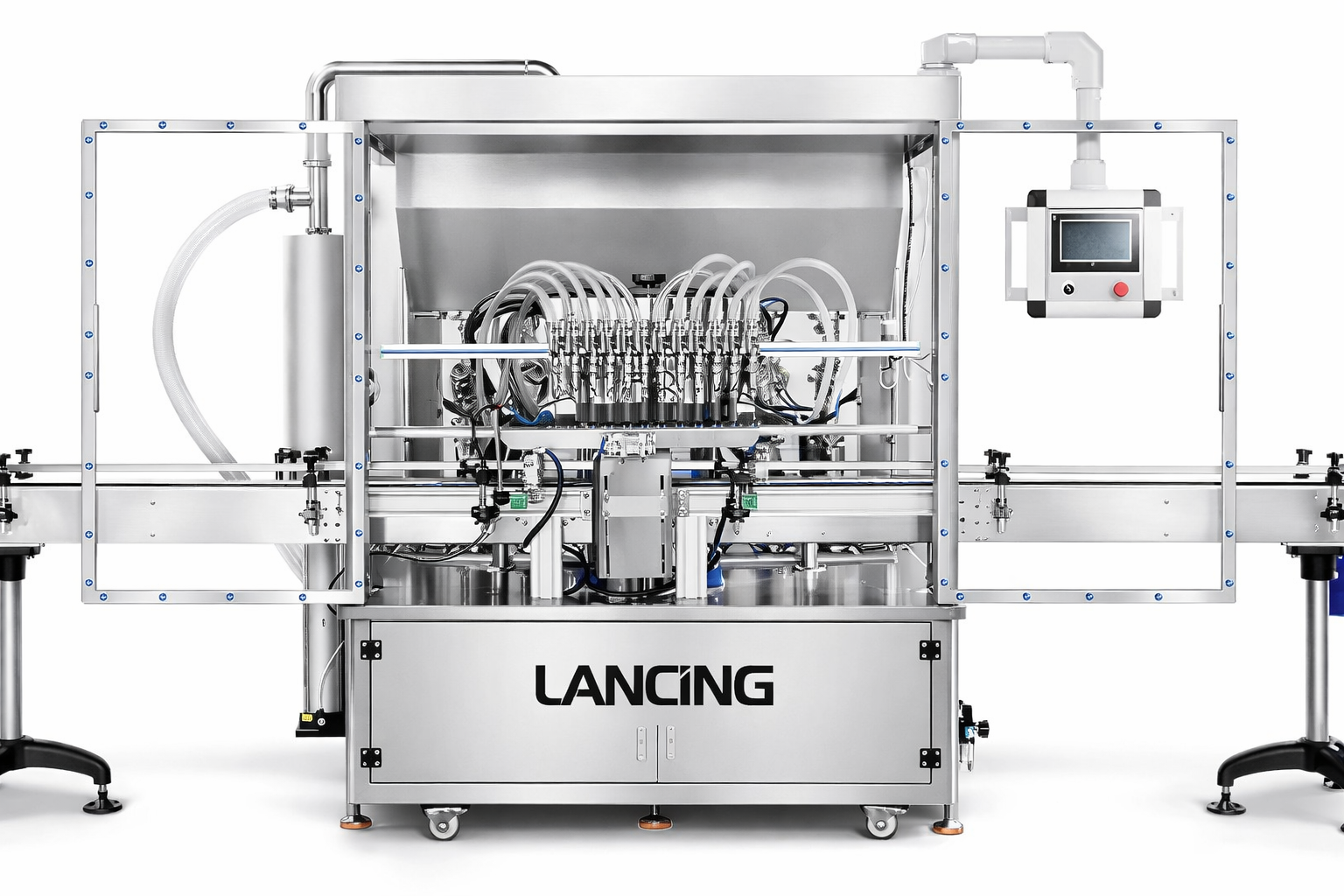

12 Nozzles Servo Motor Paste Filling Machine
Machine overview and key points for quotation.

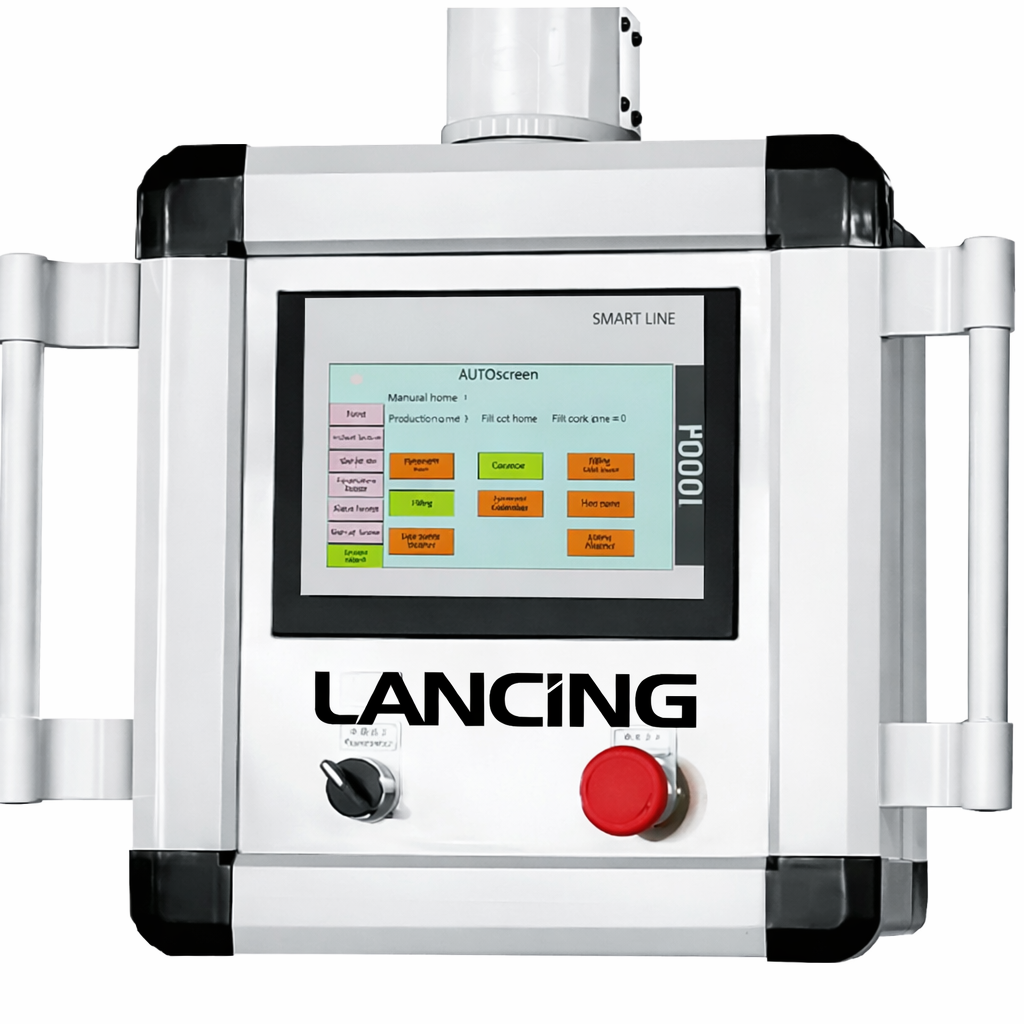

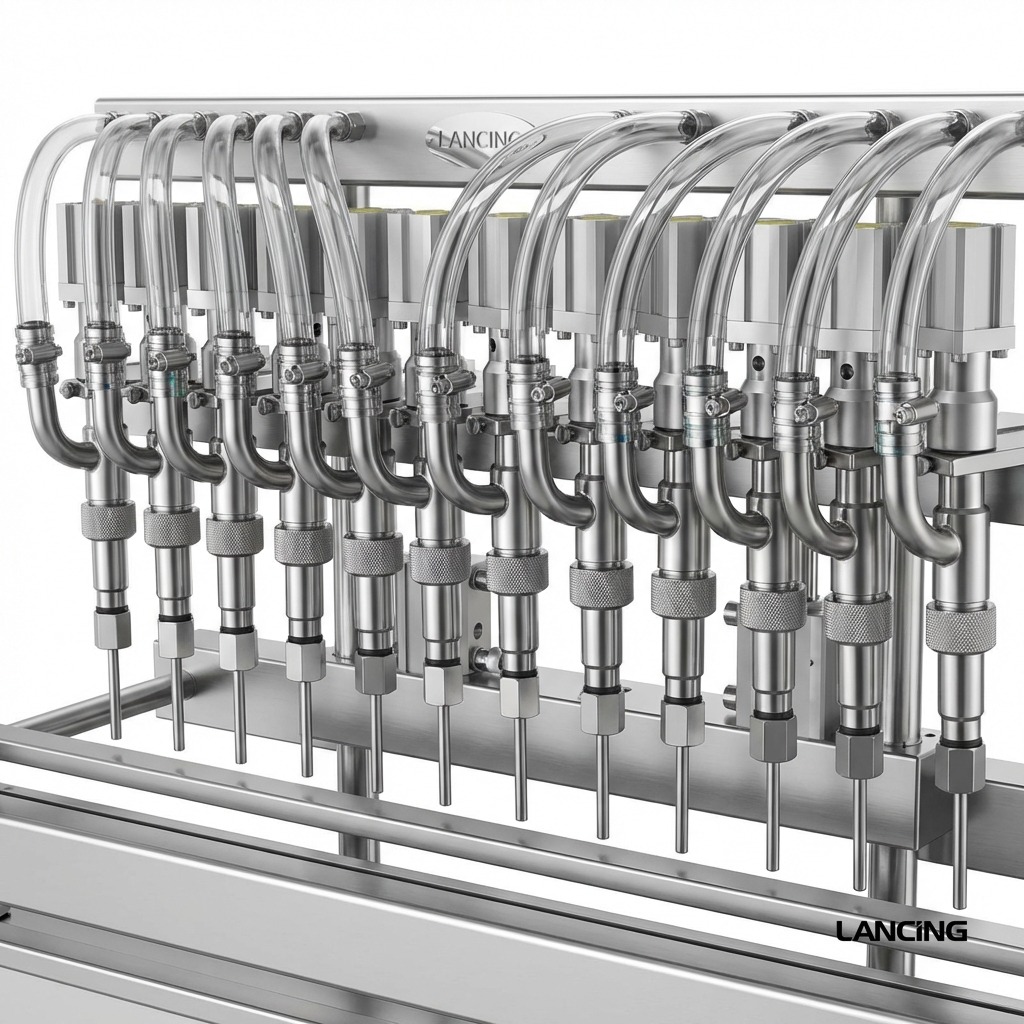

Our Automatic Linear Piston filler is an extremely flexible filler capable of filling accurately and rapidly any viscous liquids. Product delivery from your bulk tank to the pistons can be configured with a buffer tank utilizing a level-sensing float, a manifold with direct draw, or re-circulation methods. Our Automatic Linear Piston Filler is manufactured with a 304 stainless steel frame and is capable of supporting 1 to 12 fill heads. PLC controls, touch screen HMI, food grade contact parts, stainless steel, and anodized aluminum construction and many more features come standard. Lancing Uk Automatic Piston Fillers are designed to add efficiency to any production line used in the cosmetic, food service, specialty chemical, pharmaceutical, and personal care industries. Additional options are available for sanitary, hazardous, flammable, and corrosive environments. This automatic piston pump filling machine is used for filling thicker liquid or paste into containers, it is controlled by controlled servo motor, the filling accuracy will be higher and machine operation can be more convenient.Extra mixing and heating function can be realized as production need.
Throughput
Approx. 30–70 bottles/min (varies by material and bottle size)
Target speed depends on product, pack and operator workflow.
Format range
100–1000ml (customizable)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220V/110V 50–60Hz
We’ll confirm voltage, air and installation requirements for your site.

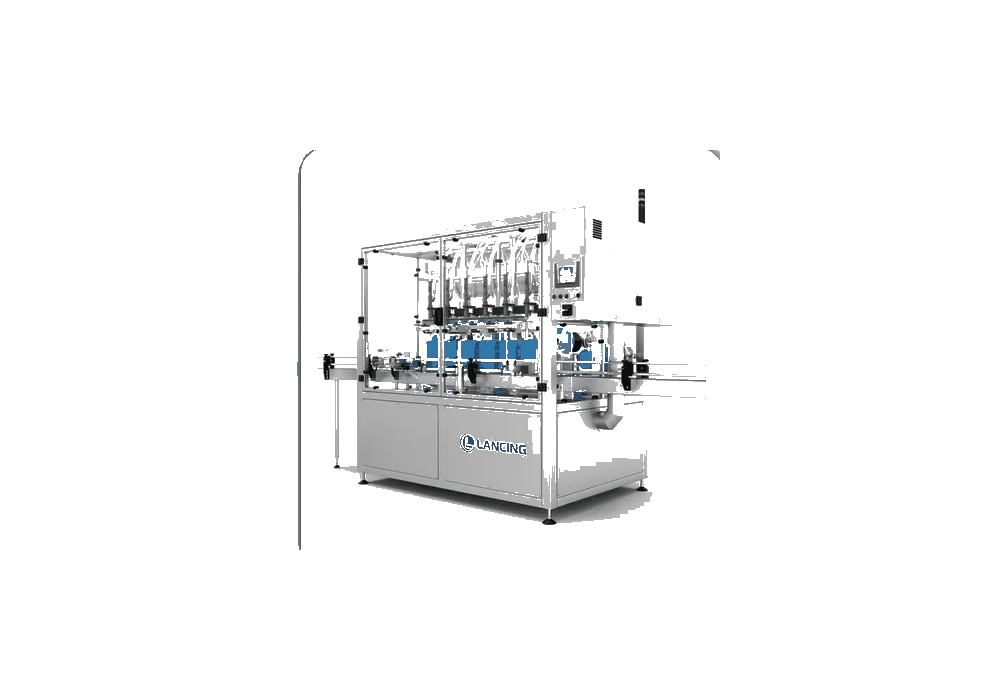

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Machine in operation
See the machine running. (Set Video URL in your product data.)
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-YT12T-12PX |
| Voltage | 220V/110V 50–60Hz |
| Power | 2kW |
| Filling Heads | 12 (customizable) |
| Filling Range | 100–1000ml (customizable) |
| Filling Speed | Approx. 30–70 bottles/min (varies by material and bottle size) |
| Filling Accuracy | ±1% |
| Air Pressure | 0.5–0.8MPa |
| Memory Function | Available |
| Package Size | Approx. 2240 × 1390 × 2270mm |
| Package Weight | Approx. 950kg |

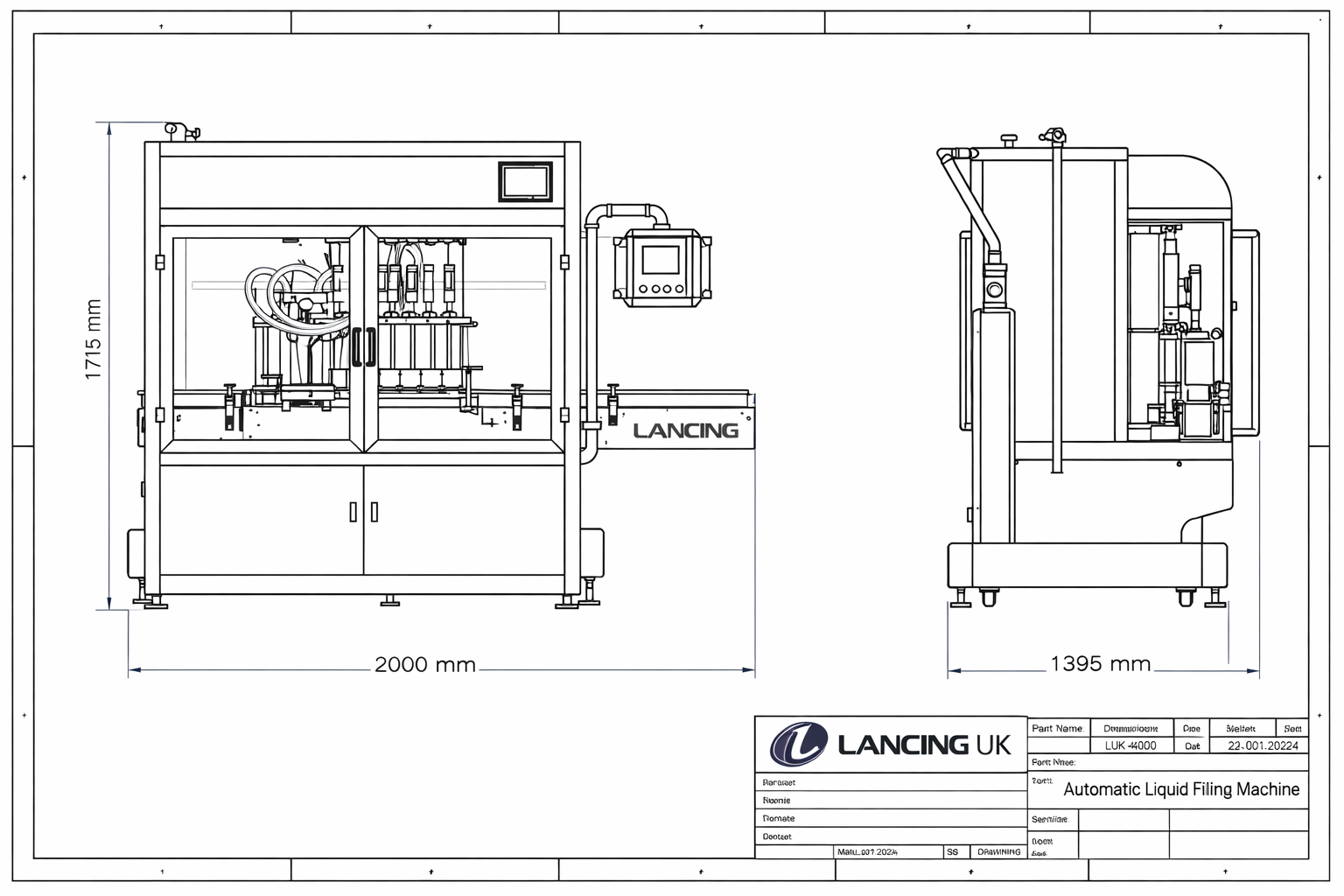

CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
Tip: click the drawing (or the button) to zoom.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
