Machine overview
ZS-YT2 2 Nozzles Full Pneumatic Liquid Olive Oil Filling Machine
Machine overview and key points for quotation.
2 Nozzles Full Pneumatic Liquid Olive Oil Filling Machine , sales and related technical services of modern high-tech enterprises. Opens in a new window.
Throughput
5–30 bottles/min × 2
Target speed depends on product, pack and operator workflow.
Format range
10–100ml/ 10–200ml/ 30–300ml/ 50–500ml/ 100–1000ml/ 500–2500ml/ 1000–5000ml
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
Site utilities to be confirmed
We’ll confirm voltage, air and installation requirements for your site.

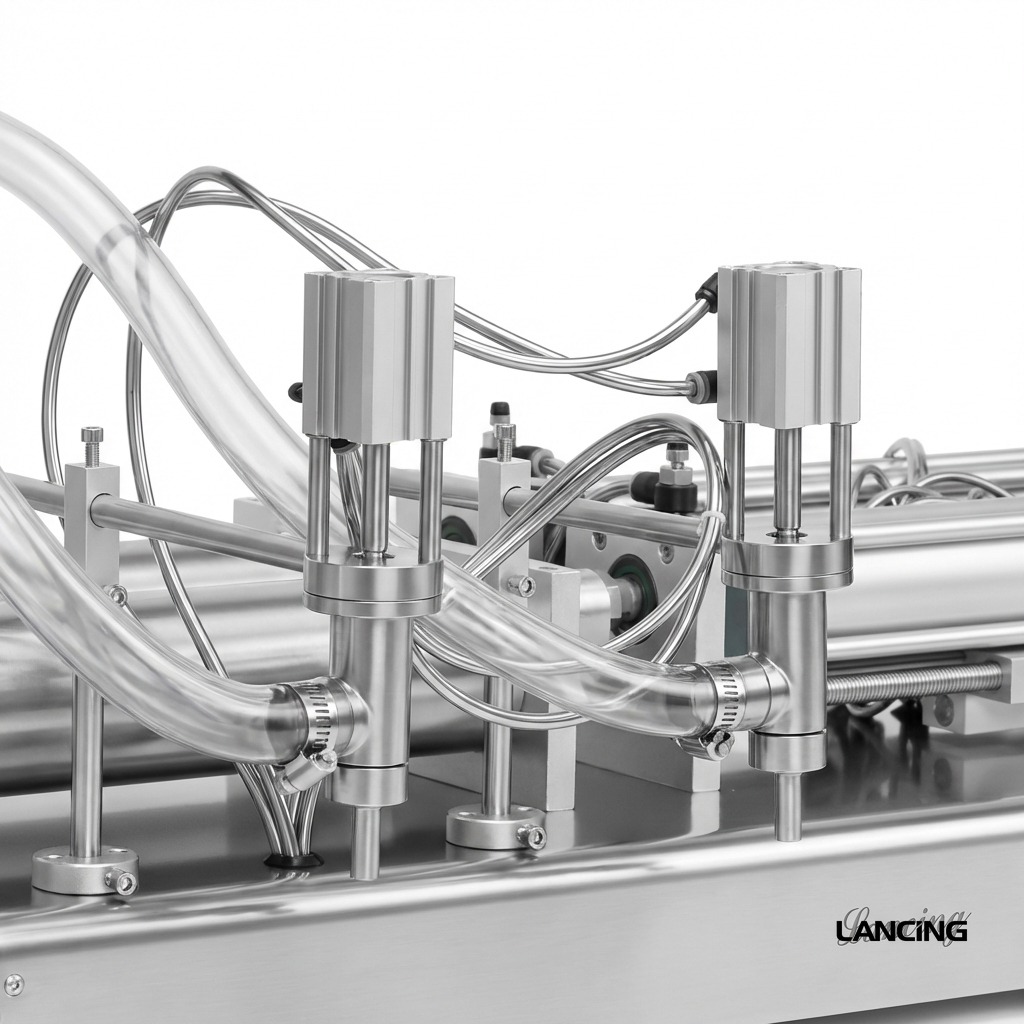

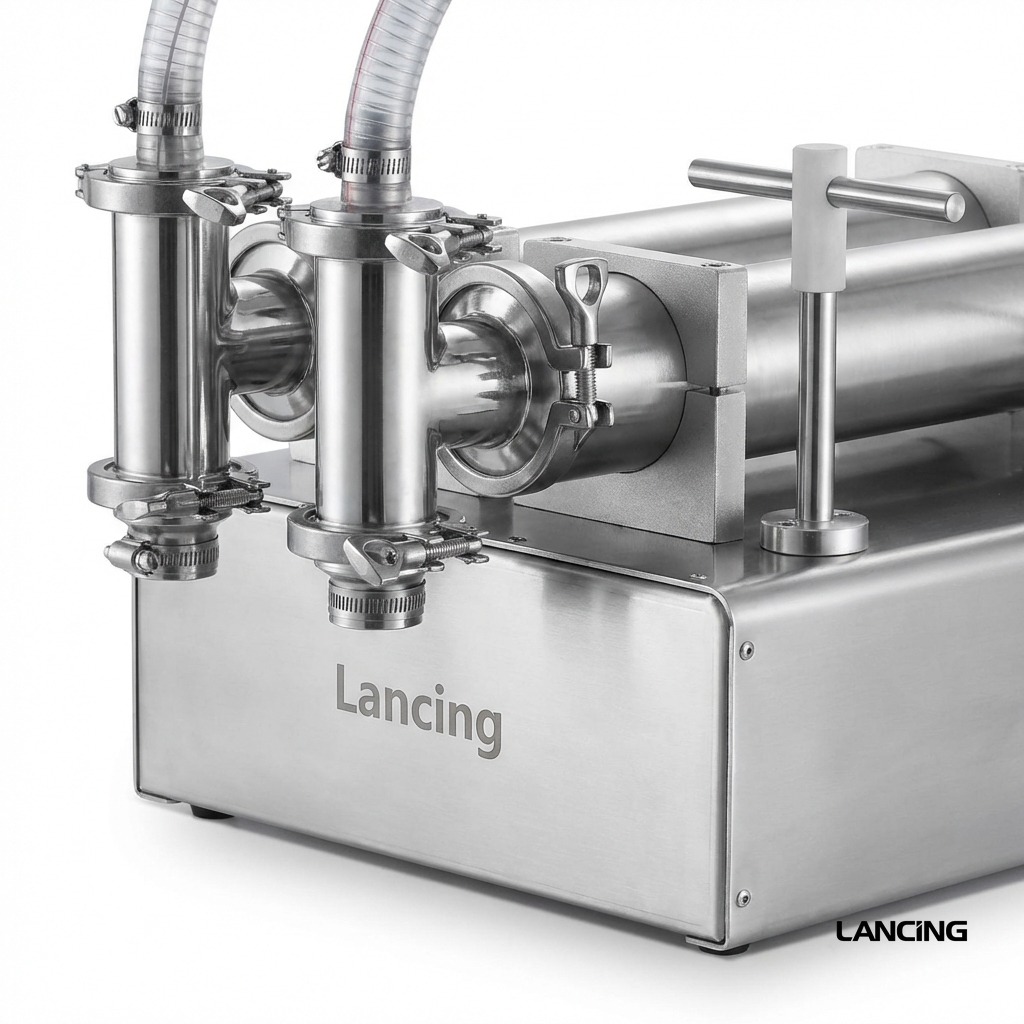

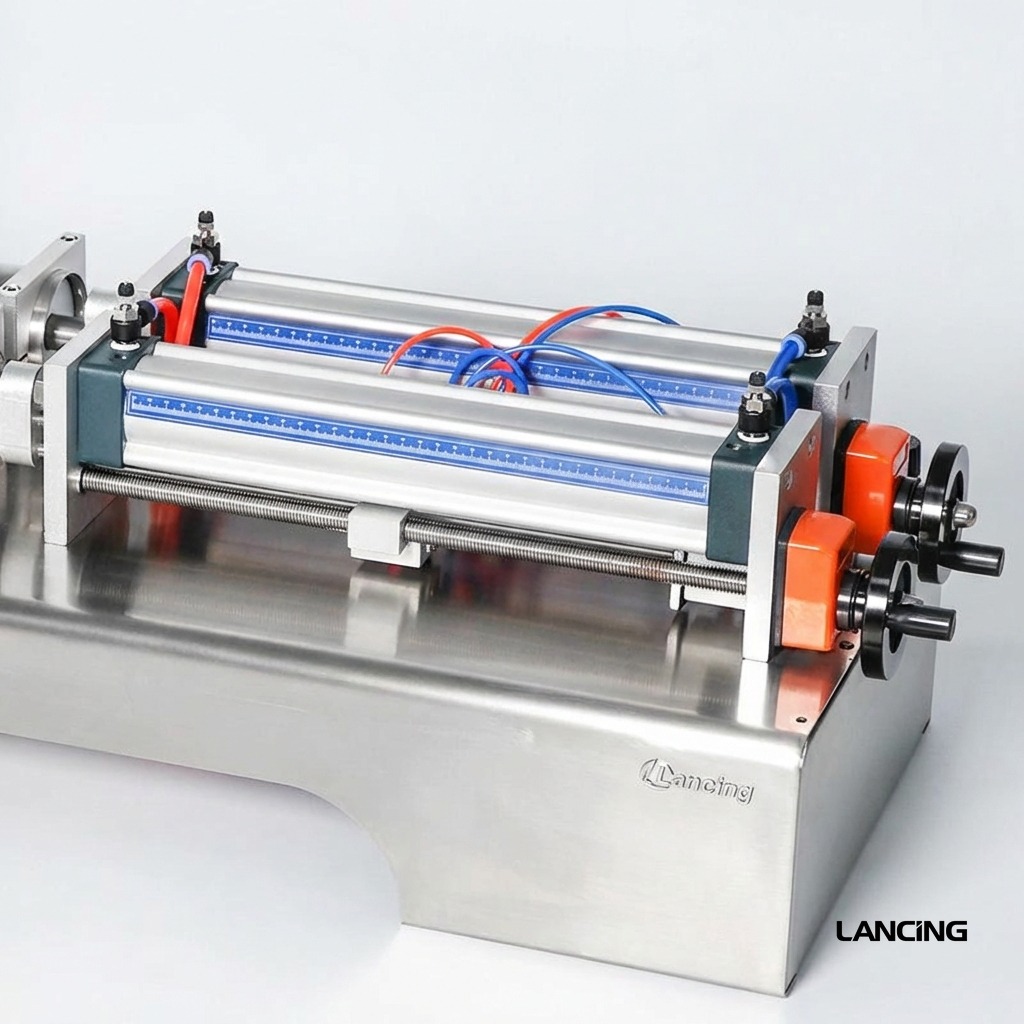

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Filling Nozzle | Double Nozzle (Single Nozzle also available) |
| Filling Speed | 5–30 bottles/min × 2 |
| Filling Range | 10–100ml/ 10–200ml/ 30–300ml/ 50–500ml/ 100–1000ml/ 500–2500ml/ 1000–5000ml |
| Accuracy | ≤±0.5%–2% |
| Pressure | 0.4–0.6MPa |
| Air Capacity | >30L |
| Packing Size | 1130 × 515 × 340mm |
| Gross Weight | 46.5kg |
| Machine Size | 1010 × 360 × 300mm |
| Net Weight | 36.5kg |
| NOTE | Air compressor required, Sold separately. |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
