Machine overview
Granule Vacuum Packing Machine with 4 Heads
Machine overview and key points for quotation.
Granule Vacuum Packing Machine with 4 Heads , sales and related technical services of modern high-tech enterprises. Opens in a new window.
Throughput
8–12 bags/min (depending on product flow)
Target speed depends on product, pack and operator workflow.
Format range
Customized according to user requirements
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
3-phase 380V, 50Hz
We’ll confirm voltage, air and installation requirements for your site.

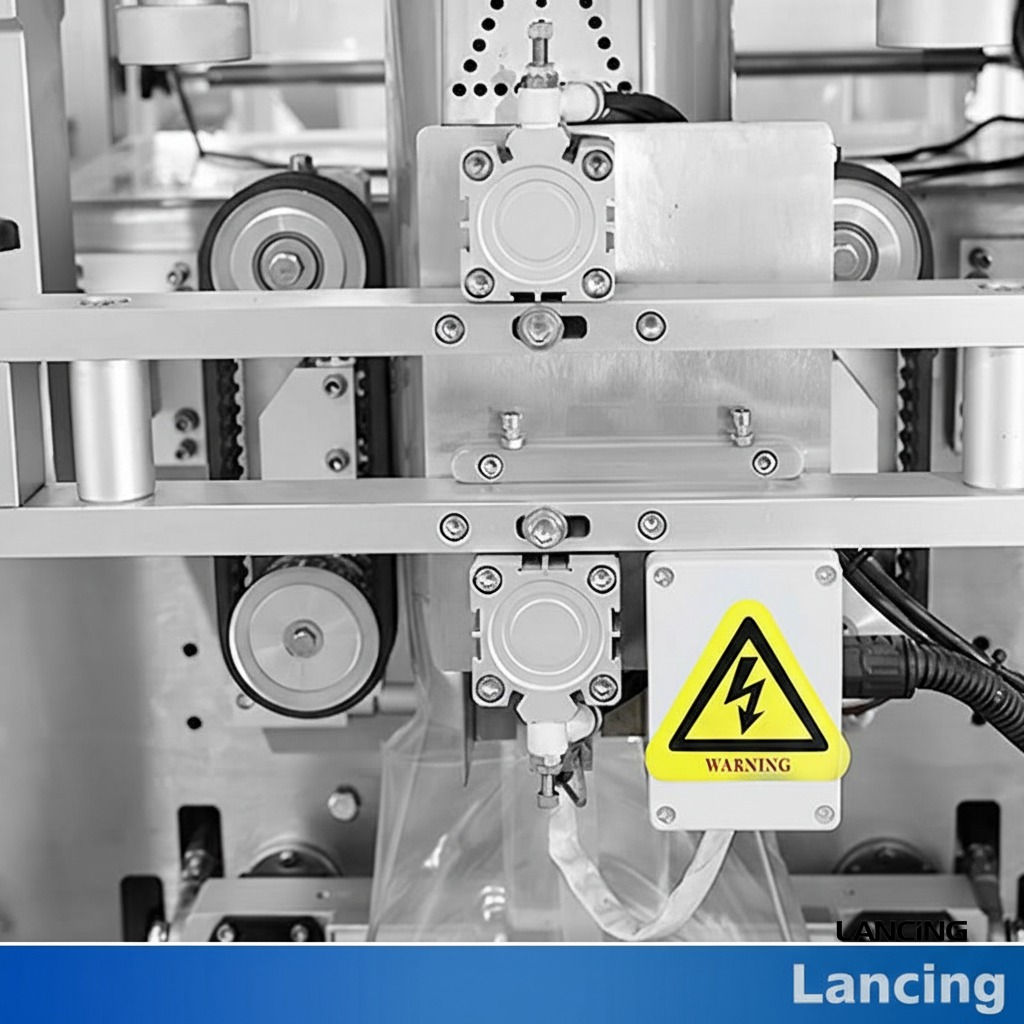

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-PL420S |
| Power Supply | 3-phase 380V, 50Hz |
| Rated Power | 5.8 kW |
| Machine Material Mainframe | 201 stainless steel<br>Contact parts: 304 stainless steel |
| Filling Range | Customized according to user requirements |
| Sealing Type | Back-sealing bags |
| Bag Size Length | 80–400 mm<br>Width: 100–295 mm<br>Sealing edge: 15 mm |
| Packing Speed | 8–12 bags/min (depending on product flow) |
| Vacuum Rate | 76 m³/hour |
| Vacuum Degree | 0.1 hPa |
| Machine Dimensions | 3276 mm (L) × 1024 mm (W) × 3290 mm (H) |
| Machine Weight | Approx. 1100 kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
Talk to a specialist
We’ll confirm suitability, options, integration, and realistic throughput for your product.
Enquire about this machine
Send a message and we’ll respond with configuration options, pricing guidance and lead times.
