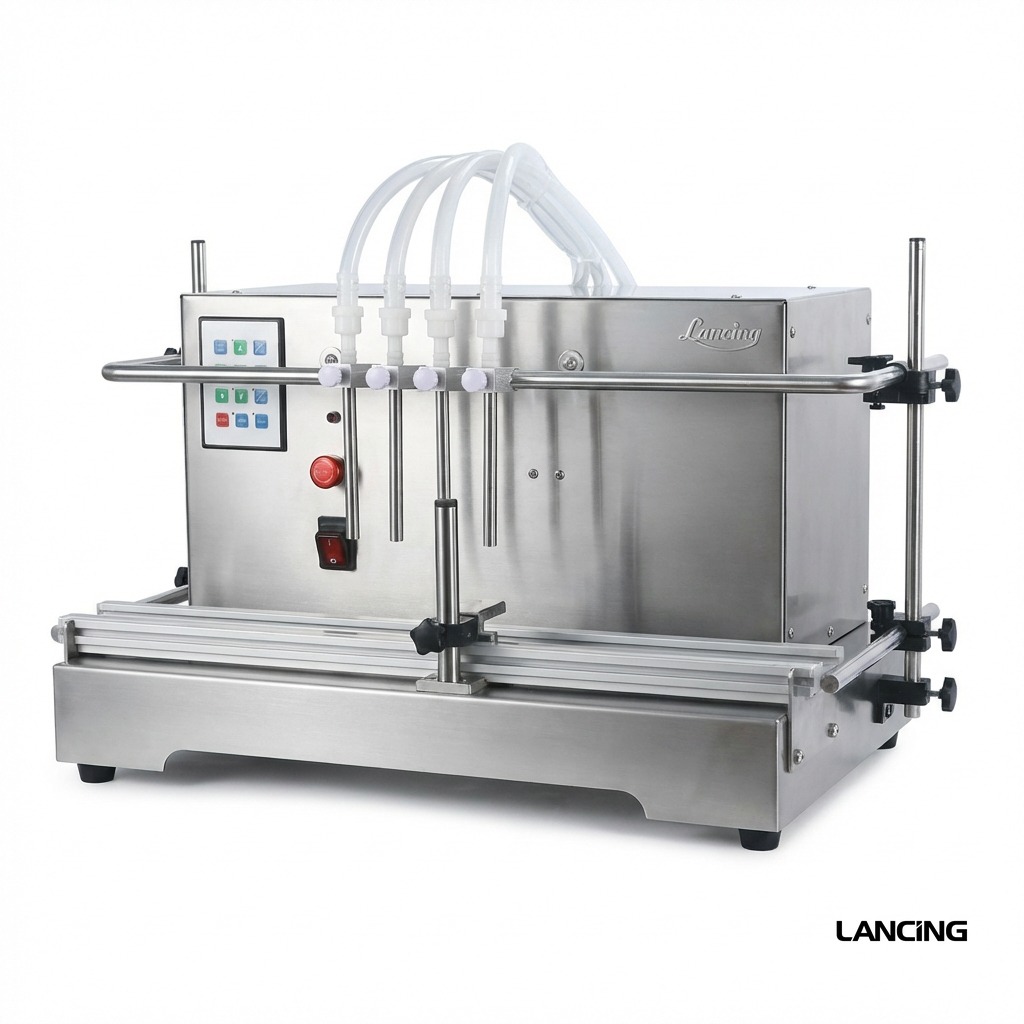

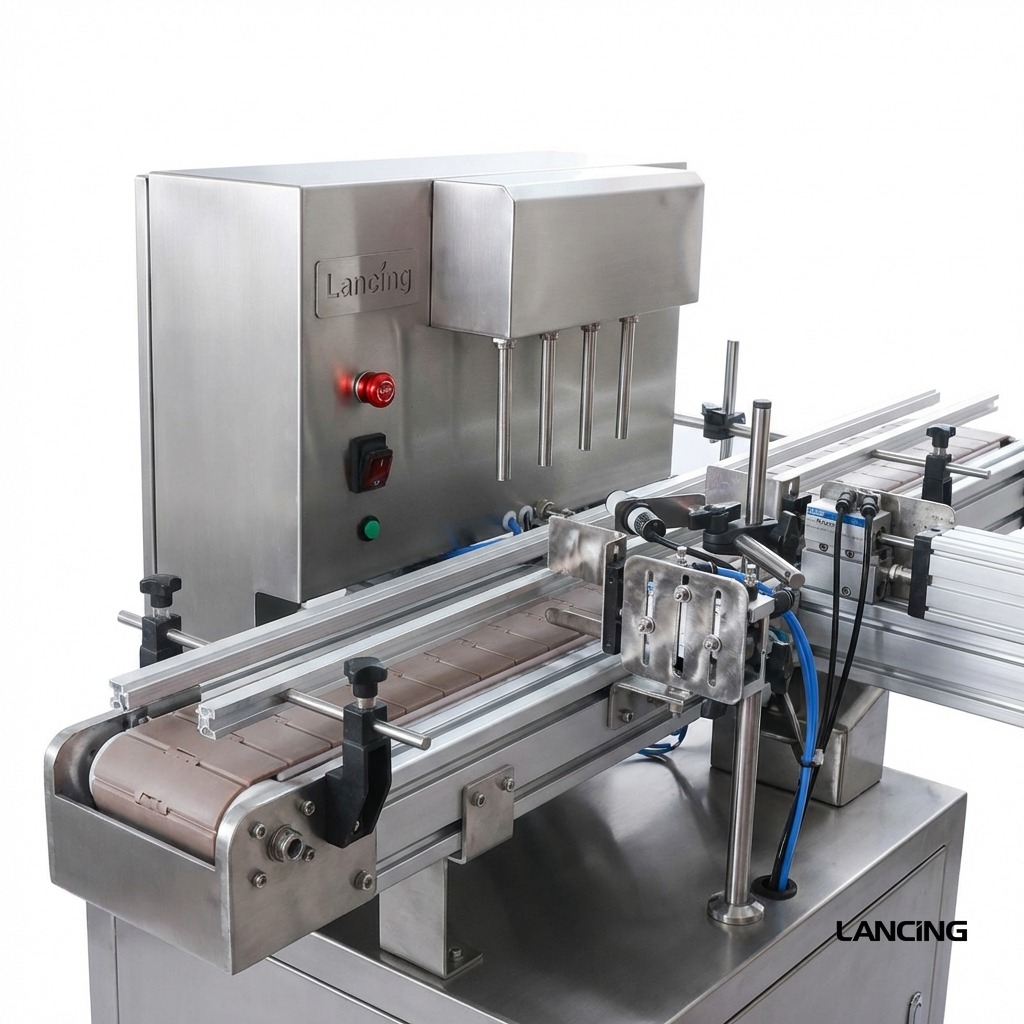

ZS-DTPP4C 4 Heads Peristaltic Pump Liquid Filling Machine
Machine overview and key points for quotation.
Machine model : LU-DTPP4C
Throughput
30-50 bottles/min(based on bottles and liquids)
Target speed depends on product, pack and operator workflow.
Format range
2500 ml/min
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220V 50Hz-60Hz 60 W(Each Pump)
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Power supply | 110/220V 50Hz-60Hz 60 W(Each Pump) |
| Filling Range | 2500 ml/min |
| Maximum flow | 2500 m/min for each nozzle (based on water ) |
| Filling nozzles | 4(we can customize the nozzles based on your demands) |
| Working speed | 30-50 bottles/min(based on bottles and liquids) |
| Air pressure | 0.3-0.4MPa |
| Filling accuracy | ≤±1% (For water) |
| Diameter of filling nozzle | 6/8mm |
| Delay range | 0.01-999.9s |
| Belt length | 1 m |
| Size of air compressor connector | OD 8 mm |
| Machine model | LU-DTPP4C |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
