Machine overview
Vertical Continuous Bag Sealing Machine
Machine overview and key points for quotation.

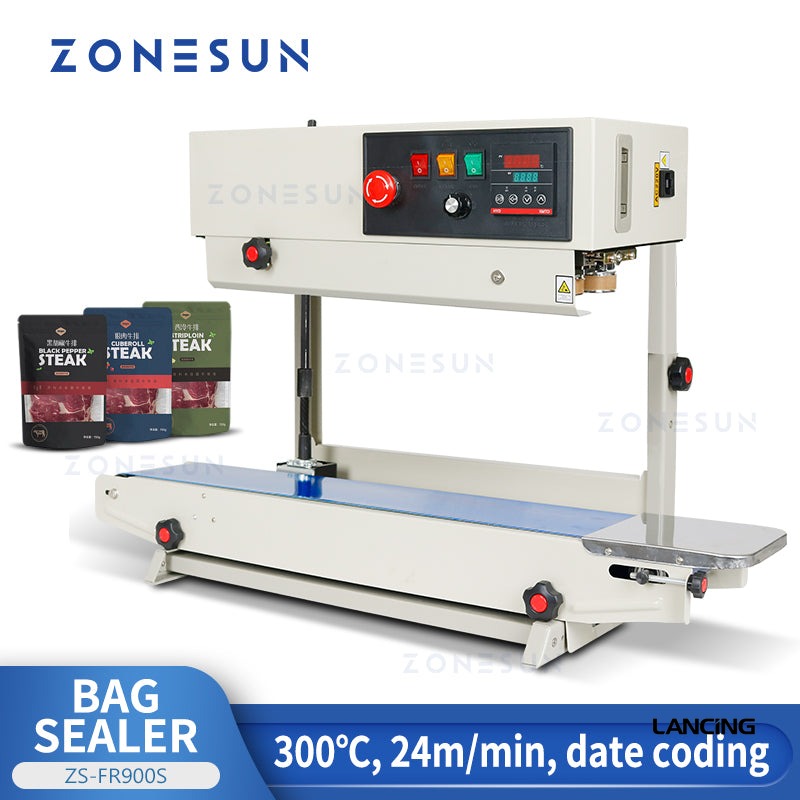

The Lancing UK LU-FR900S is an upright automatic bag sealing machine designed for efficient and continuous sealing of plastic and laminated bags. Its vertical configuration makes it especially convenient for sealing heavier or bulkier packages, improving transport and handling. Equipped with a replaceable pressing wheel, it can imprint manufacturing dates, expiry dates, and lot numbers directly onto the seal. With adjustable temperature control and sealing speed, it accommodates various bag thicknesses and materials. Compact, durable, and easy to operate, it’s ideal for food, chemical, and hardware packaging lines.
Throughput
0-12m/min
Target speed depends on product, pack and operator workflow.
Format range
0-300(℃)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220V/110V 50-60Hz
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | FR-900S |
| Case | Spray-painted Aluminum | Stainless Steel |
| Voltage | 220V/110V 50-60Hz |
| Power | 500W |
| Sealing speed | 0-12m/min |
| Bag thickness | 0.02-0.8mm |
| Bag Height | 15-26.5cm |
| Impression width | 6-12mm |
| Temperature range | 0-300(℃) |
| Conveyor size | 130665mm |
| Conveyor load | ≤3kg |
| Size | 813732cm |
| Weight | 20kg |

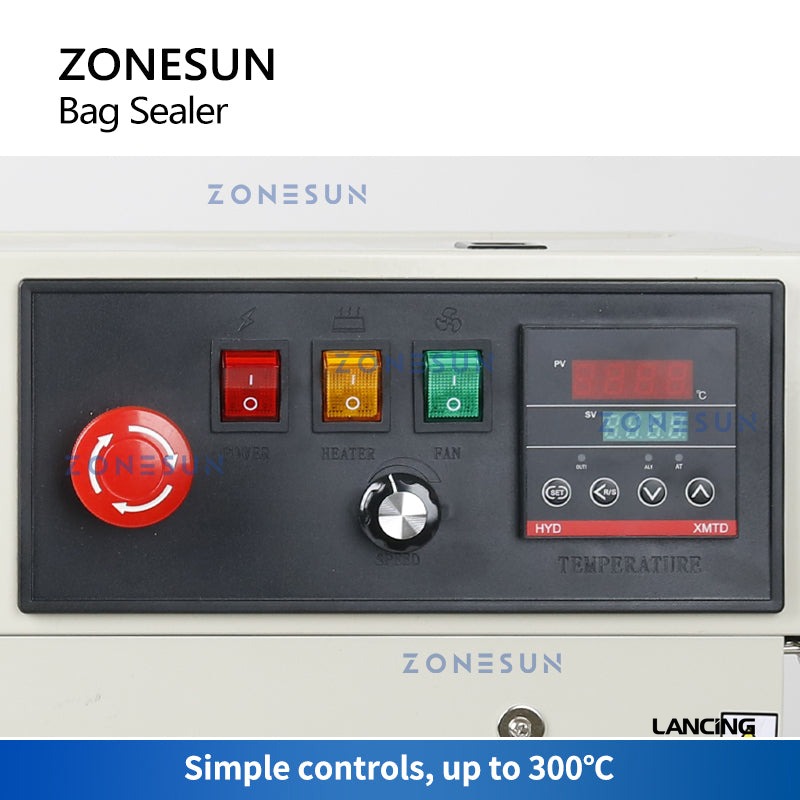

| Simple | controls, up to 300℃, adjustable speed. |

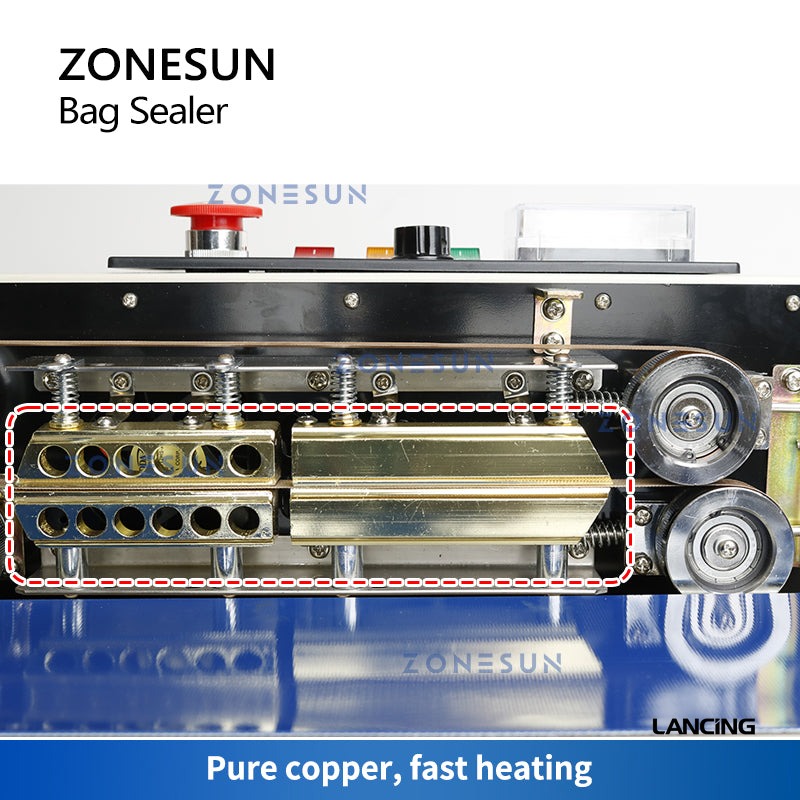

| Pure copper, fast heating, width | 6-10mm(Customizable), bag thickness: 0.02-0.8mm. |
| The | standard set includes 2 wheels. |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
