Machine overview
Bag Sealing Machine
Machine overview and key points for quotation.
The LU-FR1800P is a high-efficiency automatic bag sealing machine equipped with an integrated inkjet printer. Users can easily customize and print barcodes, QR codes, and serial numbers directly from the touchscreen interface. Ideal for food, medical, and retail packaging, it combines sealing and coding in one streamlined solution.
Throughput
0–24m/min
Target speed depends on product, pack and operator workflow.
Format range
0–300°C
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
AC 220V/50Hz 110V/60Hz
We’ll confirm voltage, air and installation requirements for your site.

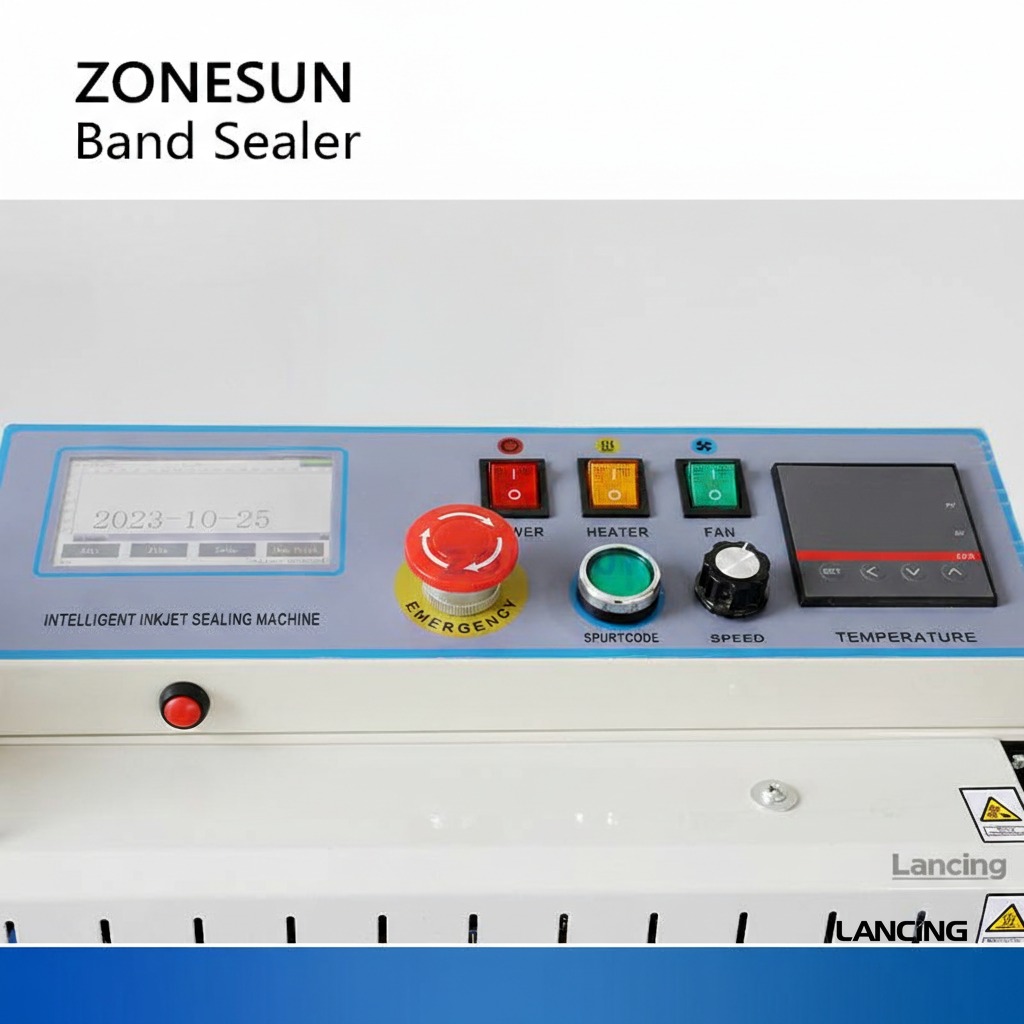

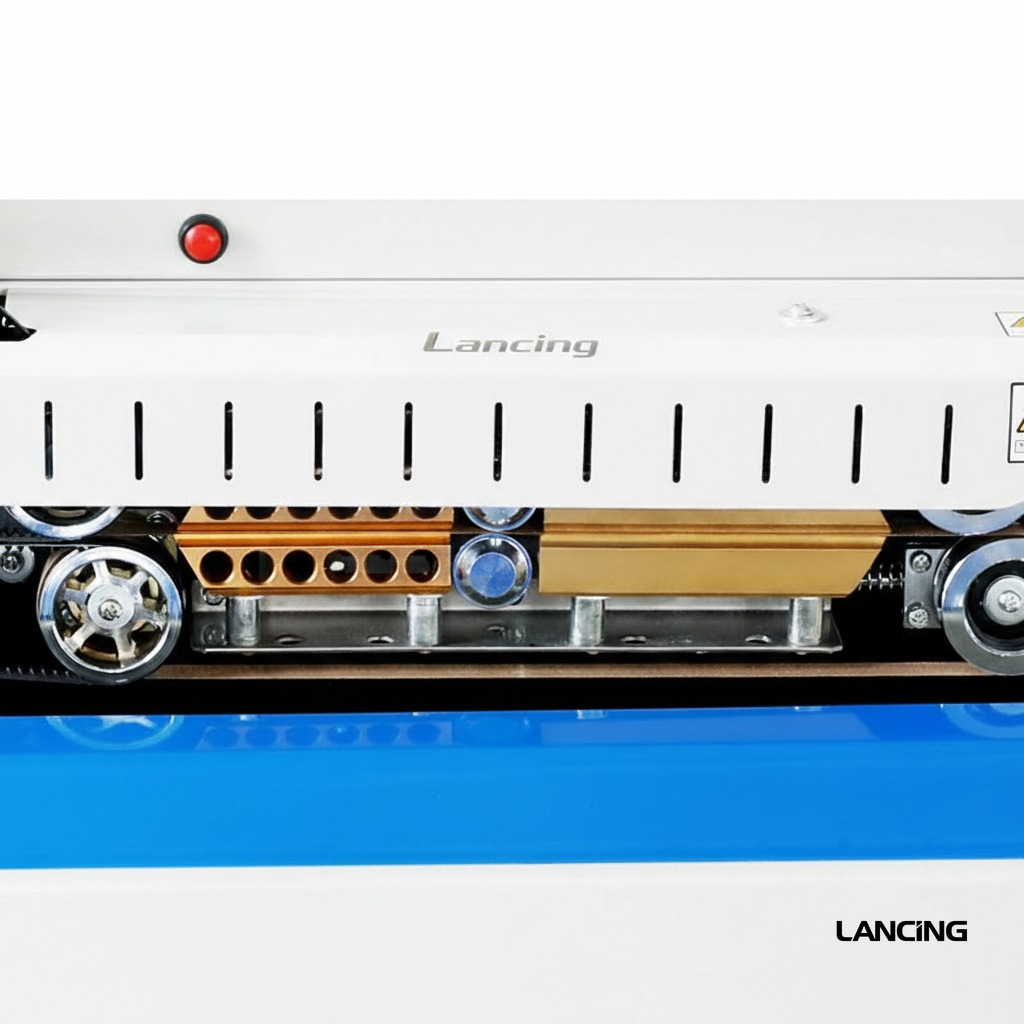

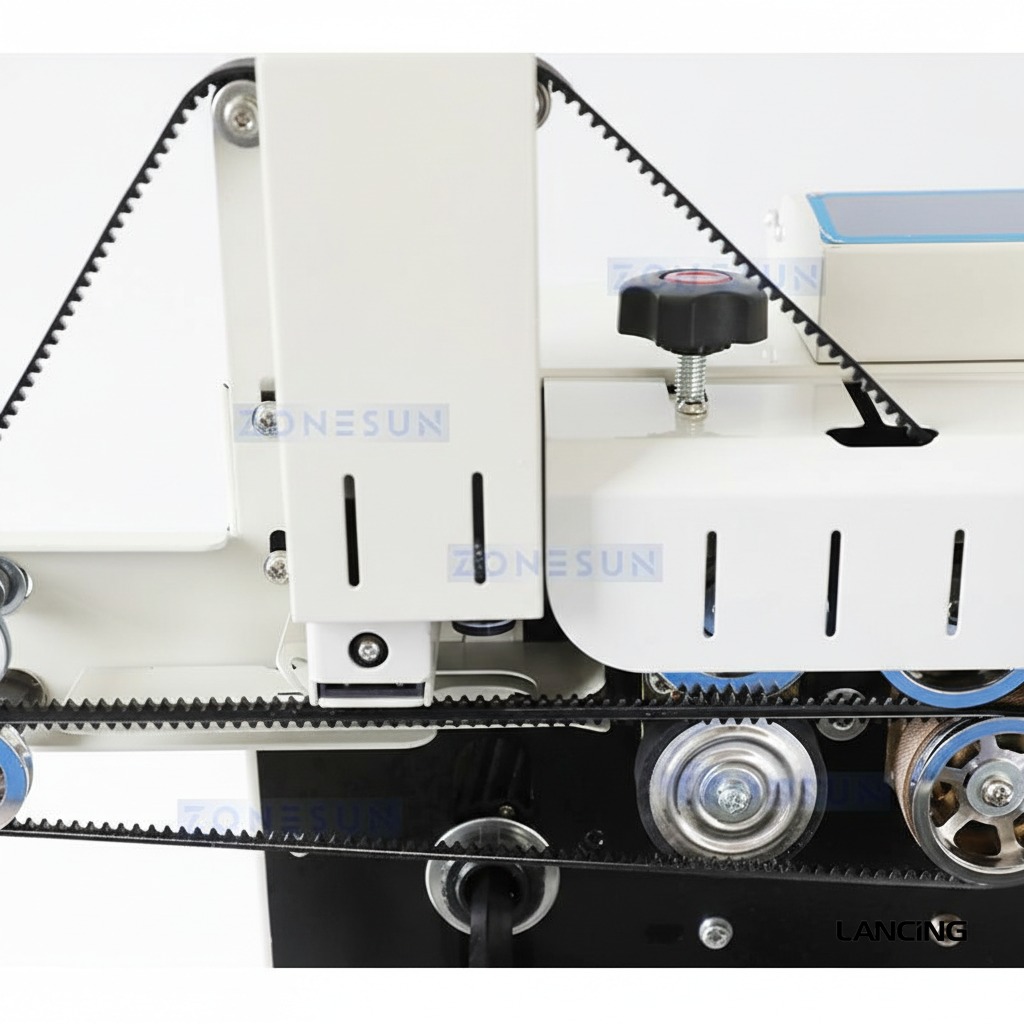

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-FR1800P |
| Voltage | AC 220V/50Hz 110V/60Hz |
| Power | 750W |
| Sealing Width | 12mm (Customizable) |
| Bag Thickness | 0.02–0.8mm |
| Printing Type | Inkjet printing |
| Printing Height | 12.7mm |
| Temperature Range | 0–300°C |
| Sealing Speed | 0–24m/min |
| Conveyor Payload | ≤6kg |
| Machine Weight | 23kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
