Machine overview
ZS‑XG16E Automatic Dropper Capping Machine
Machine overview and key points for quotation.

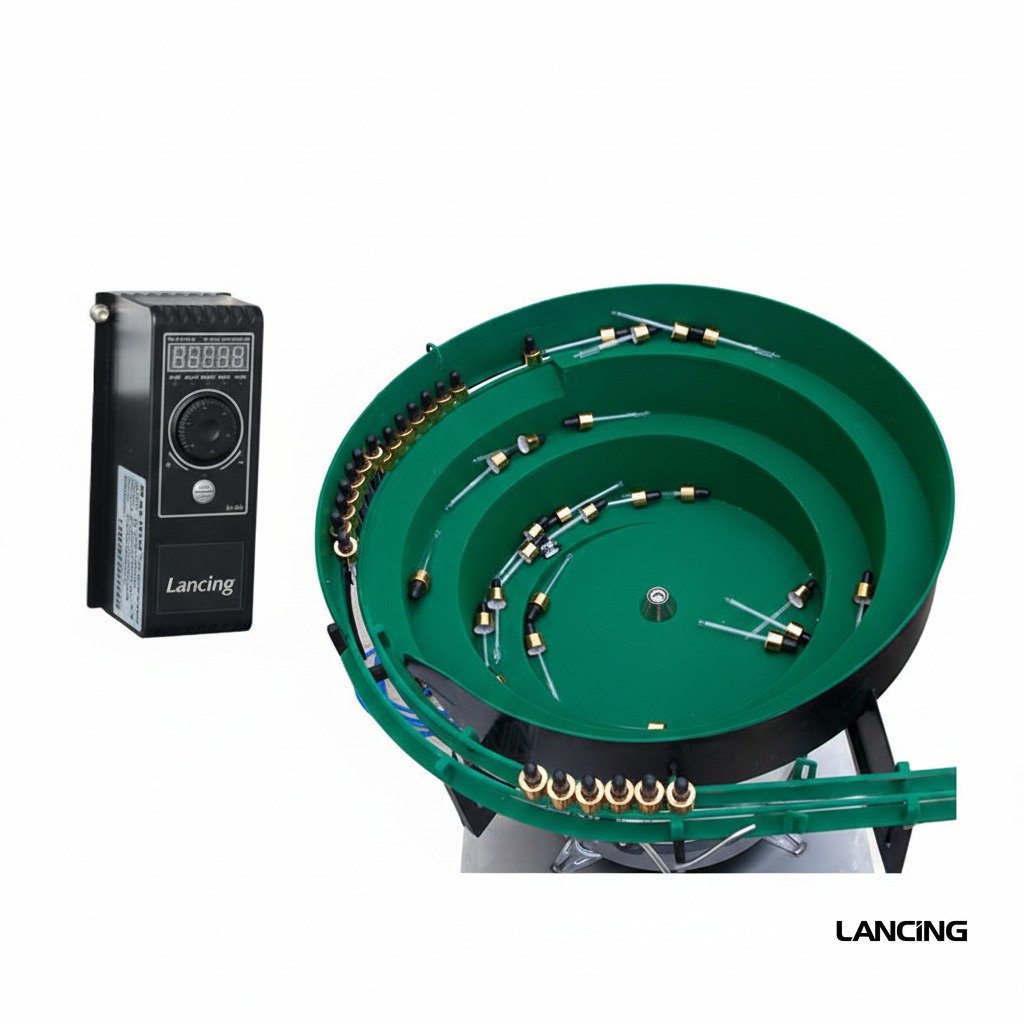

The Lancing UK ZS‑XG16E is an automatic capping machine engineered for droppers, making it ideal for essential oil and nail polish bottle production. It integrates feeding, clamping, inserting, and tightening in a single process, significantly improving efficiency. The vibratory bowl can be custom‑built to match different dropper designs, ensuring reliable operation across various bottle and cap sizes. Suitable for bottles 30 mm to 300 mm in height and caps 18 mm to 70 mm in diameter, it delivers a working speed of 20–60 bottles per minute with stable performance in food, cosmetics, and personal care packaging lines.
Throughput
20-60 bottles / minute (Depending on bottle and cap size and shape)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
AC220V/110V 50-60HZ
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| AC220V/110V | 50-60HZ |
| About | 19307401600mm |
| Machine model | LU-XG16E |
| Bottle height | 30-300mm |
| Cap diameter | 18-70mm |
| Bottle diameter | 20-160mm |
| Working speed | 20-60 bottles / minute (Depending on bottle and cap size and shape) |
| Working voltage | AC220V/110V 50-60HZ |
| Working pressure | 0.4-0.6MPa |
| Machine size | About 1930*740*1600mm |
| Package size | About 1970*990*1740mm |
| Net weight/Gross weight | About 150kg/334kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
