Machine overview
Automatic Capping Machine
Machine overview and key points for quotation.

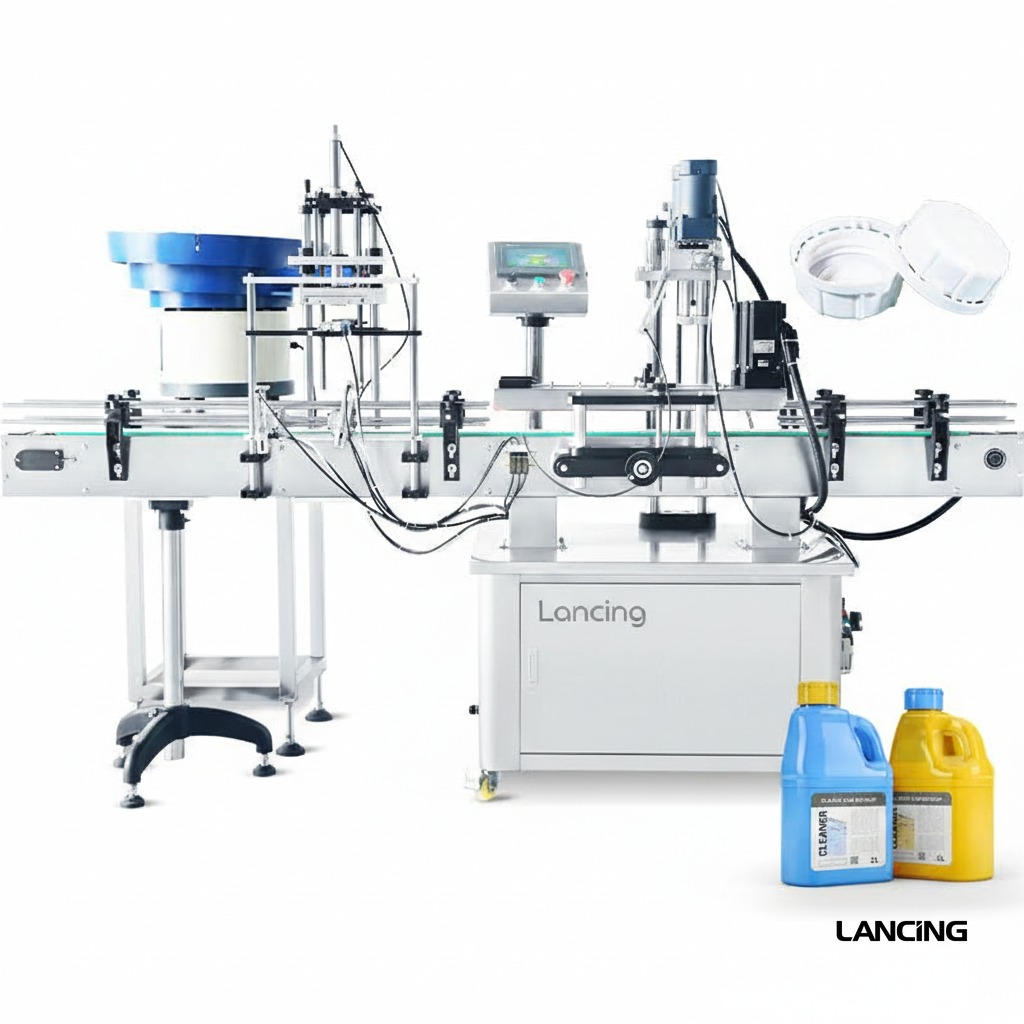

The LU-XG440H is a high-speed automatic capping machine engineered for F-style bottles. With dual-motor driven wheels and pneumatic precision, it delivers secure, consistent cap placement at up to 1500 bottles per hour. Its fully automatic operation and adjustable settings make it ideal for industrial packaging lines in chemical, food, and household product sectors.
Throughput
10–25 bottles/minute (depending on bottle and caps)
Target speed depends on product, pack and operator workflow.
Format range
1500 bottles per hour
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
AC220V/110V 50–60Hz 300W
We’ll confirm voltage, air and installation requirements for your site.

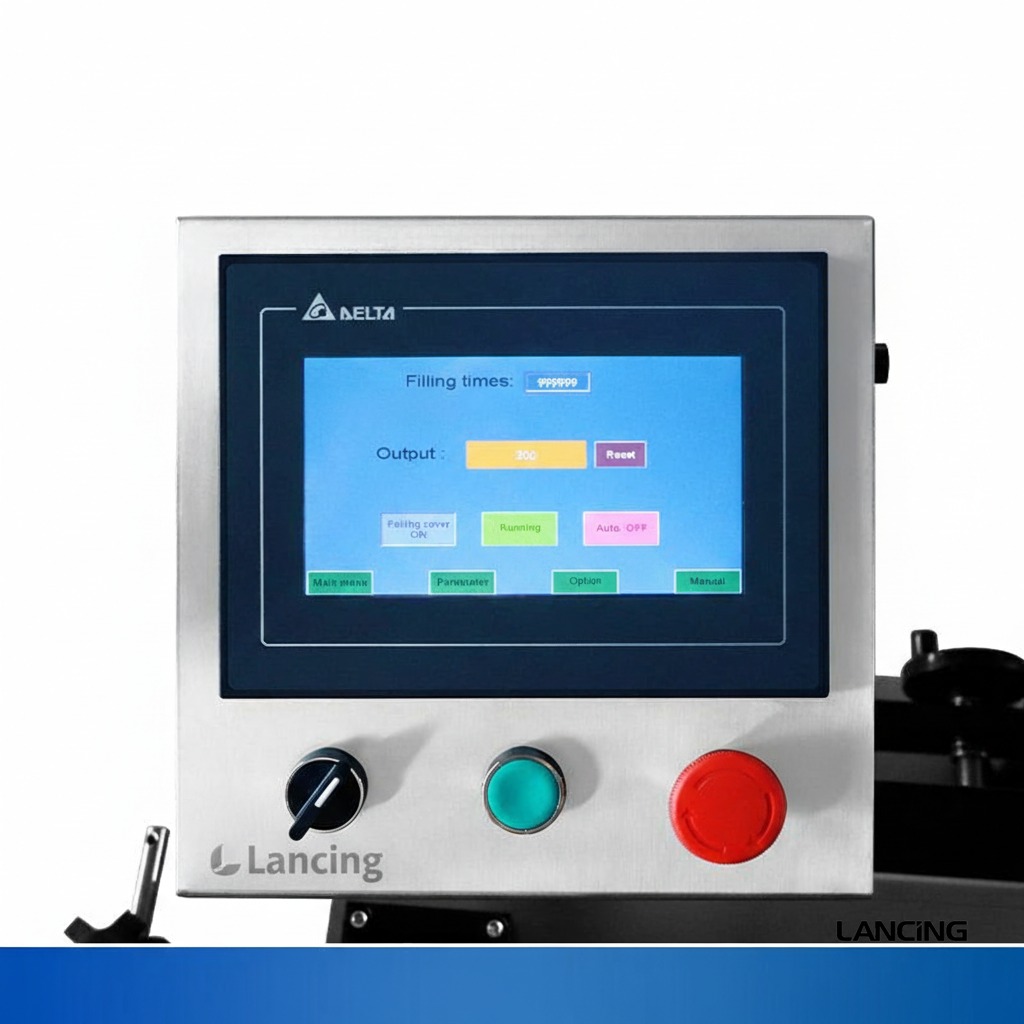

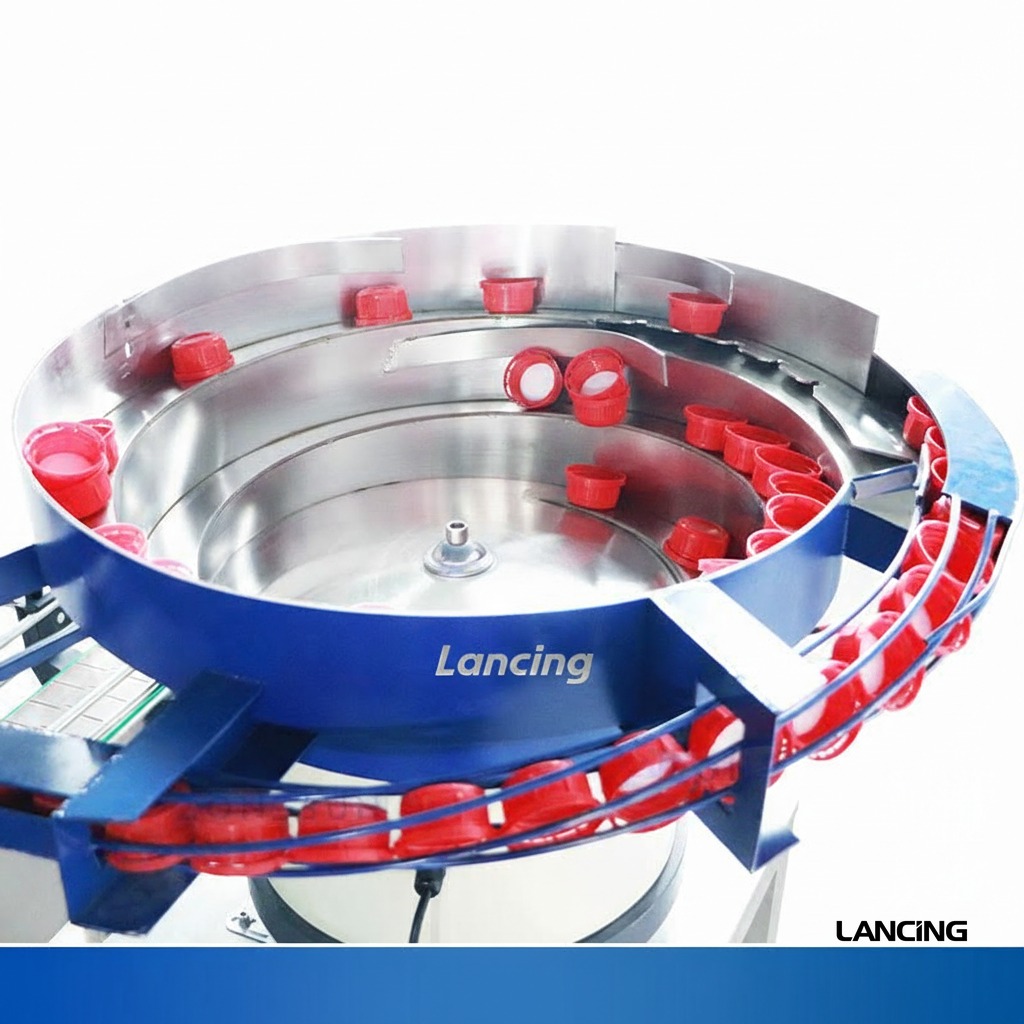

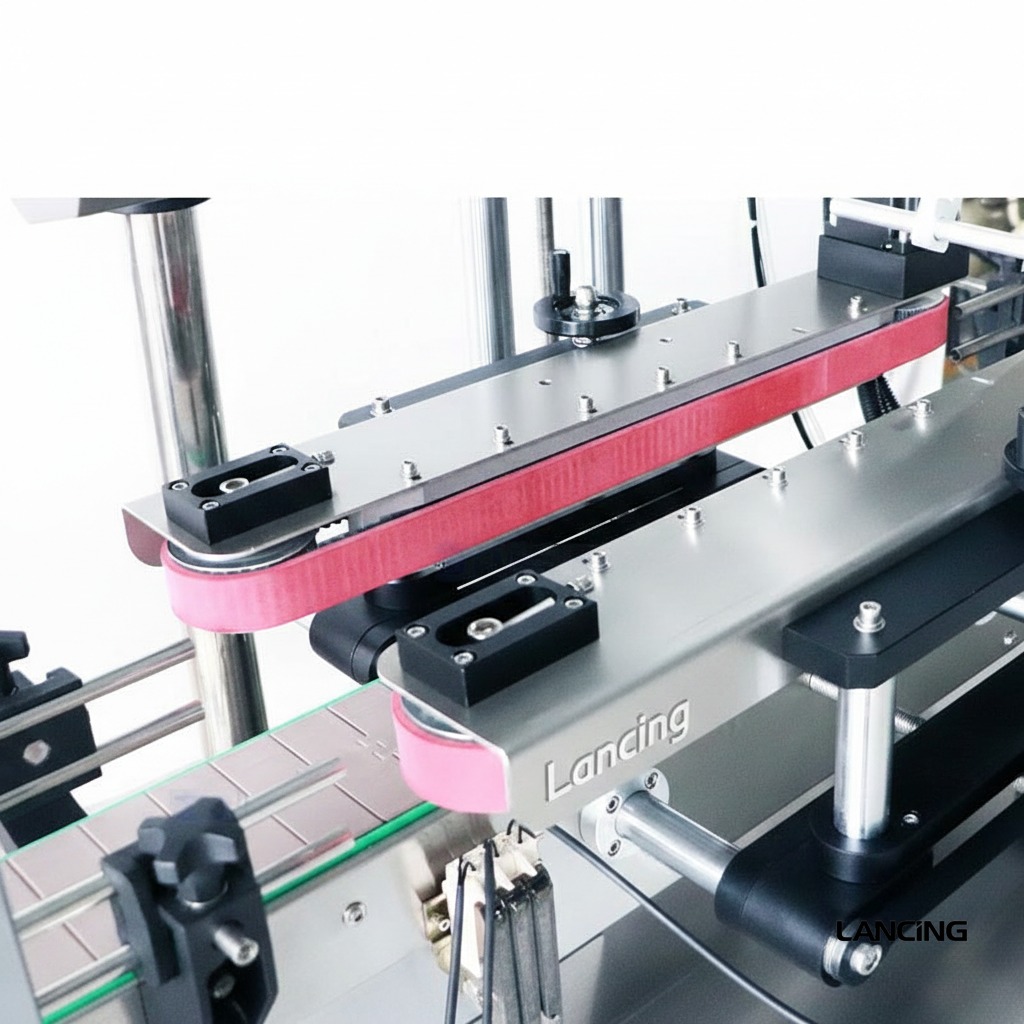

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine model | LU-XG440H |
| Working voltage | AC220V/110V 50–60Hz 300W |
| Bottle height | 50–350mm |
| Bottle Caps Diameter | 20–50mm |
| Working speed | 10–25 bottles/minute (depending on bottle and caps) |
| Working pressure | 0.4–0.6MPa |
| Capping Torsion | 4–9kgf/cm |
| Machine size | About 2500×1250×1660mm |
| Packing size | About 2600×840×1680mm |
| Gross weight | About 320kg |
| High production capacity | 1500 bottles per hour |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
