Machine overview
Automatic Film Heat Shrinking
Machine overview and key points for quotation.
This heat shrinking machine is suitable for shrinking PE film, PVC film, POF film, etc. It can be used for packaging large products, such as carton, yoga mat, beverage bottles, etc. We also have other-size shrinking machine. Please contact us if you need. Attention This shrinking machine can work with sealing and cutting machine, realizing automated packaging. If you need, please feel free to contact us. Thank you!
Throughput
0-15m/min
Target speed depends on product, pack and operator workflow.
Format range
Max 50kg
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
380V 50-60Hz
We’ll confirm voltage, air and installation requirements for your site.

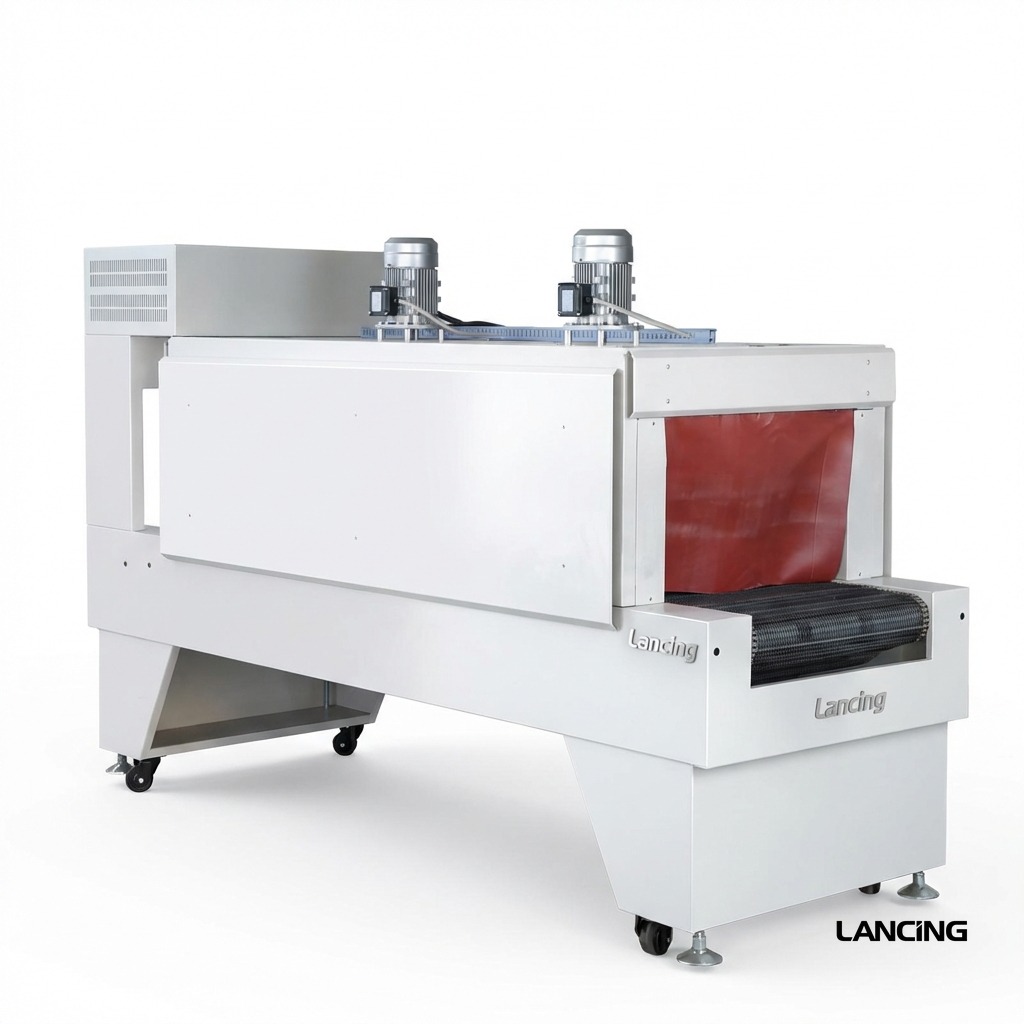

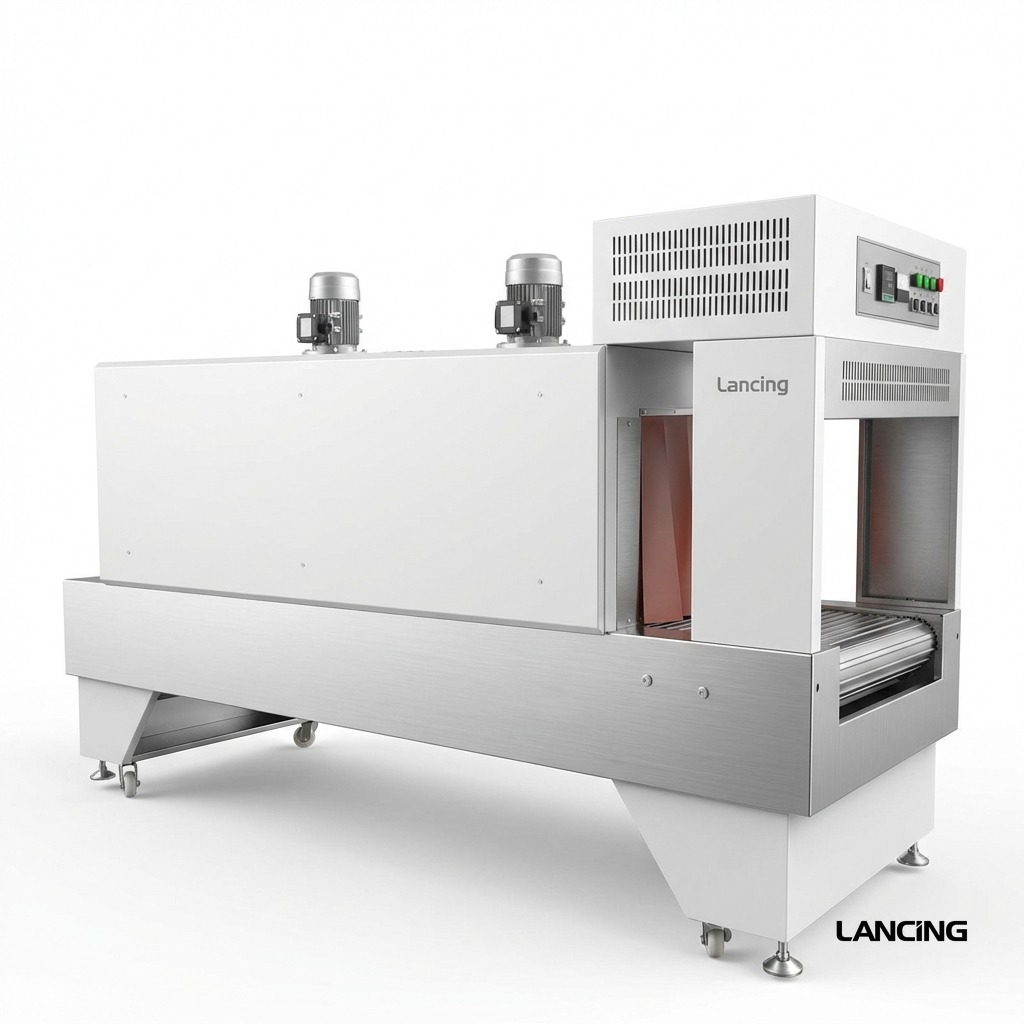

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Max | 50kg |
| Machine Model | LU-BSP6040 |
| Voltage | 380V 50-60Hz |
| Power | 18kW |
| Conveying Speed | 0-15m/min |
| Furnace Size (L*W*H) | 1800*600*400mm |
| Product Size (W*H) | 500*350mm |
| Conveyor Type | Teflon conveyor, chain conveyor, net conveyor |
| Conveyor Loading Capacity | Max 50kg |
| Applicable Film Material | PE, POF, PVC, etc |
| Net Weight | 420KG |
| Machine Size | 2500*900*1650mm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
