Machine overview
Automatic Centrifugal Pump Whiskey Beverage Liquid Filling Machine
Machine overview and key points for quotation.
This equipment adopts a centrifugal pump control system for filling and is equipped with a customized backflow filling nozzle to ensure high-accuracy liquid level filling . It is suitable for whiskey, rum, and other liquid products, offering fast and efficient filling. The machine can be seamlessly integrated with capping machines, labeling machines, and other equipment , making it ideal for automated production lines.
Throughput
About 50 Bottles Per Minute (BPM)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
Site utilities to be confirmed
We’ll confirm voltage, air and installation requirements for your site.

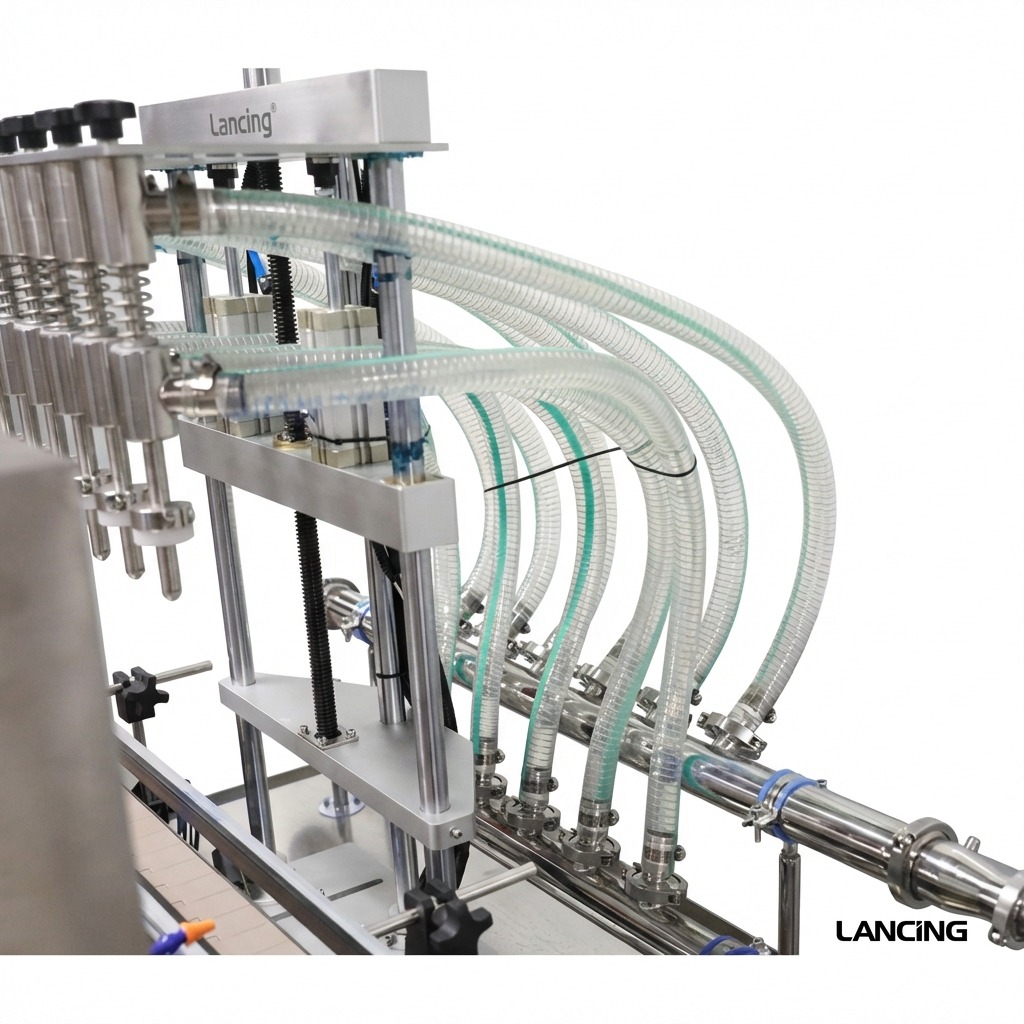

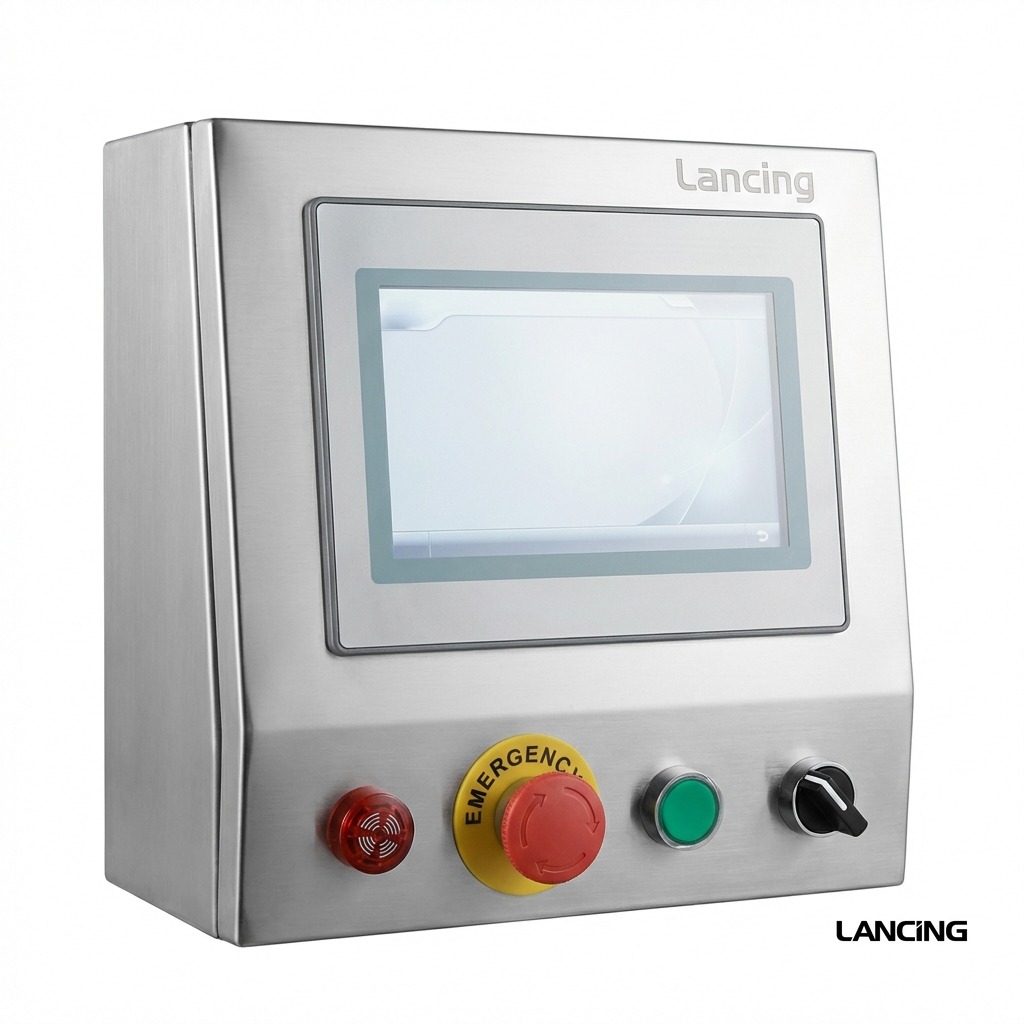

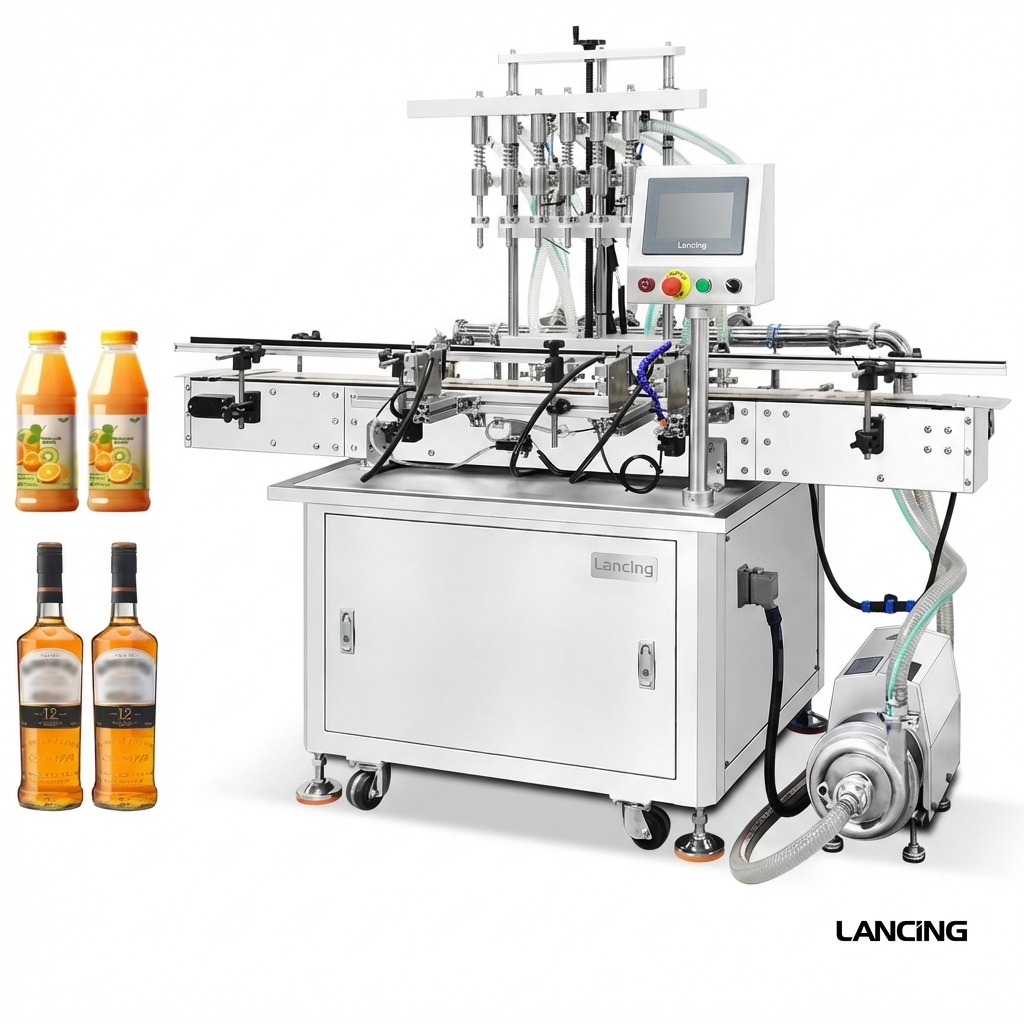

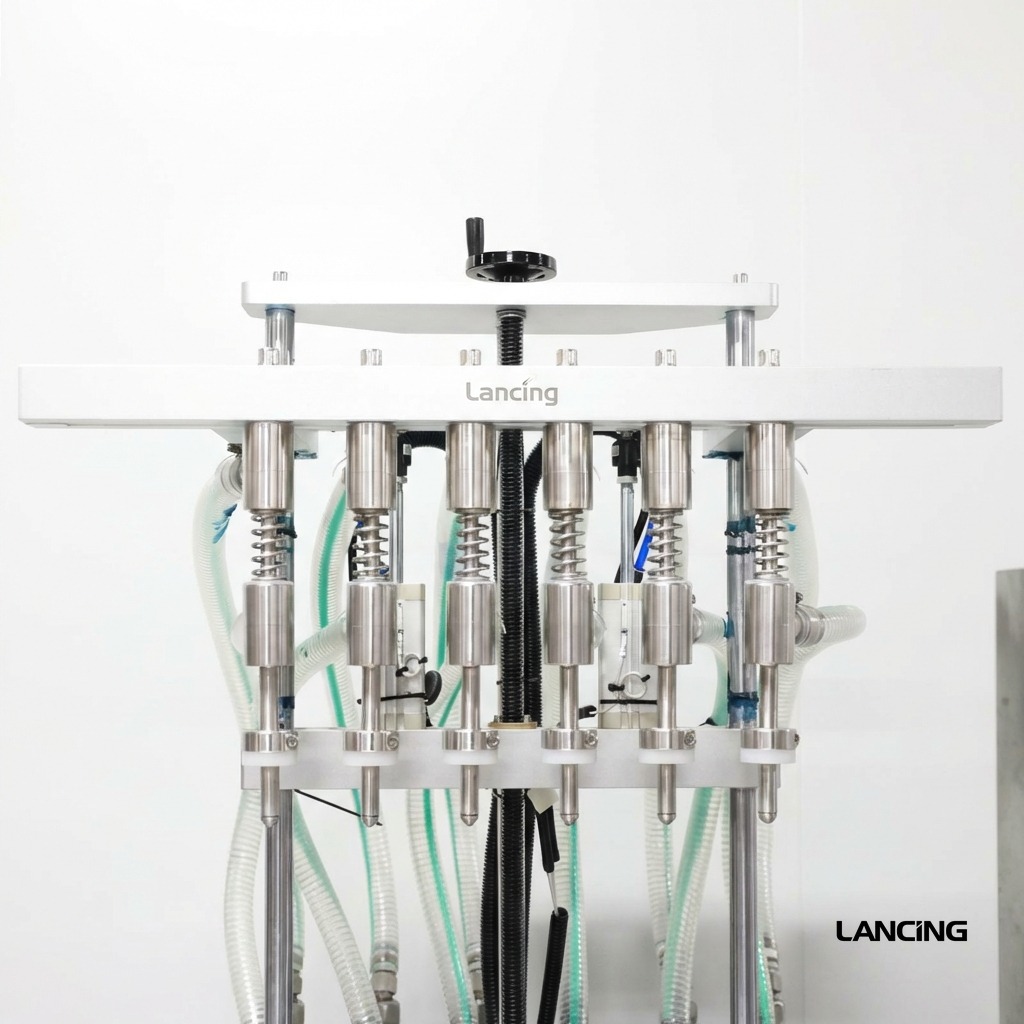

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine Model | LU-VTZL100 |
| Recommended Filling Volume | 100-750 ml (Rigid Bottles) |
| Suitable Bottle Diameter | 30-110 mm |
| Suitable Bottle Height | 100-310 mm |
| Suitable Bottle Neck Diameter | 25-40 mm |
| Working Speed | About 50 Bottles Per Minute (BPM) |
| Filling Accuracy | ± 2 ml |
| Machine Size | Approx. 1906×880×1702 mm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
