Machine overview

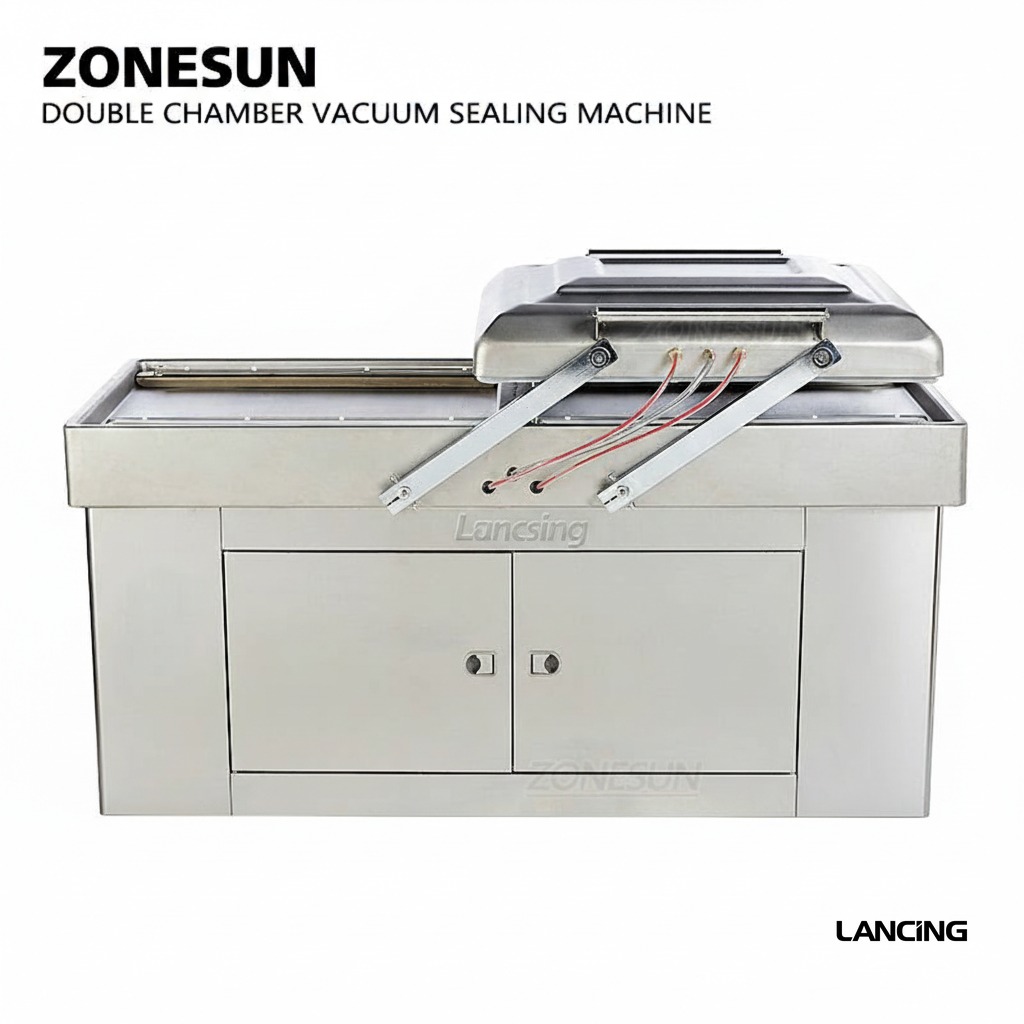

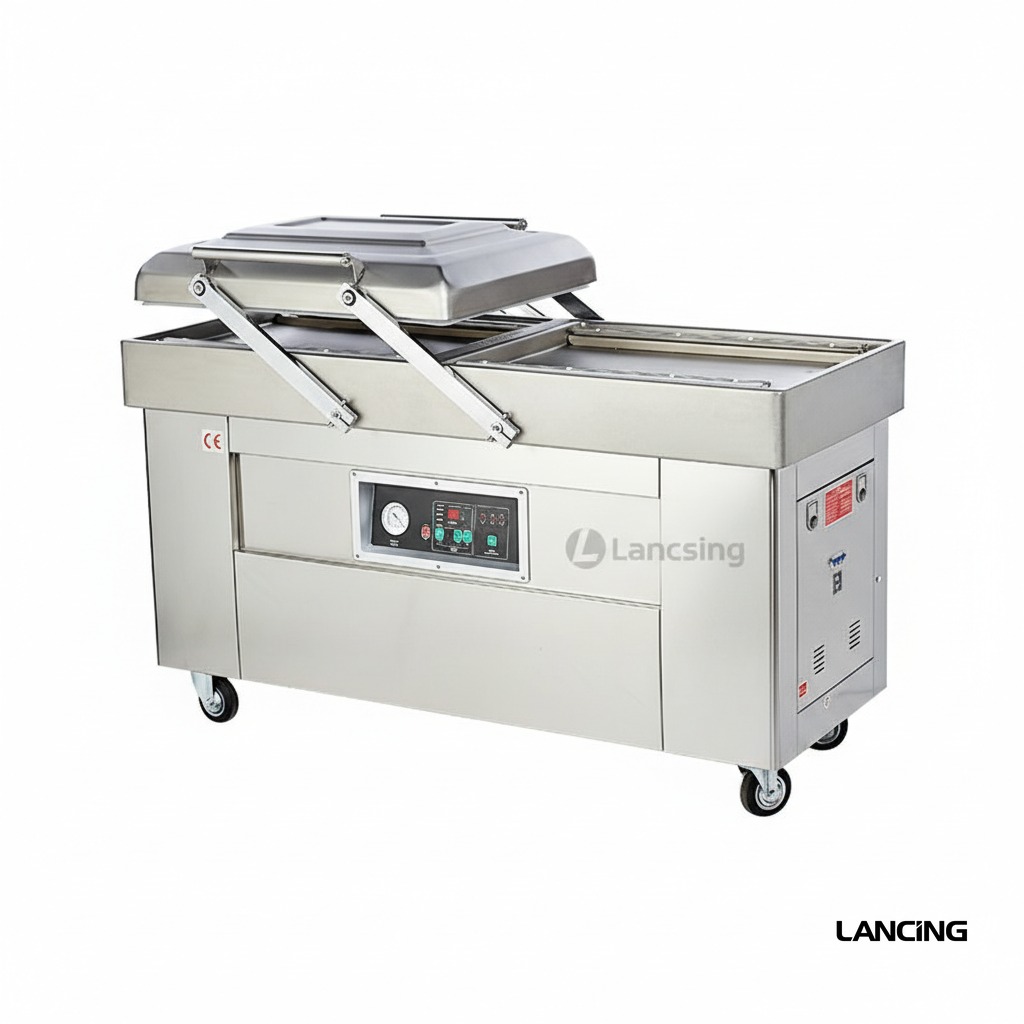

Double Chamber Vacuum Sealer with Date Coding System
Machine overview and key points for quotation.
This automatic double chamber vacuum packaging machine is designed to seal and protect food products with high efficiency. With dual chambers, it boosts output while maintaining strong vacuum performance. The adjustable vacuum and sealing controls allow for flexible operation, and the integrated date printing ensures compliance with food labeling standards. It’s a reliable choice for food businesses seeking precision, speed, and consistency in their packaging process. Model DZ-400-2S DZ-400-2SX DZ-500-2S DZ-600-2S DZ-600-2SX Power 1800W 1800W 3000W 3500KW 3500KW Voltage 220V, 50Hz 220V, 50Hz 220V/380V, 50Hz 220V/380V, 50Hz 220V/380V, 50Hz Heating Size L400 × W10mm L400 × W10mm L500 × W10mm L600 × W10mm L600 × W10mm Sealing Bars Double Double Double Double Double Chamber Size 400 × 360 × 70mm 420 × 400 × 120mm 420 × 400 × 120mm 420 × 400 × 120mm 420 × 400 × 120mm Chamber Distance 350mm 350mm 420mm 420mm 420mm Vacuum Rate 20m³/h 20m³/h 40m³/h 40m³/h 40m³/h Gross Weight 150kg 156kg 220kg 250kg 250kg Package Size 1070 × 770 × 970mm 1070 × 770 × 1030mm 1205 × 590 × 1020mm 1530 × 770 × 1030mm 1530 × 770 × 1030mm
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
1800W
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | DZ-400-2S |
| Power | 1800W |
| Voltage | 220V, 50Hz |
| Heating Size | L400 × W10mm |
| Sealing Bars | Double |
| Chamber Size | 400 × 360 × 70mm |
| Chamber Distance | 350mm |
| Vacuum Rate | 20m³/h |
| Gross Weight | 150kg |
| Package Size | 1070 × 770 × 970mm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
Talk to a specialist
We’ll confirm suitability, options, integration, and realistic throughput for your product.
Enquire about this machine
Send a message and we’ll respond with configuration options, pricing guidance and lead times.
