Machine overview
Automatic Double-Side Round & Flat Labeler
Machine overview and key points for quotation.
The Lancing UK LU-TB300A/300B is a versatile front-and-back labeling solution for round and flat bottles. Swap the round-bottle module to switch between single- and double-side labeling while maintaining clean, consistent presentation. Built to integrate with filling and capping machines, it completes a seamless automated packaging line and boosts throughput with minimal changeover.
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
60–350 pcs/min (depends on bottle size)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
AC220V 50Hz/60Hz 1500W
We’ll confirm voltage, air and installation requirements for your site.

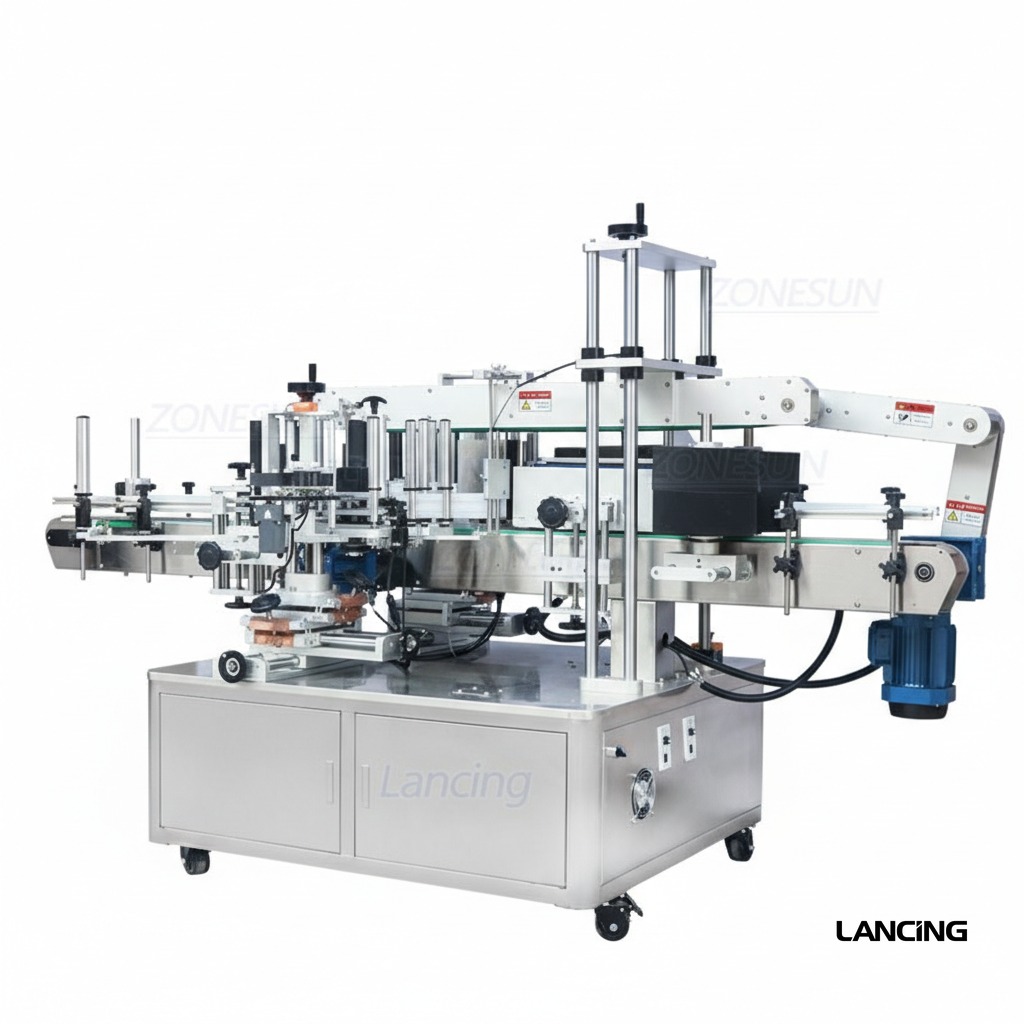

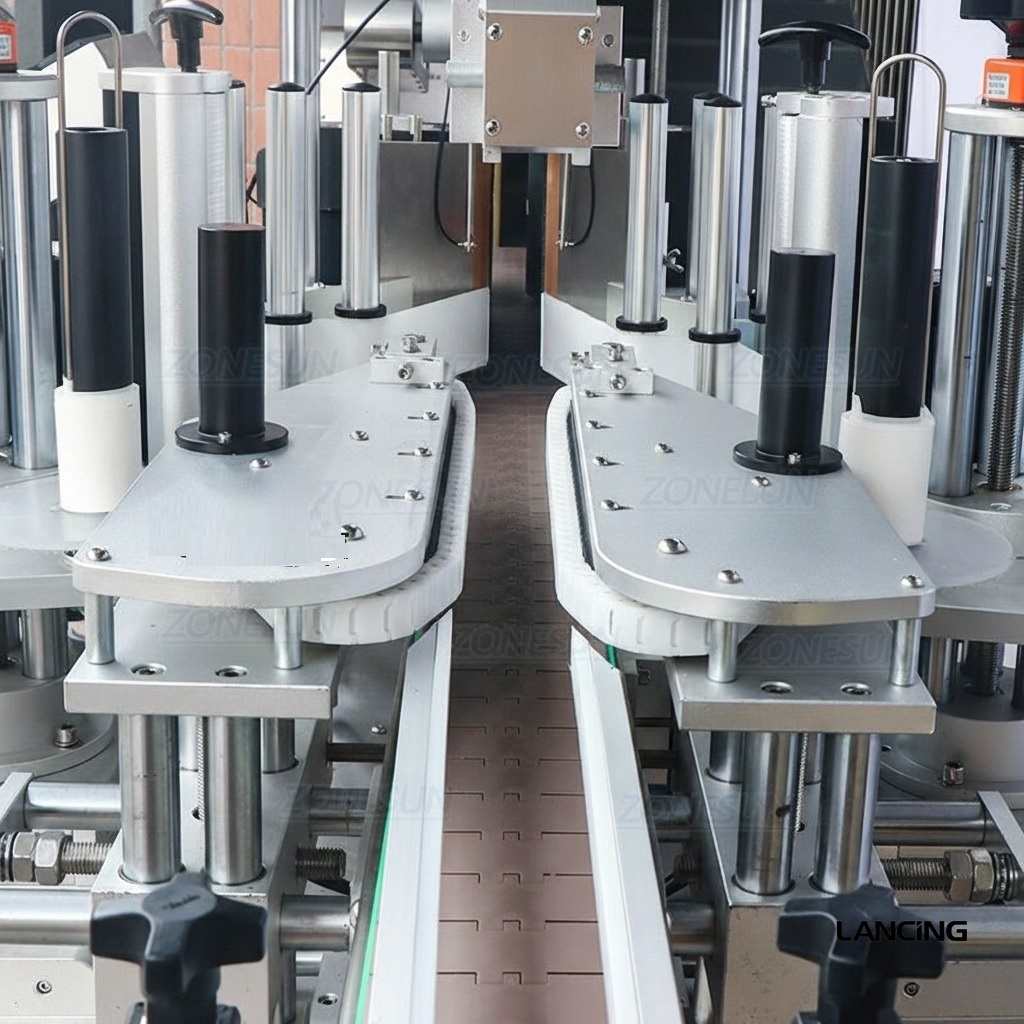

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Product Information | ZS‑TB300A |
| Machine Model | ZS‑TB300A |
| Round Bottle | Single Side |
| Flat Bottle | — |
| Labeling Capacity (pcs/min) | 60–350 pcs/min (depends on bottle size) |
| Labeling Material Thickness | 20–120 mm |
| Labeling Material Height | 30–350 mm |
| Label Size | (L)25–300 mm × (H)15–200 mm |
| Roll Inside Diameter | φ76 mm |
| Roll Outside Diameter | φ350 mm |
| Power Supply | AC220V 50Hz/60Hz 1500W |
| Machine Size | About 2120×940×1500 mm |
| Packing Size | About 2850×1300×1900 mm |
| Net/Gross Weight | About 450 kg / 650 kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
