Machine overview
Automatic Dropper Bottle Capping Machine
Machine overview and key points for quotation.

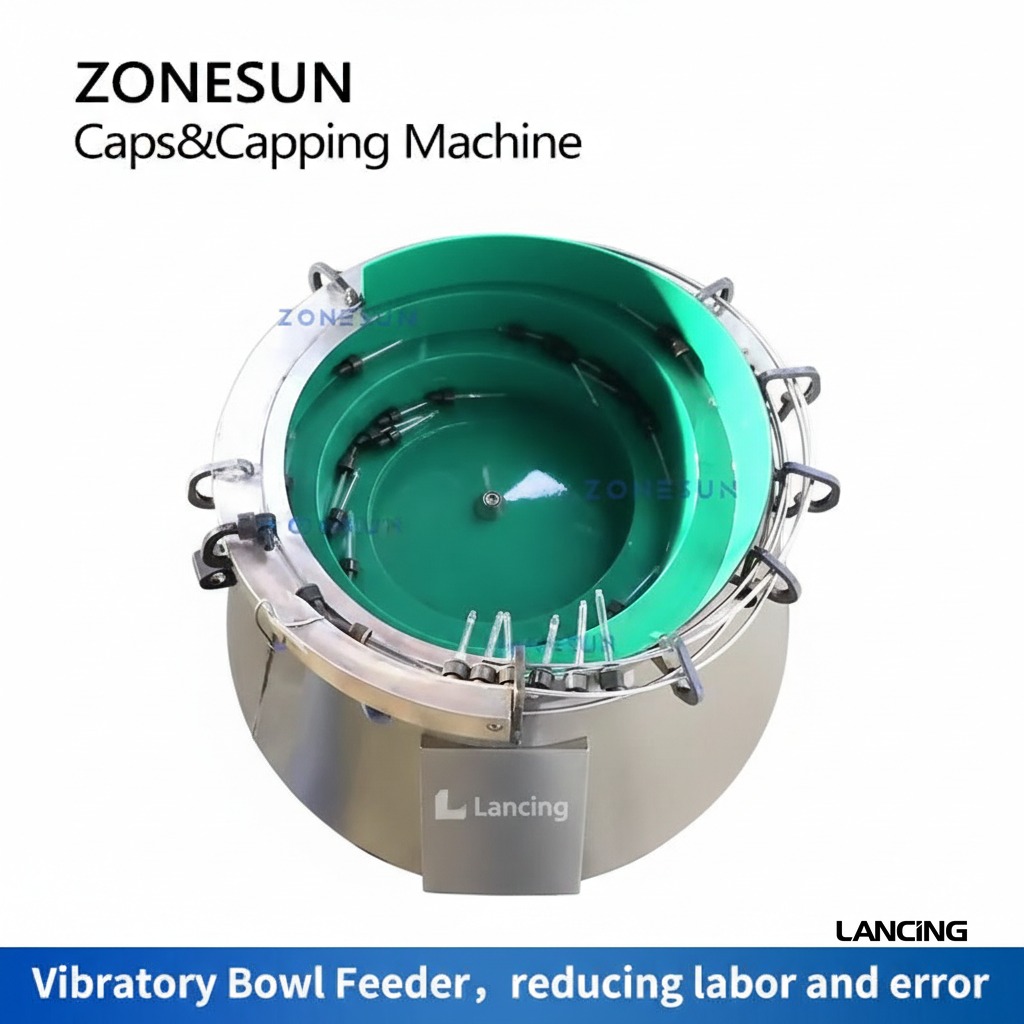

The Lancing UK LU-XG1870R is a desktop automatic capping machine designed specifically for dropper bottles and sprayer bottles. It features a customizable vibratory bowl for cap sorting and feeding, ensuring smooth and efficient operation. With adjustable speed and pneumatic control, the machine can handle bottles ranging from 60–270 mm in height and caps from 18–70 mm in diameter. Operating at 20–40 bottles per minute, it’s ideal for cosmetic, pharmaceutical, and essential oil packaging lines. Compact, reliable, and built with stainless steel, this machine is a smart solution for small to medium-scale production. Machine Type： Vibratory Bowl
Throughput
Customized
Target speed depends on product, pack and operator workflow.
Format range
60–270 mm
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110V / 220V, 50–60Hz
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Power Supply | 110V / 220V, 50–60Hz |
| Material Stainless Steel | Suitable Cap Diameter Customized |
| Working Speed | Customized |
| Machine Size | Customized Capping Machine |
| Model | LU-XG1870R |
| Working Voltage | AC 220V / 110V, 50–60Hz |
| Bottle Height Range | 60–270 mm |
| Cap Diameter Range | 18–70 mm |
| Working Pressure | 0.4–0.6 MPa |
| Conveyor Length | 1117 mm |
| Air Compressor Connector Size | Outer Diameter 8 mm |
| Machine Dimensions Approx. | 1120 × 580 × 1110 mm |
| Package Dimensions Approx. | 1160 × 610 × 1140 mm |
| Package Weight Approx. | 97.5 kg |
| Machine Type | Vibratory Bowl |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
