Machine overview
ZS-YT4T-4P Automatic 4 Nozzle Paste Filling Machine
Machine overview and key points for quotation.
Application
Throughput
10-40bottles/min
Target speed depends on product, pack and operator workflow.
Format range
5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220V 50-60HZ 800W
We’ll confirm voltage, air and installation requirements for your site.

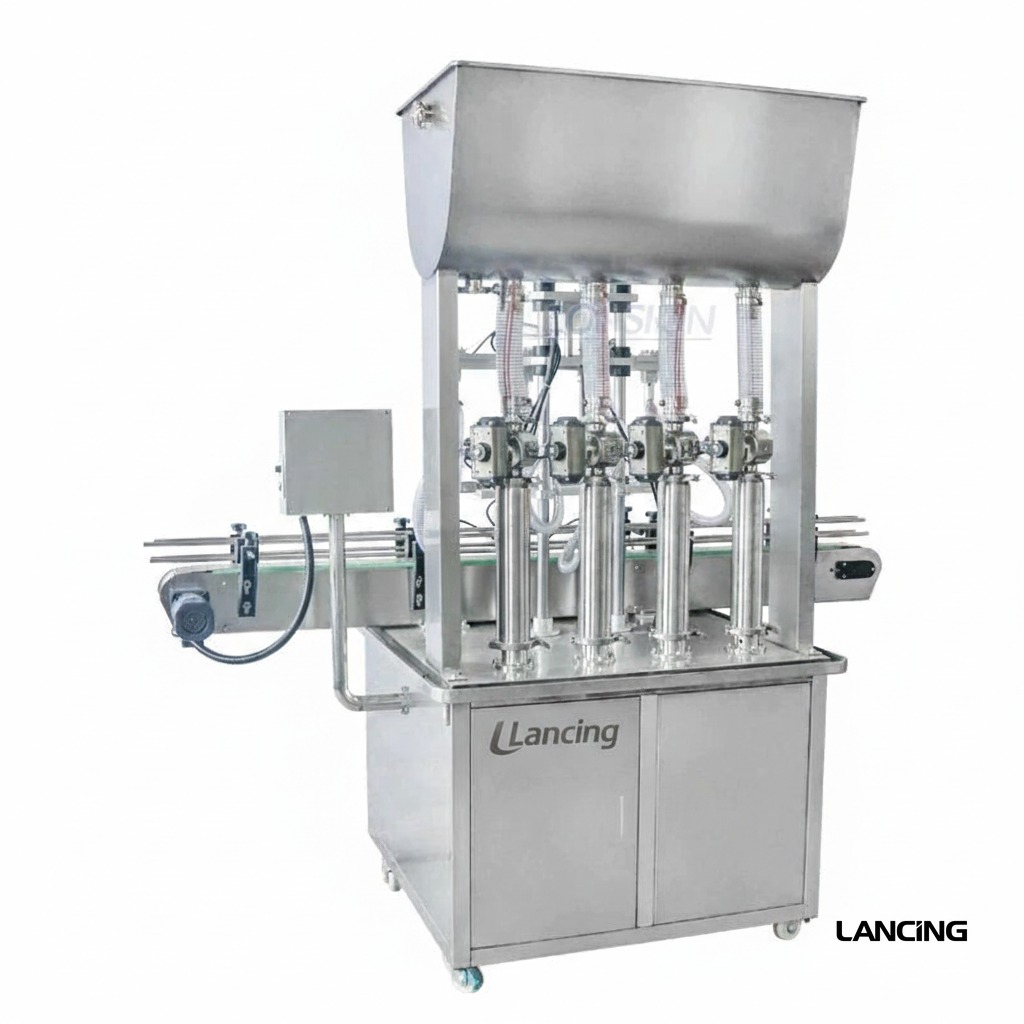

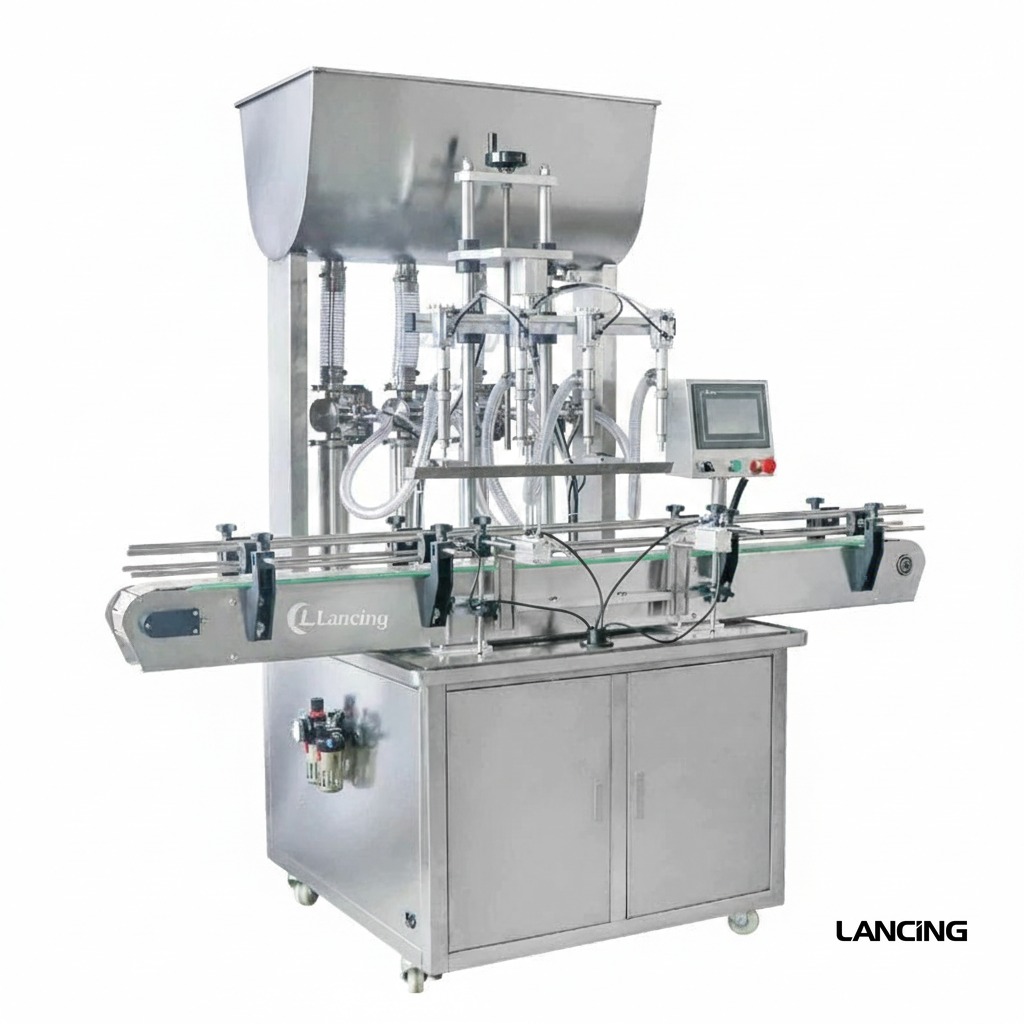

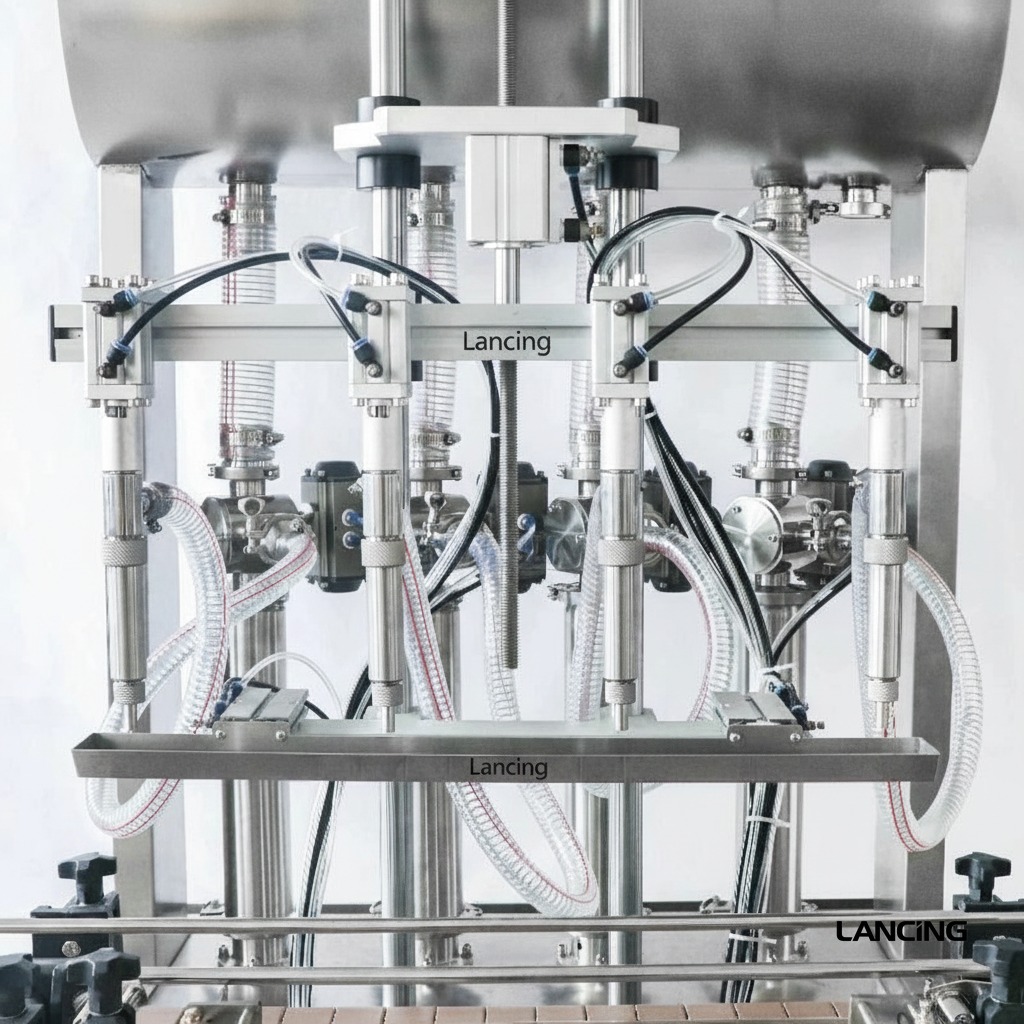

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| About | 1990100mm(LW) |
| Model | LU-YT2T-2P |
| Voltage | 110/220V 50-60HZ 800W |
| Filling Range | 5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
| Working Speed (base on water) | 10-40bottles/min |
| Filling Accuracy | ≤+1% |
| Conveyor Size | About 1990*100mm(L*W) |
| Filling Nozzle Size | Φ10mm |
| Size of air compressor connector | Φ10mm |
| Machine Size | About 1990*950*1970mm(4 Heads) |
| Package Weight | 220kg |
| Package Size | 2000*1200* 2300mm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
