Machine overview
Automatic Hot Melt Glue Film Round Bottle Labeling Machine
Machine overview and key points for quotation.
This series of labeling machines has a wide range of applications. It is suitable for circular labeling of various materials including OPP film, pearlescent films, paper-plastic composite films, and paper labels on round and other cylindrical containers such as plastic bottles, glass bottles, and metal cans. Whatever your packaging needs are, you can rely on Lancing UK.
Throughput
12,000 bottles/hour (this model can customize 12,000/15,000/20,000/24,000 BPH)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
3-phase 380V, 50Hz, 11kW
We’ll confirm voltage, air and installation requirements for your site.

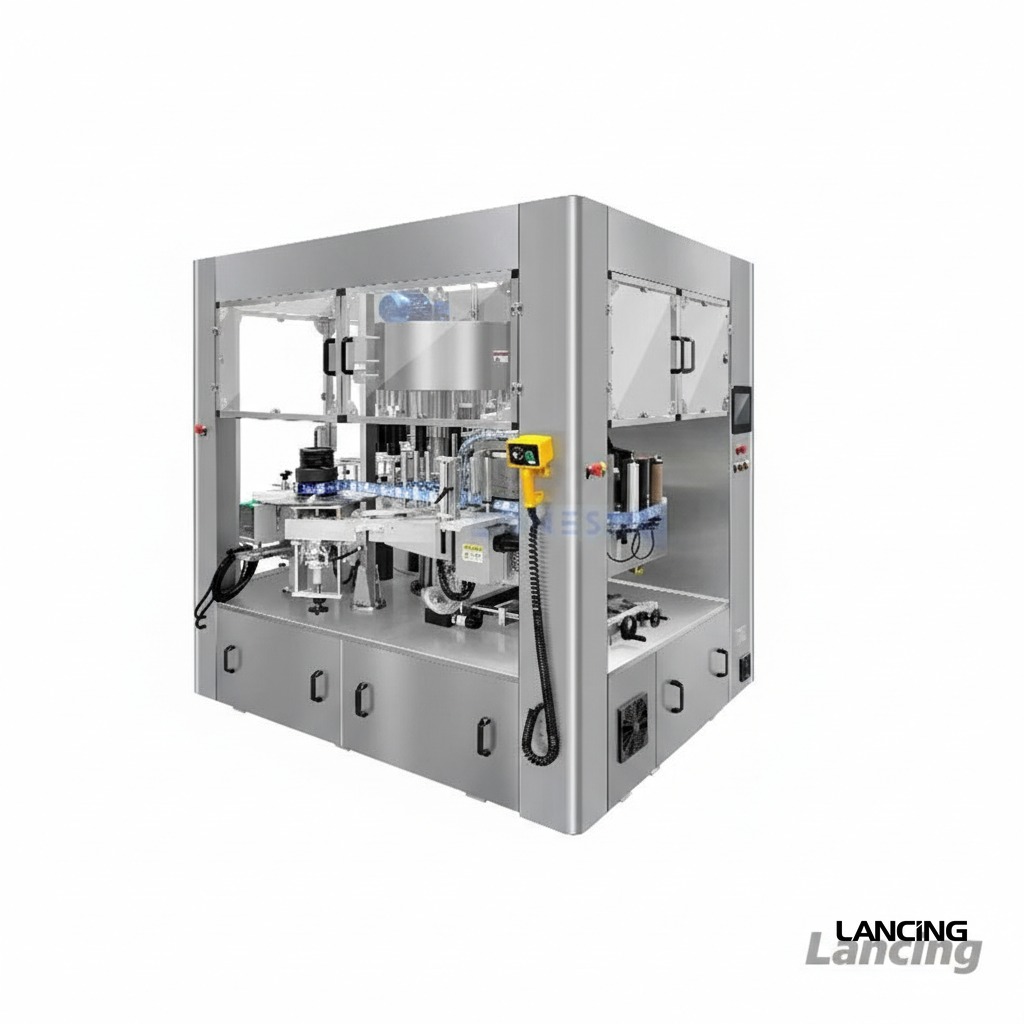

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-CYXR12 |
| Power Supply | 3-phase 380V, 50Hz, 11kW |
| Working Speed | 12,000 bottles/hour (this model can customize 12,000/15,000/20,000/24,000 BPH) |
| Labeling Accuracy | ±1mm |
| Required Size of Labels | 15–1500mm |
| Required Size of Label Rolls | Inner Diameter: 152mm / Outer Diameter: <500mm |
| Applicable Bottles | Diameter: 30–86mm / Height: 70–360mm |
| Gluing Temperature | 120–160°C |
| Machine Size | (L)3300mm × (W)1400mm × (H)2100mm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
