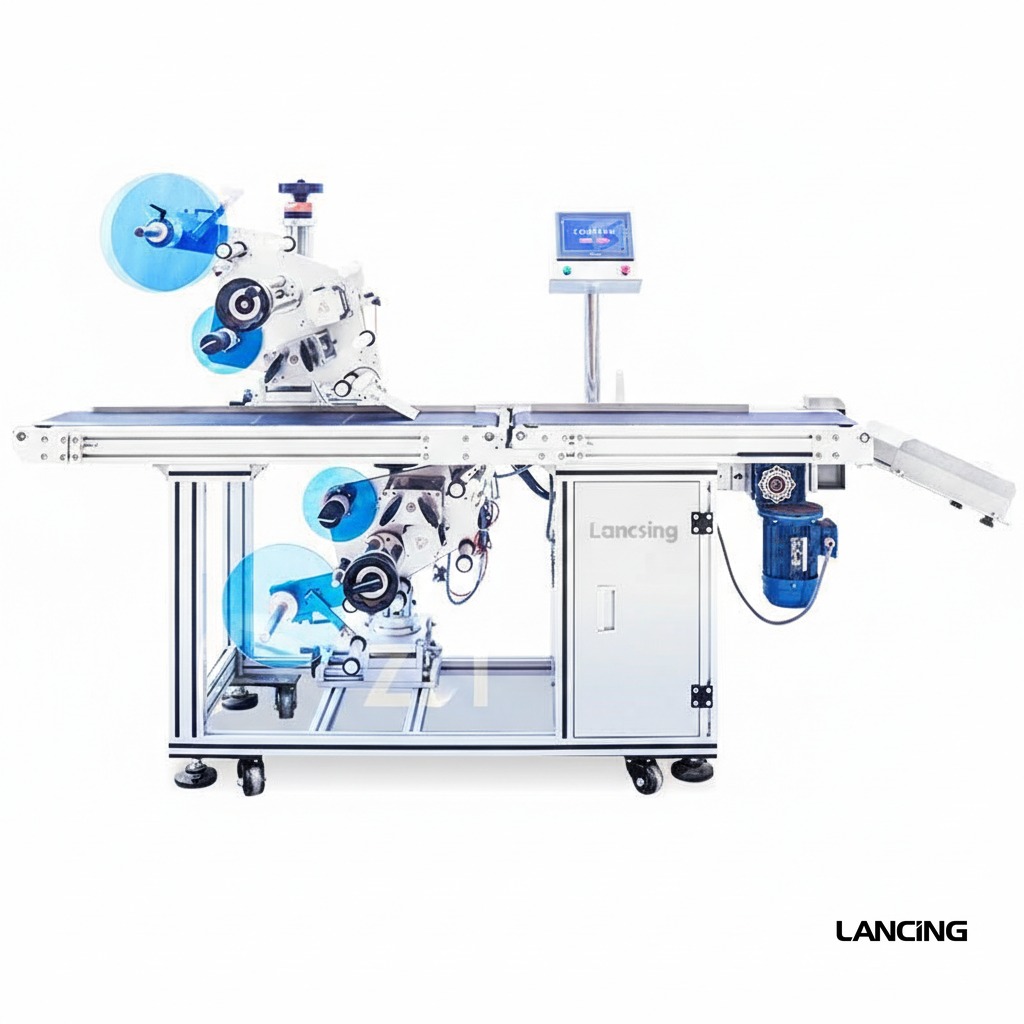

Automatic Top & Bottom Labeling Systems Flat Surface Labeling Machine
Machine overview and key points for quotation.
The LU-TB716Z is a high-performance labeling system designed to apply labels to both the top and bottom of flat products. With precise ±1mm accuracy and adjustable speed, it’s ideal for labeling boxes, trays, and other flat items. Built with a robust frame and intuitive controls, this machine ensures consistent labeling results across various industries including food, cosmetics, and electronics. A reliable solution for dual-sided labeling tasks.
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
Site utilities to be confirmed
We’ll confirm voltage, air and installation requirements for your site.

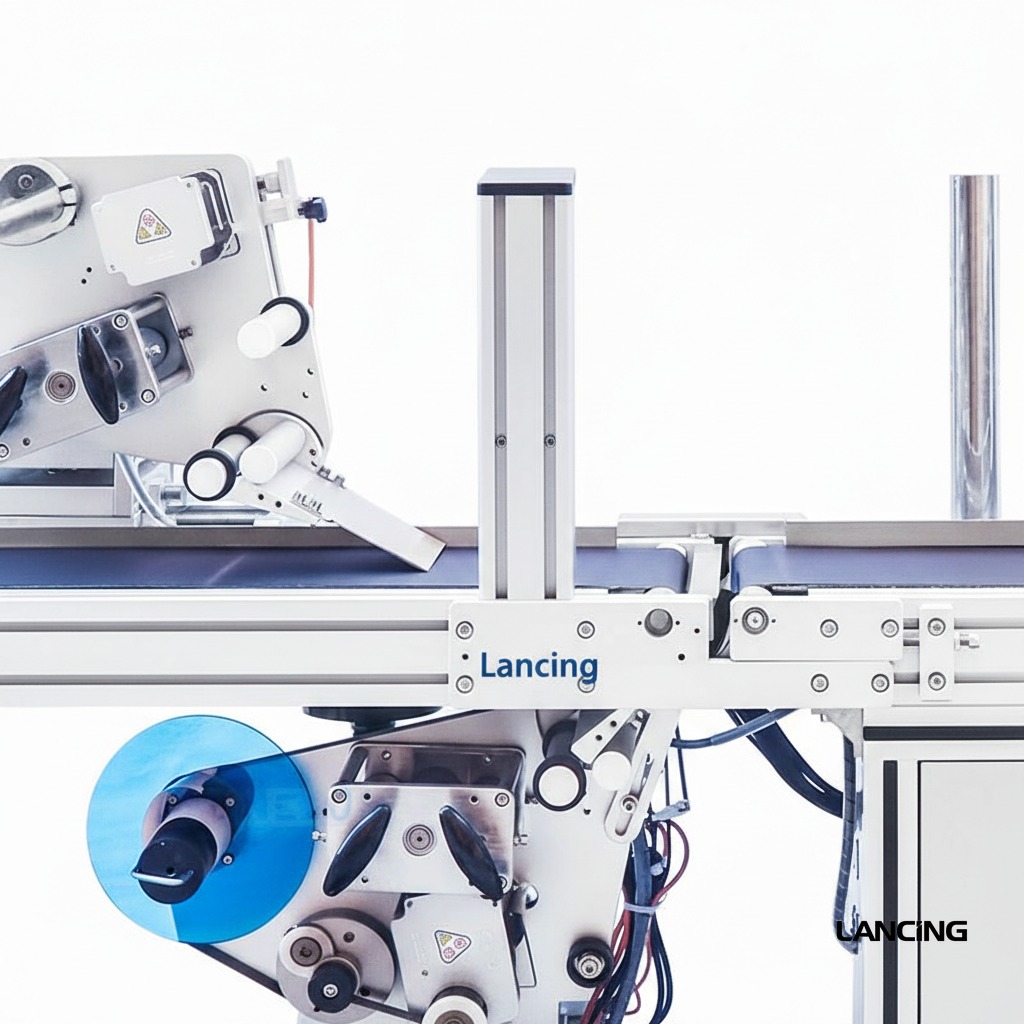

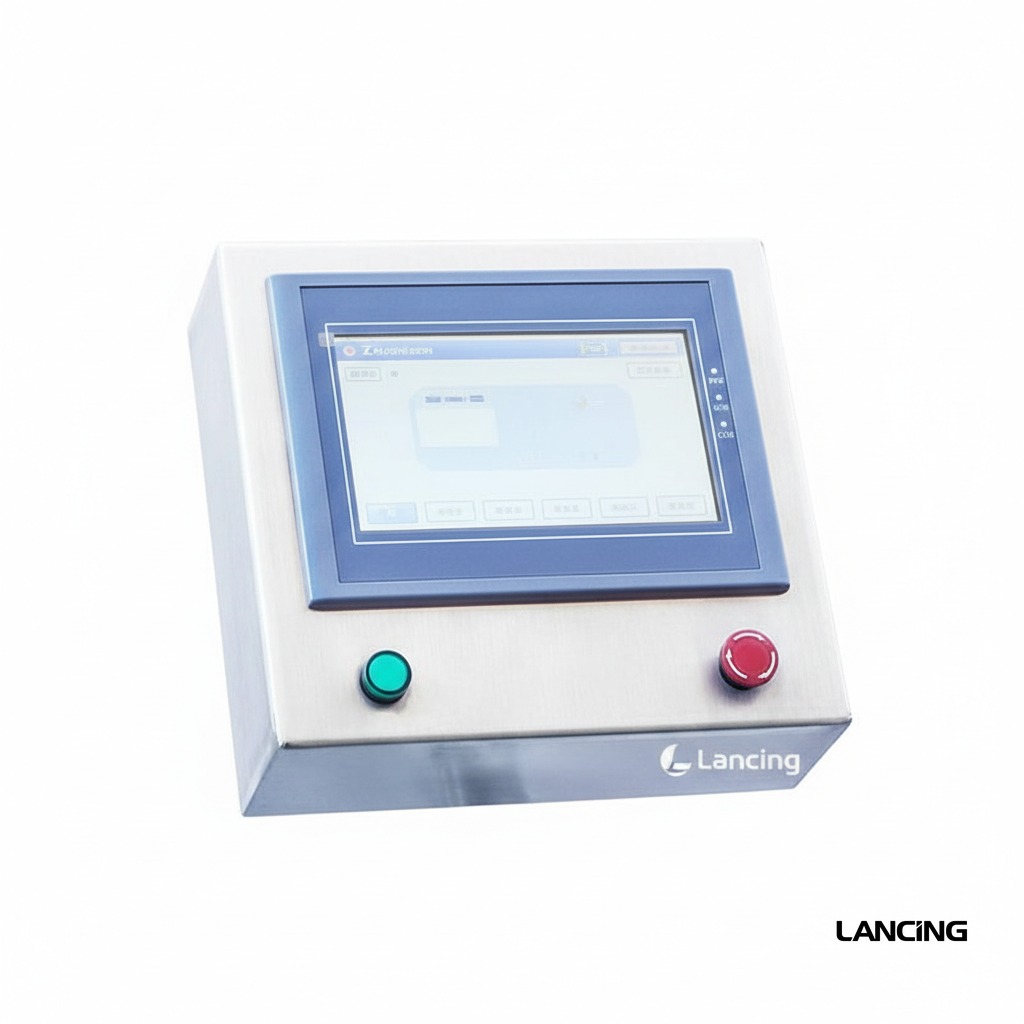

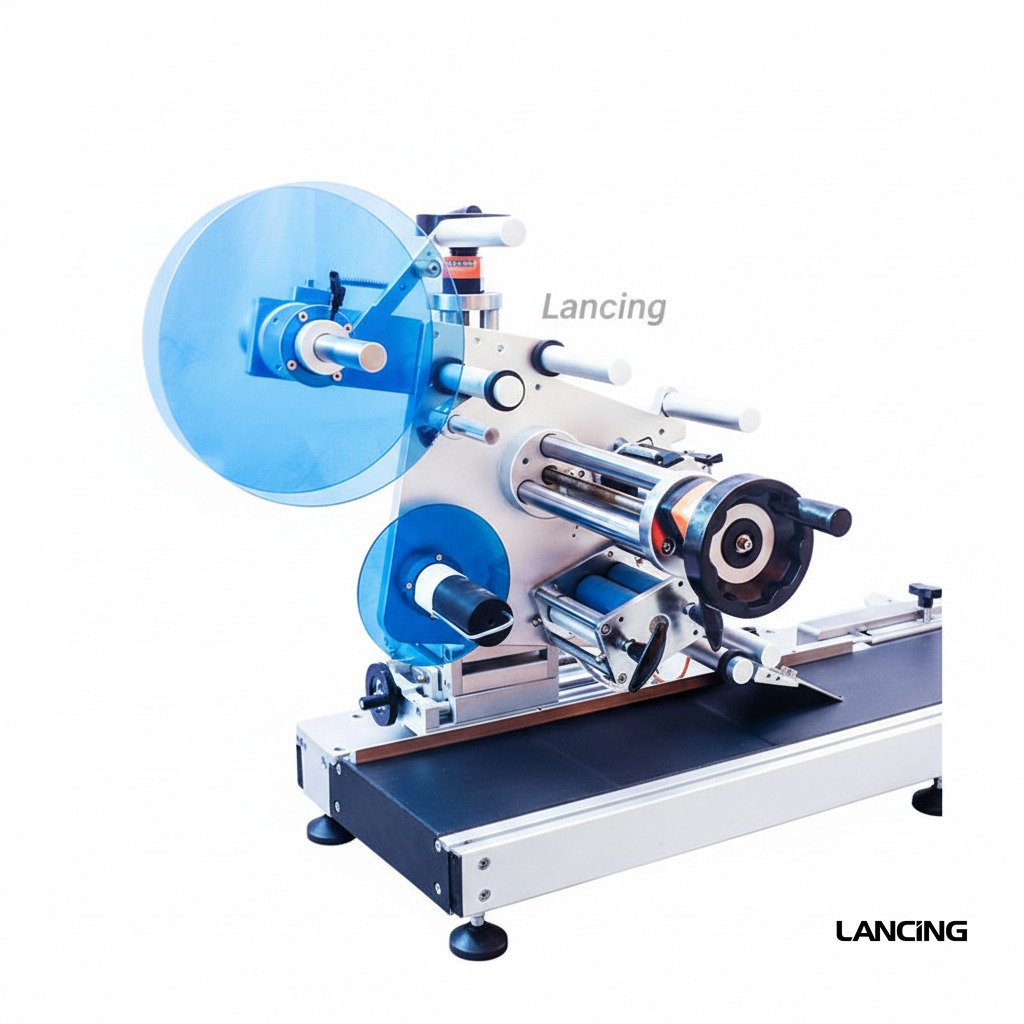

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine Model | LU-TB716Z Power Supply: 110V/220V 50-60HZ Working Speed: 40-80 pieces/min(Based on product and label size) Labeling Accuracy: ±1mm Suitable Labeling Object: 40-300mm(L)40-200(W)0.2-150mm(H) Suitable Label Size: 6-150(L)15-130(W) Label Roll OD: Φ300mm Label Roll ID: Φ76mm Machine Size: About 2400mm(L)780mm(W)1400(H) Machine Weight About 250kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
