Machine overview

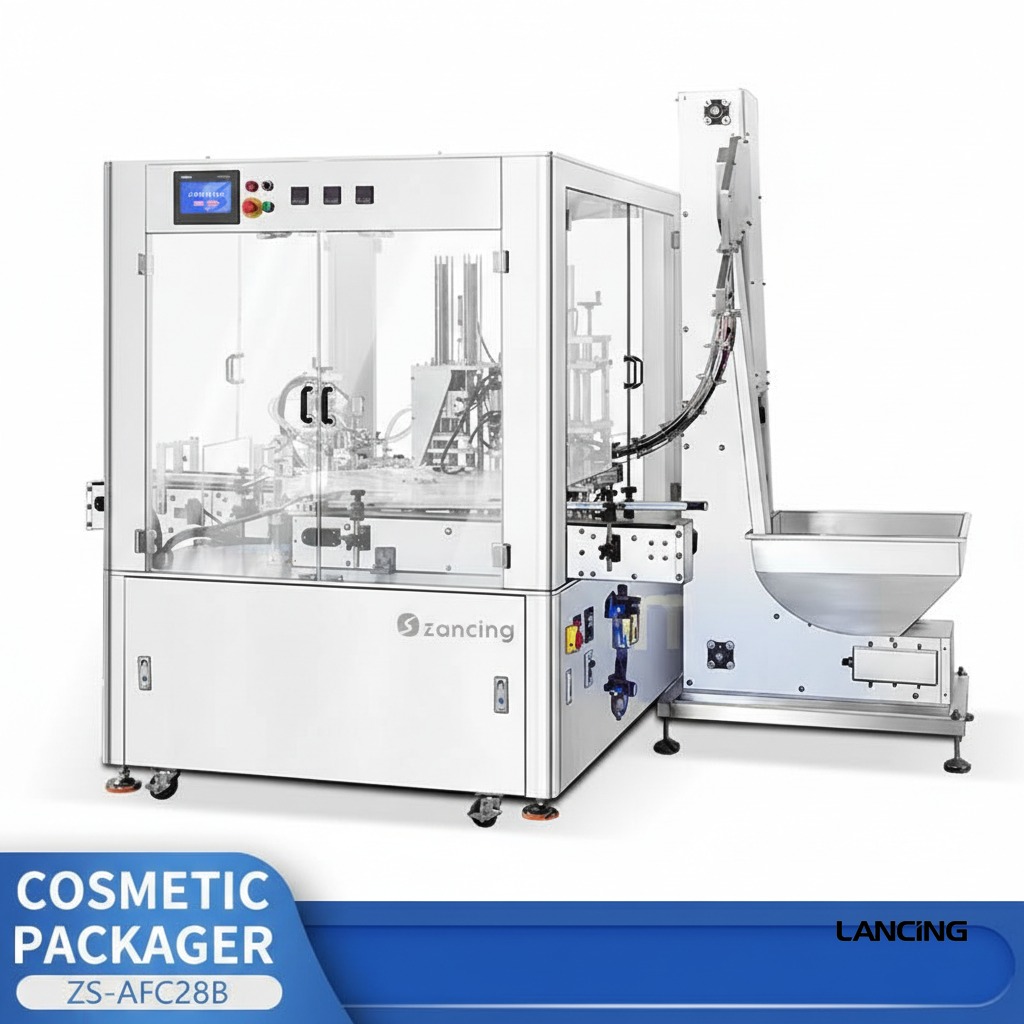

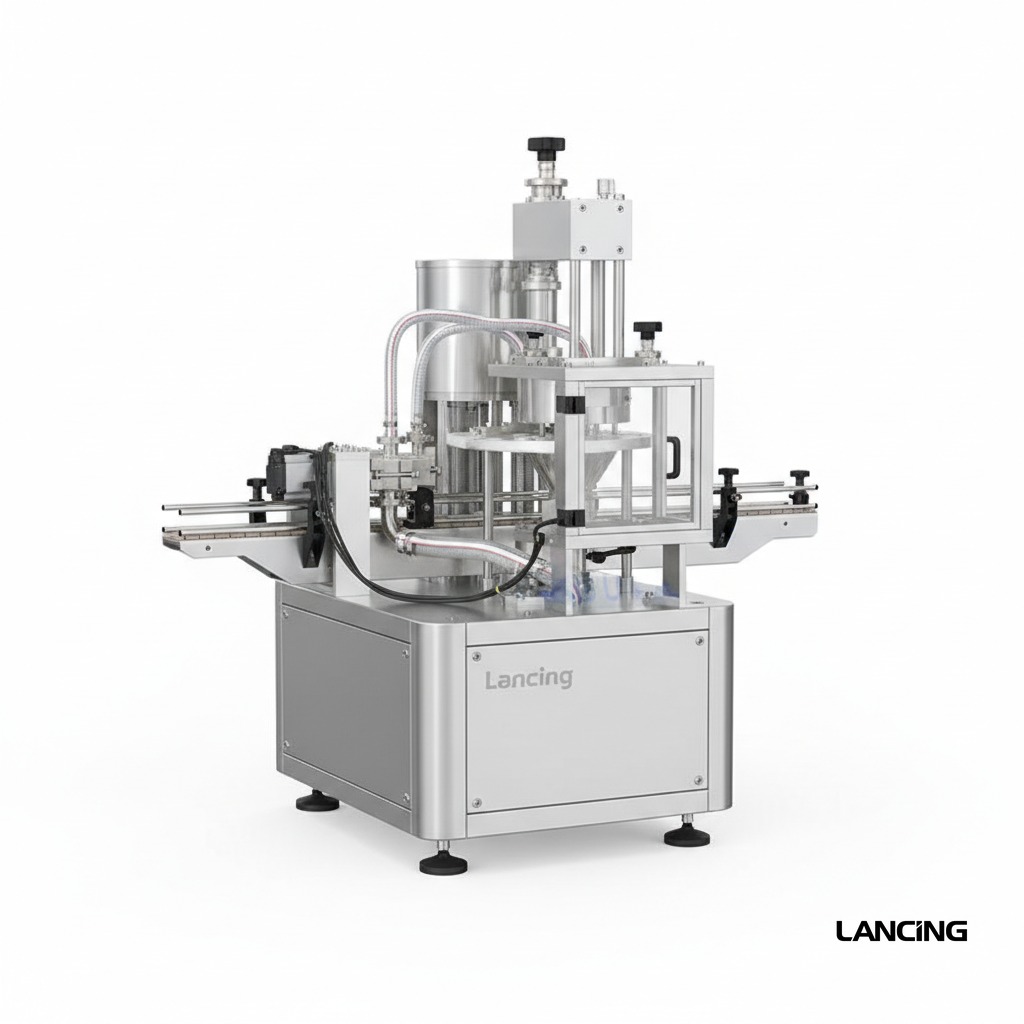

Automatic Cosmetic Paste Filling Aluminum Foil Sealing Capping Machine
Machine overview and key points for quotation.

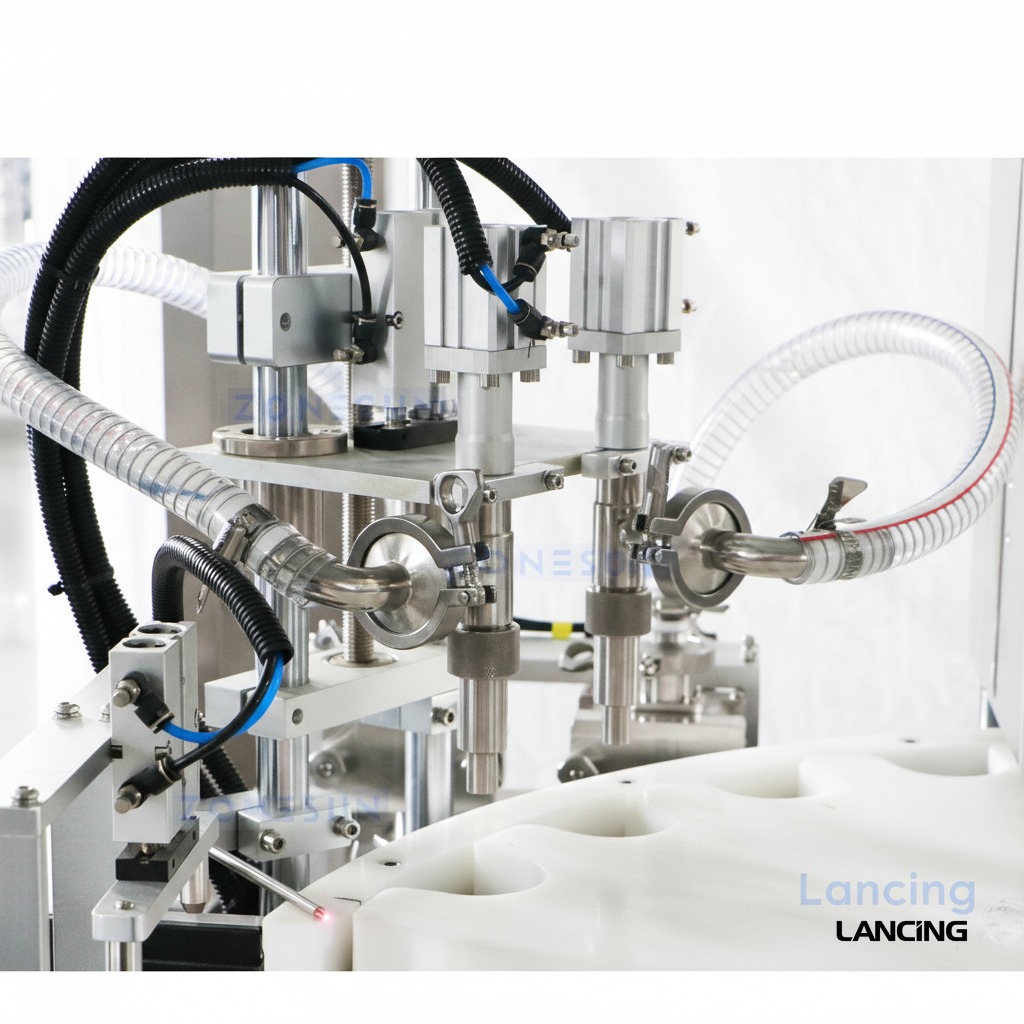

The Lancing UK LU-AFC28B is a fully automated packaging solution designed for cosmetic creams, hair serums, and body lotions . It integrates liquid filling, foil sealing, cap feeding, and cap tightening into one streamlined system, ensuring consistent and hygienic packaging results. Equipped with a magnetic pump and anti-drip nozzles , it delivers precise dosing with minimal waste. The machine’s pneumatic pusher enables accurate product positioning, while adjustable heat sealing ensures secure and uniform seals across various film types. Ideal for cosmetic manufacturers seeking efficiency, precision, and professional-grade packaging.
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
50–75 ml (customizable)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110V / 220V, 50–60Hz, 4.7 kW
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-AFC28B |
| Power Supply | 110V / 220V, 50–60Hz, 4.7 kW |
| Recommended Filling Range | 50–75 ml (customizable) |
| Filling Pump | Magnetic Pump |
| Max Flow Rate | 30 L/min × 2 |
| Bottle Diameter | 62 mm (customizable) |
| Bottle Height | 41 mm (customizable) |
| Bottle Mouth Diameter | 44 mm (customizable) |
| Working Capacity | 25–30 pcs/min |
| Filling Accuracy | ±2% |
| Machine Size | About 3000 × 1800 × 2250 mm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
