Automatic Perfume Toner Body Mist Spray Bottle Filling Capping Machine
Machine overview and key points for quotation.

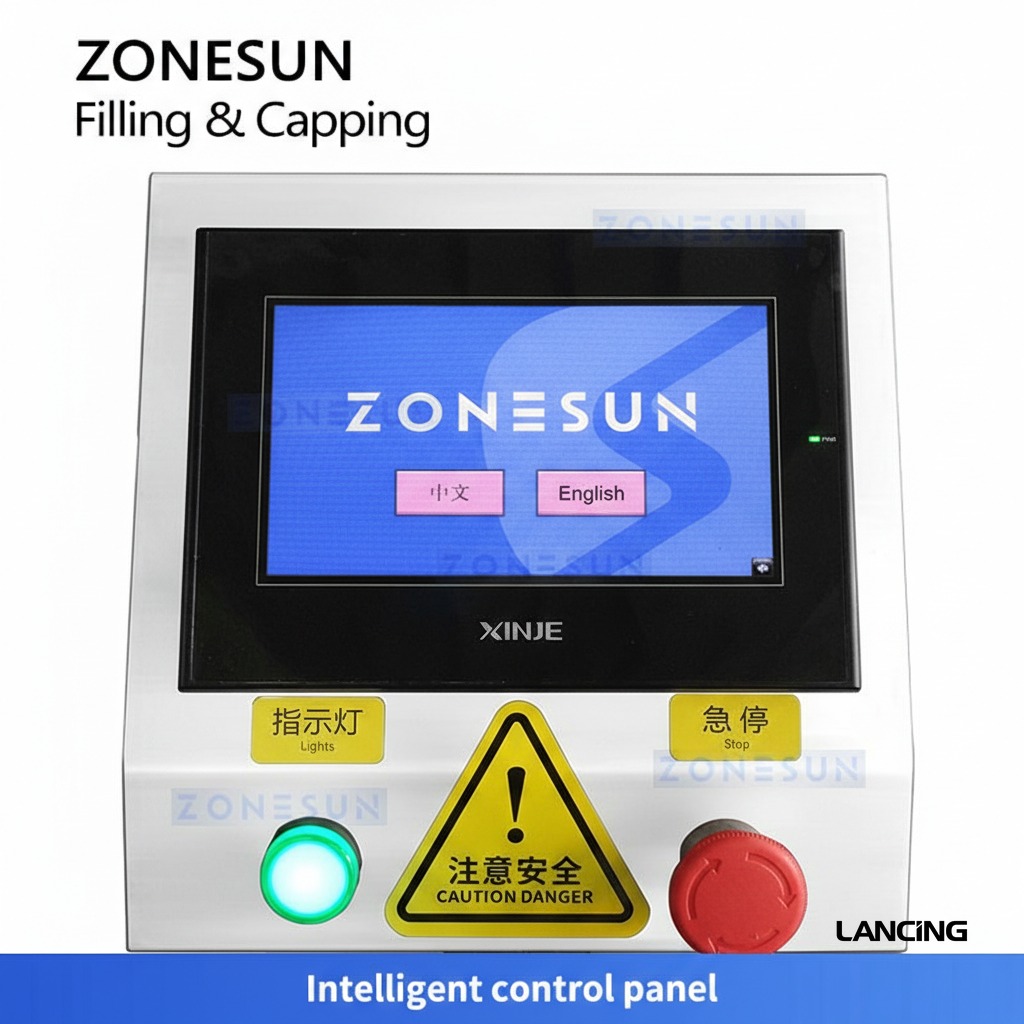

This Lancing UK Monoblock Automatic Filling and Capping Machine is specially engineered for small-batch production of liquid products such as body mist, perfume, mosquito repellent, essential oils, and other cosmetic and personal care items.Equipped with a servo-driven piston pump, it ensures precise and consistent liquid filling, while the mechanical cam system provides stable, synchronized bottle handling. The machine supports 30–40 bottles per minute (BPM), making it an ideal choice for brands looking for an efficient and reliable spray bottle packaging solution. Its compact design saves factory space, and the user-friendly interface simplifies operation, even for entry-level operators. Whether you're bottling fragrances, mists, or essential oils , this automatic servo filling and capping machine delivers professional-grade performance for growing cosmetic businesses.
Throughput
30–40 bottles/min (BPM)
Target speed depends on product, pack and operator workflow.
Format range
100 ml (customizable)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220V, 50–60Hz, 3KW
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-AFC46 |
| Voltage | 110/220V, 50–60Hz, 3KW |
| Filling Range | 100 ml (customizable) |
| Working Speed | 30–40 bottles/min (BPM) |

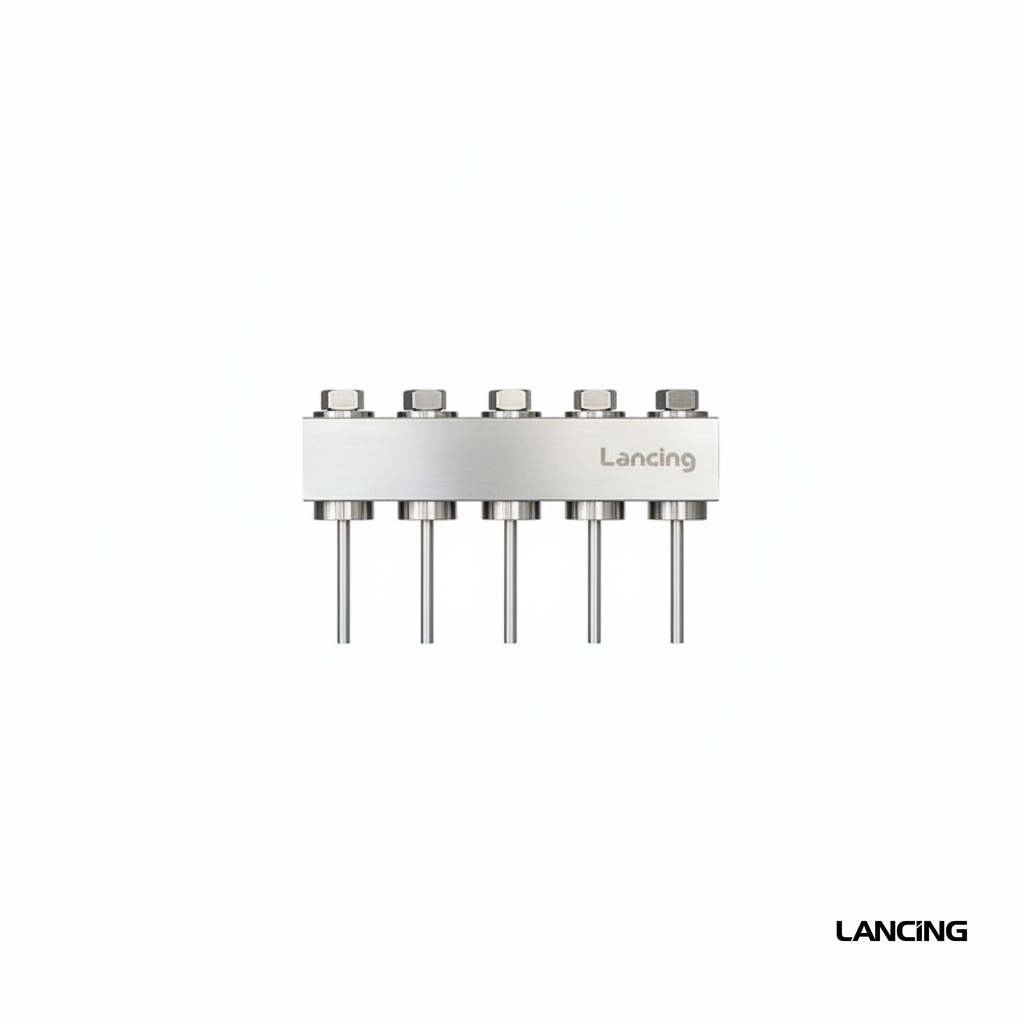

| Filling Pump Type | Servo piston pump |
| Number of Filling Heads | 6 heads |
| Filling Accuracy | ±1% |
| Applicable Bottle Size | Customizable |
| Applicable Cap Size | Customizable |
| Machine Size | Approx. 2608 × 1769 × 1448 mm (L × W × H) |
| Machine Weight | Approx. 600 kg |
| Packing Size | Main Machine: 2760 × 1110 × 1720 mm Vibration Sorting Disc: 1550 × 1560 × 900 mm |
| Vibration Sorting Disc | 1550 × 1560 × 900 mm |
| Packing Weight | Main Machine: 945 kg Vibration Sorting Disc: 330 kg |
| Main Machine | 945 kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
