Machine overview
Automatic Perfume Bottle Caps Press Capping Machine
Machine overview and key points for quotation.
This perfume capping machine is suitable for two kinds of bottle caps,the pressing type and the crimping type.It can also be used to cap collar ring.It can work with automatic filling machine to realize automated production,and change the capping mold,it can be used for different sizes of bottles.
Throughput
About 20bottles/min (depending on bottle and cap size)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220V/110V 50-60Hz
We’ll confirm voltage, air and installation requirements for your site.

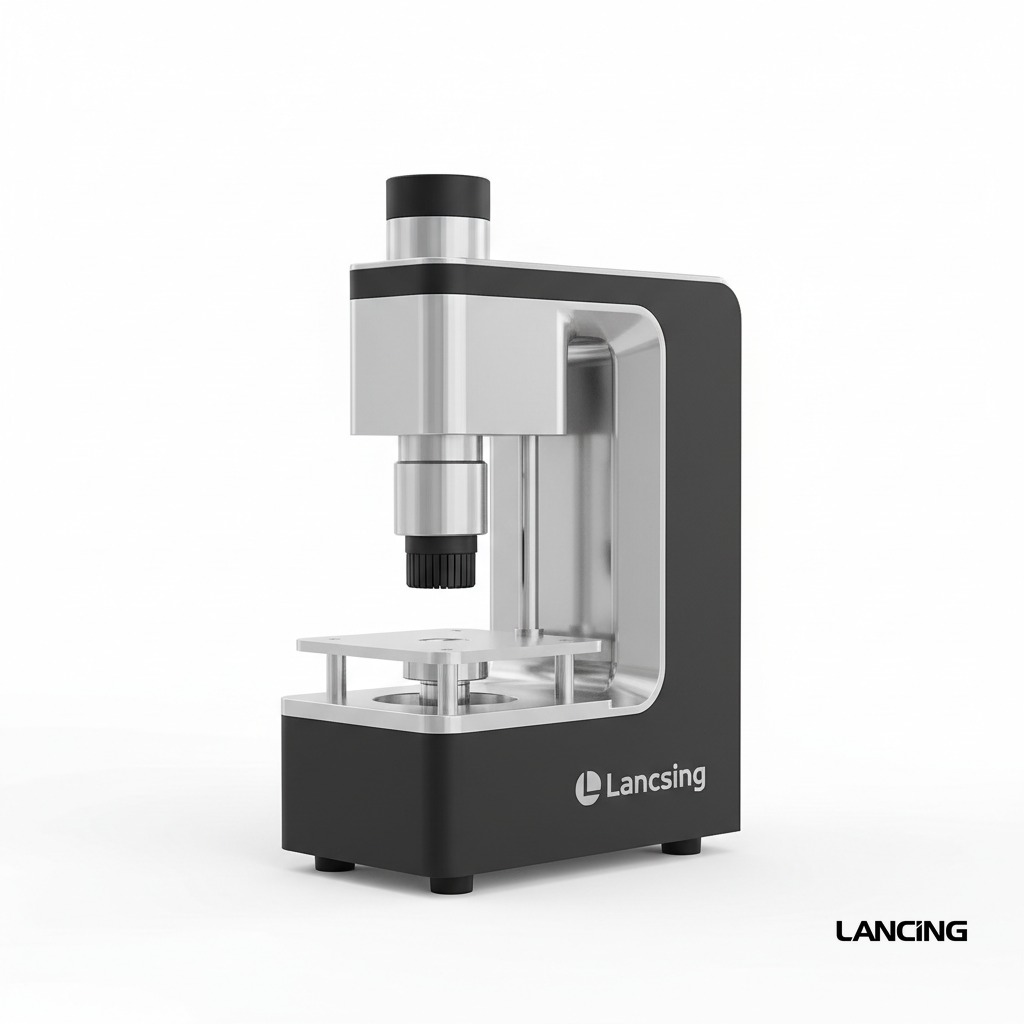

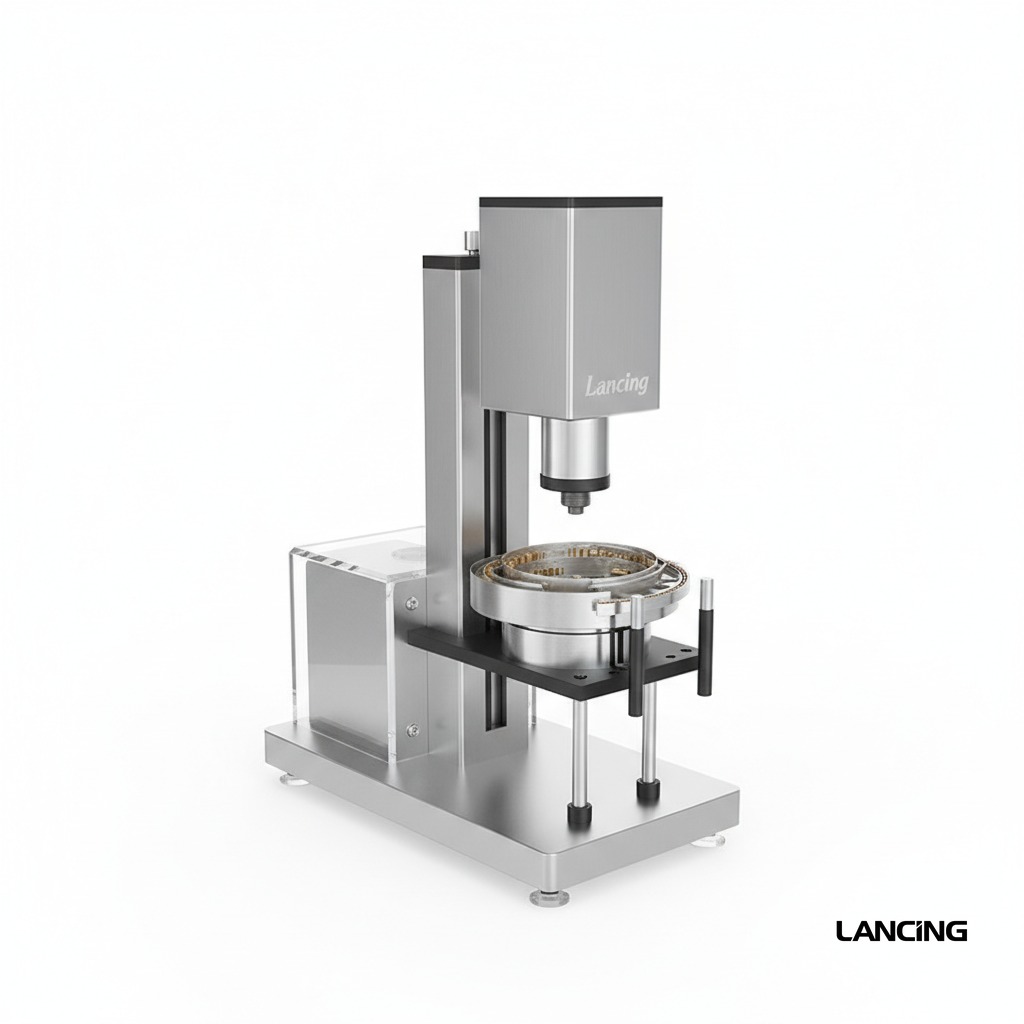

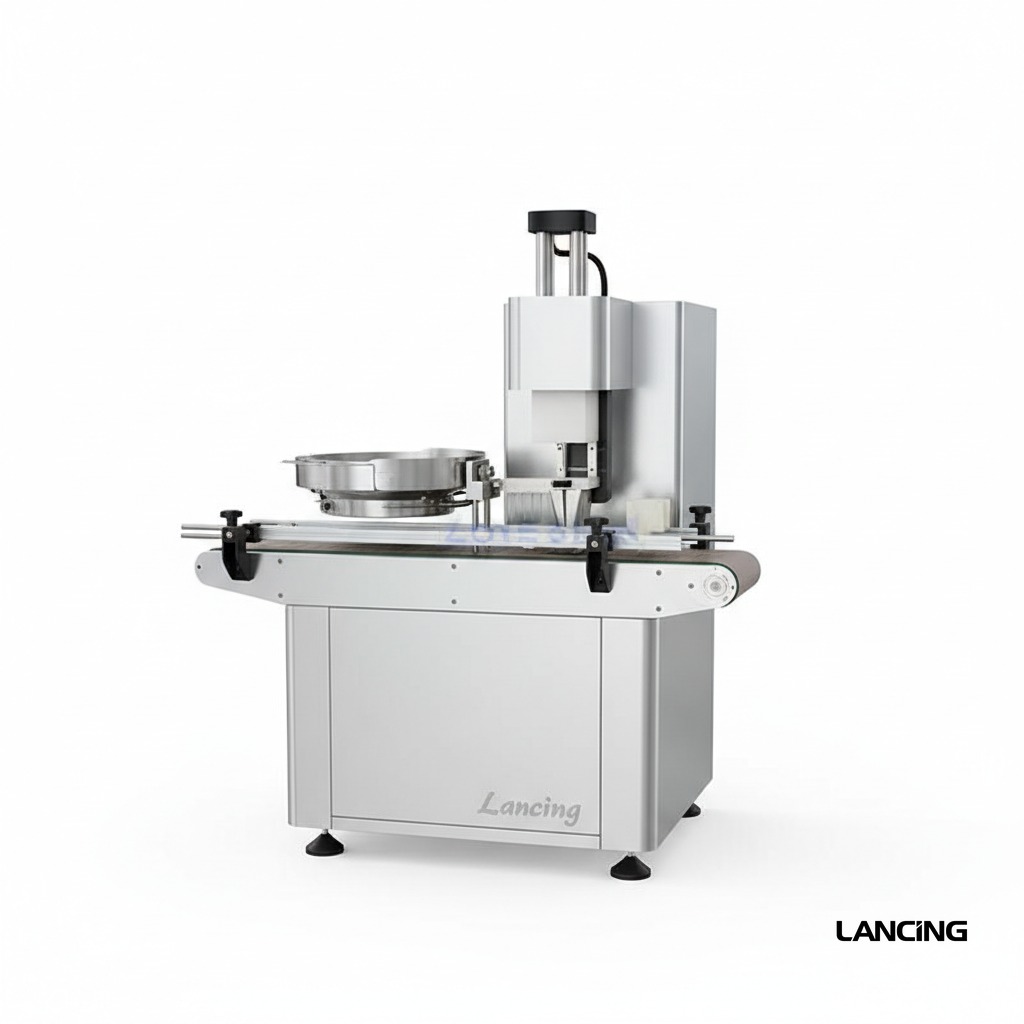

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine Model | LU-YG11V |
| Voltage | 220V/110V 50-60Hz |
| Power | 1.5kW |
| Capping Speed | About 20bottles/min (depending on bottle and cap size) |
| Suitable Bottle Height | 50-200mm |
| Bottle Cap Diameter | 15-22mm |
| Bottle Mouth Diameter | 14-20mm |
| Suitable Bottle Diameter | 40-110mm |
| Machine Size | About 250014031657mm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
