Machine overview
ZS‑YT8T‑8ZL Automatic Pneumatic 8‑Nozzle Liquid Filling Machine
Machine overview and key points for quotation.
The Lancing UK ZS‑YT8T‑8ZL Automatic Pneumatic Liquid Filling Machine is designed for high‑precision, efficient filling of water to medium‑viscosity products. Equipped with advanced photoelectric sensors, PLC control, and a colorful touch screen interface, it delivers stable performance and easy operation. Each filling head operates independently for convenient precision adjustments, while the stainless steel and food‑grade materials ensure compliance with hygiene standards. Ideal for cosmetics, beverages, medicine, chemicals, and other industries requiring speed, accuracy, and reliability in production.
Throughput
10-40 bottles/min
Target speed depends on product, pack and operator workflow.
Format range
Not limited, control by filling time
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
10V/220V 50-60HZ}
We’ll confirm voltage, air and installation requirements for your site.

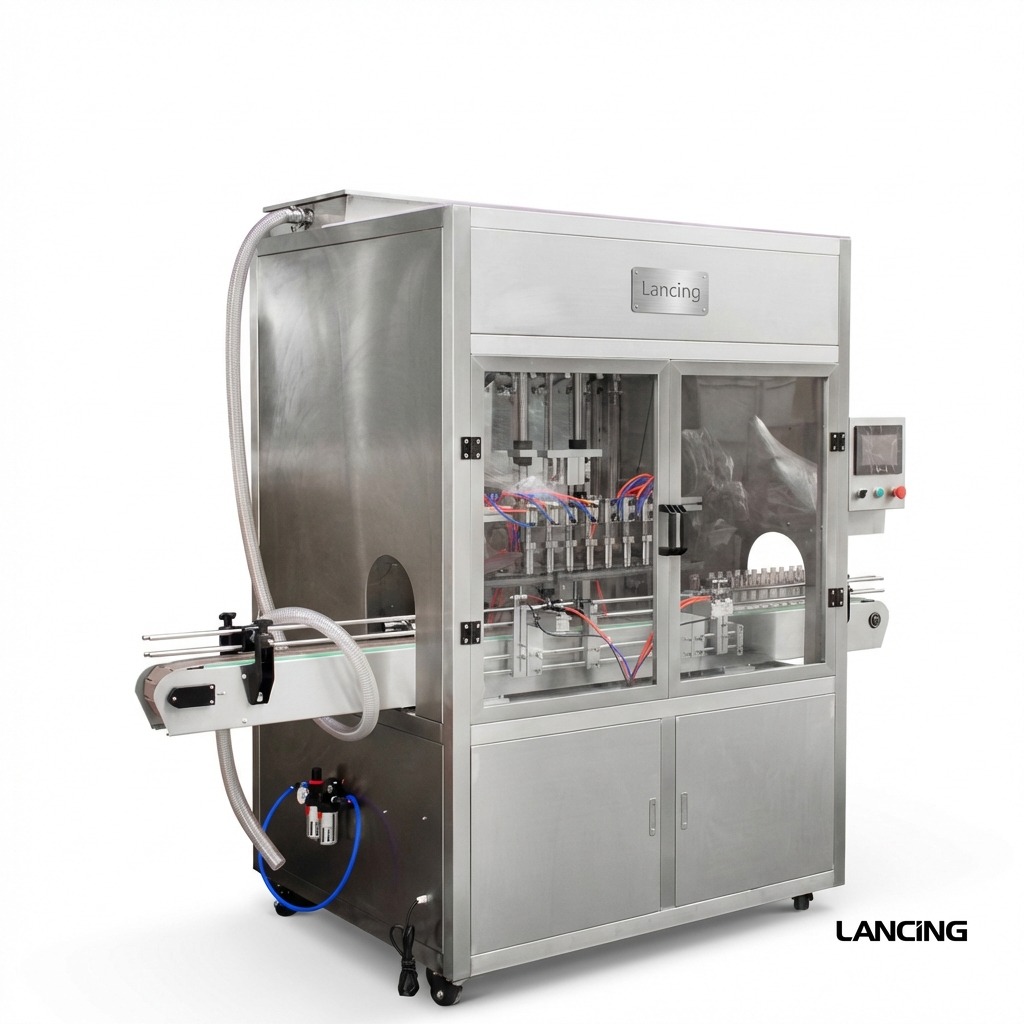

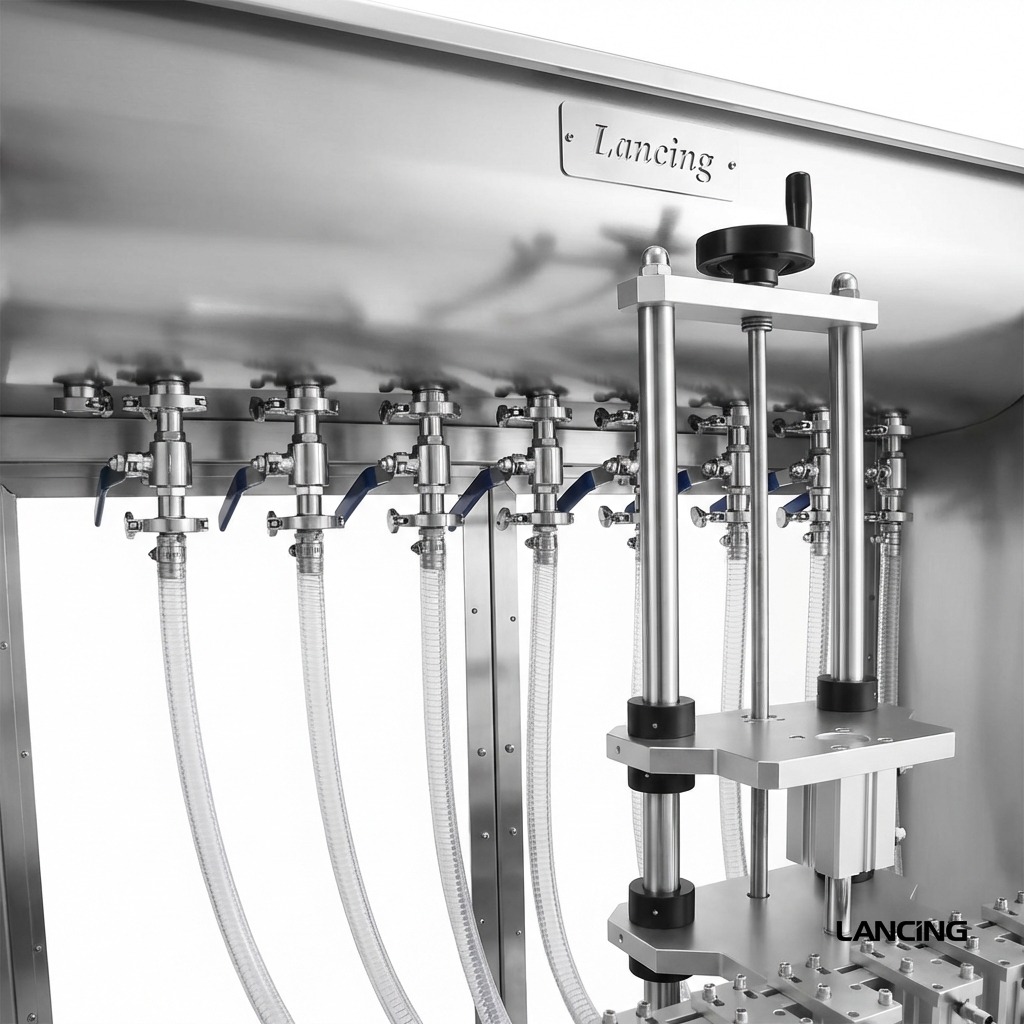

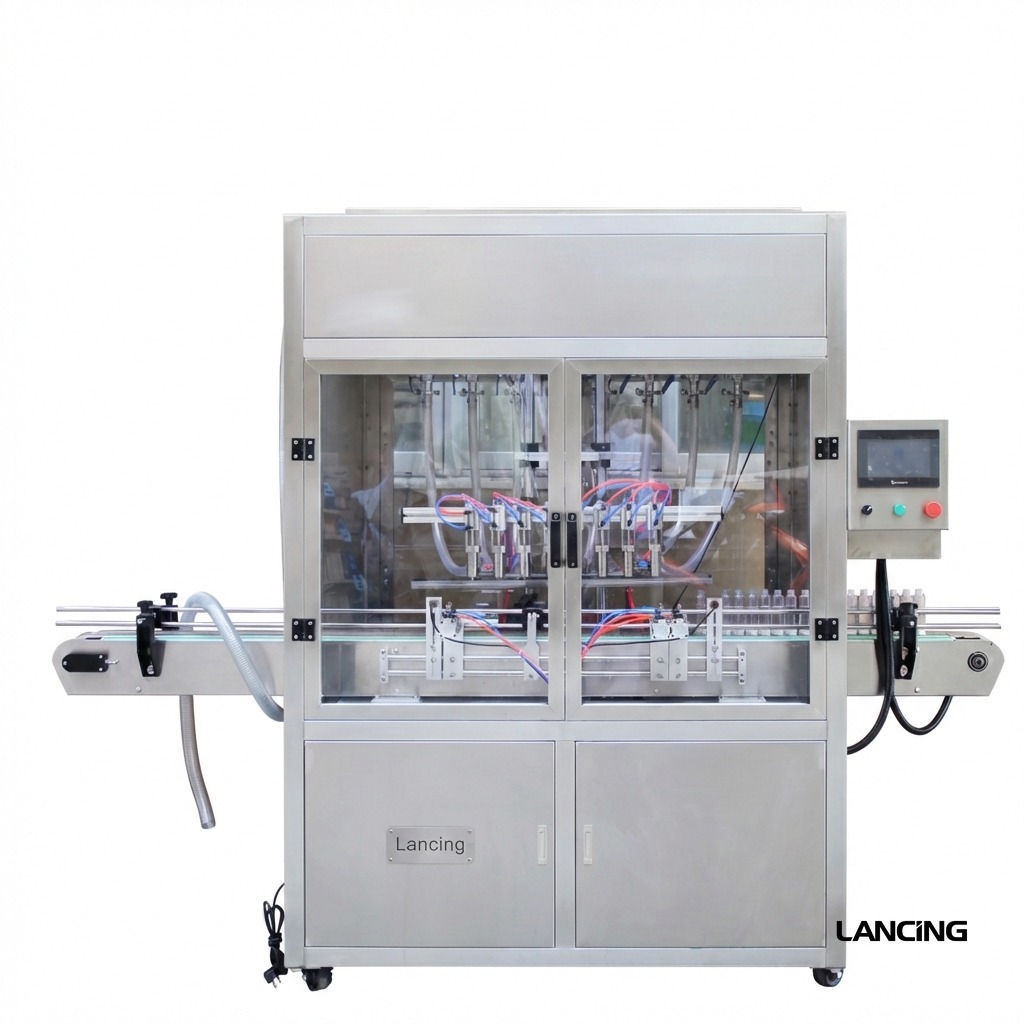

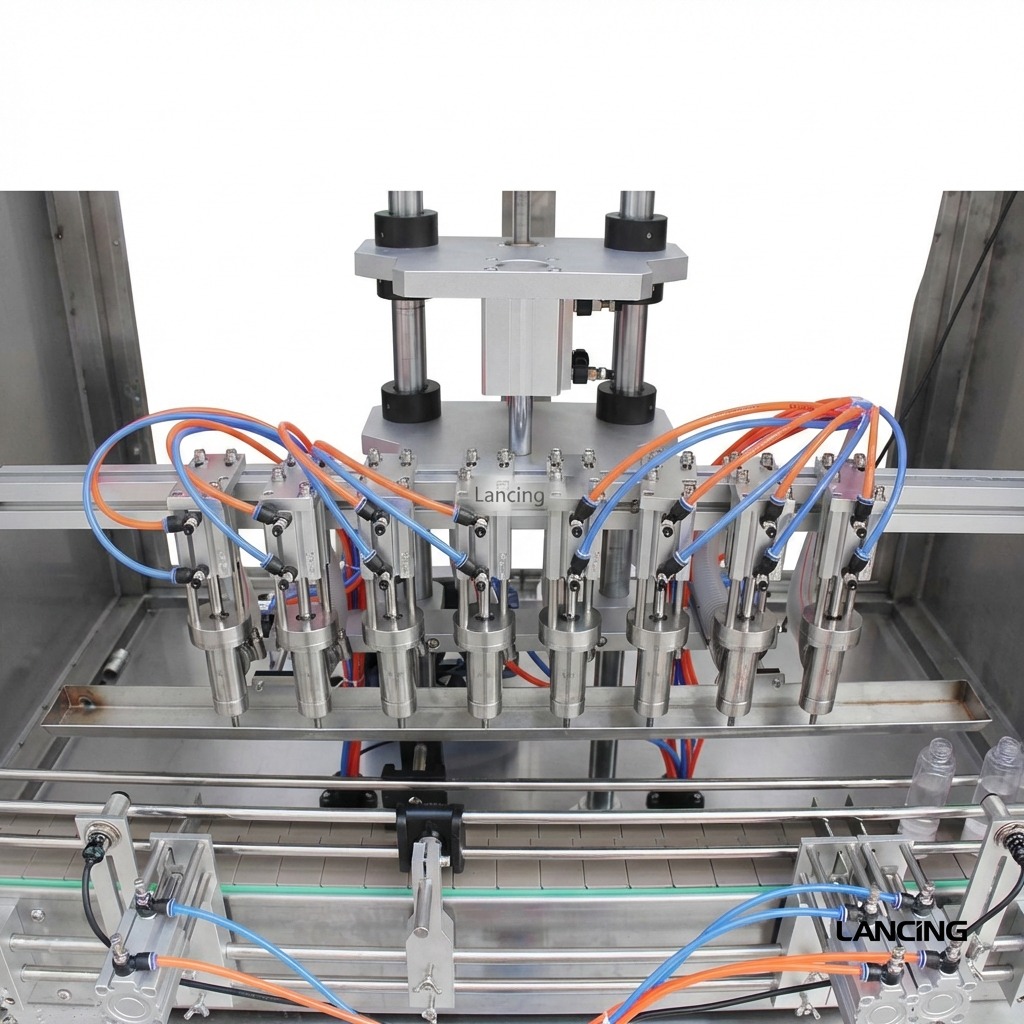

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Parameter | LU-YT2T-2ZL |
| Model | LU-YT2T-2ZL |
| Voltage | 10V/220V 50-60HZ} |
| Filling Range | Not limited, control by filling time |
| Working Speed (based on water) | 10-40 bottles/min |
| Filling Accuracy | ≤±1% |
| Air Pressure | 0.5-0.7MPa |
| Machine weight | 220kg |
| Power of whole machine | 800W |
| Dimension | 200x120x230cm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
Talk to a specialist
We’ll confirm suitability, options, integration, and realistic throughput for your product.
Enquire about this machine
Send a message and we’ll respond with configuration options, pricing guidance and lead times.
