Machine overview
Automatic Polygon Bottle Labeling Machine
Machine overview and key points for quotation.
This is an automatic labeling machine. It is designed for accurate and efficient labeling of various polygon products, including bottles, cans, and containers. Equipped with a programmable logic controller (PLC), our labeling machine ensures precise control and consistent performance. With a user-friendly interface and customizable settings, it is the perfect solution for streamlining your labeling process. Whatever your packaging needs are, you can rely on Lancing UK.
Throughput
25-45 bottles/min
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220V 50-60HZ 570W
We’ll confirm voltage, air and installation requirements for your site.

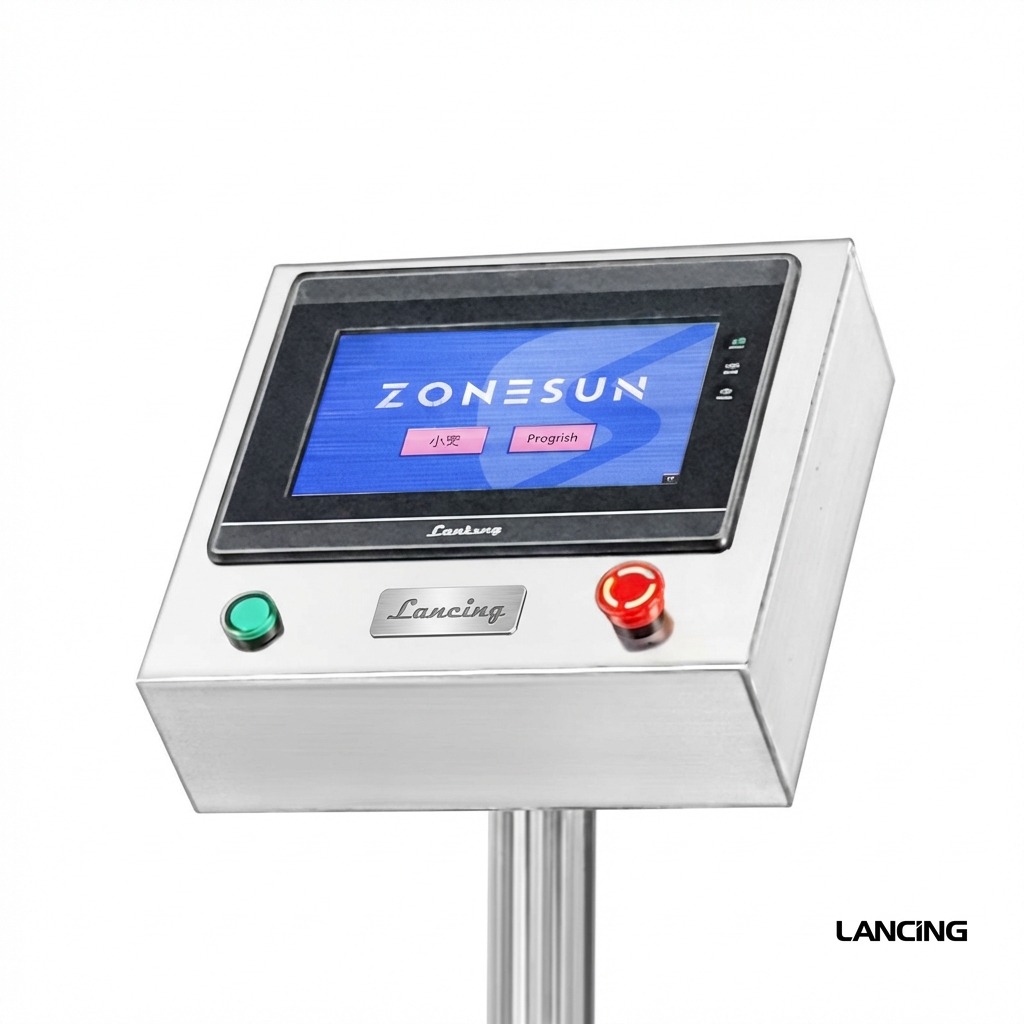

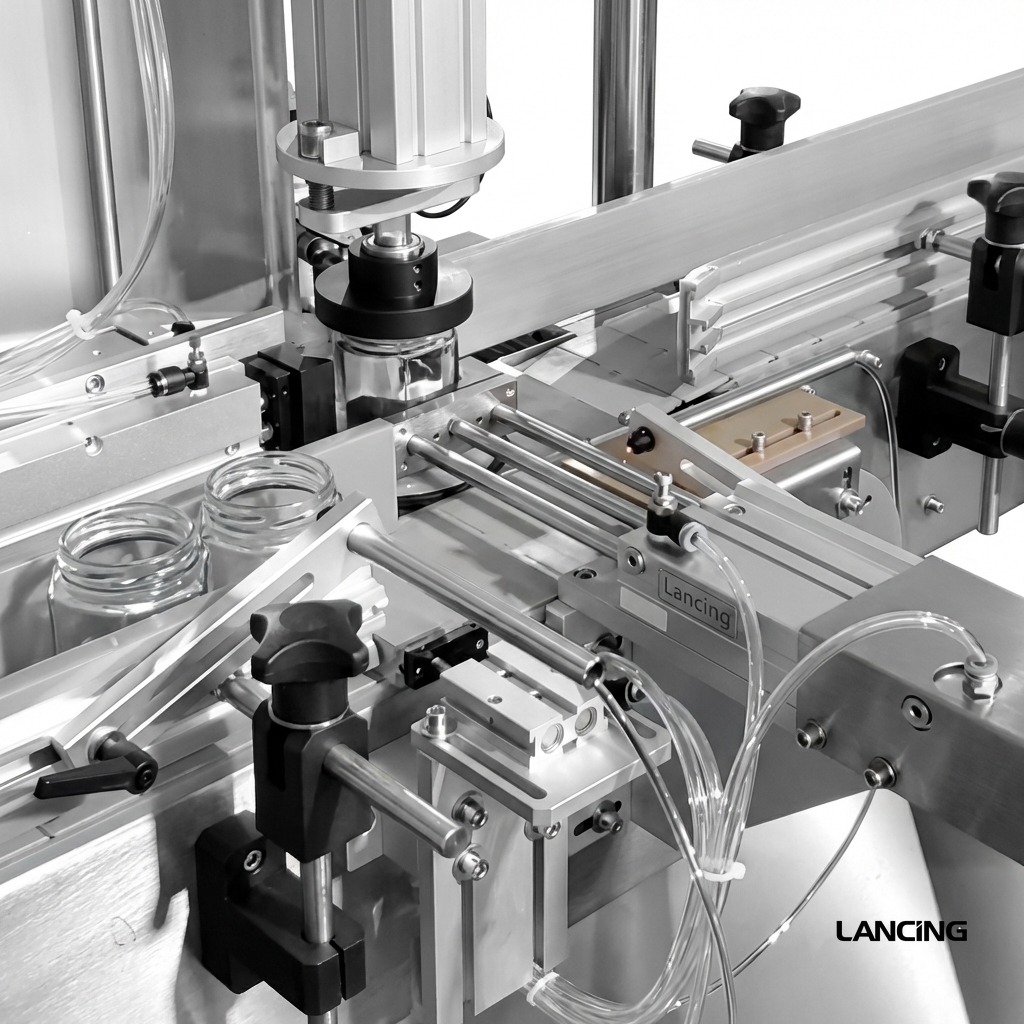

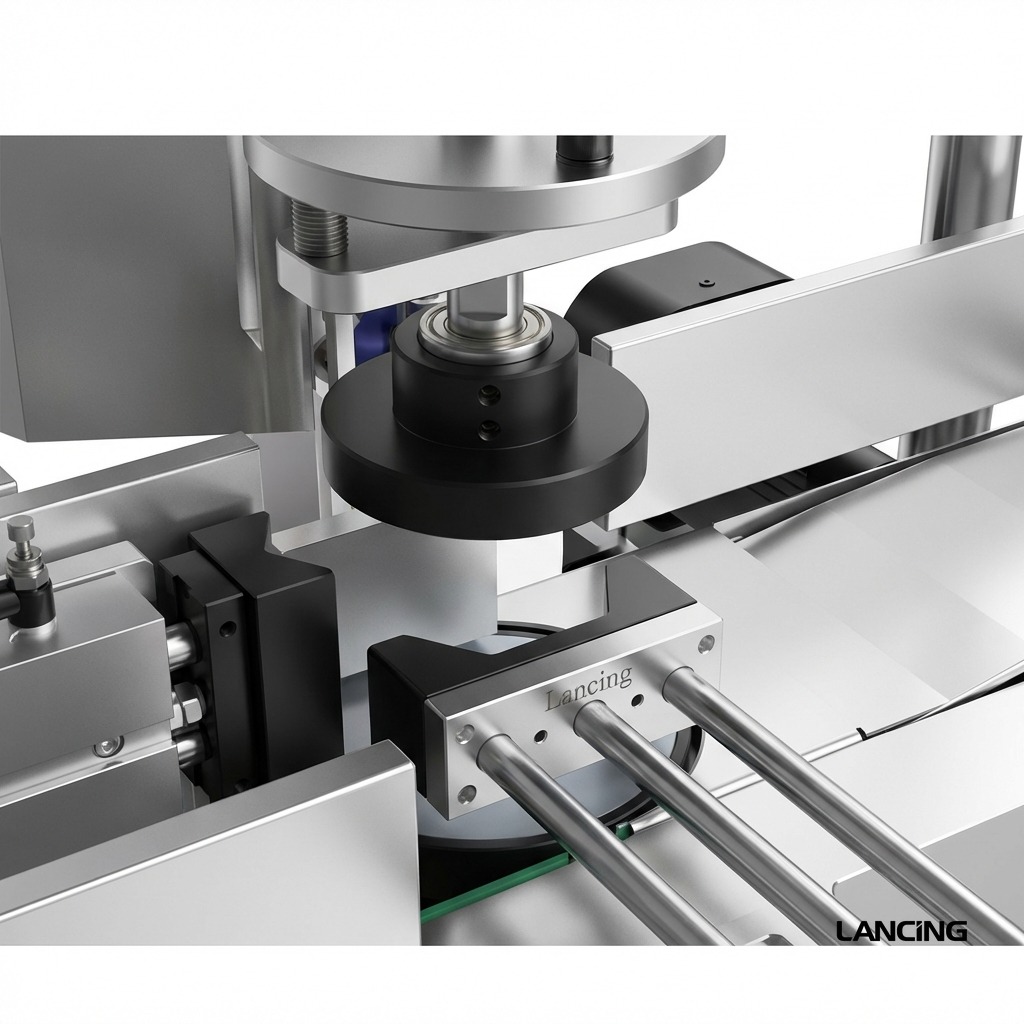

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine Model | LU-TB550V |
| Voltage | 220V 50-60HZ 570W |
| Suitable Bottle Size | φ50-110mm25-130mm(H) (Can be customized) |
| Labeling Speed | 25-45 bottles/min |
| Labeling Accuracy | ±1mm |
| Suitable Label Size | 20mm-130mm(W)20mm-290mm(H) |
| Label Roll OD | About φ280mm |
| Label Roll ID | About φ76mm |
| Air Pressure | 0.4-0.6MPa |
| Machine Size | About 2800 1200 1400mm |
| Machine Weight | About 200kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
