Machine overview
Automatic Powder Filling Sealing Machine
Machine overview and key points for quotation.
This fully automatic large-capacity packaging machine is made of stainless steel fuselage material and adopts intelligent control panel. Simple and stable operation, fast and accurate, good quality, suitable for food, medicine, seeds, tea, grain shape chemicals and pharmaceuticals and other industries.
Throughput
10–15 bags/min (depending on the materials)
Target speed depends on product, pack and operator workflow.
Format range
10–999g (adjustable)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220V/50Hz, 110V/60Hz
We’ll confirm voltage, air and installation requirements for your site.

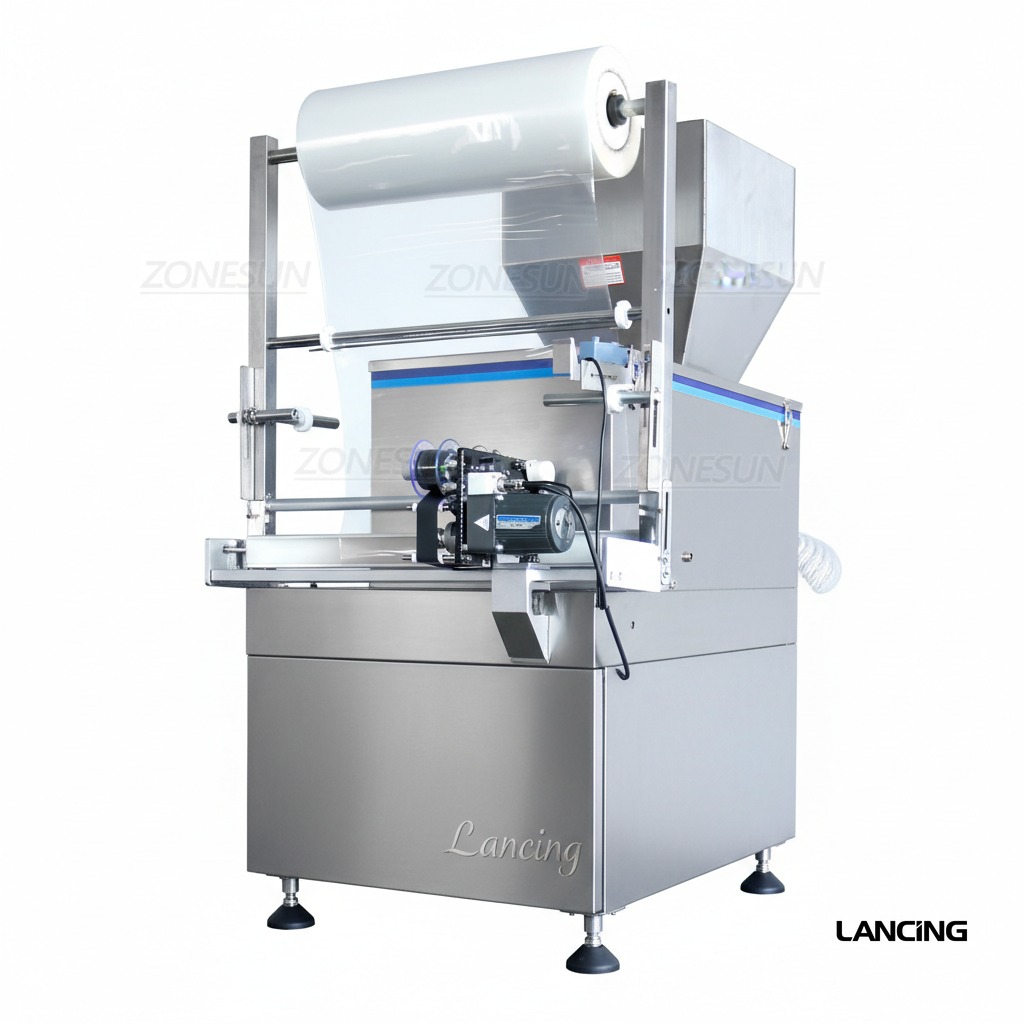

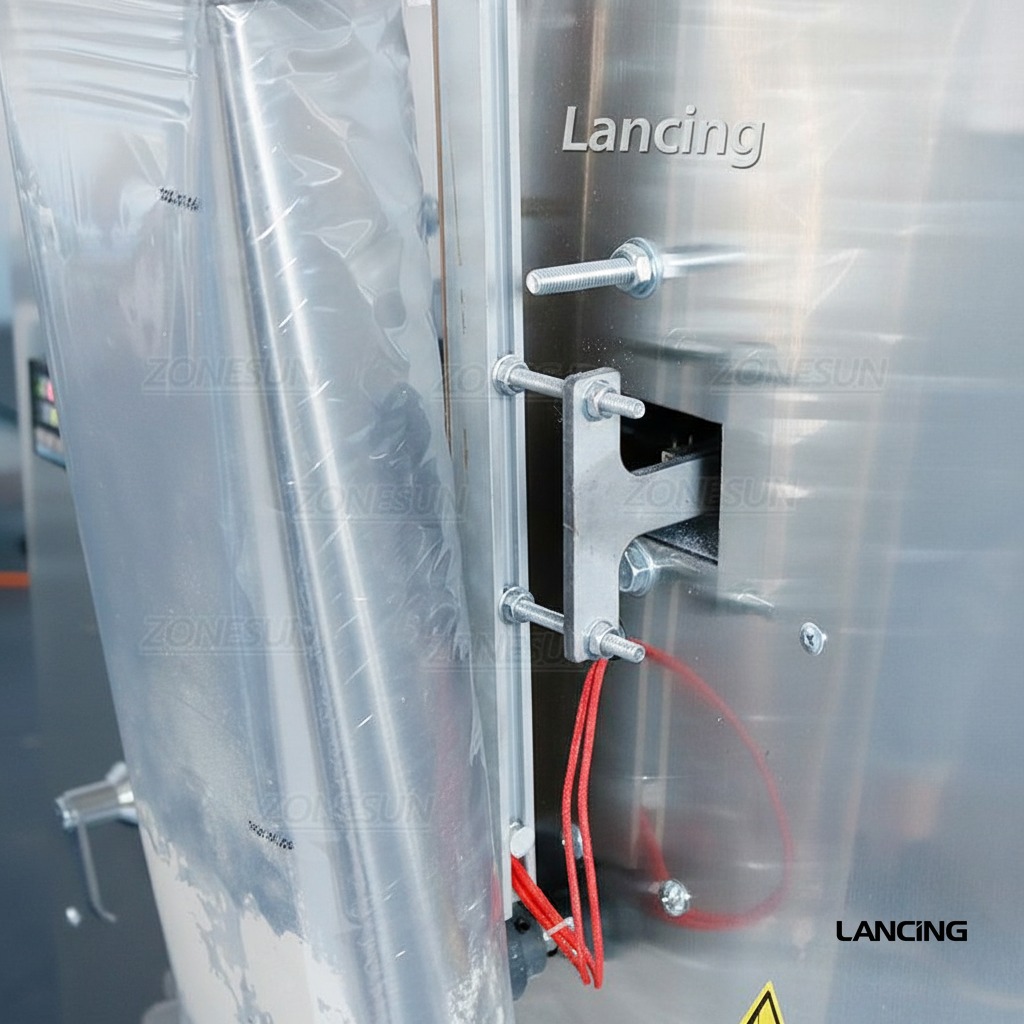

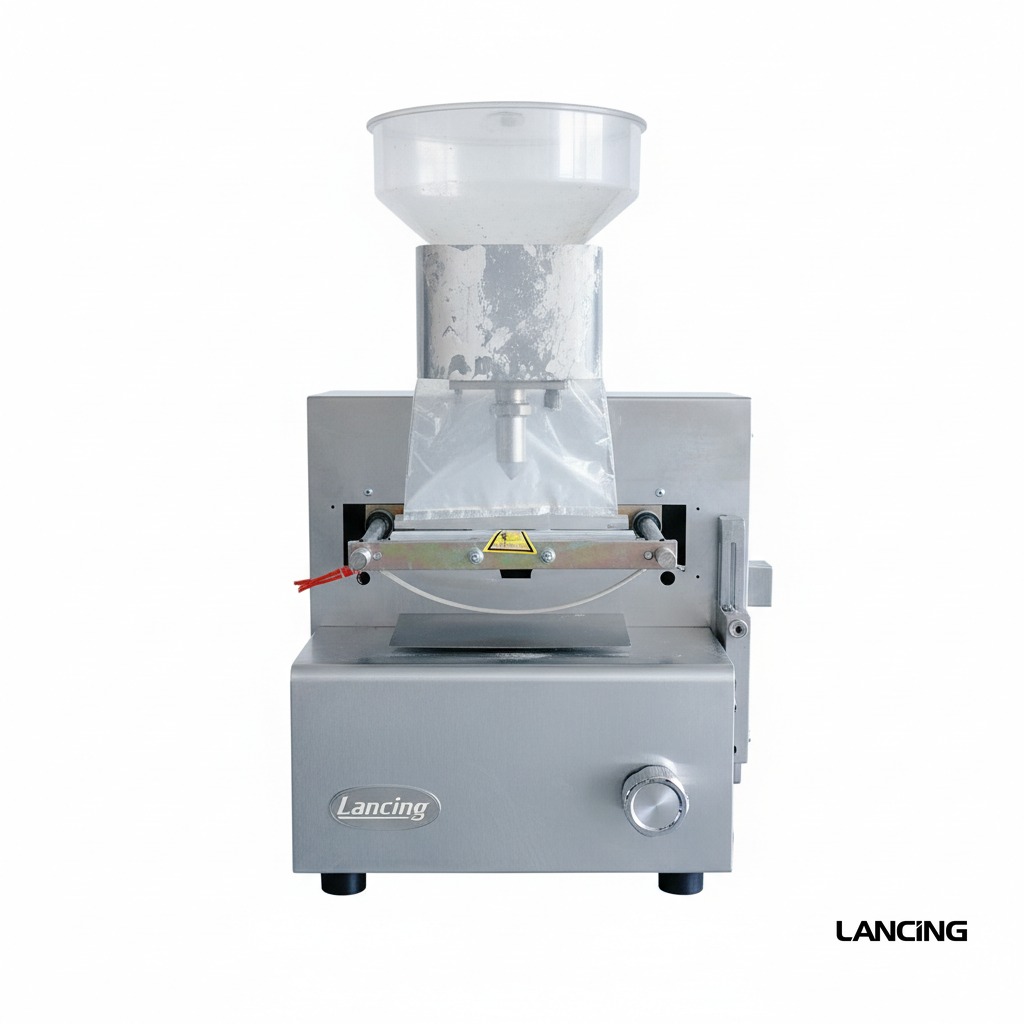

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-FM1000 |
| Voltage | 220V/50Hz, 110V/60Hz |
| Rated Power | 650W |
| Packing Speed | 10–15 bags/min (depending on the materials) |
| Weighing Range | 10–999g (adjustable) |
| Error Range | About 2g (depending on the materials) |
| Suitable Film | Heat sealed film |
| Machine Size | 63.4cm(L) × 70cm(W) × 204.2cm(H) |
| Machine Weight | About 116kg |
| Film Width | ≤420mm |
| Sealed Bag Width | ≤200mm |
| Sealed Bag Length | ≤280mm |
| Hopper Size | About 32.2 × 32.2 × 35.3cm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
