Machine overview
Automatic Servo Capping Machine
Machine overview and key points for quotation.
Effortlessly cap a variety of bottles with the Automatic Capping Machine. Featuring a four-roller clamping and capping system, this machine handles diverse screw-on caps with ease. Powered by a servo motor, the rollers offer adjustable torque and force, adapting to different cap requirements.
Throughput
About 20-60 bottles/min
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
AC 110/220V 50-60HZ
We’ll confirm voltage, air and installation requirements for your site.

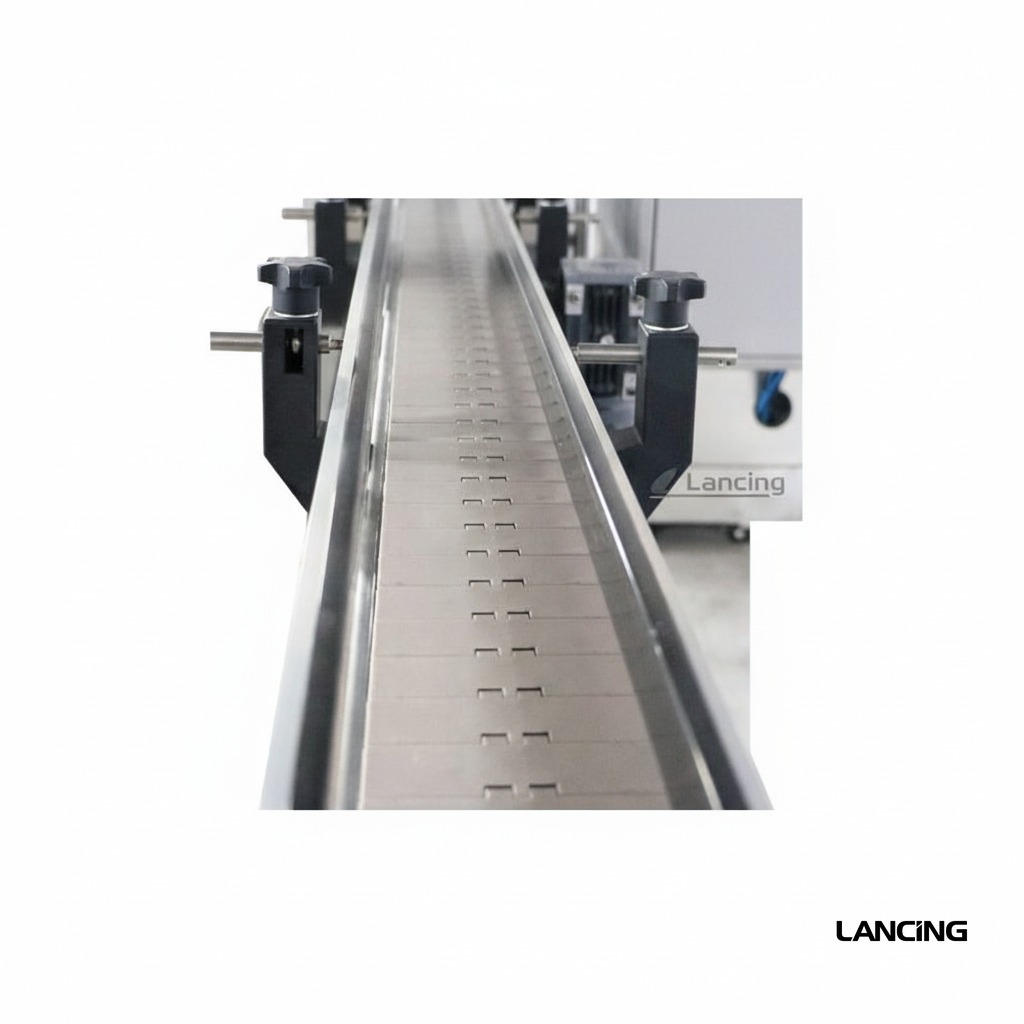

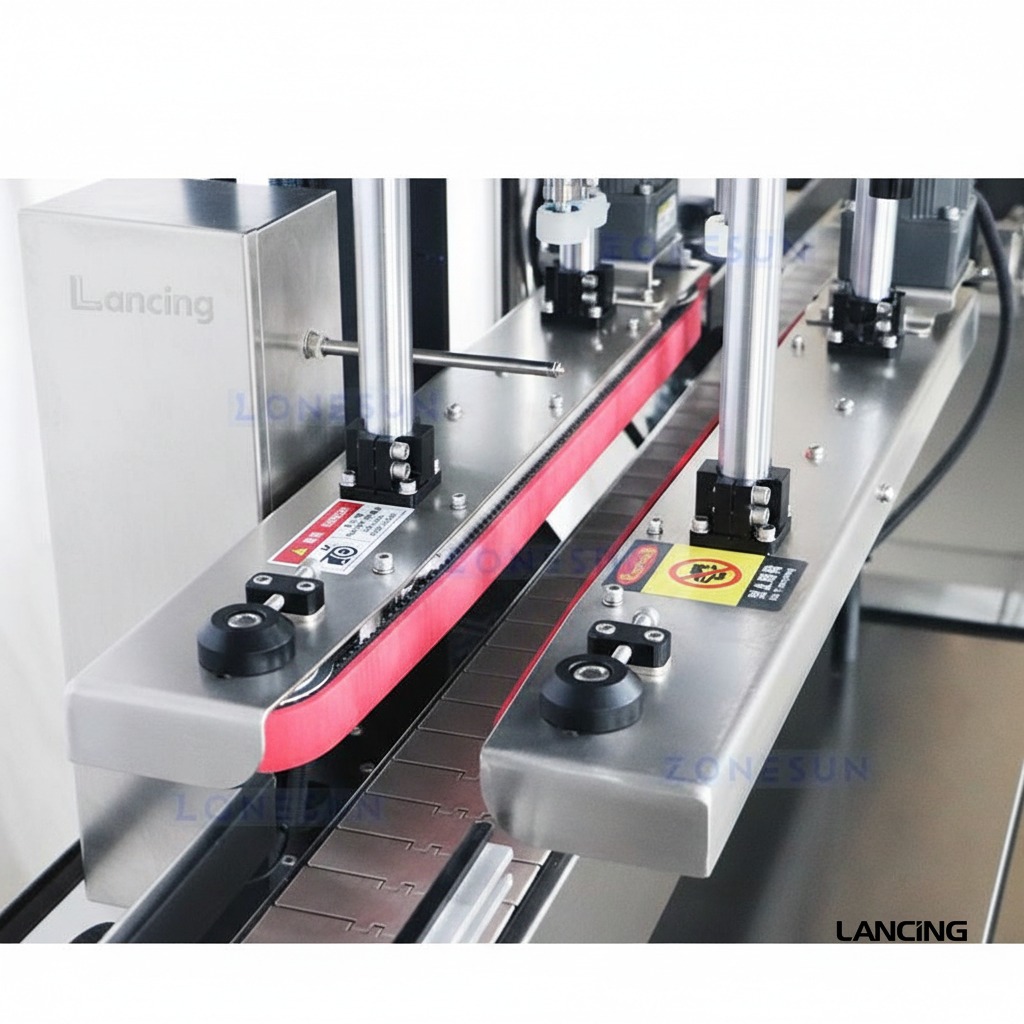

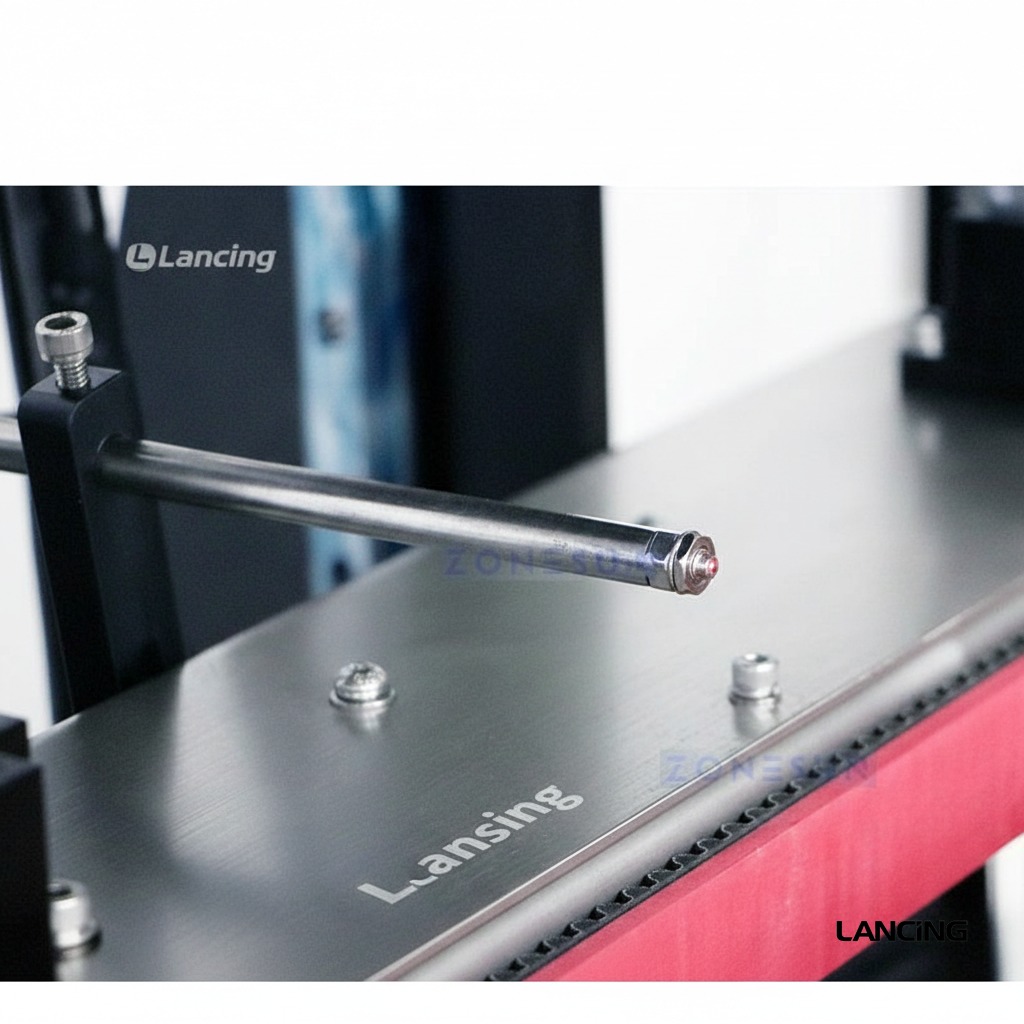

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine model | LU-XG440RSL |
| Voltage | AC 110/220V 50-60HZ |
| Machine power | About 2KW |
| Suitable cover diameter | 30-80mm (Can be customized) |
| Suitable Bottle Height | 60-200mm |
| Suitable Bottle Body Diameter | 30-100mm |
| Working pressure | 0.5-0.7Mpa |
| Working speed | About 20-60 bottles/min |
| Machine size | About 3200×2200×1350mm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
