Machine overview
Automatic Servo Piston Filling Machine
Machine overview and key points for quotation.
Automatic Servo Piston Filling Machine 10-Head Paste Filler , sales and related technical services of modern high-tech enterprises. Opens in a new window.
Throughput
Approx. 30–80 bottles/min (depends on filling range and material)
Target speed depends on product, pack and operator workflow.
Format range
50–1000 ml (customizable)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220V / 110V
We’ll confirm voltage, air and installation requirements for your site.

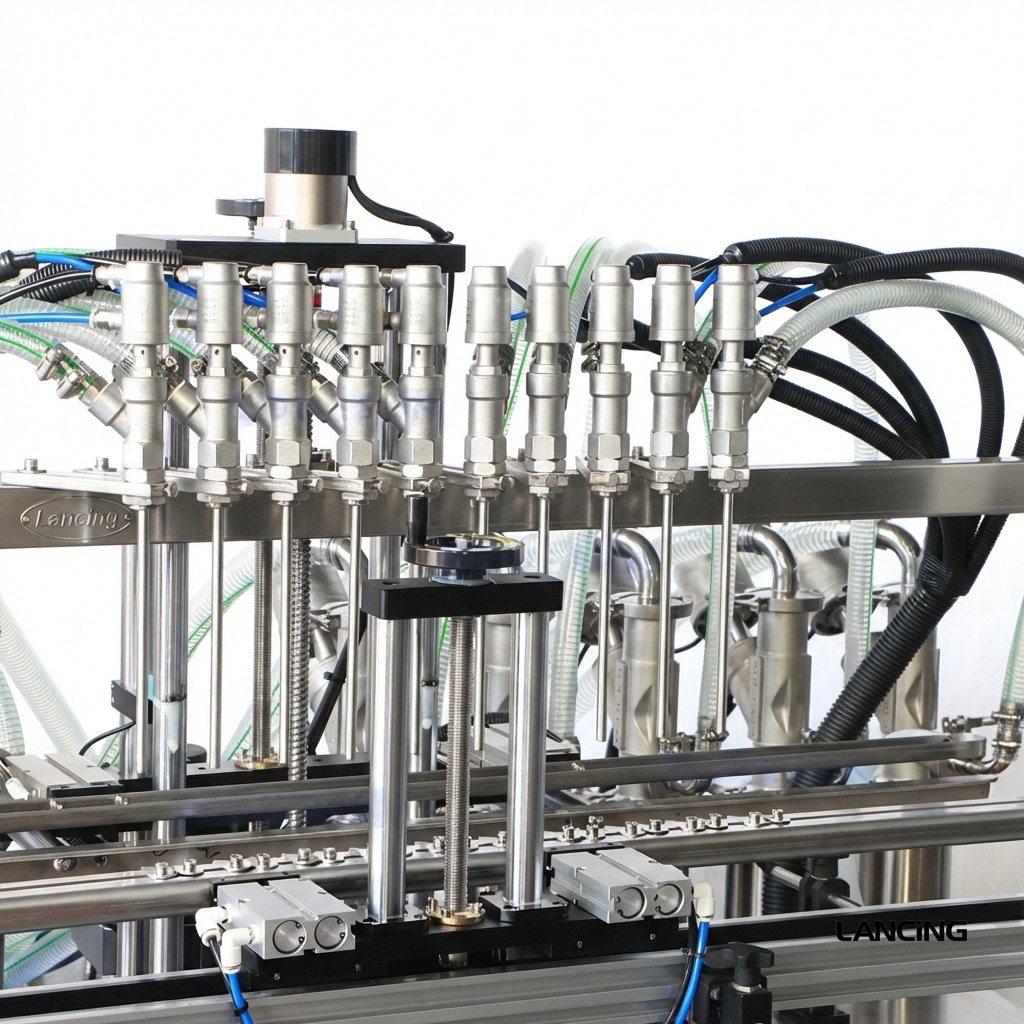

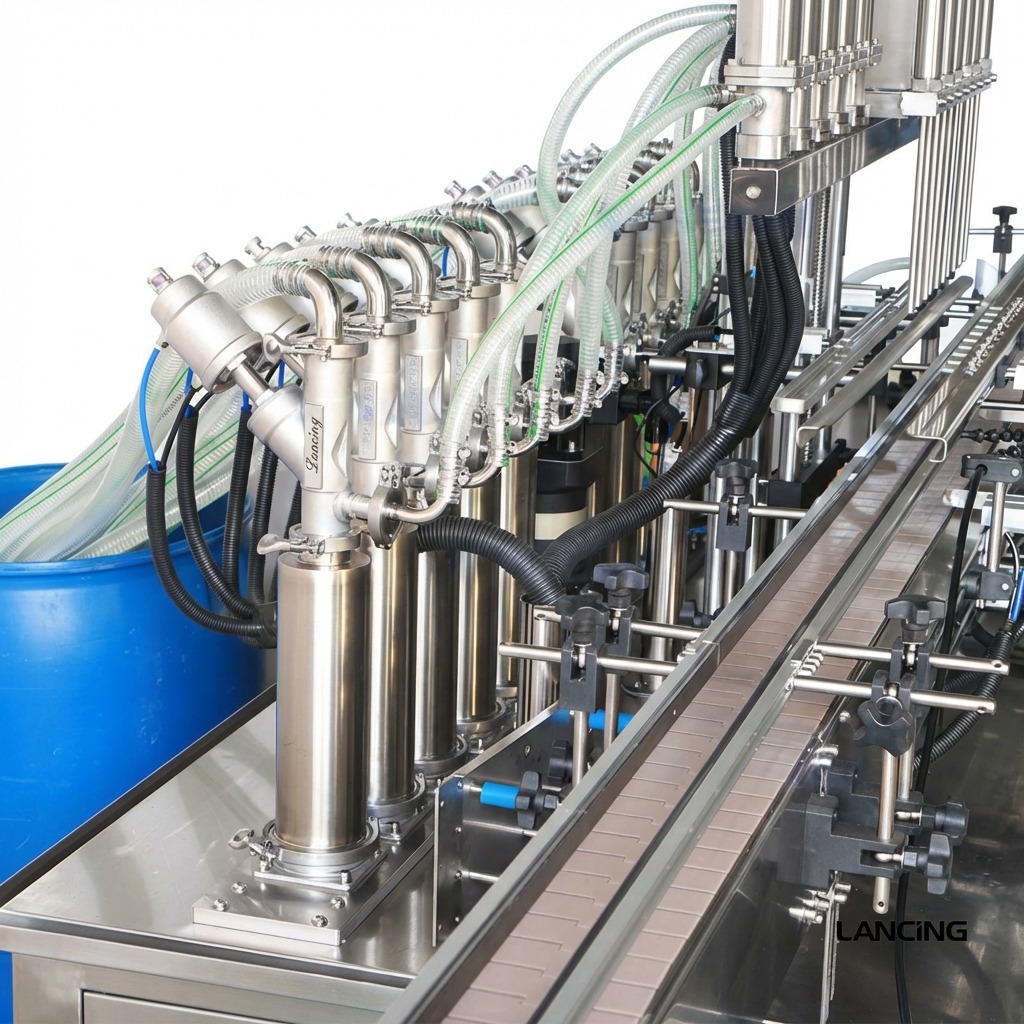

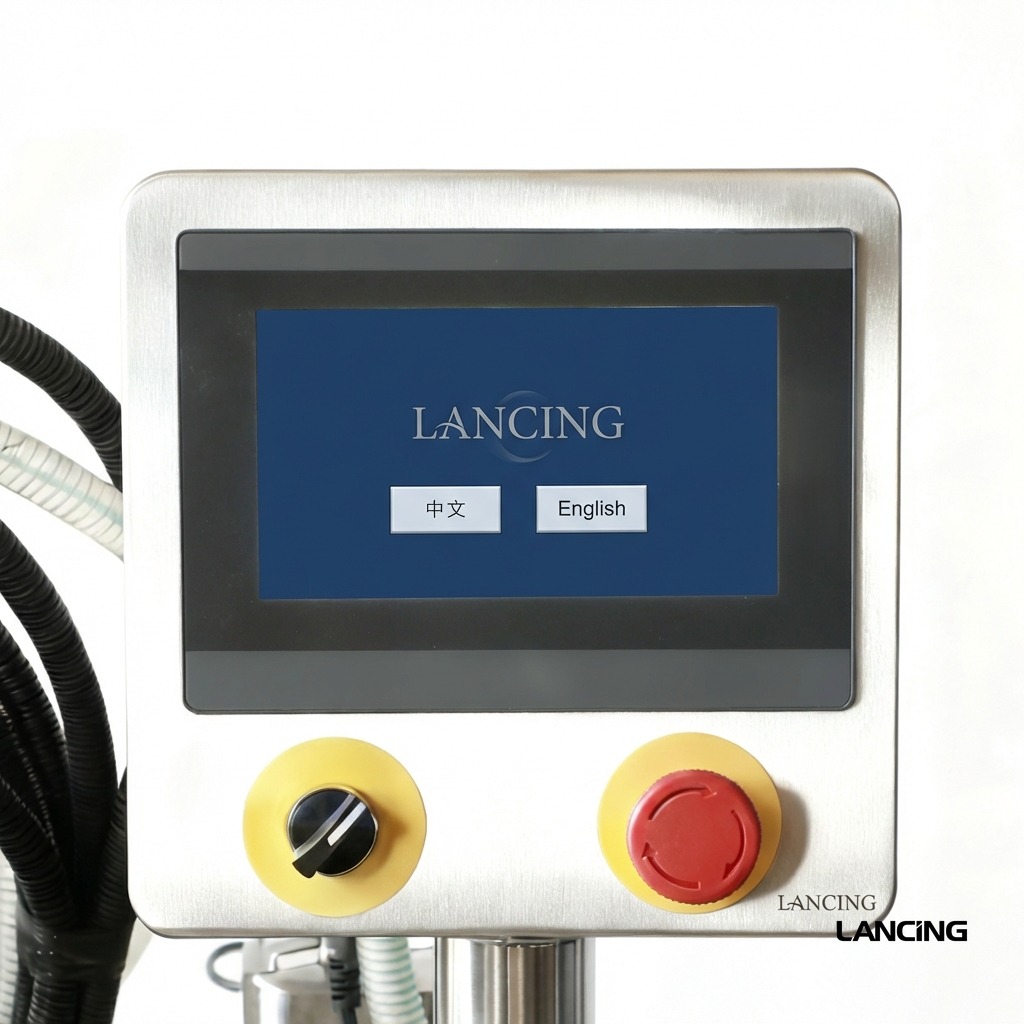

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-SV10HS |
| Voltage | 220V / 110V |
| Power Consumption | 4 kW |
| Filling Pump Type | Servo Piston Pump |
| Filling Nozzles | 10 heads (customizable) |
| Filling Speed | Approx. 30–80 bottles/min (depends on filling range and material) |
| Filling Range | 50–1000 ml (customizable) |
| Filling Accuracy | ±0.5% |
| Conveyor Dimensions (L × W) | 5000 × 114 mm |
| Air Pressure Requirement | 0.5–0.7 MPa |
| Machine Dimensions (L × W × H) | 5000 × 1020 × 1610 mm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
