Machine overview
Automatic Servo Screw Capping Machine
Machine overview and key points for quotation.

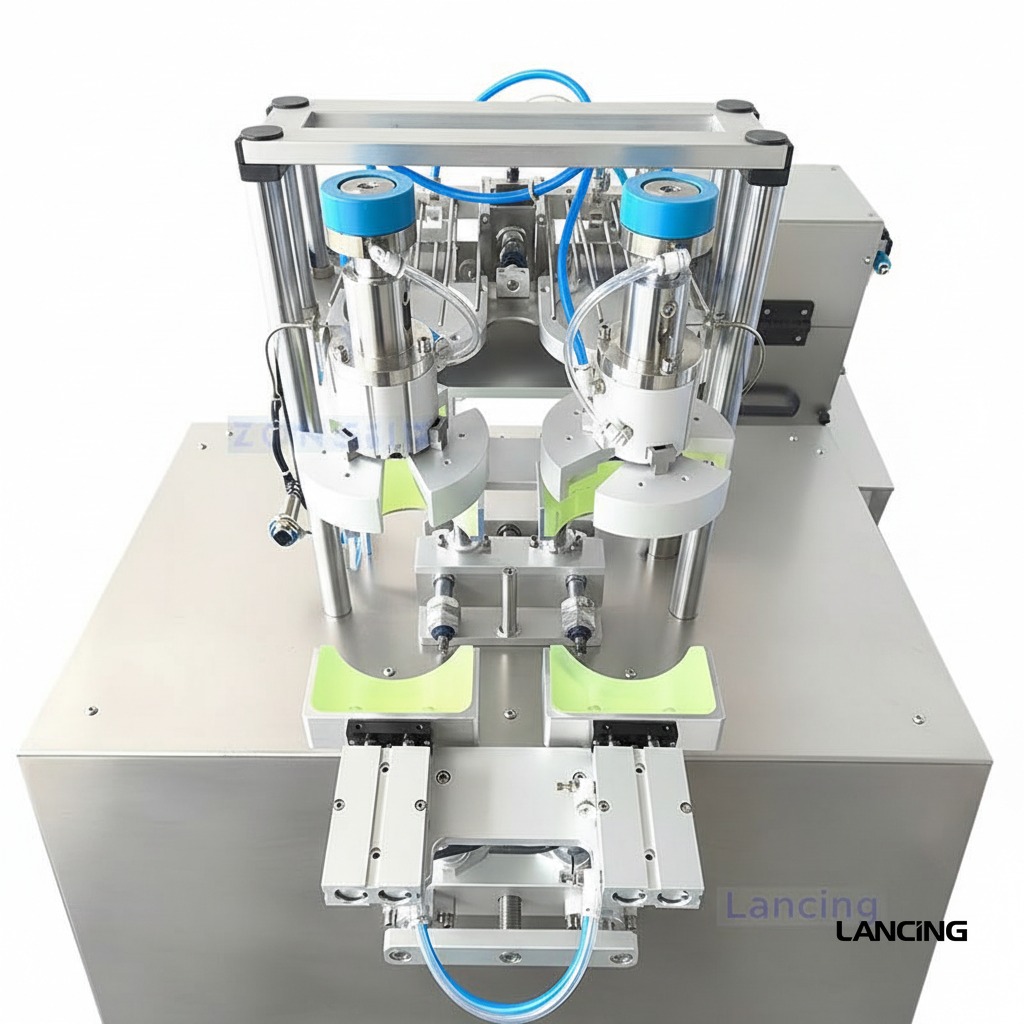

This fully automatic capping machine is ideal for the seasoning, food, daily chemical, and cosmetics industries . It integrates automatic cap feeding, bottle clamping, conveying, and screw capping , significantly improving production efficiency and consistency.Designed to handle bottles of various shapes, sizes, and cap types , it offers excellent versatility . The servo-driven system enables precise torque control, while the pneumatic cap-transfer mechanism ensures stable and reliable capping performance.
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
2100-2300 BPH (bottles per hour)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220V 50-60HZ 1.5 KW
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-SVXG01 |
| Voltage | 110/220V 50-60HZ 1.5 KW |
| Suitable bottle size | φ=20-150mm, H=20-220mm |
| Working capacity | 2100-2300 BPH (bottles per hour) |
| Conveyor size | 2000×114mm (L×W), Working Height=850mm |
| Machine casing material | SUS304 stainless steel |
| Air consumption | 0.4-0.6 MPa |
| Machine size | about 3000×900×1550mm |
| Machine weight | about 260kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
