Machine overview
Automatic Sleeve Labeling Machine
Machine overview and key points for quotation.
This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc. Notice The machine can work with heat shrinking machine, realizing automated production. If you need, please contact us. Thank you!
Throughput
150 bottles/min (based on label length)
Target speed depends on product, pack and operator workflow.
Format range
φ28mm-φ125mm (can be customized)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220V
We’ll confirm voltage, air and installation requirements for your site.

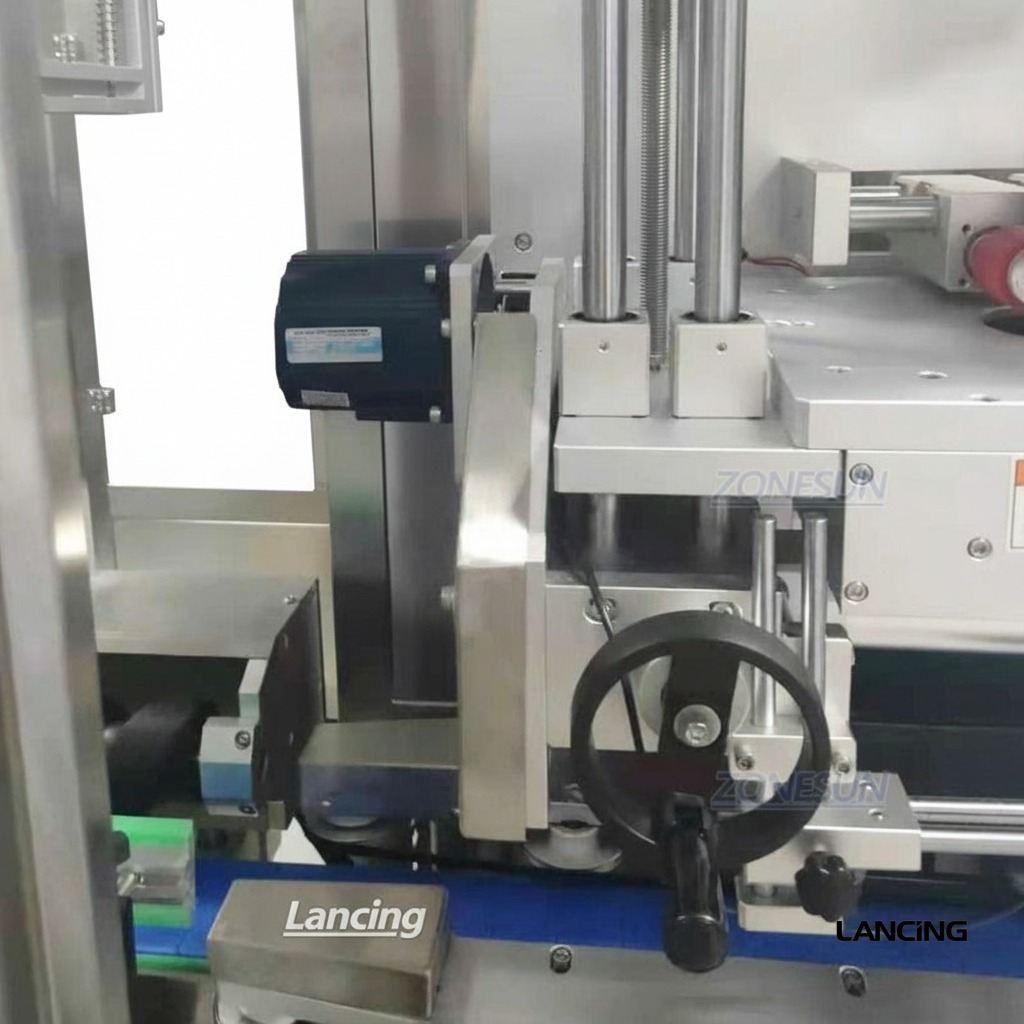

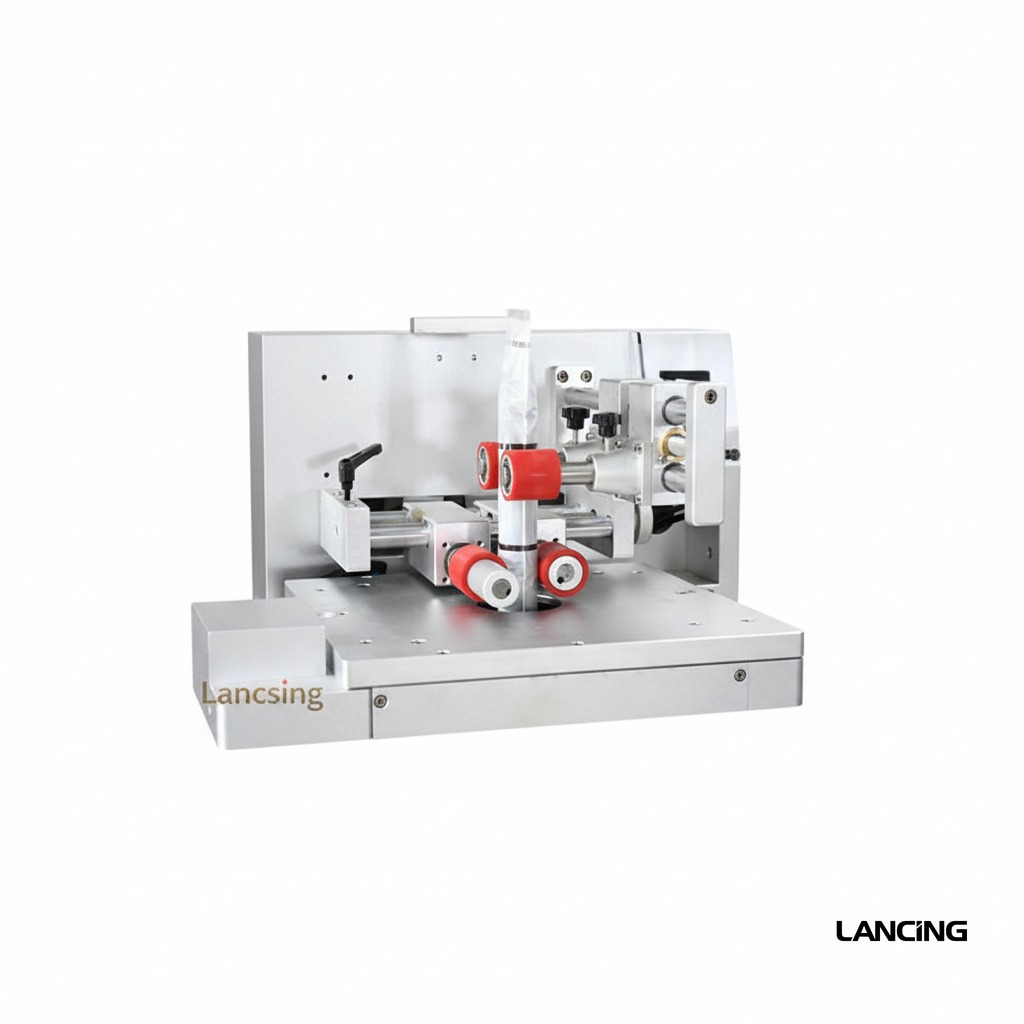

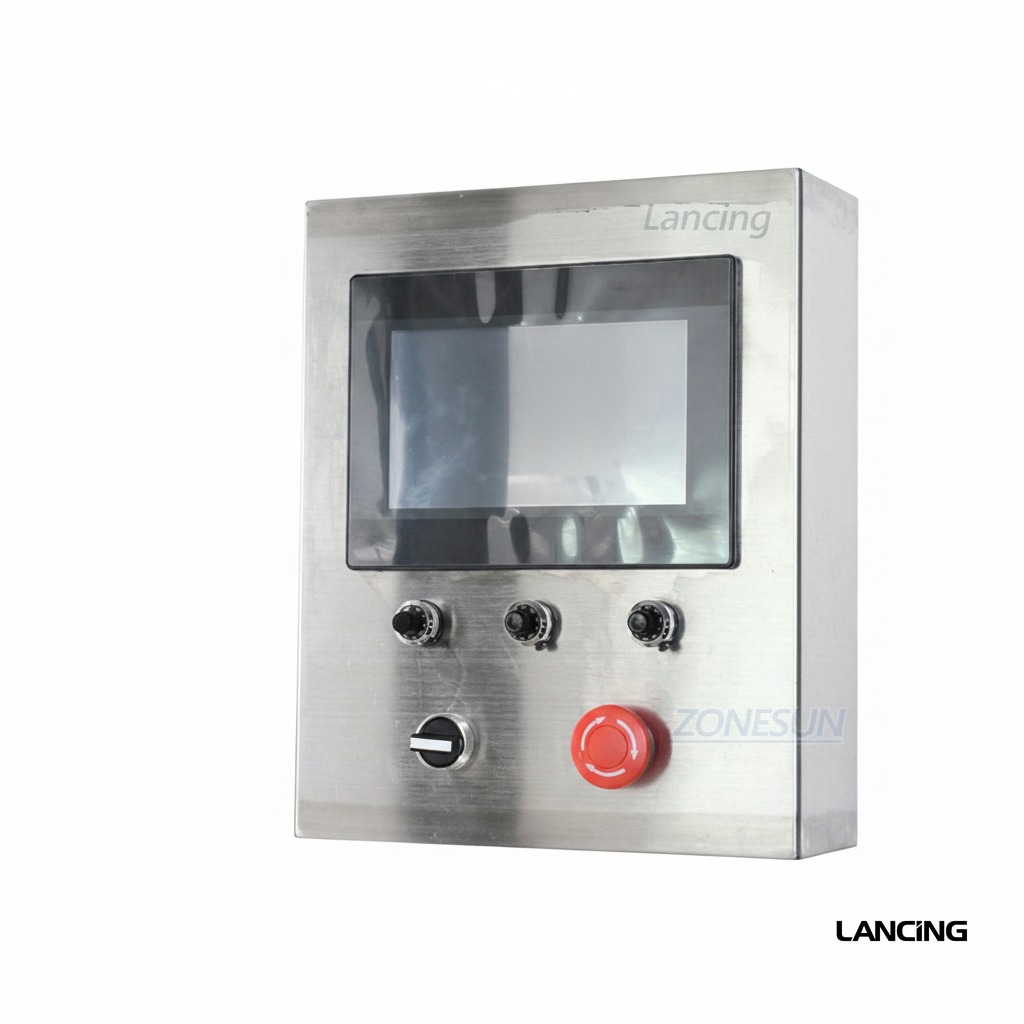

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| standard | 2M |
| About | 21008502000 mm(LWH) |
| Machine model | LU-STB150 |
| Bottle diameter range | φ28mm-φ125mm (can be customized) |
| Bottle height | 30mm ~ 280mm (can be customized) |
| Label length | 30mm~250mm (can be customized) |
| Label thickness | 0.03 mm~0.13 mm (PVC, PET, OPS, materials are all available) |
| Sleeve standard error | +1.5mm |
| Paper tube inner diameter | 5"~10" (can be adjusted) |
| Machine speed | 150 bottles/min (based on label length) |
| Voltage | 220V |
| Power | 1.5KW |
| Conveyor belt | standard 2M |
| Host size | About 2100*850*2000 mm(L*W*H) |
| Weight | About 400Kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
Talk to a specialist
We’ll confirm suitability, options, integration, and realistic throughput for your product.
Enquire about this machine
Send a message and we’ll respond with configuration options, pricing guidance and lead times.
