Machine overview
Automatic Square Bottle Double Sides Labeling Machine
Machine overview and key points for quotation.
This is a cutting-edge Automatic Labeling Machine, specifically designed to streamline your labeling process for large bottles like 5L detergent and hand soap containers. With its widened conveyor belt, this efficient labeling machine ensures precise and hassle-free application of labels, saving you time and effort. Whatever your packaging needs are, you can rely on Lancing UK.
Throughput
About 10-60 bottles/min (depending on bottle and label size)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220V/110V 50-60Hz
We’ll confirm voltage, air and installation requirements for your site.

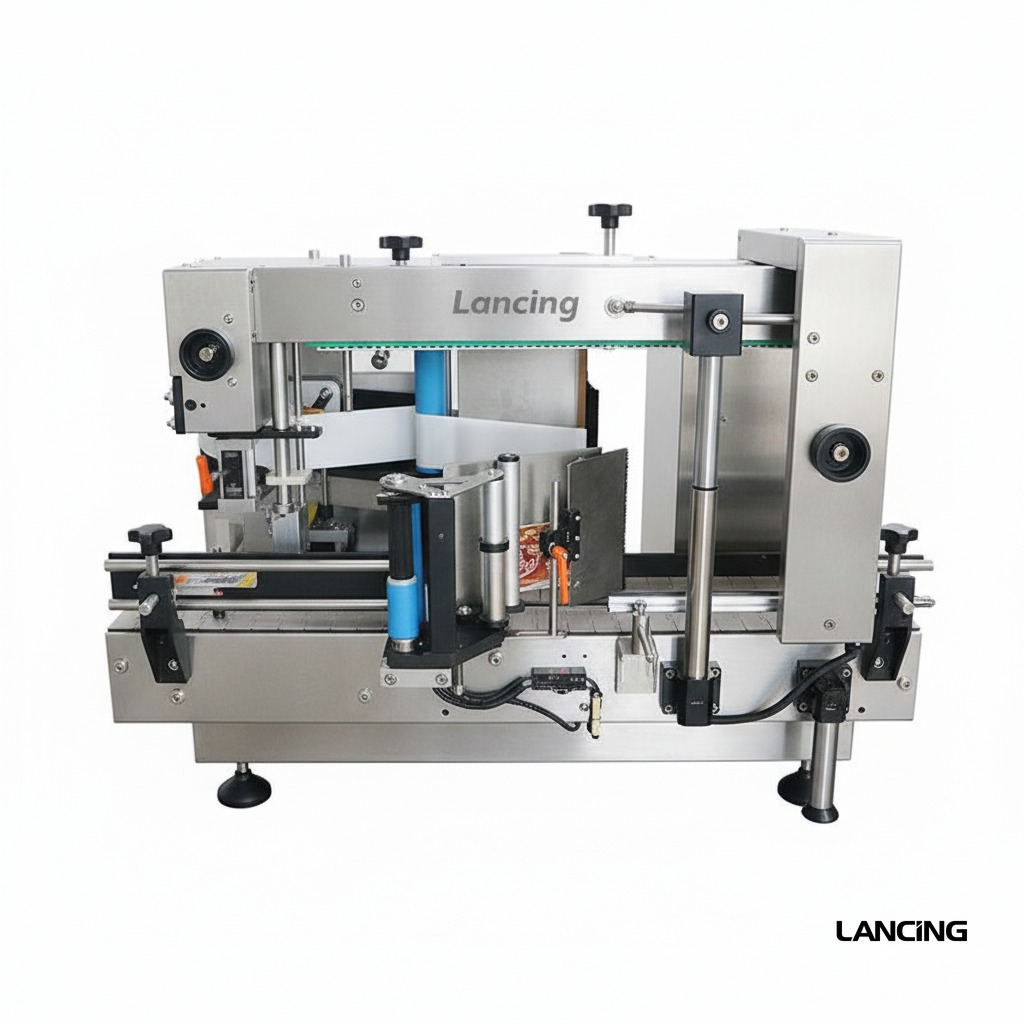

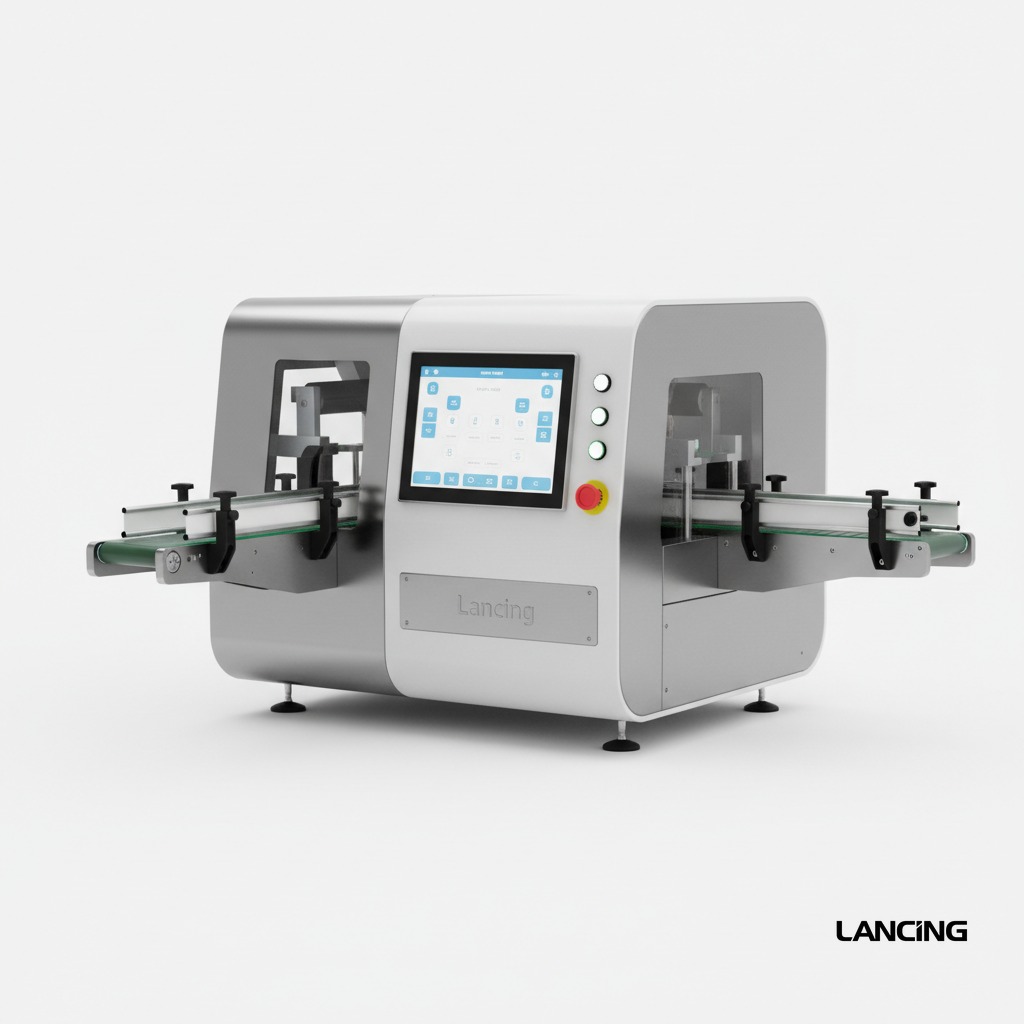

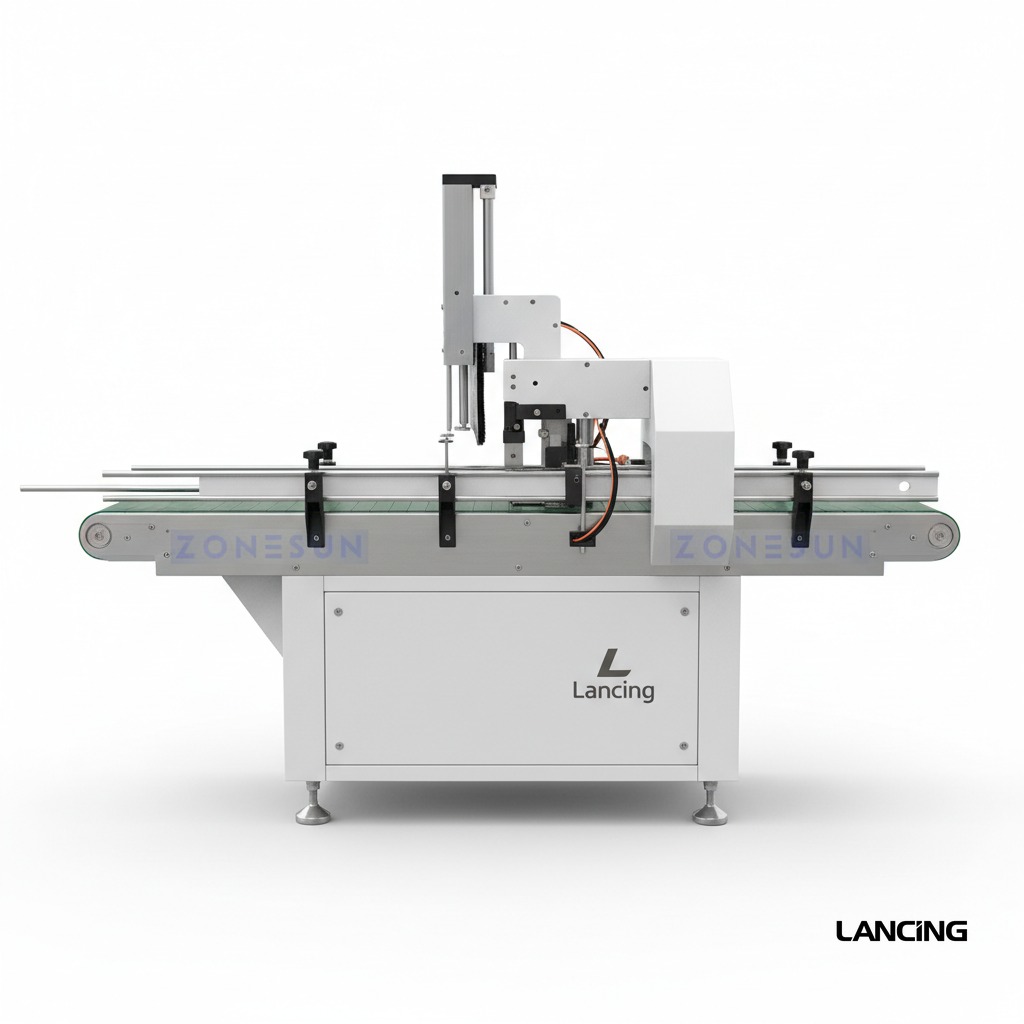

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| About | 2500W |
| Machine Model | LU-TB300R |
| Voltage | 220V/110V 50-60Hz |
| Power | About 2500W |
| Labeling Speed | About 10-60 bottles/min (depending on bottle and label size) |
| Suitable Product Size | About 150-250(W)*150-310mm(H) |
| Label Size | 15-300mm(W)*15-200mm(H) |
| Label Roll Inner Diameter | Φ75mm |
| Label Roll Outer Diameter | Φ350mm |
| Machine Size | About 3000*1400*1750mm |
| Machine Weight | About 320kg |
| Package Size | About 2060*1110*1410mm |
| Package Weight | About 393kg |
| Machine Component | Brand |
| PLC | Siemens |
| Control Panel | Siemens |
| Label Sensor | SICK |
| Inverter | Siemens |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
