Machine overview
Automatic Stretch Blow Molding Bottle Machine
Machine overview and key points for quotation.
Automatic Stretch Blow Molding Bottle Machine , sales and related technical services of modern high-tech enterprises. Opens in a new window. You may also like Customer Reviews
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
1300bph
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
380V / 50–60Hz
We’ll confirm voltage, air and installation requirements for your site.

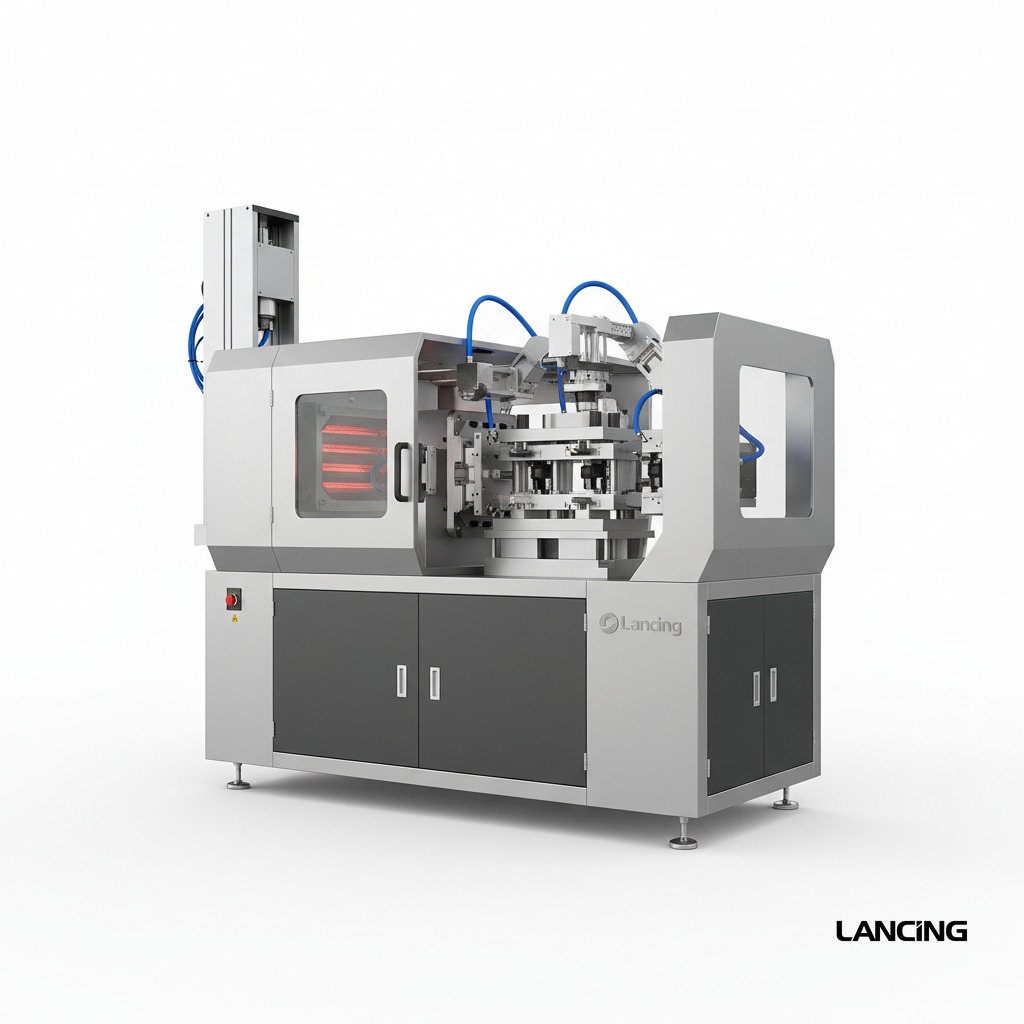

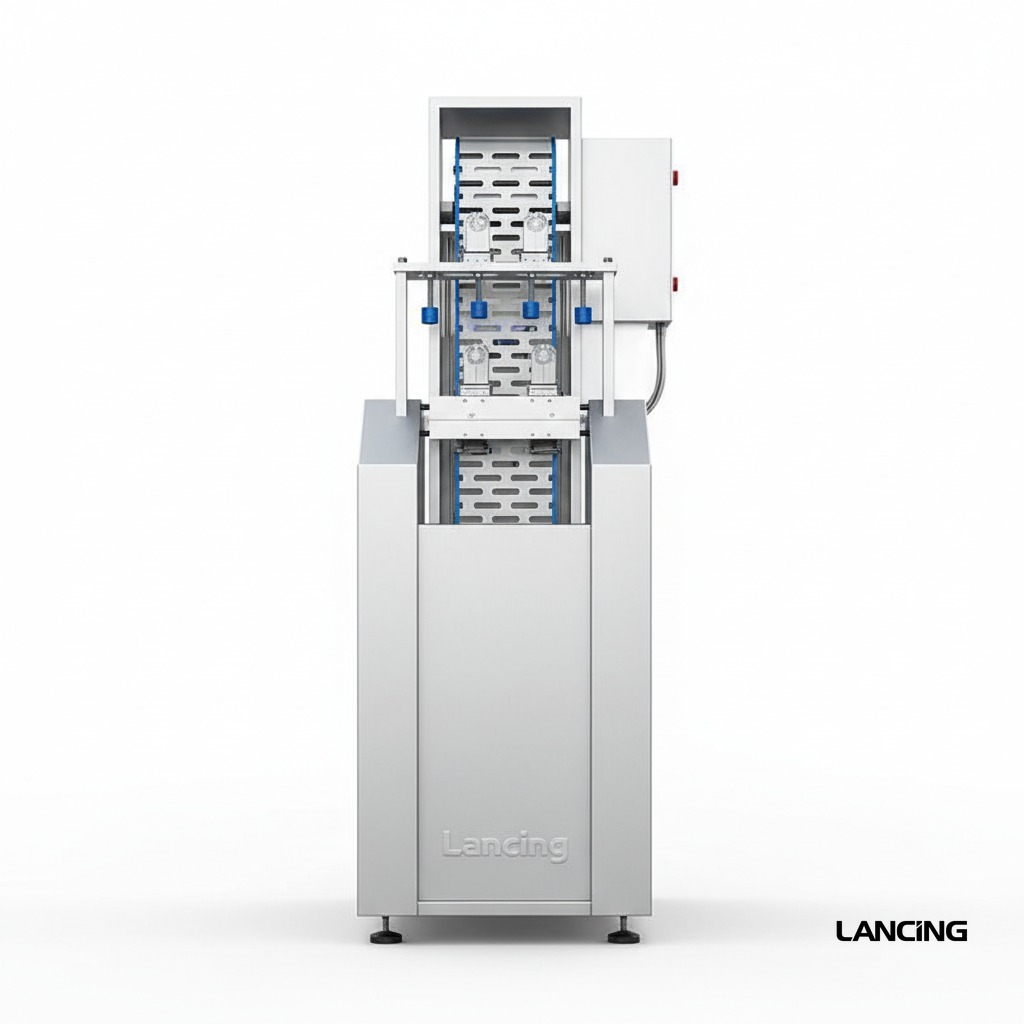

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Parameter | LU-SBM32A1 |
| Cavity | 1 |
| Container Volume | 100–2000ml |
| Mold Opening Stroke | 180mm |
| Mold Thickness | 300mm |
| Stretching Stroke | 450mm |
| Capacity | 1300bph |
| Container Diameter | 50–105mm |
| Container Height | 80–280mm |
| Neck Range | 28–38mm |
| Voltage/Frequency | 380V / 50–60Hz |
| Heater Power | 7kW |
| Blowing Pressure | 8bar |
| Low Pressure | 8bar |
| Air Low Consumption | 1.0m³/min |
| High Air Consumption | 1.6m³/min |
| Water Consumption | 16–25L/min |
| Dimension (L×W×H) | 1.8×0.8×1.8m |
| Weight | 2000kg |
| Pass Rate | ≥99.8% |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
