Automatic Strong Acid Corrosive Liquid Filling Machine
Machine overview and key points for quotation.
This anti-corrosion filling machine is built for high-efficiency liquid filling of strong acid , strong base , high oxidizer , and foaming liquid . Ideal for the chemical industry and pharmaceutical use , it features stable operation , durable design , and full PP material construction for long-lasting resistance. A reliable piece of industrial equipment for demanding corrosive environments.
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
3200 bottles/hour (calculated based on 500ml)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
AC220V/380V 50~60HZ 2.4kw
We’ll confirm voltage, air and installation requirements for your site.

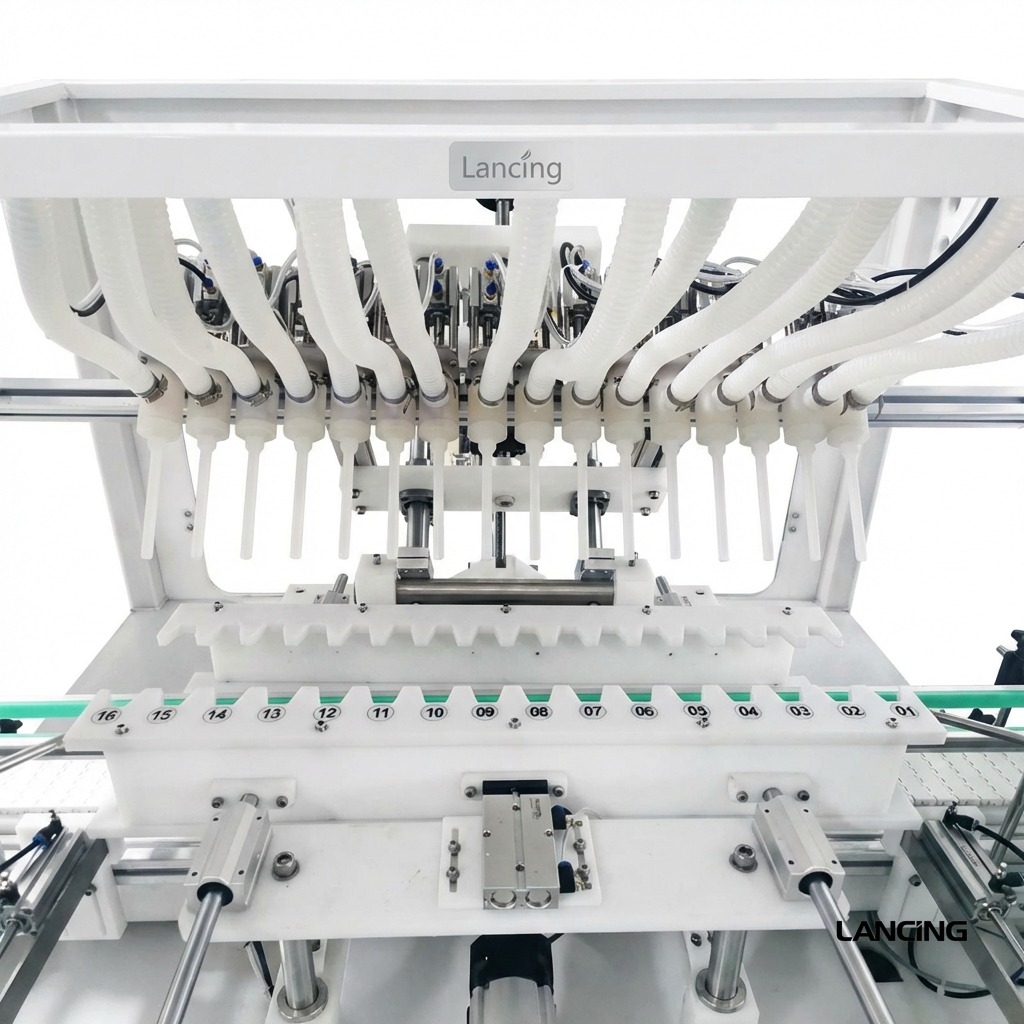

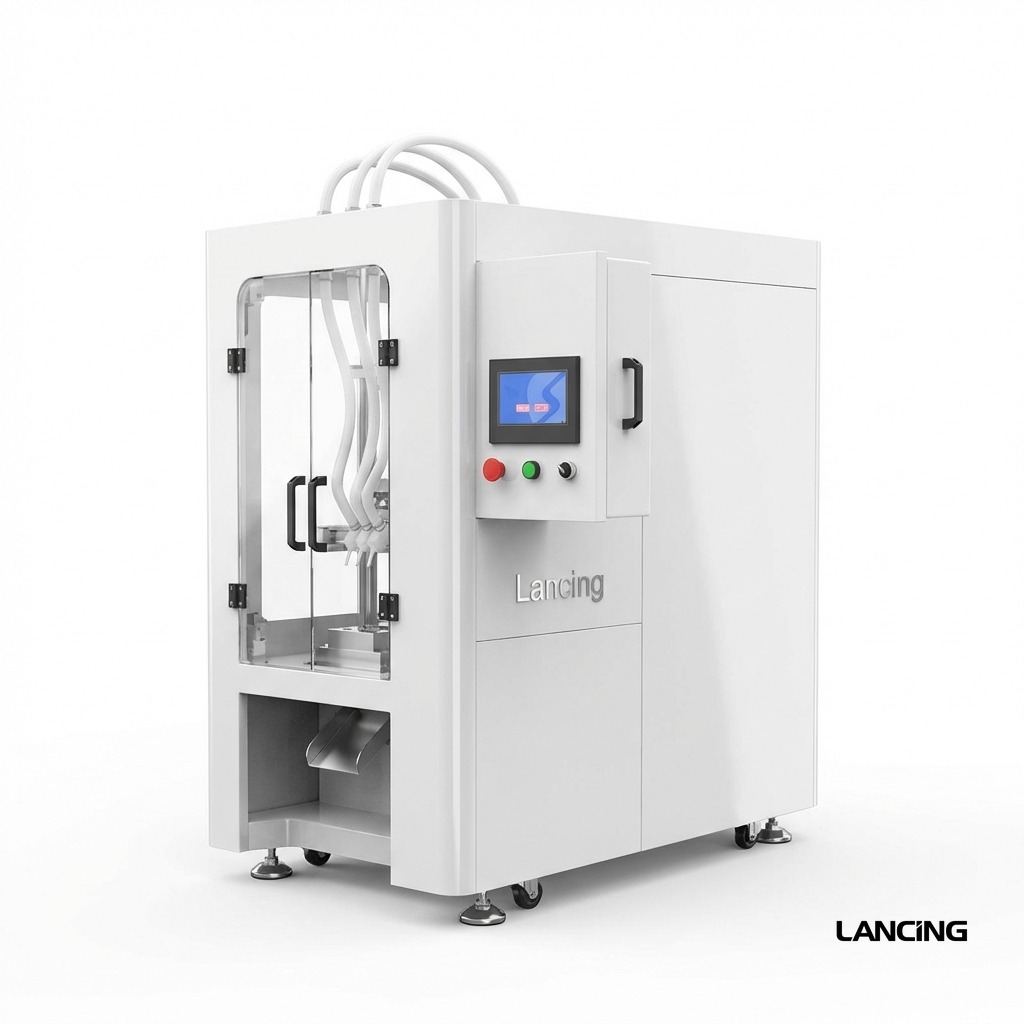

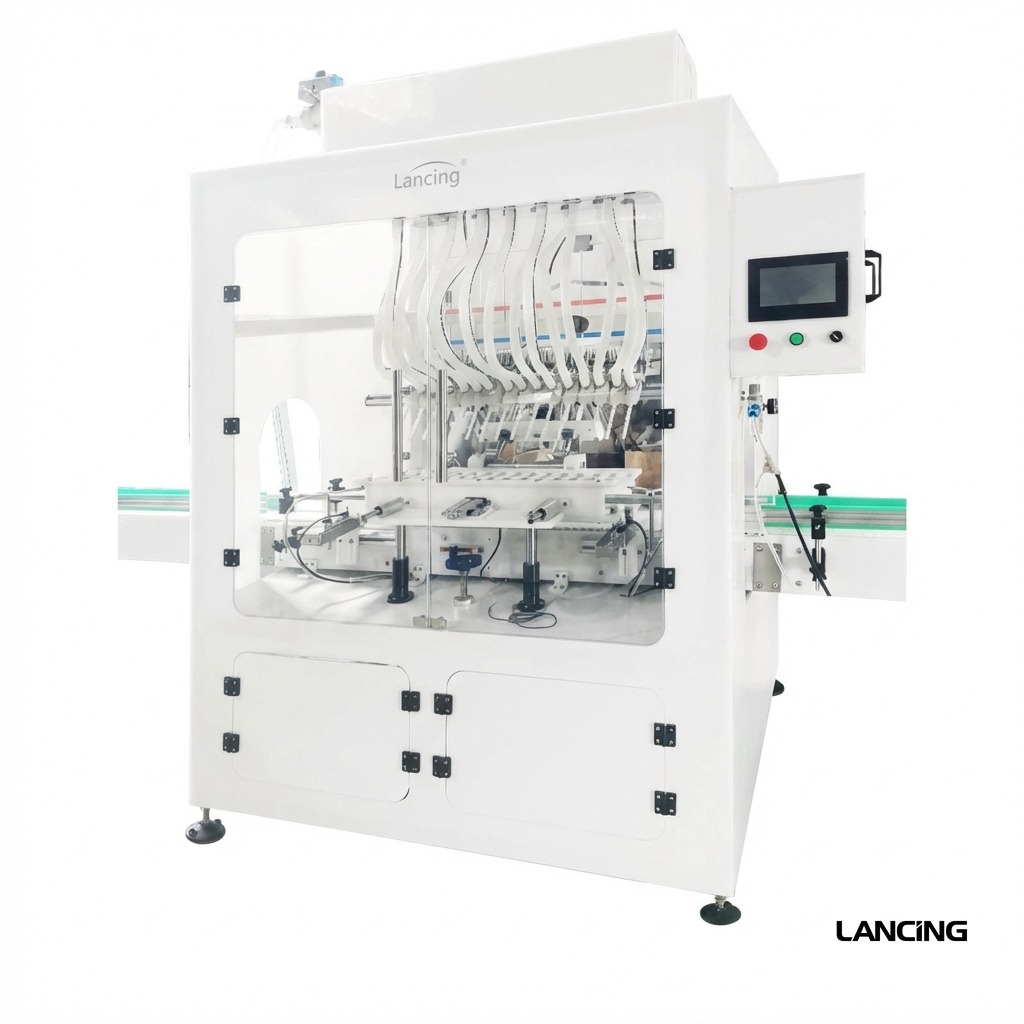

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-XAF16 |
| Applicable bottle type | 10ml~5L round, oblate, square, oblate square bottle, oblique mouth bottle |
| Applicable bottleneck | Ф 30mm+ |
| Filling accuracy | ±0.3% (taking 500ml as an example) |
| Production capacity | 3200 bottles/hour (calculated based on 500ml) |
| Number of filling heads | 4/6/8/10/12/14/16 (customizable) |
| Equipment material | PP anti-corrosion material |
| Power supply and power | AC220V/380V 50~60HZ 2.4kw |
| Working air pressure | 0.6~0.8Mpa |
| Dimensions | 2100x1100x1800mm (customized according to the actual product |
| Equipment weight | About 800kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
