Machine overview
Automatic Toilet Cleaner Bottle Capping Machine
Machine overview and key points for quotation.
The Lancing UK LU-XG25 is an automatic angled-neck bottle capping machine designed for both angled-neck and regular bottles. Running at 30–45 bottles per minute , it features an adjustable capping head, dual-side synchronized adjustment, and a bottle holding conveyor system to ensure stable and precise operation . Built with 304 stainless steel and aluminum alloy , the machine offers durability, hygiene, and compliance with production standards. With its fiber optic sensor head, chain plate conveyor, and customizable design, it provides reliable, efficient, and versatile performance for medium to large-scale production lines , commonly used for toilet cleaners, disinfectants, shampoos, and other angled-neck packaging.
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
30–45 bottles/min
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
800 W
We’ll confirm voltage, air and installation requirements for your site.

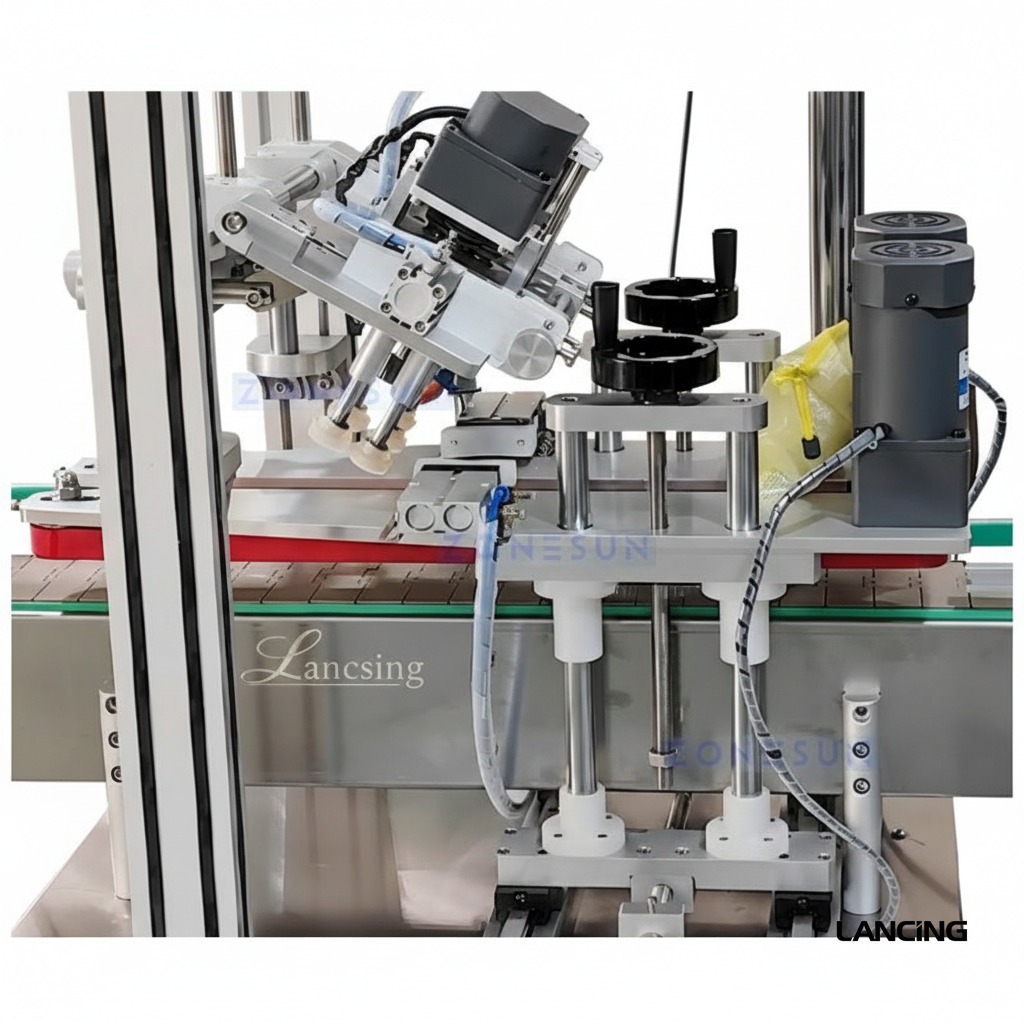

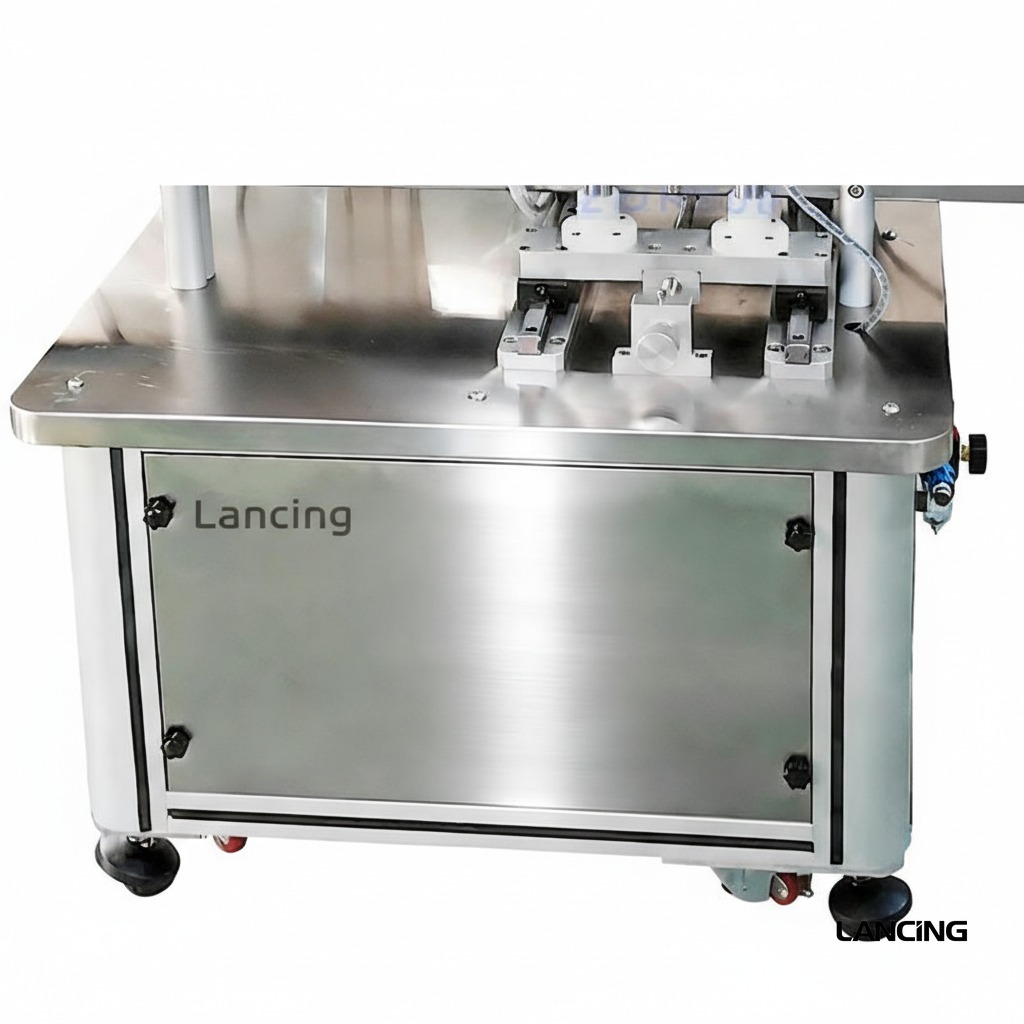

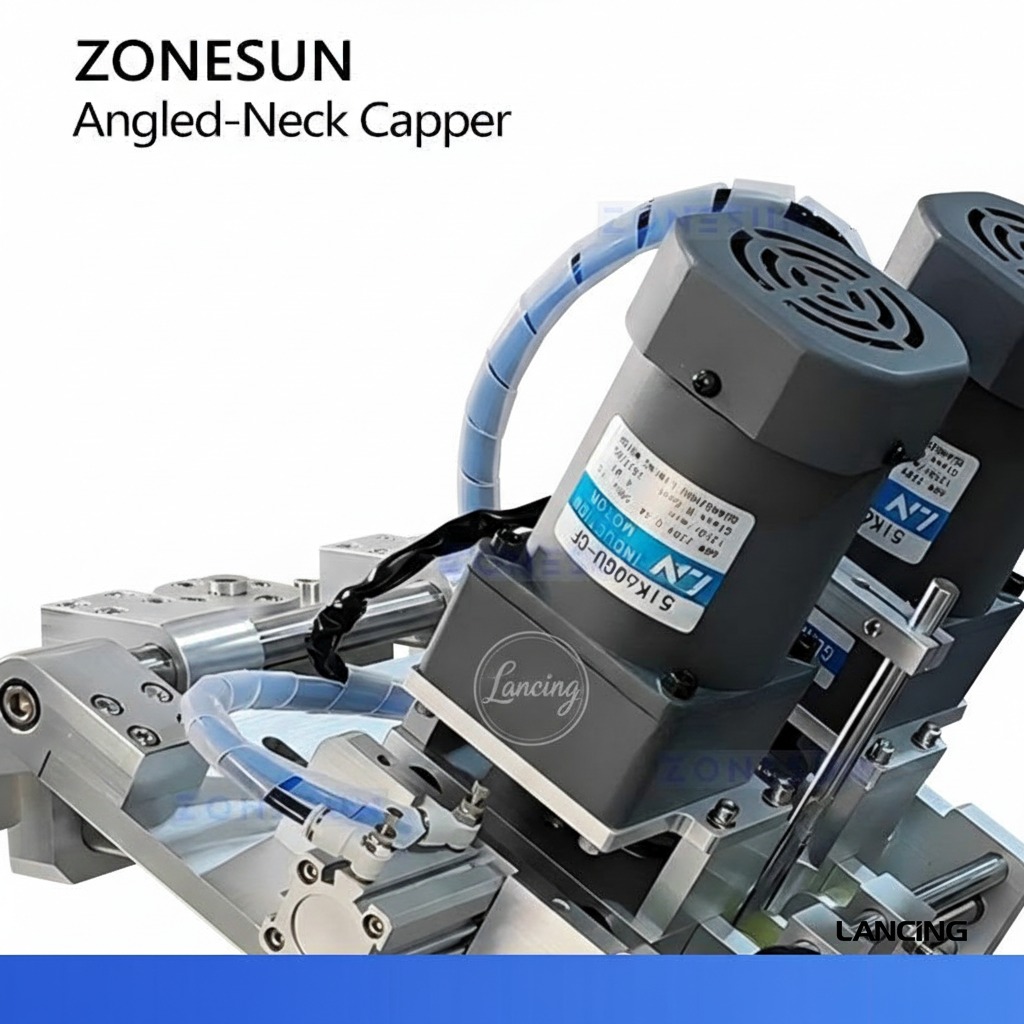

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-XG25 |
| Production Capacity | 30–45 bottles/min |
| Power Consumption | 800 W |
| Cap Size Range | 20–60 mm (customizable) |
| Working Voltage | 220 V / 50 Hz |
| Applicable Bottle Height | 30–330 mm |
| Working Air Pressure | 0.4–0.6 MPa |
| Material | 304 stainless steel / aluminum alloy |
| Machine Dimensions (L×W×H) | 200 × 75 × 165 cm |
| Machine Weight | 150 kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
