Machine overview
Automatic Volumetric Cup Granule Bean Dosing Filling Machine
Machine overview and key points for quotation.
The Lancing UK LU-KL02S is an automatic volumetric cup granule filling machine designed for precise and efficient dosing of free-flowing materials such as sugar, seeds, beans, pills, tea, coffee beans, and chemical granules. Operating at 10–30 BPM , it uses a volumetric measuring cup system and a vibration feeding motor to ensure smooth material flow, prevent clogging, and maintain high filling accuracy . With stainless steel construction, customizable filling range, and integration-ready design, it delivers reliable performance for small to medium-scale packaging lines in food, pharmaceutical, and chemical industries.
Throughput
10–30 bottles/min
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
0.9 kW
We’ll confirm voltage, air and installation requirements for your site.

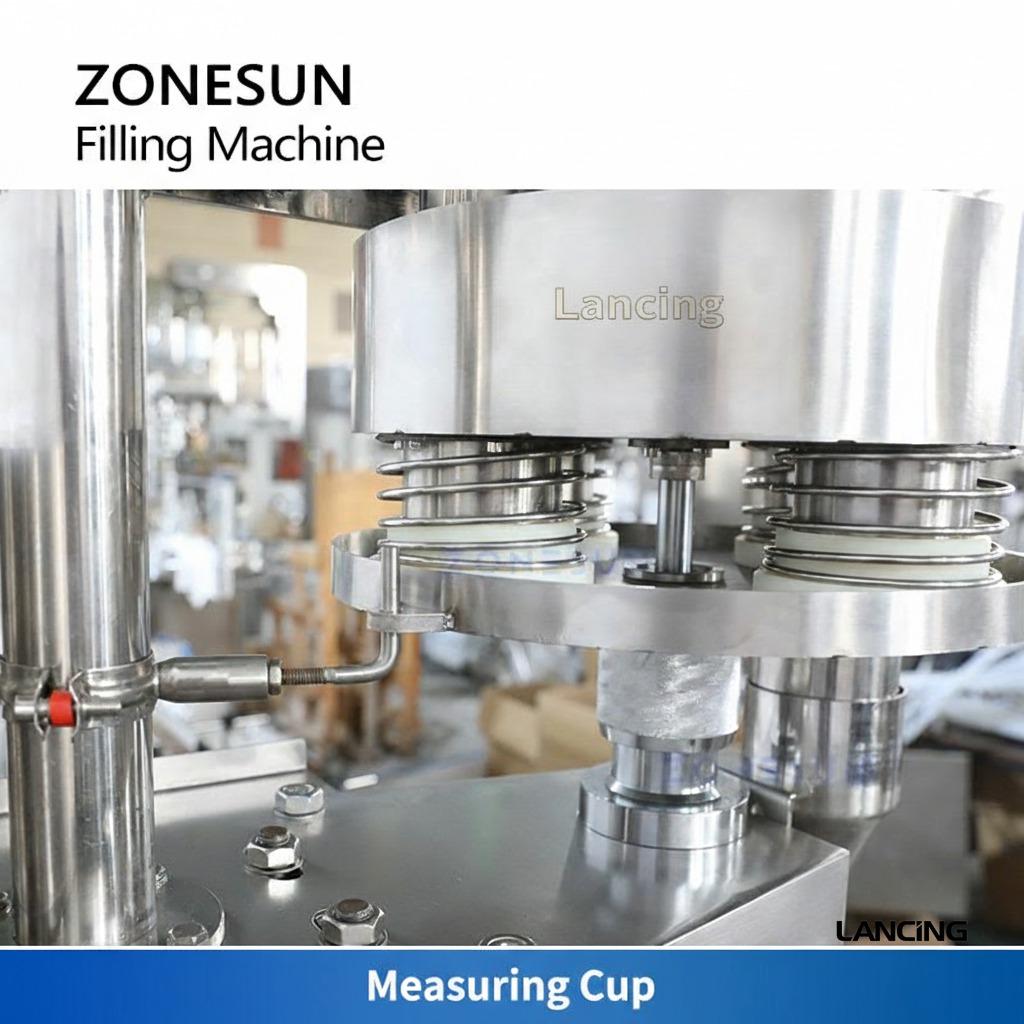

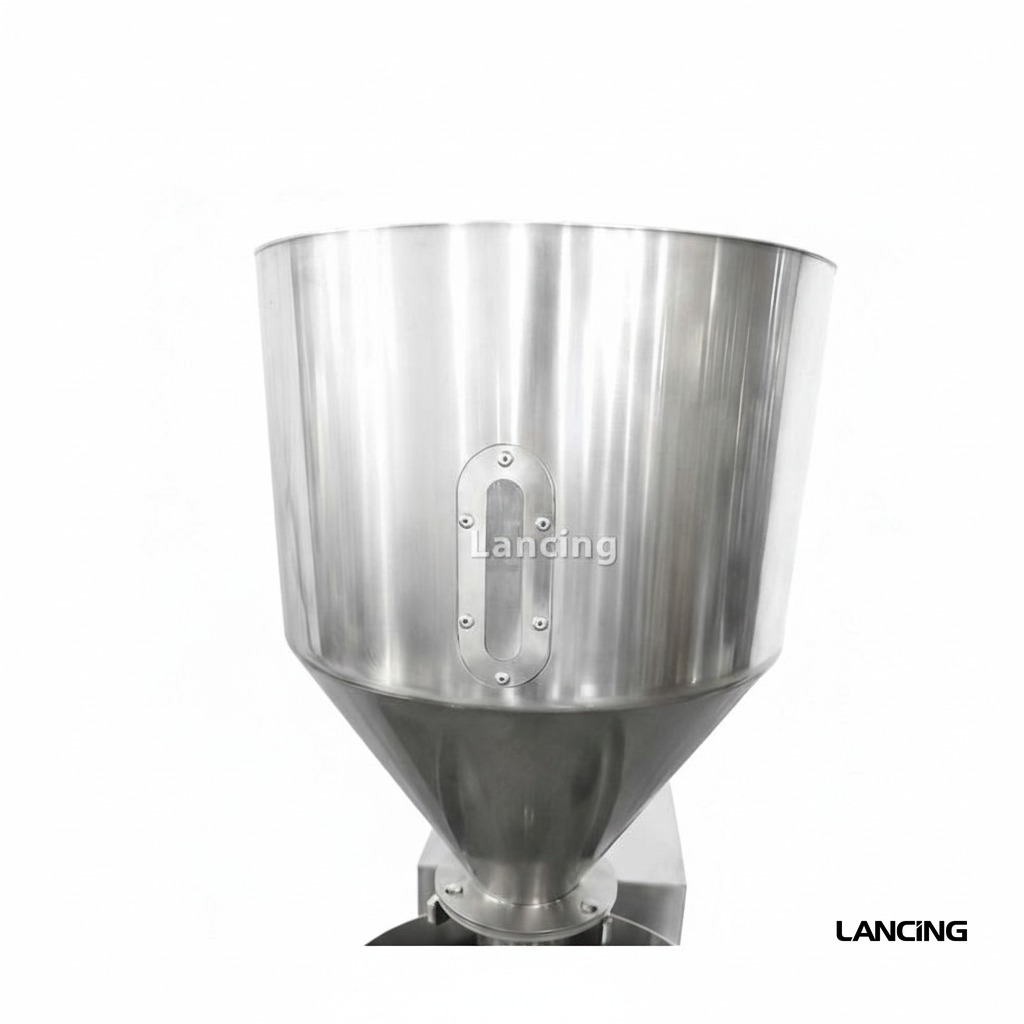

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-KL02S |
| Power Consumption | 0.9 kW |
| Power Supply | 110V / 220V, 50–60Hz |
| Hopper Volume | 30 L |
| Hopper Size (Diameter × Height) | About Ø320 × 410 mm |
| Measurement Method | Measuring Cup |
| Filling Weight | 1–500 g (customizable) |
| Filling Speed | 10–30 bottles/min |
| Filling Nozzle Size | 20 mm (other sizes customizable) |
| Machine Size (L×W×H) | About 2020 × 670 × 1960 mm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
