Machine overview
ZS-BCM8 High-Speed Pump Bottle Capping Machine
Machine overview and key points for quotation.
DESECRIPTION Introducing our advanced rotary pump capping machine, designed for efficiency and reliability in packaging. This machine integrates an automatic cap feeder, cap sorting system, and rotary capping mechanism, all driven by a high-performance servo system. Equipped with features such as bottle blockage detection, missing bottle detection, missing cap alarms, and overload protection, it meets national hygiene standards for daily chemical products. Its reliable performance, scientific design, and user-friendly operation make it the ideal choice for family-owned manufacturers seeking optimal filling solutions. TECHNICAL SPECIFICATIONS Model: LU-BCM8
Throughput
≥5000 BPH
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
AC 380V, 50Hz
We’ll confirm voltage, air and installation requirements for your site.

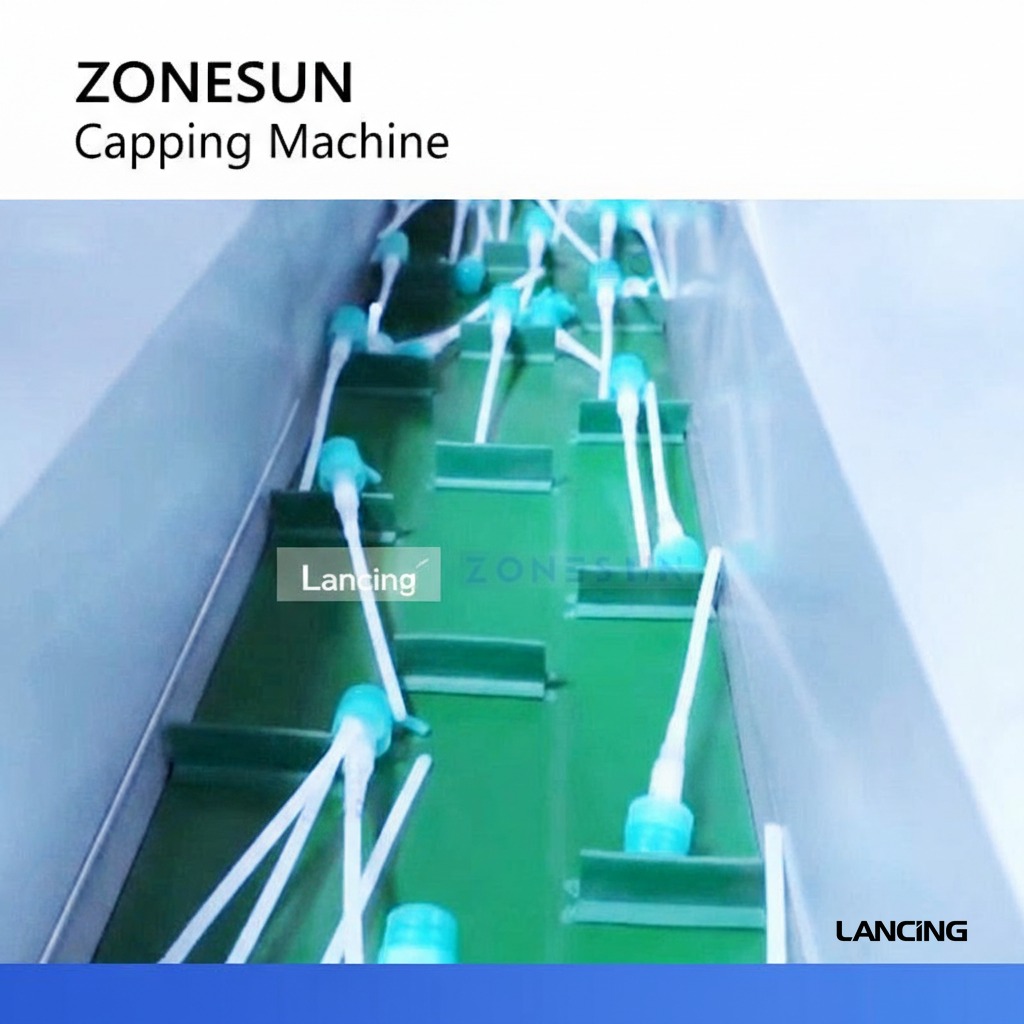

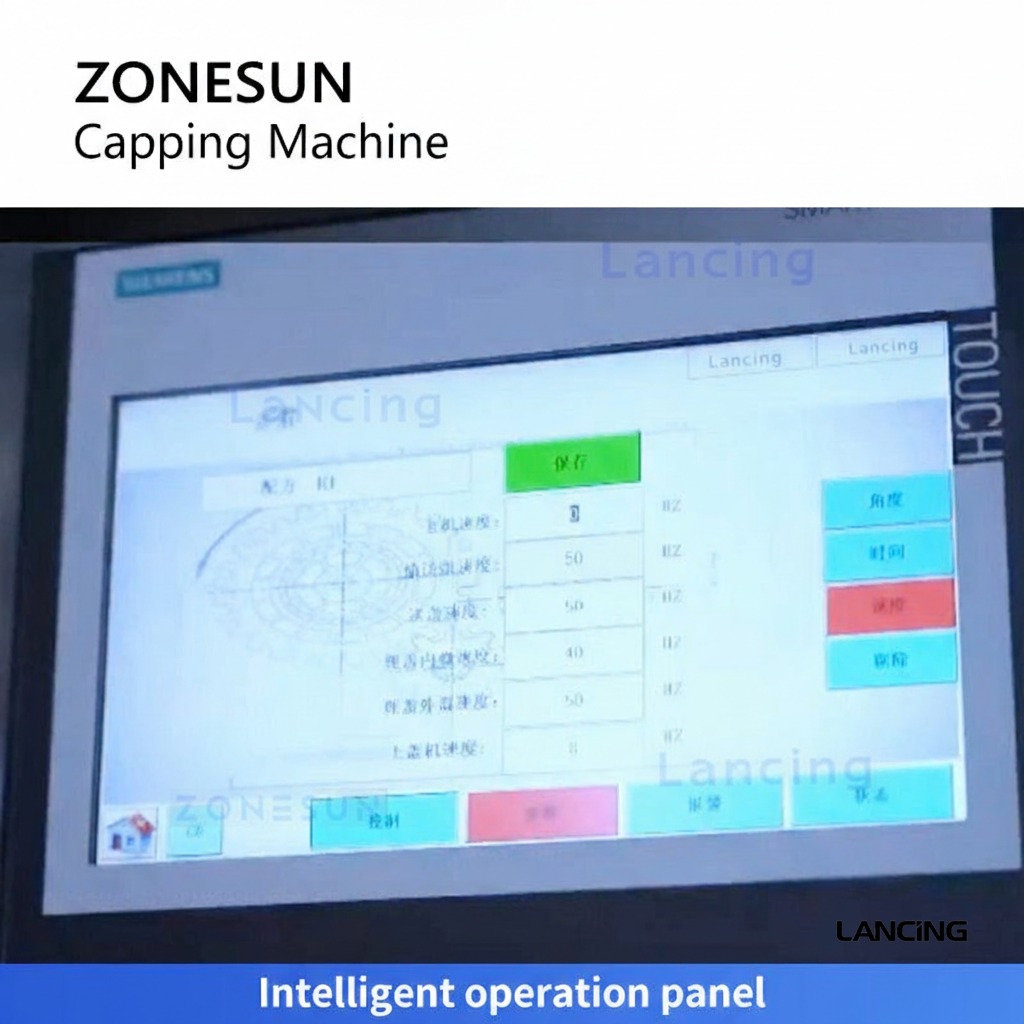

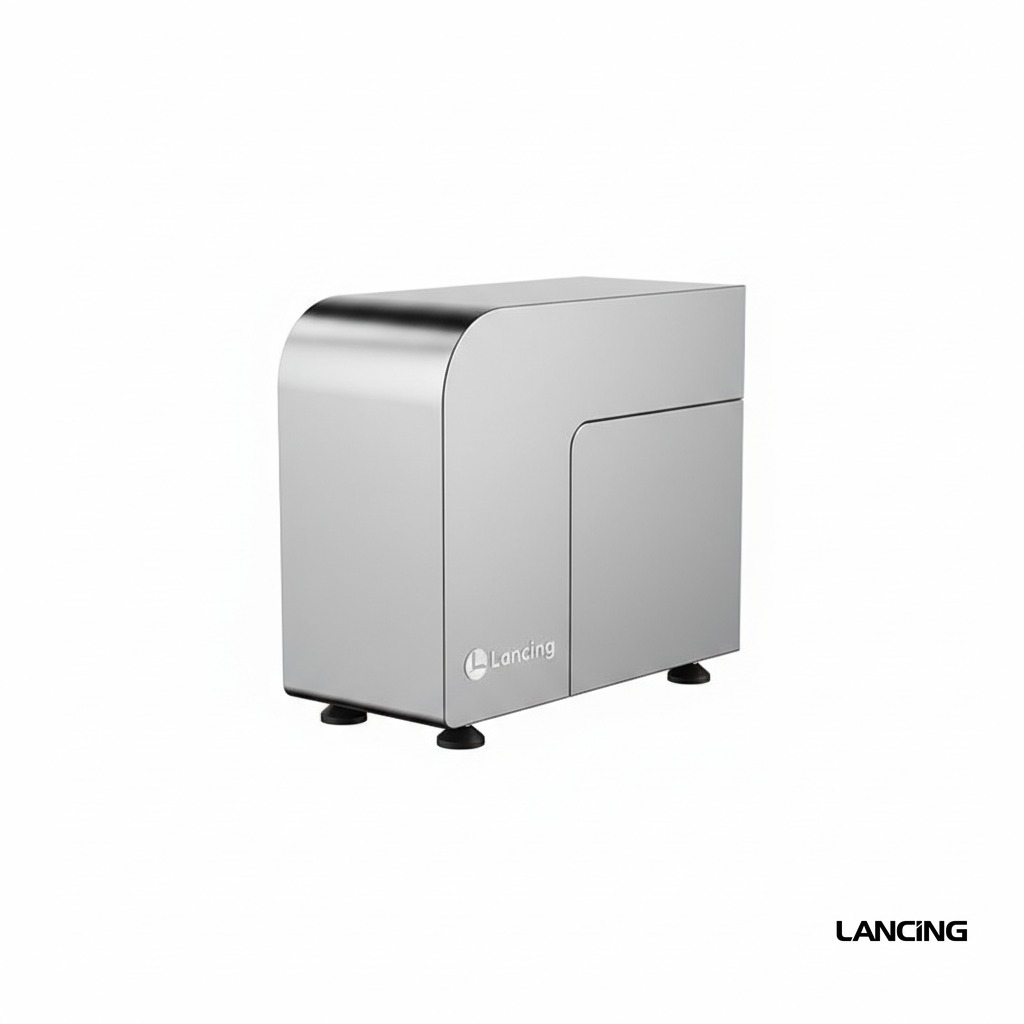

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Power Supply | AC 380V, 50Hz |
| Speed | ≥5000 BPH |
| Qualified Rate of Capping | ≥99% |
| Air Supply | Clean compressed air pressure ≥0.5MPa |
| Operating Noise | 80dB at 1 meter |
| Weight | 4000kg |
| Dimension (L×W×H) | 2000 × 1800 × 2900mm |
| Model | LU-BCM8 |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
