ZS-CL6T High-Volume Liquid Filling Machine
Machine overview and key points for quotation.

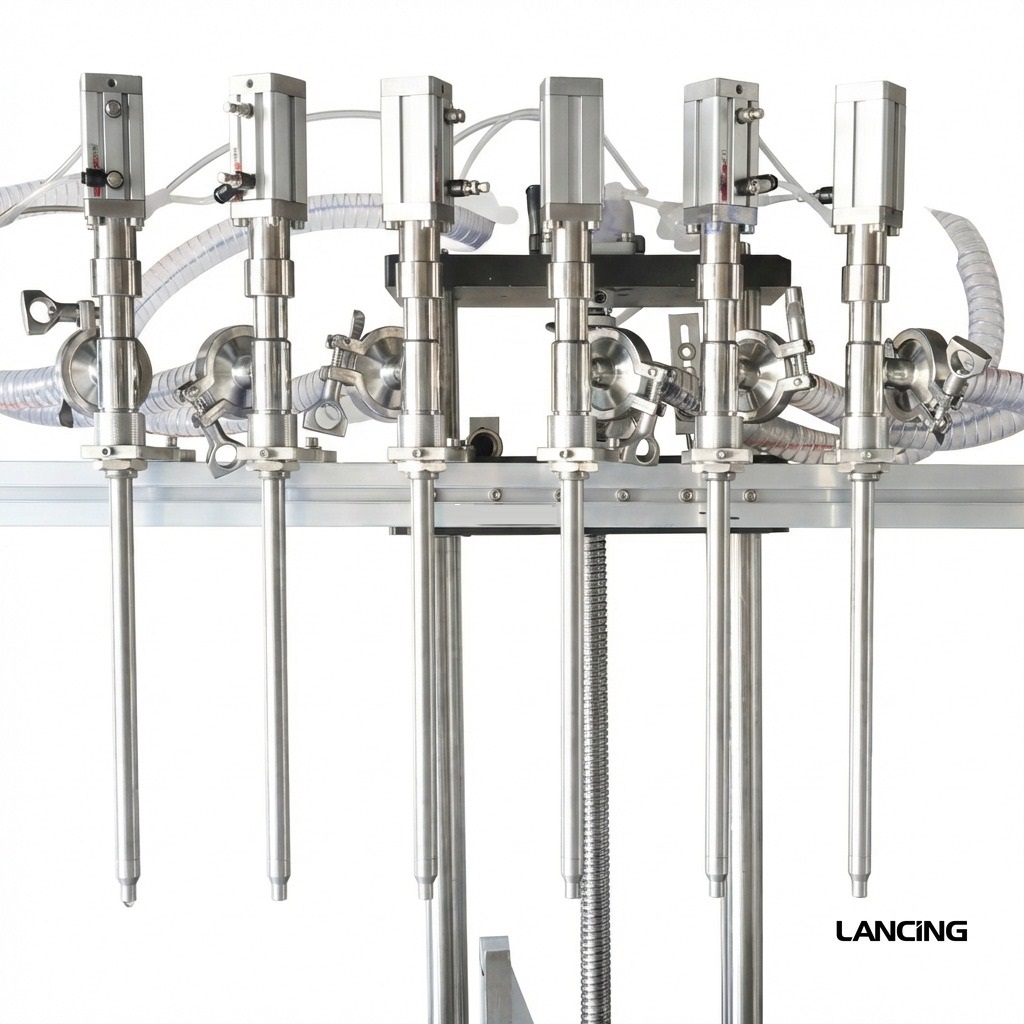

The Lancing UK LU-CL6T Automatic Liquid Filling Machine is built for high-volume, precision filling of liquids ranging from 500ml to 5000ml. Featuring six servo-driven magnetic pumps and a 320L storage tank with automatic level detection, it ensures consistent flow and accurate dosing. Bottles are positioned by a stopper and gripper system, while the servo-controlled filling heads descend for precise dispensing. A drip tray prevents spills, and the PLC interface allows easy adjustment of filling parameters. Ideal for chemical, cosmetic, and food-grade liquid packaging, this machine supports up to 42 bottles/min with ±1% accuracy.
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
500–5000ml
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
Site utilities to be confirmed
We’ll confirm voltage, air and installation requirements for your site.

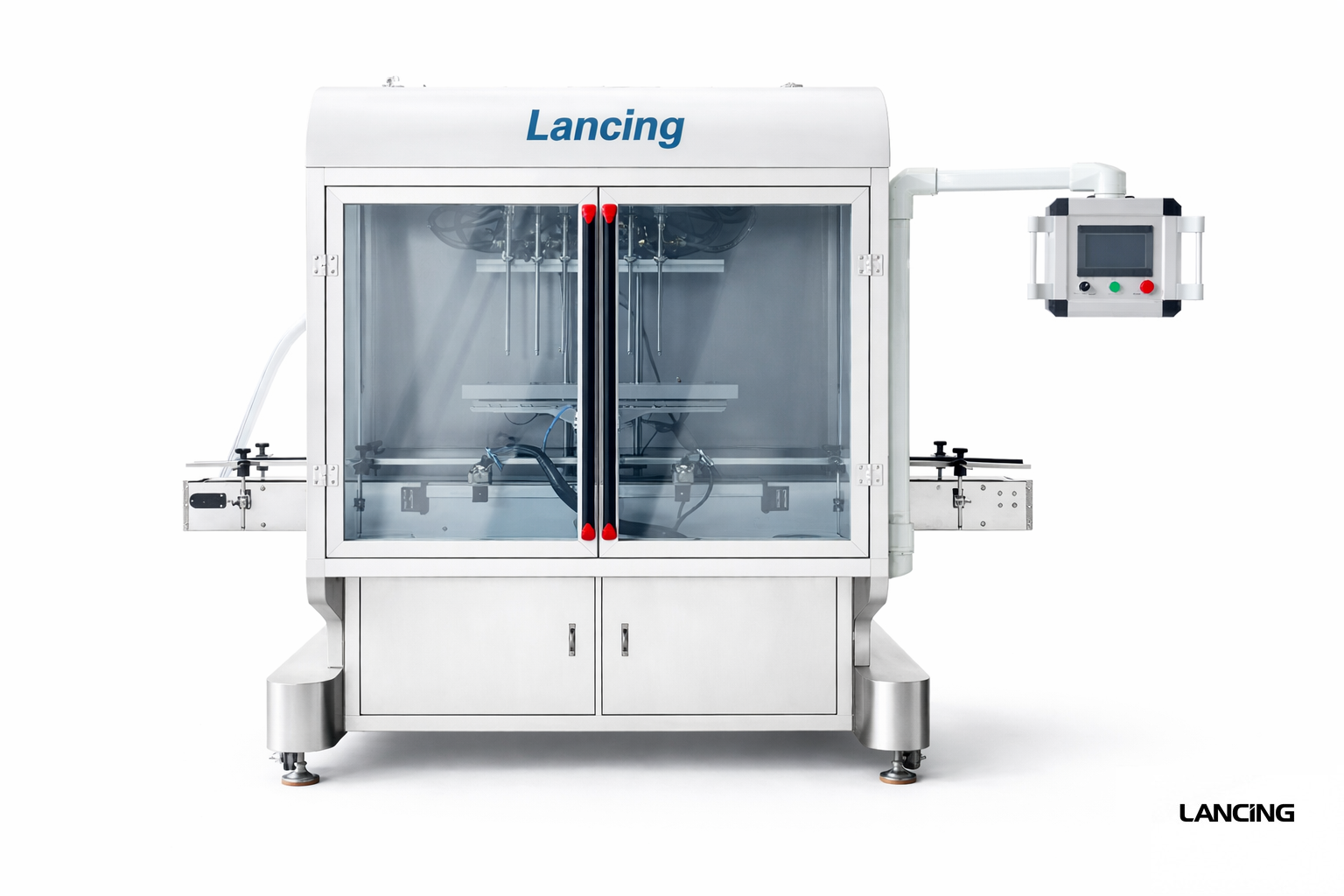

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-CL6T |
| Filling range | 500–5000ml |
| Filling head | Quantity: 6, Size: 8mm |
| Filling pump | Magnetic pump, 45L/min, servo motor driven |
| Capacity | Max 42 bottles/min (500ml) |
| Accuracy | ≤ ±1% |
| Applicable bottle | Height ≤ 330mm, Diameter ≤ 110mm |
| Lifting | Servo motor driven |
| Conveyor | Width: 114mm, Length: 2422mm |
| Storage tank | 320L |
| Size (L×W×H) | 2615×1621×2153mm |
| Weight | 752kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
