ZS-DTMP4AL Magnetic Pump Liquid Filling Machine
Machine overview and key points for quotation.

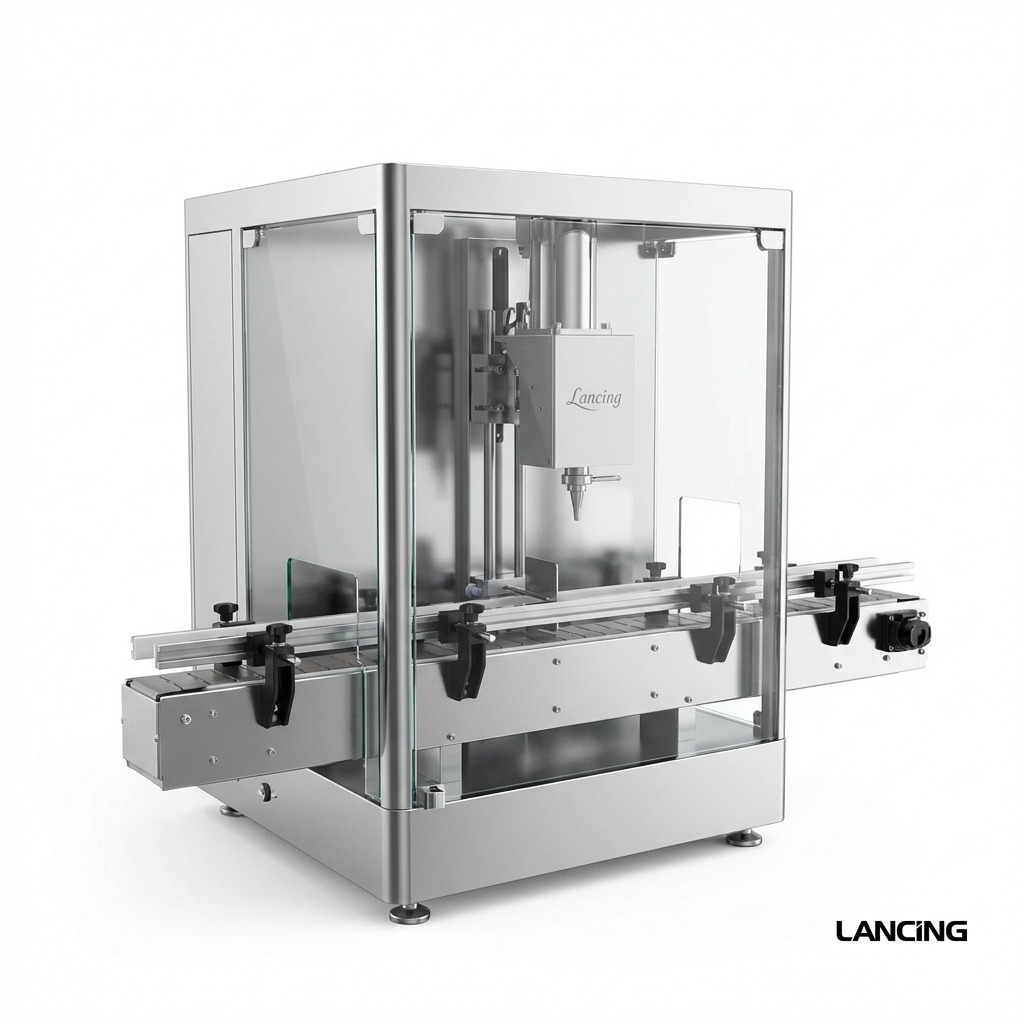

The Lancing UK LU-DTMP4AL is a tabletop automatic liquid filling machine equipped with magnetic pumps for high-precision filling. Designed for small bottles, it is ideal for foamy liquids, essential oils, perfumes, and beverages. The integrated chain conveyor offers strong load capacity and smooth transport, making it suitable for heavier products. This machine can be paired with tabletop capping and labeling machines to form a compact automated production line, significantly improving operational efficiency in cosmetic, pharmaceutical, and food industries. LU-DTMP4AL Liquid Filling Machine – Technical Specifications Parameter Specification Model LU-DTMP4AL Power Supply 110/220V, 50–60Hz, 300W Max Flow Rate 6L/min (based on water) Working Speed 20–30 bottles/min Air Pressure 0.3–0.4MPa Filling Accuracy 99% (for water) Nozzle Diameter 6mm / 8mm Count Range 1–99999 Filling Volume 3–1000ml Air Compressor Connector OD 8mm Conveyor Load ≤12kg Machine Size About 1100 × 580 × 1110mm Package Size About 1150 × 640 × 850mm Net Weight About 74kg Gross Weight About 91kg
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
Site utilities to be confirmed
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
No specifications listed yet.
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
