Machine overview
Flat Surface Labeling Machine
Machine overview and key points for quotation.
The Lancing UK LU-TB170 is a high-speed labeling machine designed for flat surface applications. With a maximum output of 300 pieces per minute, it significantly boosts production efficiency. Its scalable design allows seamless integration with various conveyor systems, making it ideal for forming automated labeling lines. Engineered for precision, it supports label sizes from 15×25 mm to 200×300 mm with ±1% accuracy. Compact and reliable, it’s perfect for packaging operations requiring speed, flexibility, and consistent labeling quality.
Throughput
0-300 pieces/min(Based on labeling materials and label size)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220V 5060HZ 1.5KW
We’ll confirm voltage, air and installation requirements for your site.

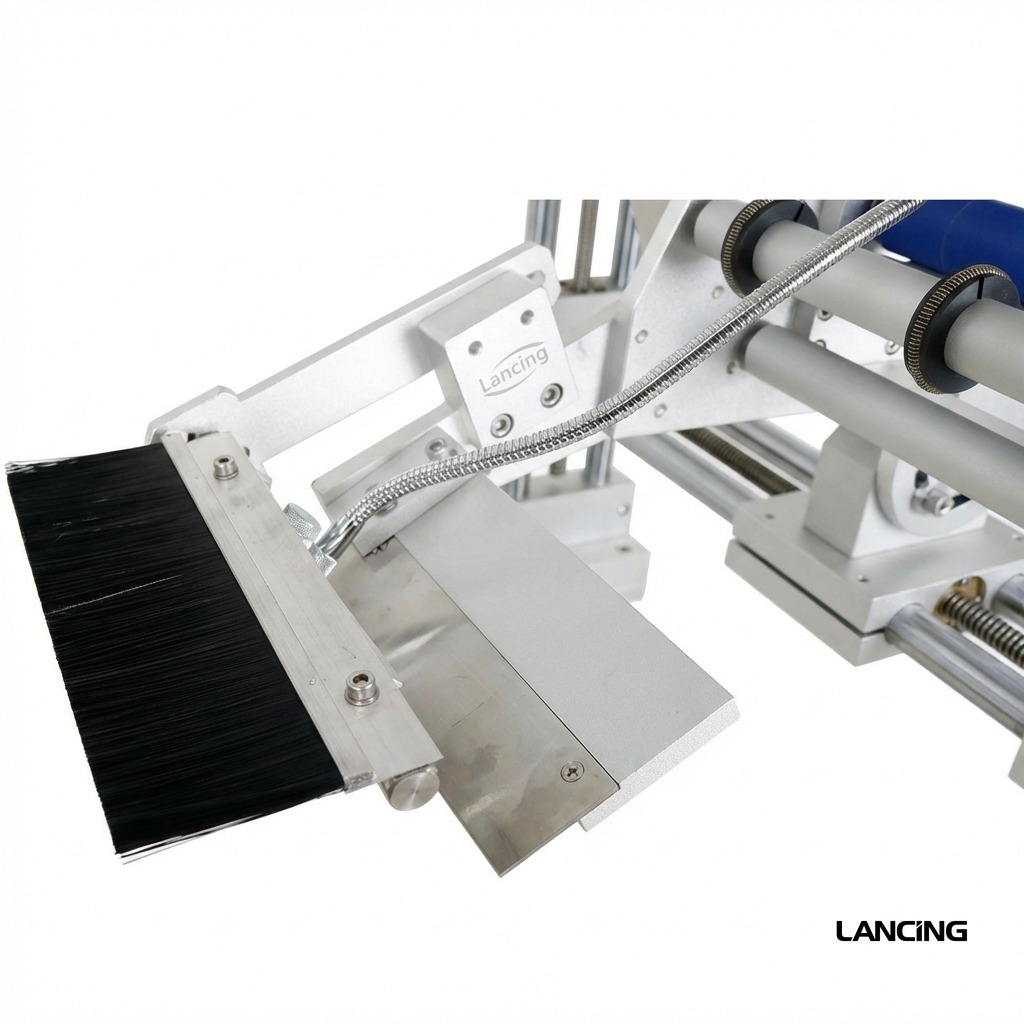

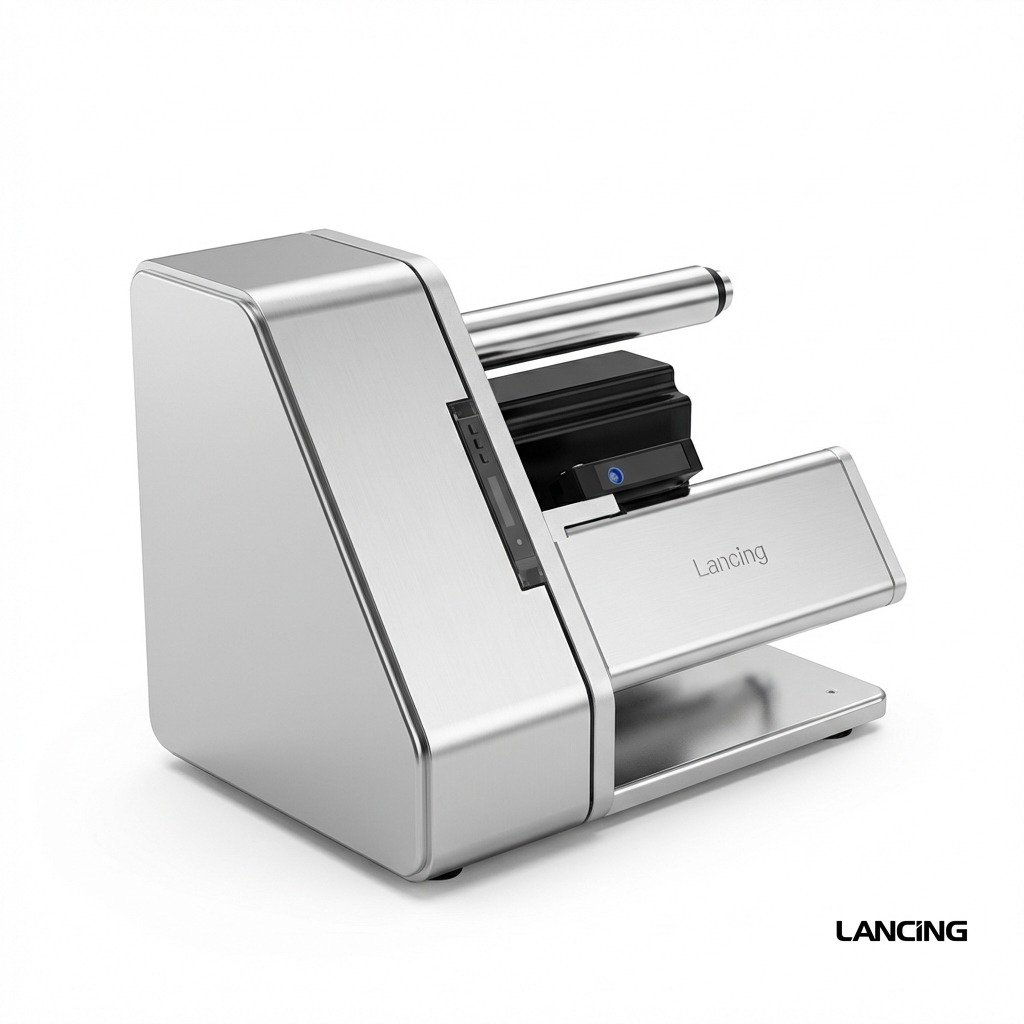

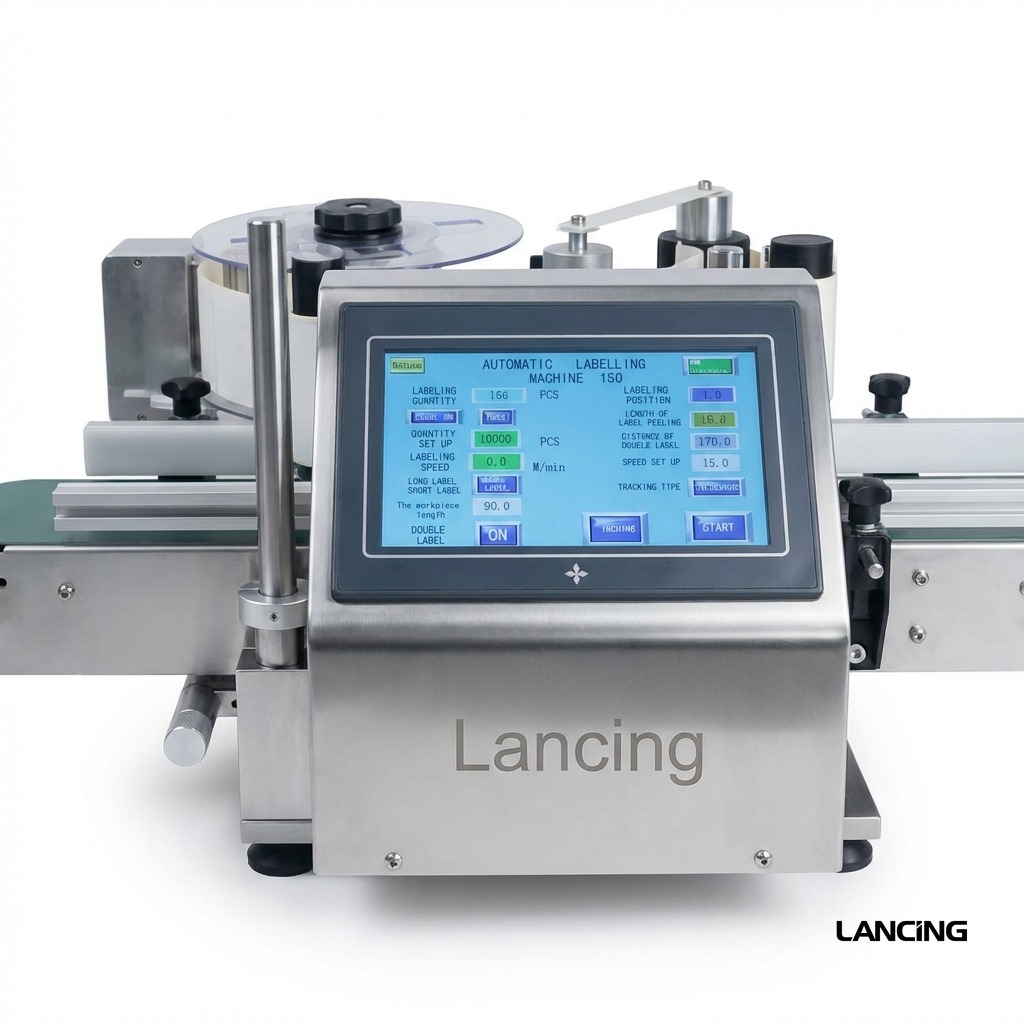

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine model | LU-TB170 |
| Machine voltage | 110/220V 5060HZ 1.5KW |
| Labeling speed | 0-300 pieces/min(Based on labeling materials and label size) |
| Label roll size | 15-200mm(H)25-300mm(L) |
| Labeling accuracy | ±1% |
| Label roll inner diameter | 76mm |
| Label roll outer diameter | 350mm |
| Package size | About 860650750mm |
| Package weight | About 76kg |
| Machine size | About 6607001600mm |
| Machine weight | About 60kg |
| SENSOR | 2 |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
