Machine overview

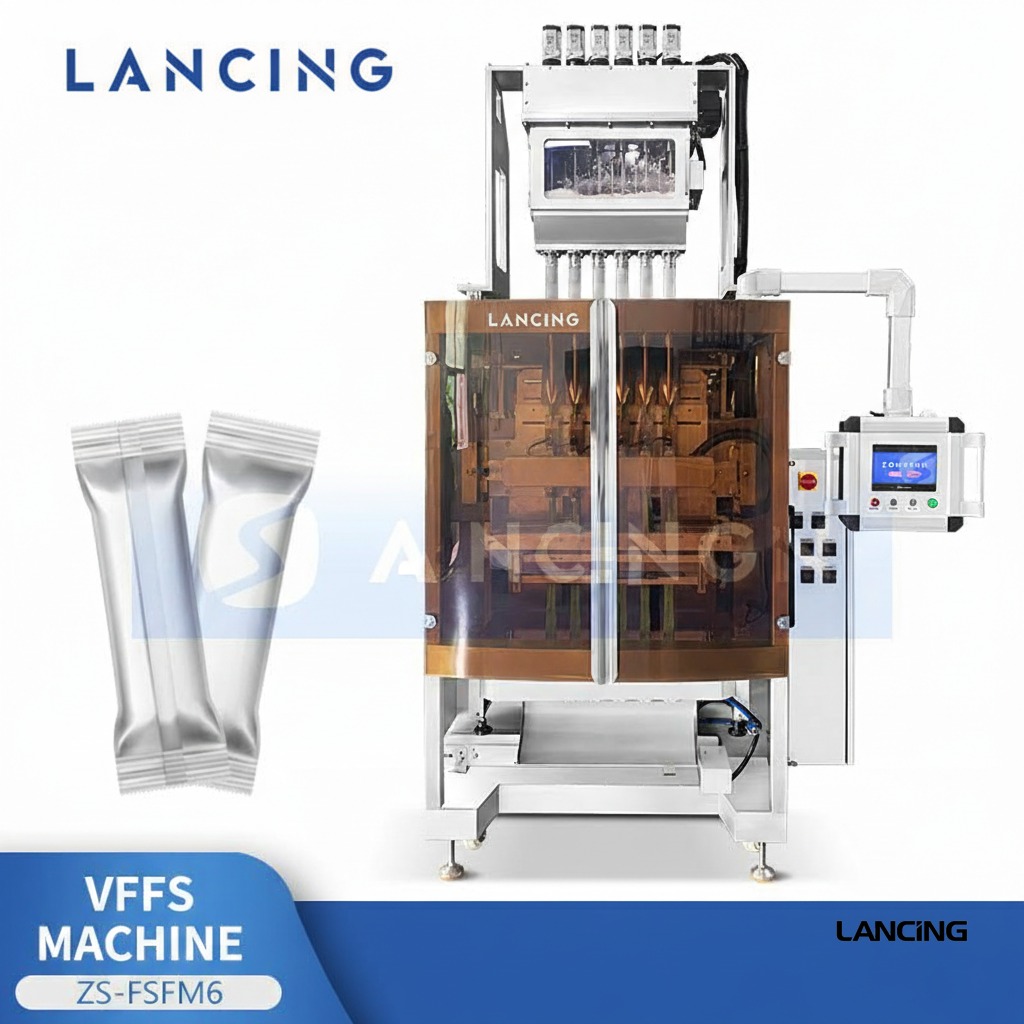

ZS-FSFM6 VFFS Powder Bagger Filling Sealing Machine
Machine overview and key points for quotation.

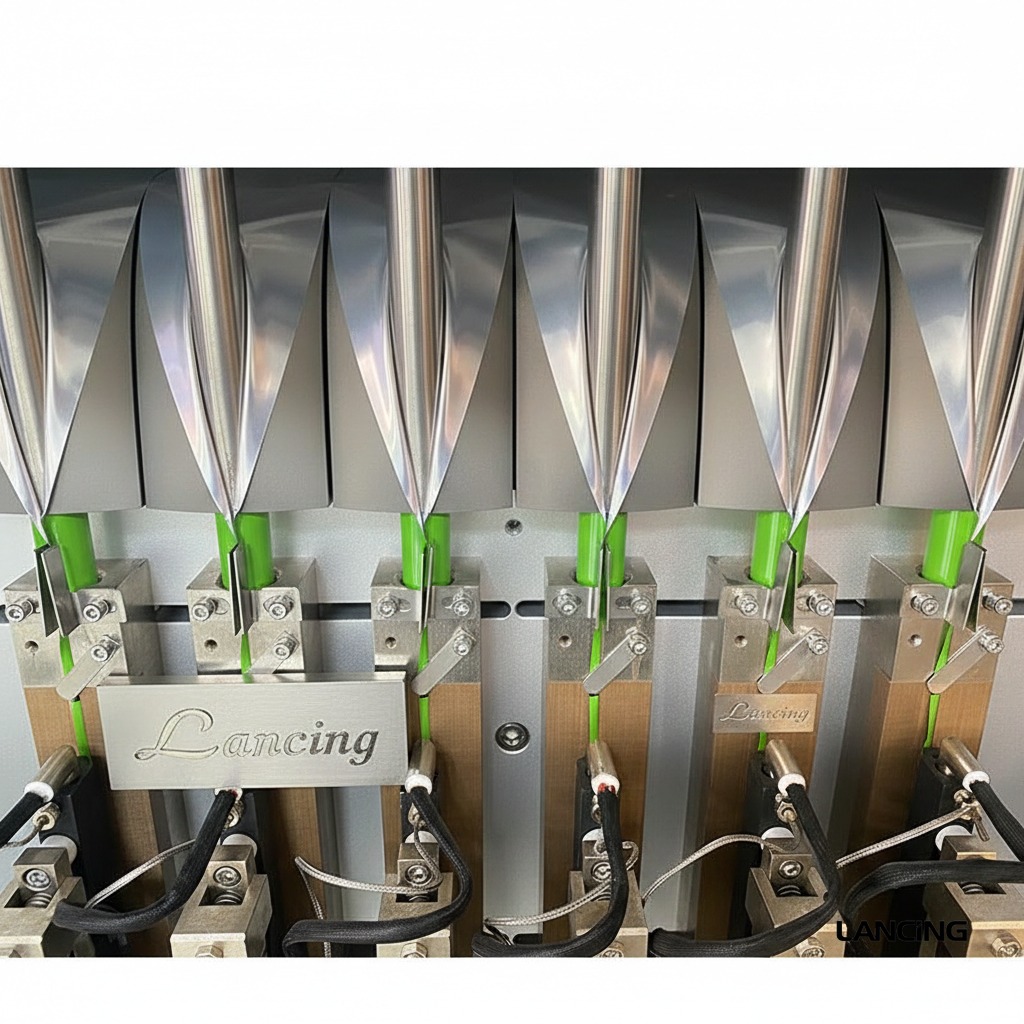

Experience the ultimate in high-speed, multi-lane packaging with the 6-Lane Auger Filler Vertical Form Fill Seal (VFFS) Bagging Machine. This powerhouse machine boasts six individual auger fillers, ensuring precise and efficient product dispensing into each of the six lanes. The film is then rolled and cut into six sections, forming six separate bags. Each bag is then filled, sealed, and cut, achieving an astonishing production rate of up to 240 bags per minute.
Throughput
About 20–40pcs/min for one lane
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
AC220V/380V 50–60Hz
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-FSFM6 |
| Voltage | AC220V/380V 50–60Hz |
| Power | About 5.5KW |
| Production Speed | About 20–40pcs/min for one lane |
| Finished Bag Size | (L)50–180mm × (W)20–95mm |
| Max Film Width | 600mm |
| Film Thickness | 0.07–0.1mm |
| Filling Method | Auger filling |
| Air Consumption | 0.8 MPa 0.8m³/min |
| Machine Size | About 1685 × 1300 × 2005mm |
| Machine Weight | About 600kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
