Machine overview
ZS-FSMP8 Multi-Channel VFFS Liquid Bagging Machine
Machine overview and key points for quotation.
The Lancing UK LU-FSMP8 is a high-performance VFFS (Vertical Form Fill Seal) liquid bagging machine designed to automate and optimize your packaging process. Equipped with 8 precision magnetic pumps, it delivers consistent and accurate filling across multiple channels, achieving speeds of 25–40 bags per minute per channel. The system includes a 150L tank and 50L hopper (customizable), and supports customizable bag sizes with back seals and rounded corners. Film is automatically formed, sealed, and cut to length, ensuring a clean, leak-proof finish. With advanced PLC controls and a compact monoblock design, the LU-FSMP8 is ideal for small to medium-sized businesses packaging liquids like sauces, oils, chemicals, or cosmetics. Technical Specifications Tank: 150L Hopper: 50L (Customizable) Pump Type: Magnetic Pump × 8 Number of Channels: 8 Film Size: 500mm Bag Size: Length: 34–150mm Width: 15–26mm (Customizable) Bagging Style: Back seals round corners
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
Site utilities to be confirmed
We’ll confirm voltage, air and installation requirements for your site.

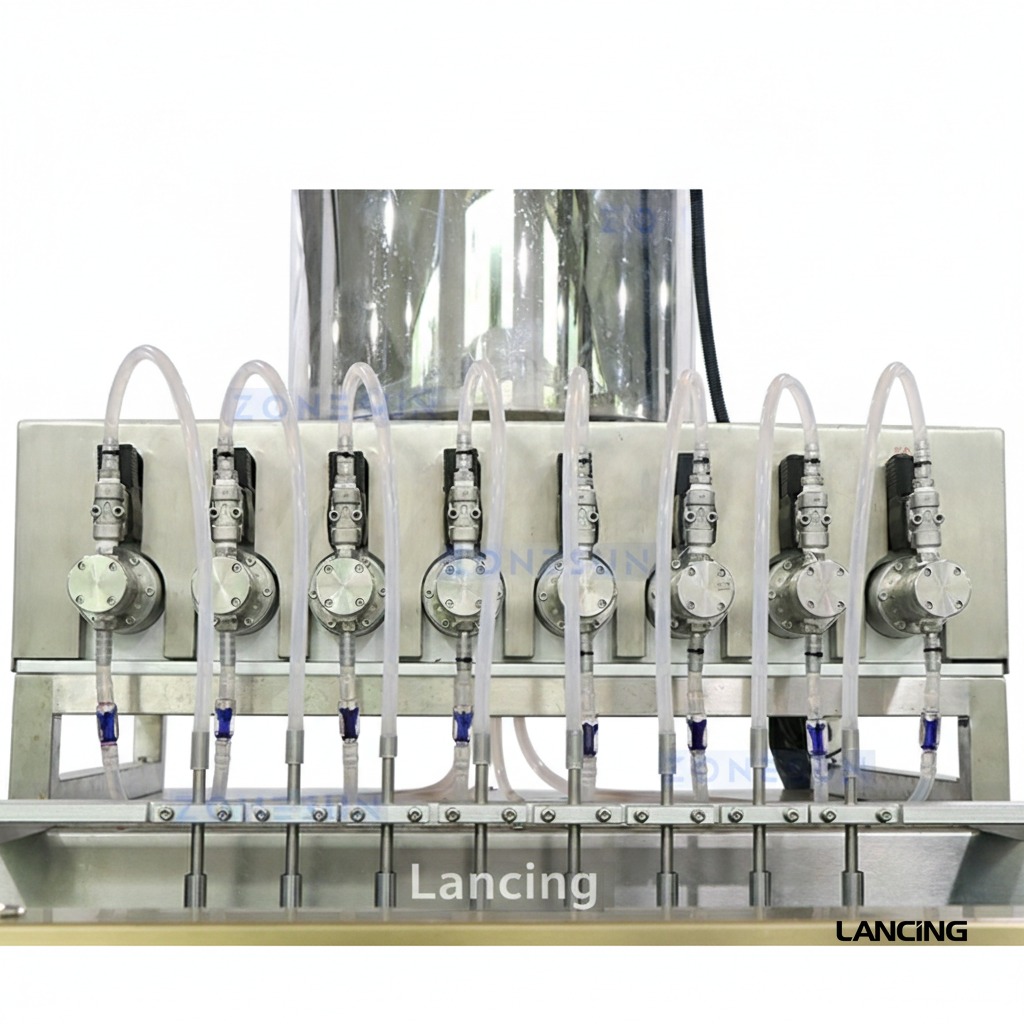

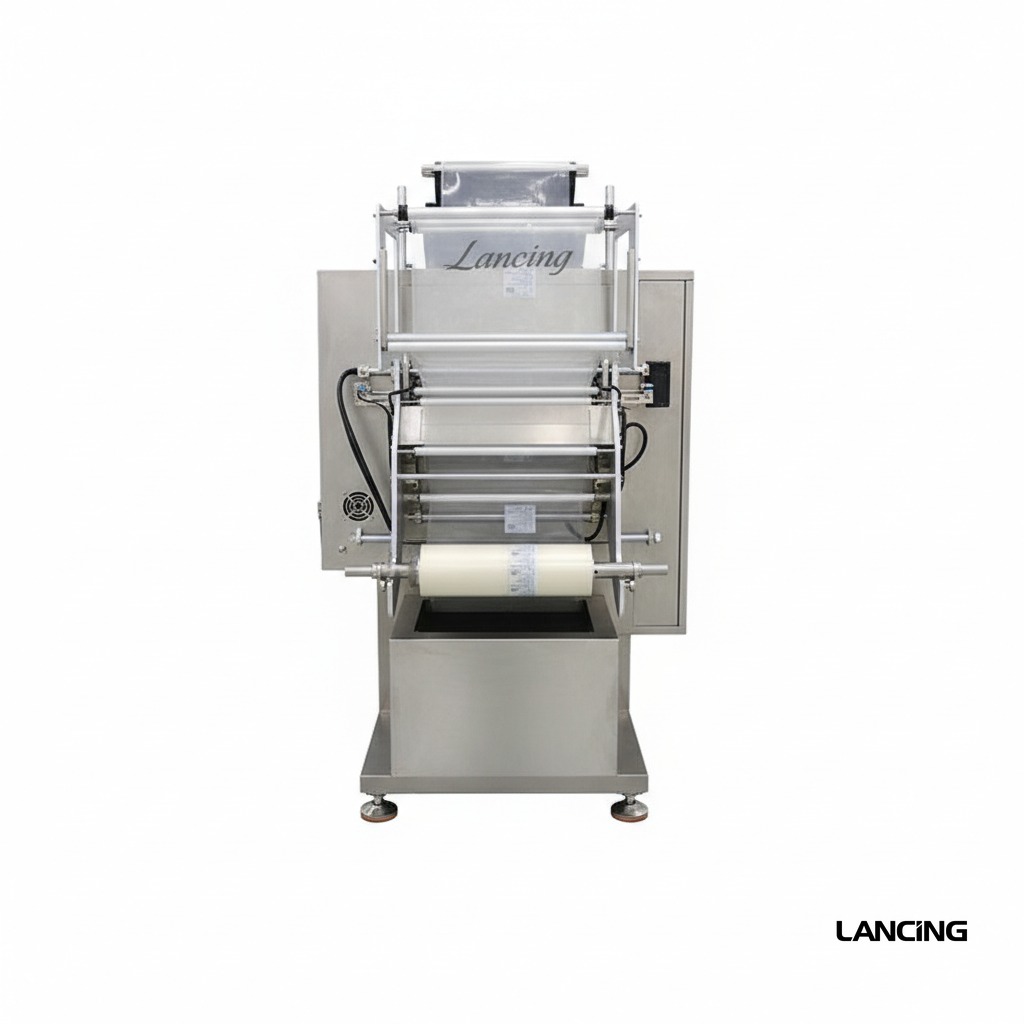

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-FSMP8 Power Consumption: 9.5kW Bagging Capacity: 25–40 bags/min per channel Material Feeding: |
| Machine Dimensions | 2100(L) × 1700(W) × 1800(H) mm Machine Weight: 700kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
Talk to a specialist
We’ll confirm suitability, options, integration, and realistic throughput for your product.
Enquire about this machine
Send a message and we’ll respond with configuration options, pricing guidance and lead times.
