Machine overview
ZS-GPSV1 Servo Gear Pump Filling Machine
Machine overview and key points for quotation.
This semi-automatic filling machine features a handheld nozzle designed like a fuel dispenser, enabling smooth, precise, and user-friendly operation. It is equipped with a servo-driven gear pump , ideal for filling a wide range of viscous and fluid materials —including creams, lotions, sauces, oils, and other flowable, particle-free liquids. Designed to handle both thick pastes and runny liquids, the machine supports large filling volumes and ensures consistent, accurate output. Its compact design saves space, making it a practical solution for small to medium-scale production in food, cosmetic, chemical, and household product industries. Note: Not suitable for materials containing solid particles.
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
Site utilities to be confirmed
We’ll confirm voltage, air and installation requirements for your site.

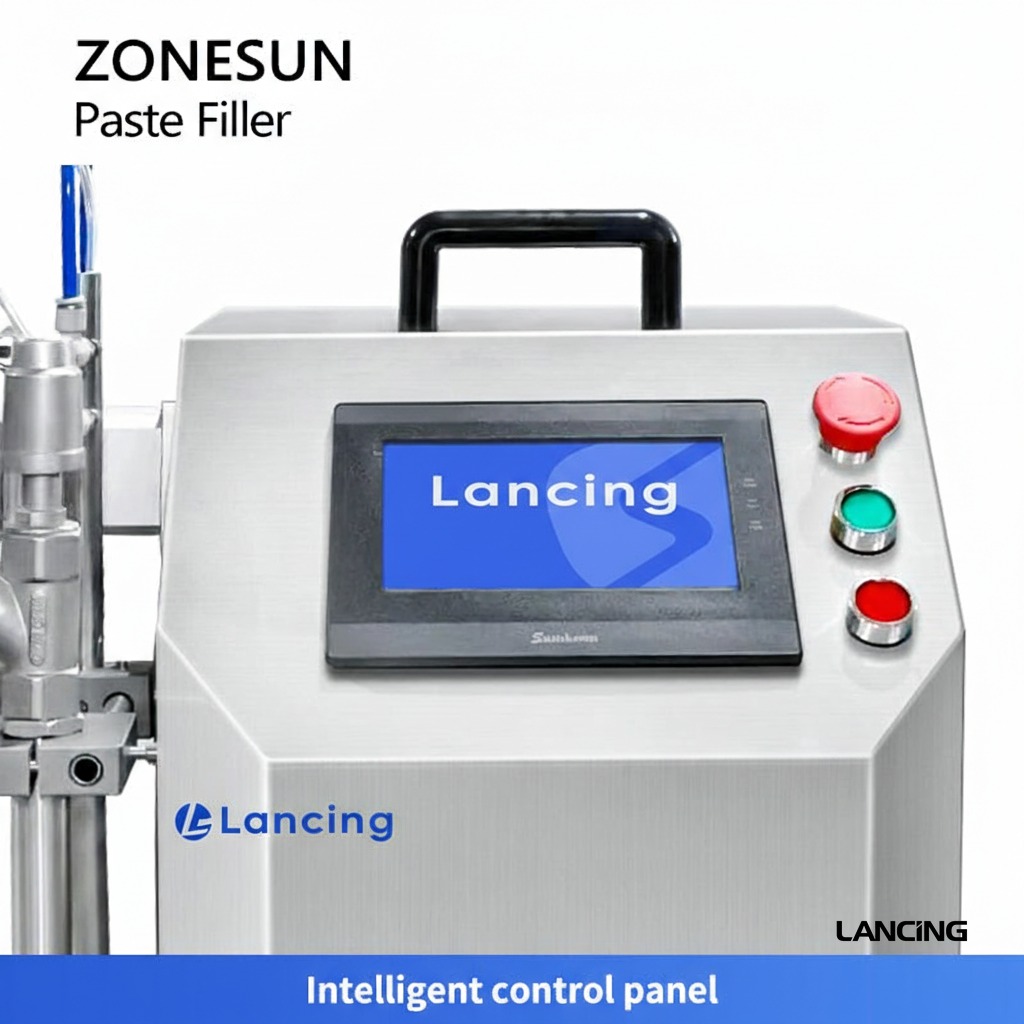

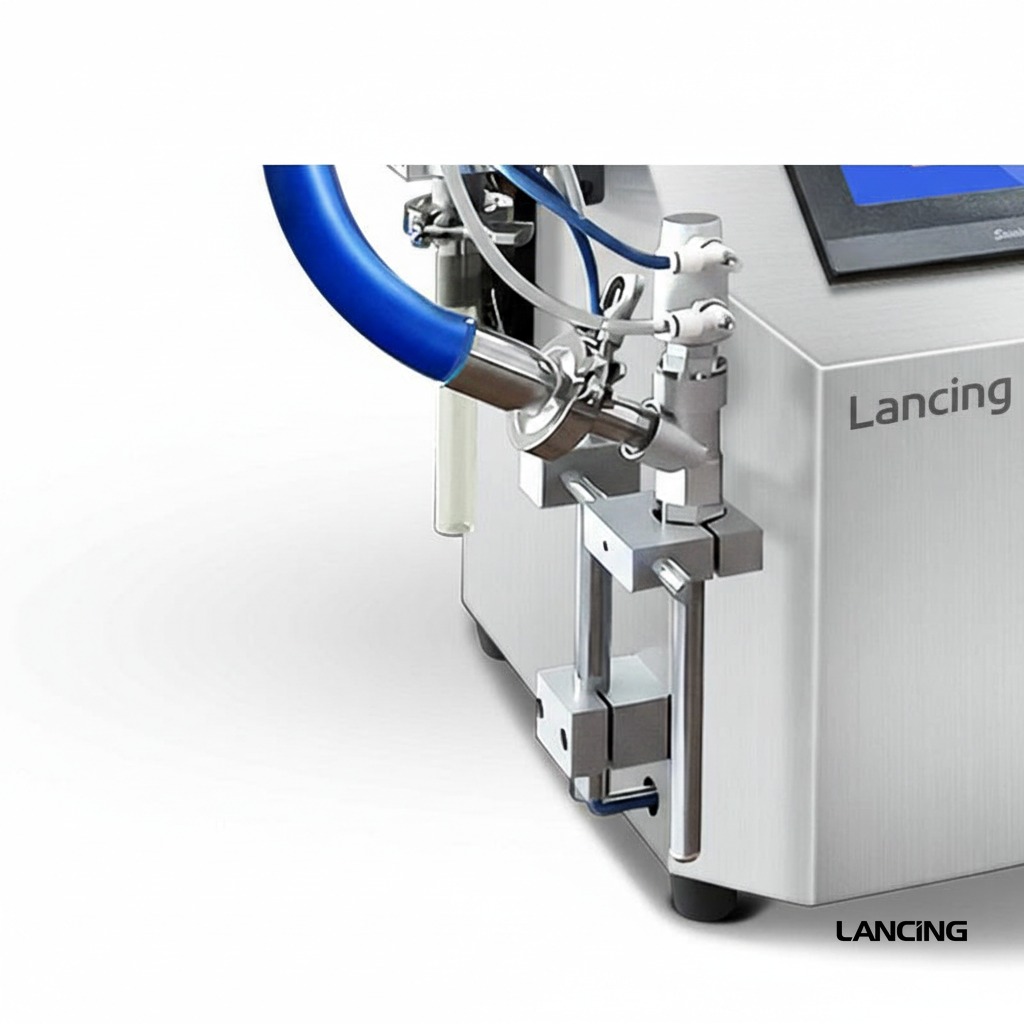

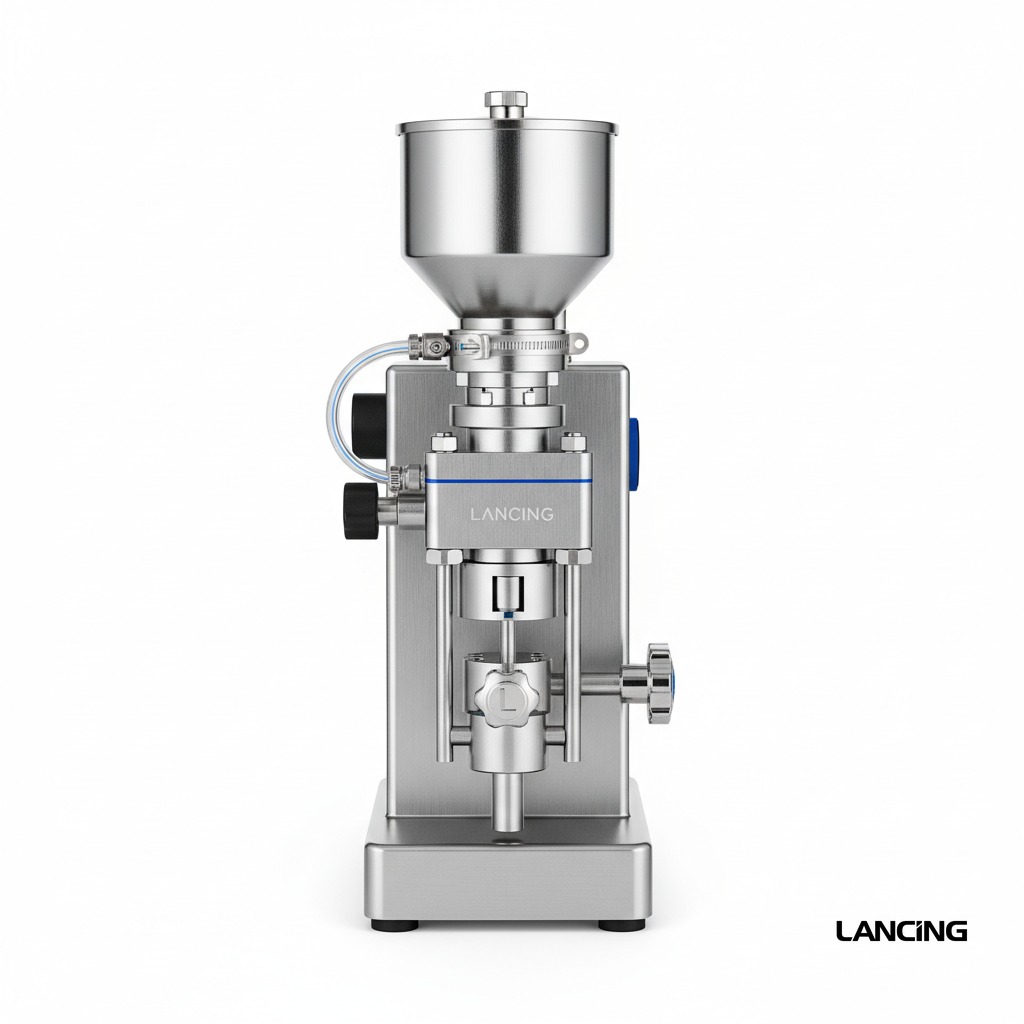

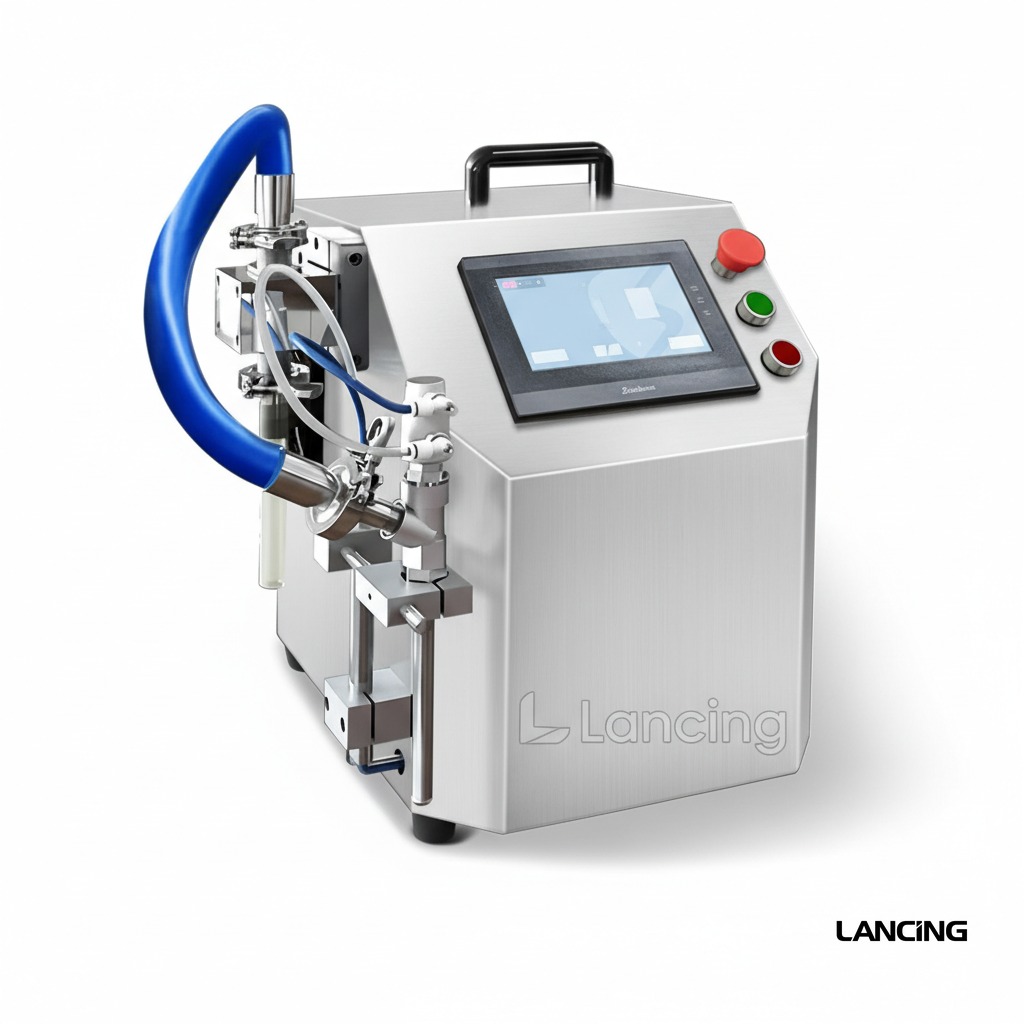

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-GPSV1 Machine voltage: 110/220V 50-60HZ Filling range: 10-200ml / 200ml-3L / 3L-10L / 10-25L Filling pump: Gear Pump Filling nozzle: Regular Fixed Nozzle & Handheld Nozzle Suitable bottle size: Customizable Filling accuracy: ±1% Working capacity: 900-1000 BPH (based on 300ml) Machine casing: SUS304 |
| Gear pumps are commonly used for transferring | Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil) Fuels (e.g., diesel, heavy oil, light oil) Chemical liquids (e.g., resin, paint, additives) Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump Polymers and viscous materials (e.g., glue, bitumen) 👉 If you need a food-grade filling machine, feel free to contact us for customized solutions! |
| NOTE | Note: 110V machine needs to be connected to a transformer |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
Talk to a specialist
We’ll confirm suitability, options, integration, and realistic throughput for your product.
Enquire about this machine
Send a message and we’ll respond with configuration options, pricing guidance and lead times.
