Machine overview
ZS-GPSV2 Servo Gear Pump Filling Machine
Machine overview and key points for quotation.

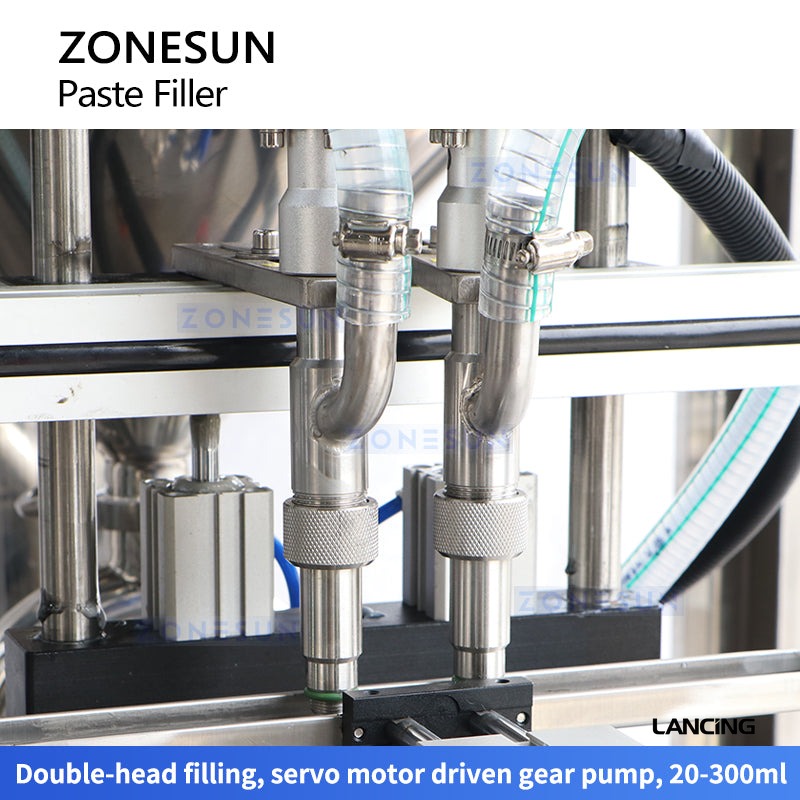

This state-of-the-art automatic filling machine utilizes servo-driven gear pumps to provide precise, consistent fills. Featuring 2 pneumatic filling heads, and an integrated hopper and feed pump, the machine automates the entire filling process. A level sensor ensures continuous, hands-free operation. The articulated sensor and dual-pin bottle indexing system provide exceptional bottle handling, while the dust cover protects the machine from contaminants. Engineered for reliability and efficiency, this filling system is an ideal solution for a wide range of liquid filling applications.
Throughput
About 30–70BPM
Target speed depends on product, pack and operator workflow.
Format range
20–300ml
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220V 50–60Hz 2KW
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine Model | LU-GPSV2 |
| Machine Voltage | 110/220V 50–60Hz 2KW |
| Filling Pump | Gear pump |
| Filling Range | 20–300ml |
| Filling Accuracy | ±1% |
| Filling Speed | About 30–70BPM |
| Machine Size | About 2000 × 1035 × 1800mm |
| Package Size | About 2080 × 1000 × 1980mm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
