ZS-GPW1 High Flow Gear Pump Liquid Weighing Filling Machine
Machine overview and key points for quotation.
The LU-GPW1 is a precision liquid filling machine designed for high-flow applications. Equipped with a gear pump, it delivers up to 36L/min and supports weight-based filling for enhanced accuracy. Ideal for oils, fuels, chemicals, and food-grade liquids, it features anti-splash control for clean operation. Customization available for food-grade us Gear pumps are commonly used for transferring: Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil) Fuels (e.g., diesel, heavy oil, light oil) Chemical liquids (e.g., resin, paint, additives) Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump Polymers and viscous materials (e.g., glue, bitumen) 👉 If you need a food-grade filling machine, feel free to contact us for customized solutions!
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
50g-50kg
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
AC110/220V 50-30Hz 200W
We’ll confirm voltage, air and installation requirements for your site.

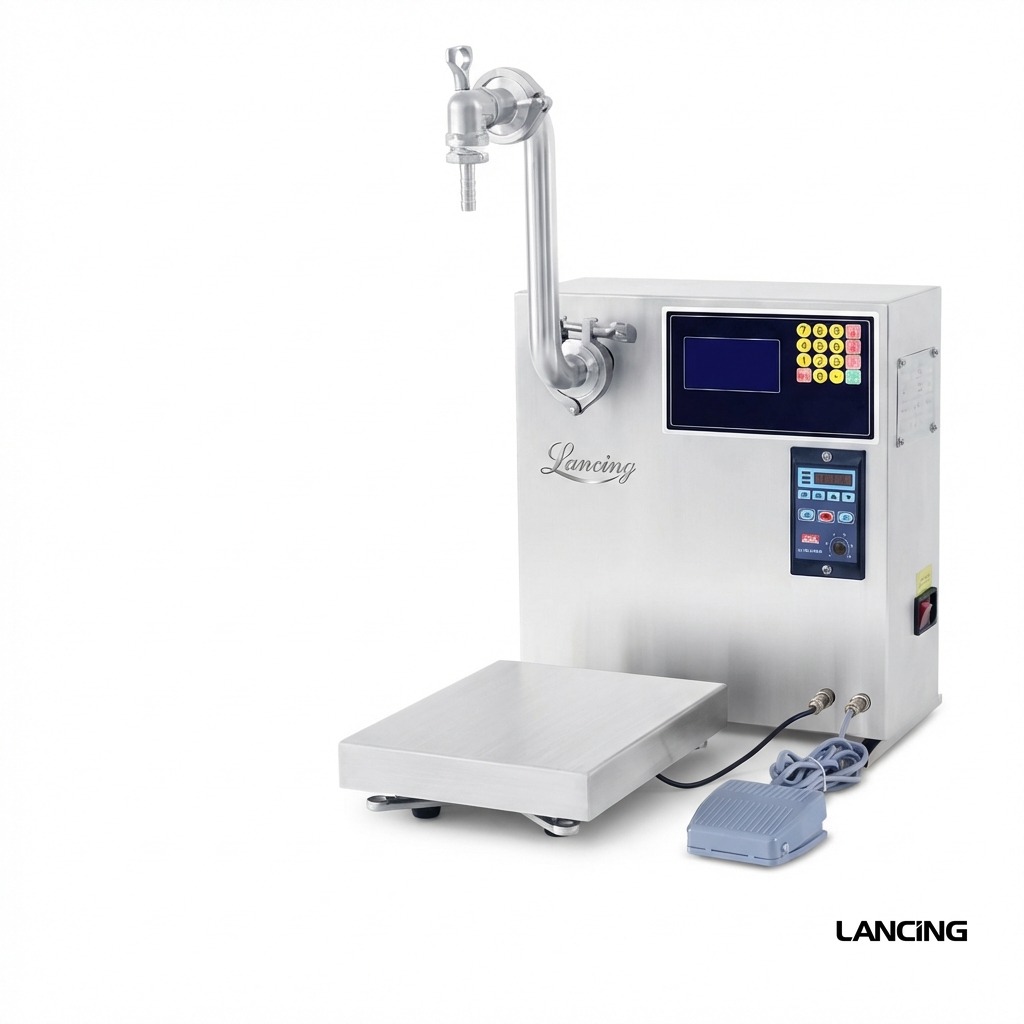

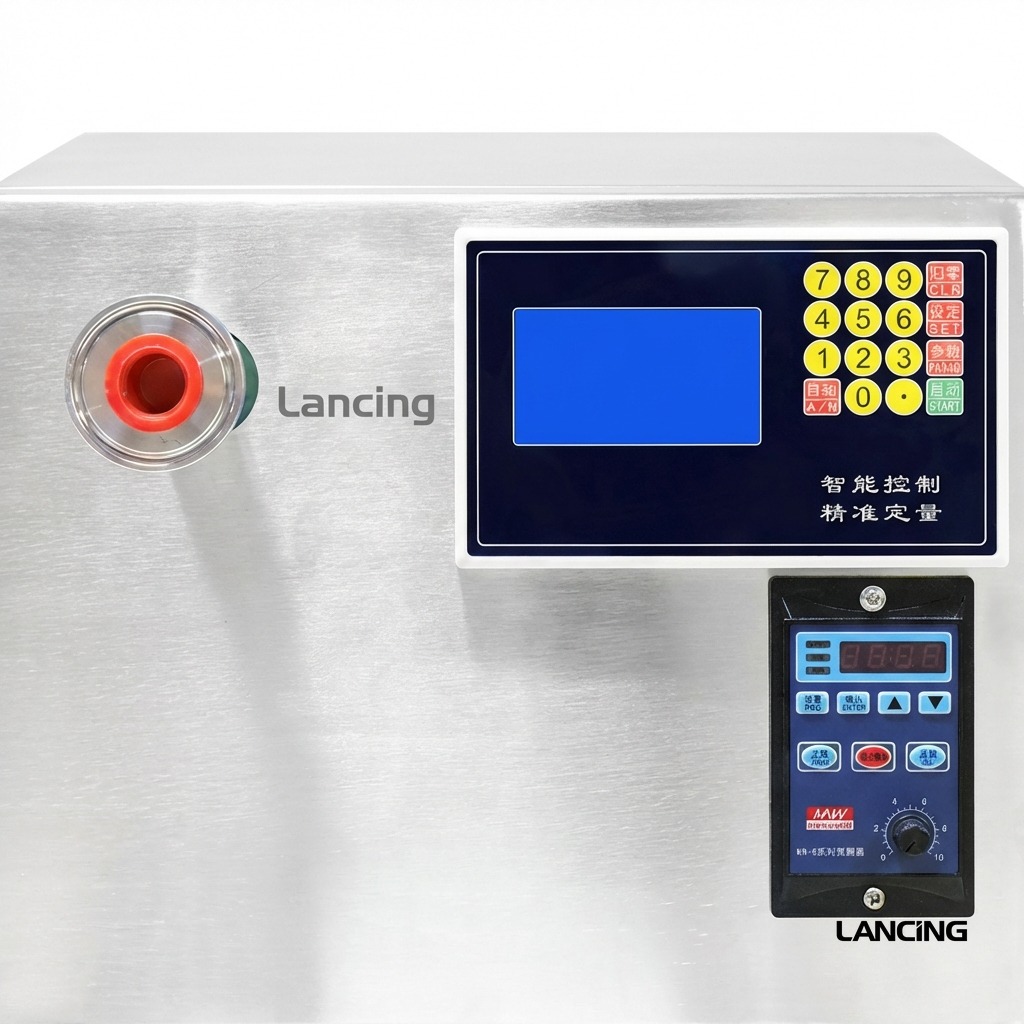

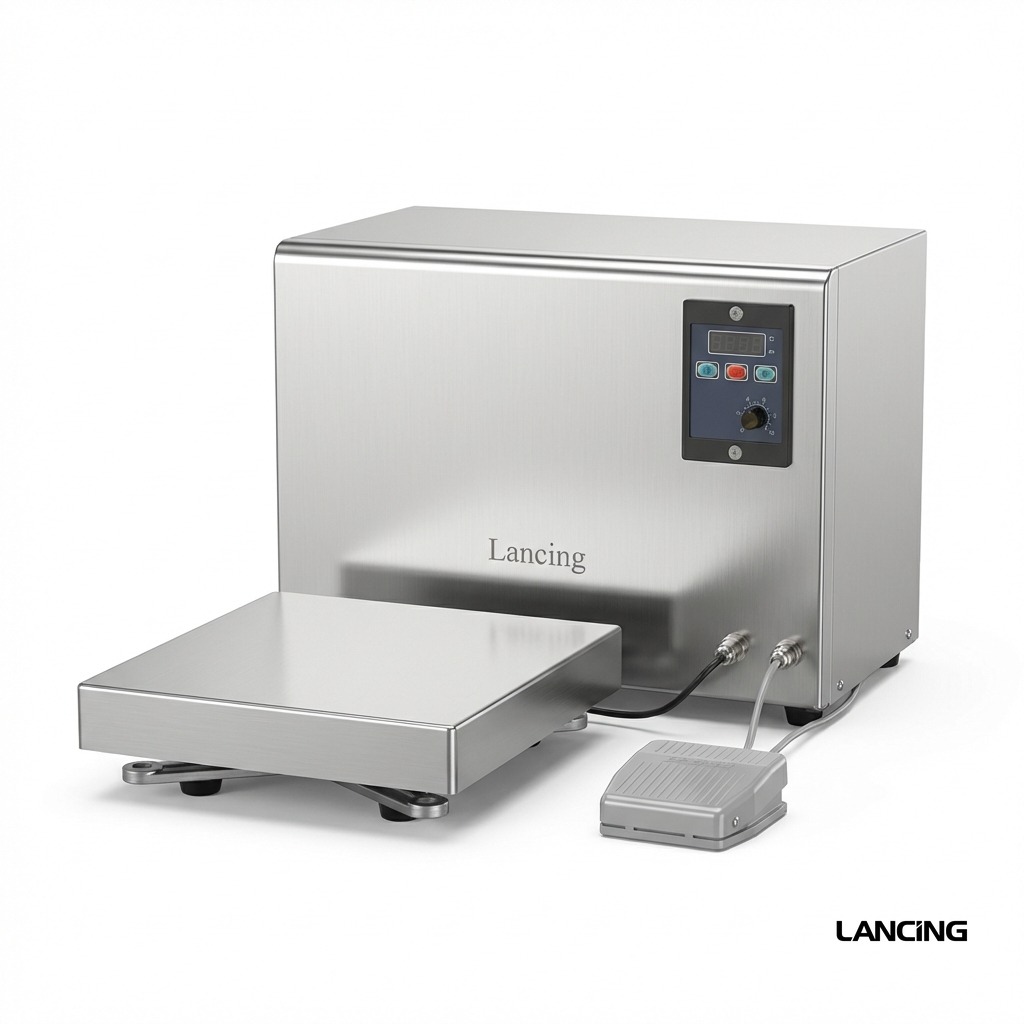

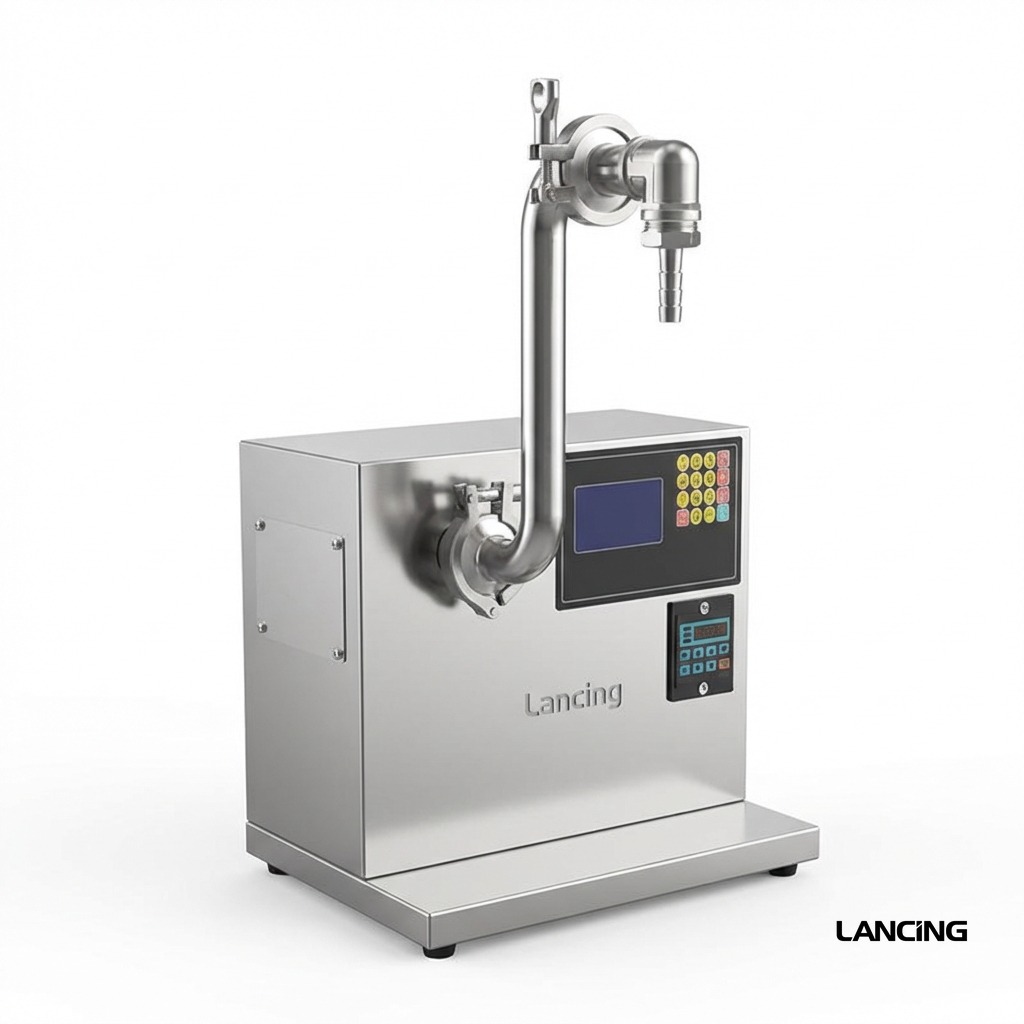

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine Model | LU-GPW1 |
| Power supply | AC110/220V 50-30Hz 200W |
| Maximum flow rate | 36L/min |
| Weighing range | 50g-50kg |
| Filling pump | Gear Pump |
| Max bottle height | 370mm |
| Margin of error | 1-5g |
| Packaging size | About 330220360mm |
| Packaging weight | About 16kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
