Machine overview
ZS-GT2P 2 Nozzles Fully Pneumatic Honey Ketchup Paste Filling Machine
Machine overview and key points for quotation.
The paste pneumatic filling machine is with great power,it can fill paste and liquid fast.This machine will not become heated during working due to electricity.So this makes this machine can be used to fill flammable liquid.It gets popularity from food,drinks,cosmetics,chemical industries.
Throughput
10-40 bottle/min
Target speed depends on product, pack and operator workflow.
Format range
10-100m/30-300m/50 -500ml/100- 1000ml/500-3000ml/1000- 5000ml
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
Site utilities to be confirmed
We’ll confirm voltage, air and installation requirements for your site.

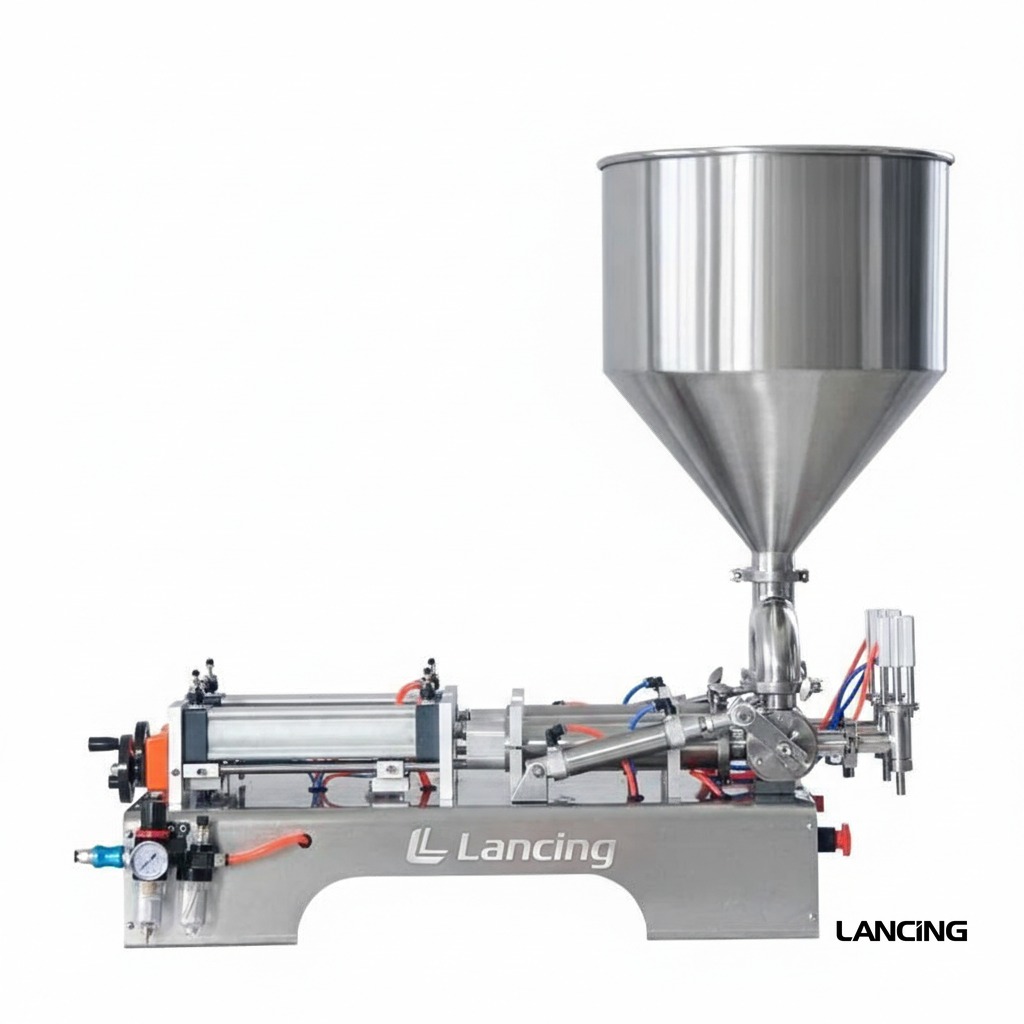

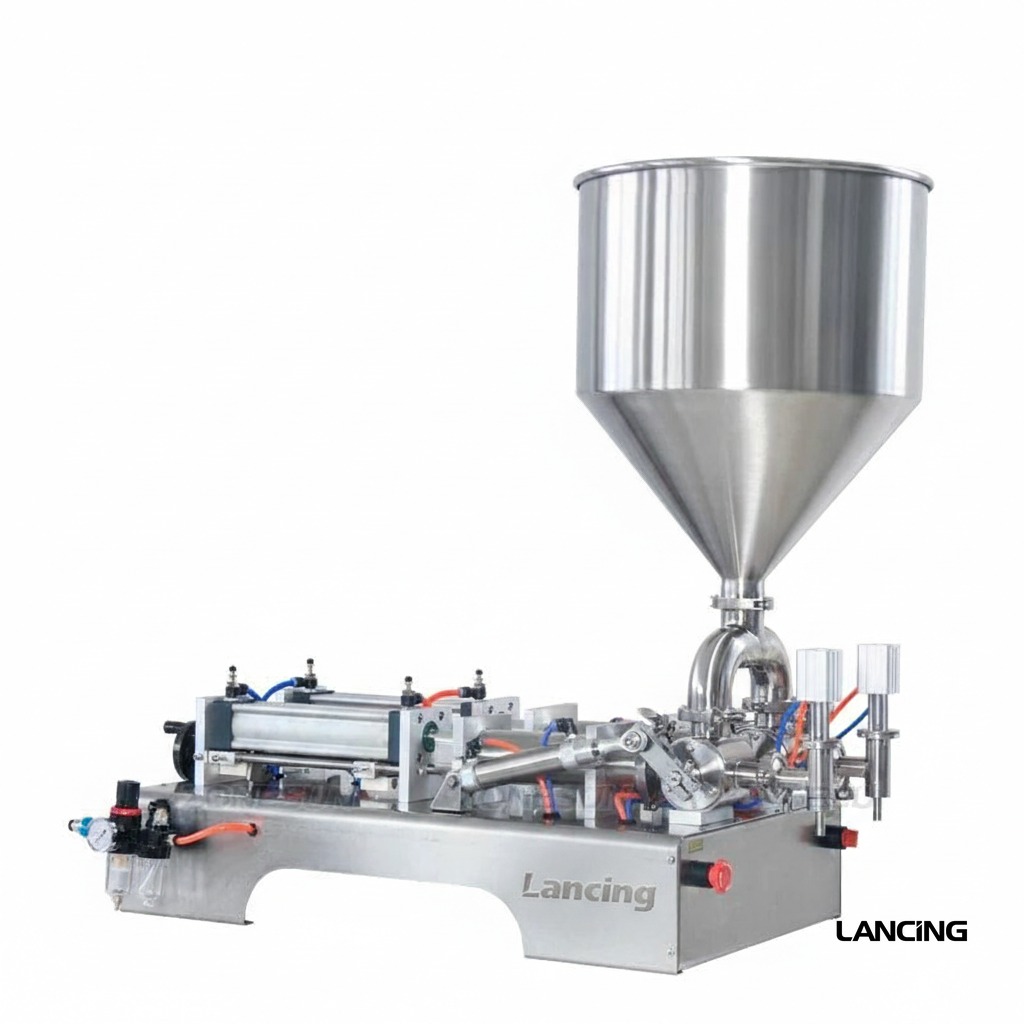

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-GT2P Filling Machine |
| Filling nozzle | Double Nozzle(We also offer Double Nozzles) |
| Filling speed | 10-40 bottle/min |
| Filling range | 10-100m/30-300m/50 -500ml/100- 1000ml/500-3000ml/1000- 5000ml |
| Filling accuracy | ≤+0.5% |
| Pressure | 0.4-0.6Mpa |
| Air capacity | >30L |
| Machine size | About 770440900mm (50-500ml) |
| Machine weight | About 38kg (50-500ml) |
| Package size | 960530340mm (machine)+465465450mm(hopper) |
| Package weight | About 47kg (machine)+4.5kg(hopper) |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
