Machine overview
ZS-GTRP2 Semi-automatic 2 Nozzles Rotor Pump Thick Liquid Filling Machine
Machine overview and key points for quotation.

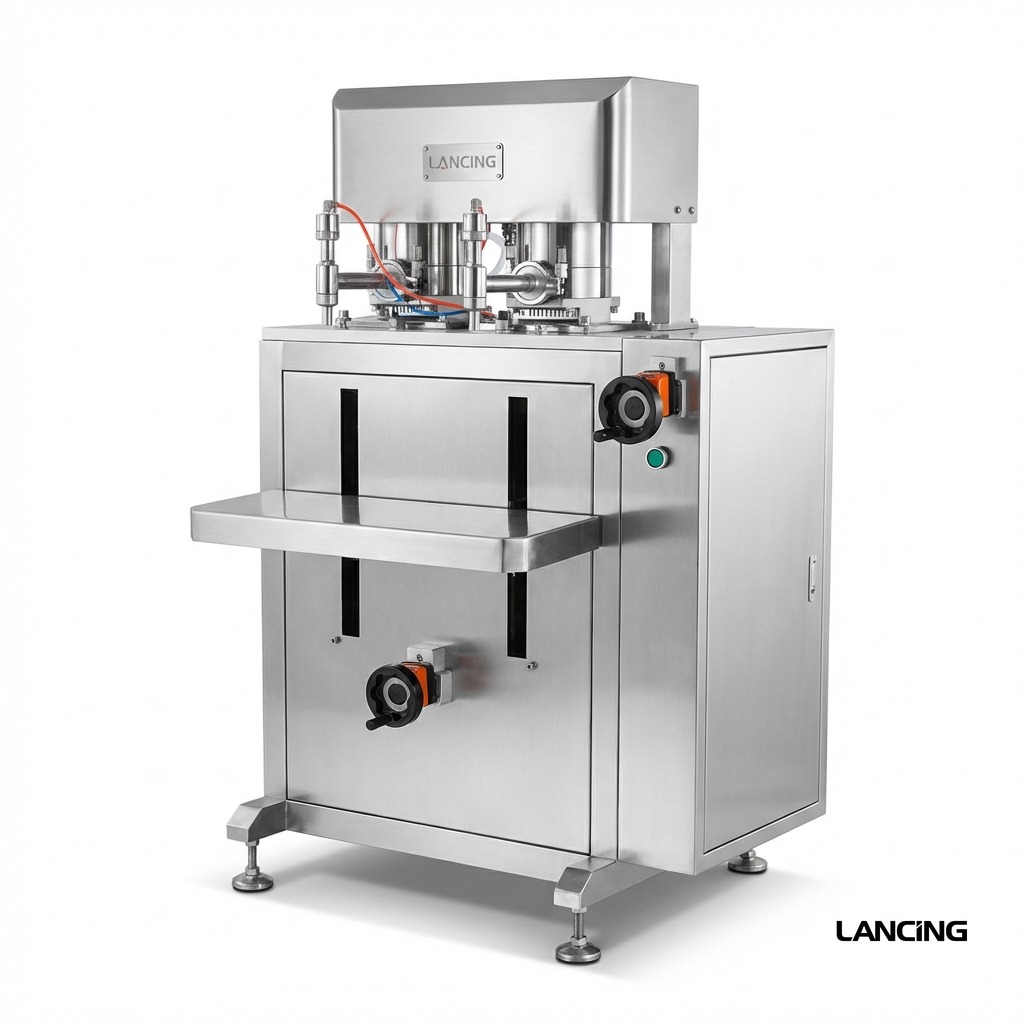

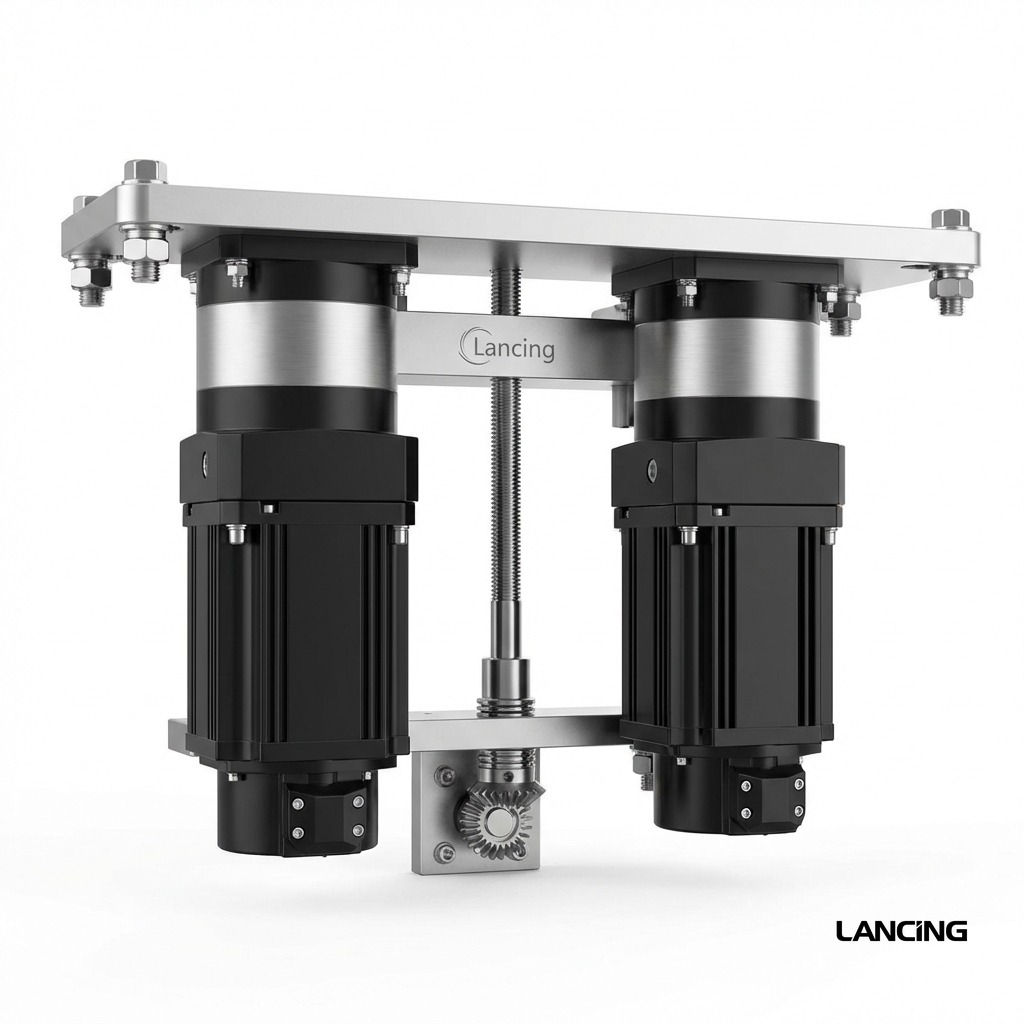

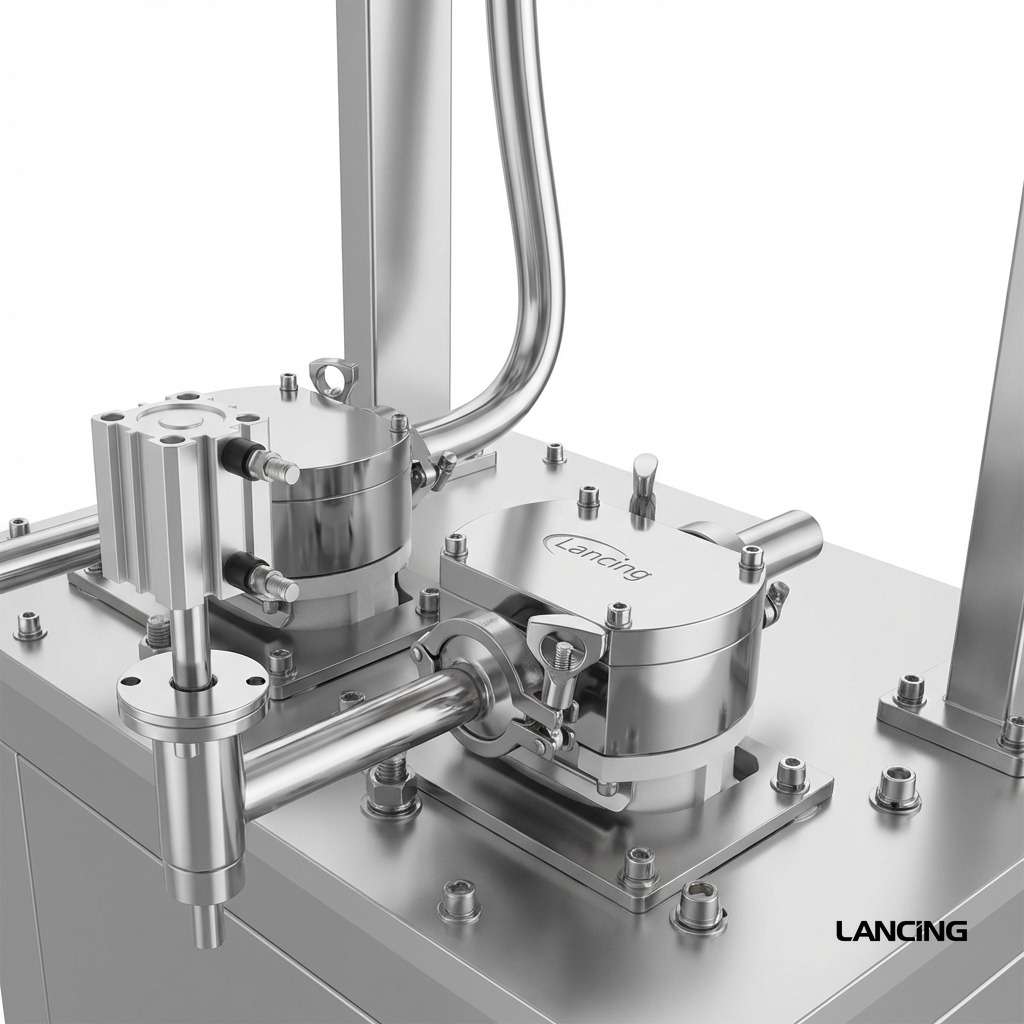

This machine is designed with dual rotary pumps, both driven by a servo motor, providing fast and accurate filling for your liquid products. The machine has a 60L capacity hopper on the top with an air-powered filling nozzle. It features a vertical design with a lift table to place bottles for filling. The PLC control system with a touch screen interface allows for easy operation and precise filling adjustment. The machine also comes with a calibration function to ensure accurate filling every time. Whatever your packaging needs are, you can rely on Lancing UK.
Throughput
About 30 bottles/min (1L)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220V, 50-60HZ, 2kW
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine Model | LU-GTRP2 |
| Voltage | 110/220V, 50-60HZ, 2kW |
| Filling Pump | Rotor pump2 |
| Filling Drive | Servo motor2, 3000rpm |
| Recommend Filling Volume | 5-5000ml |
| Filling Accuracy | ≤ ±1% |
| Filling Nozzle Size | Φ8mm |
| Hopper Size | 600 360 400mm(L W H) / 60L |
| Working Speed | About 30 bottles/min (1L) |
| Machine Size | About 820 620 1700mm(L W H) |
| Machine Weight | About 128kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
