ZS‑GTSM1 Semi‑auto Servo Motor Paste Filling Machine
Machine overview and key points for quotation.
The Lancing UK ZS‑GTSM1 Semi‑automatic Servo Motor Rotor Pump Paste Filling Machine offers exceptional accuracy thanks to its servo motor control system. Filling volume and speed can be easily adjusted via user‑friendly parameter settings, ensuring flexibility for different production needs. Built for versatility, it efficiently handles viscous products such as honey, glue, syrup, and ketchup with a filling accuracy of ≤ ± 0.5 %.
Throughput
Approx. 10 – 25 bottles/min (depends on bottle size & liquid)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220 / 110 V, 50 / 60 Hz
We’ll confirm voltage, air and installation requirements for your site.

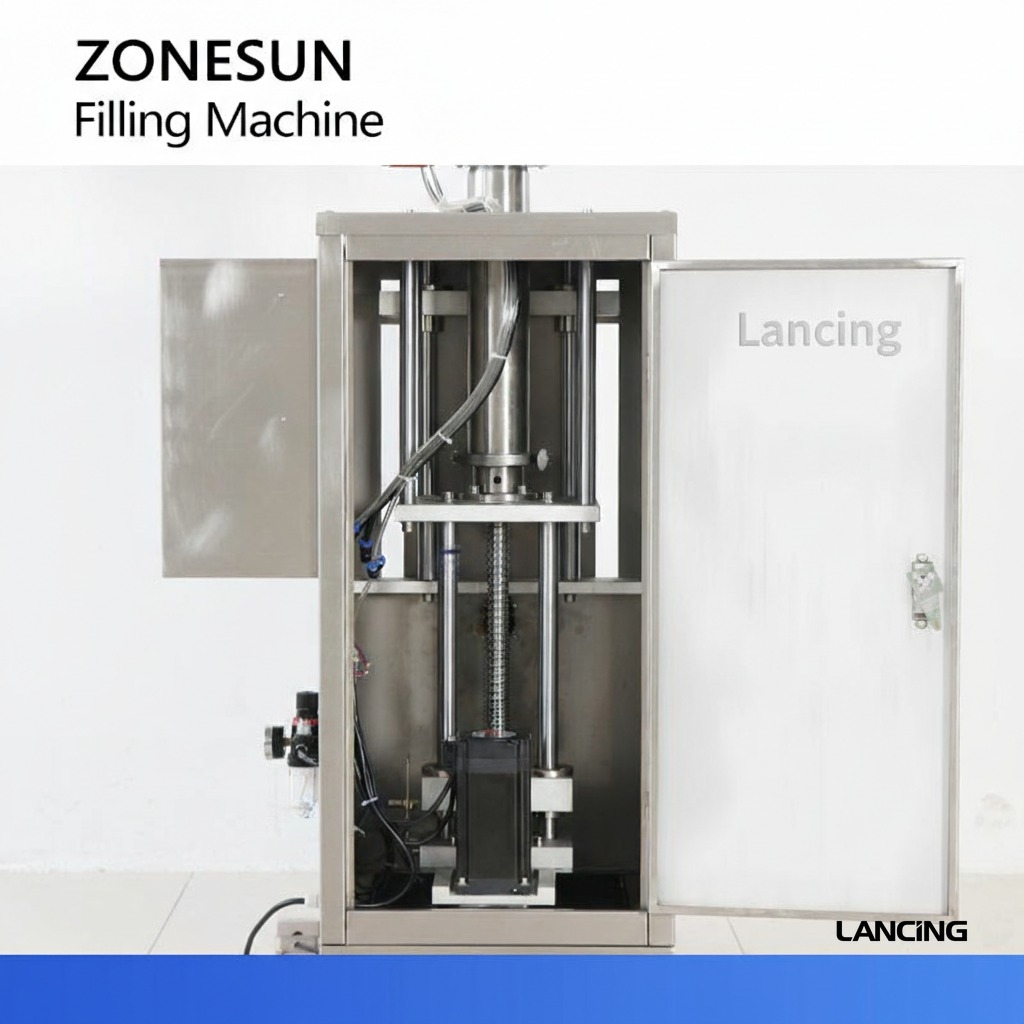

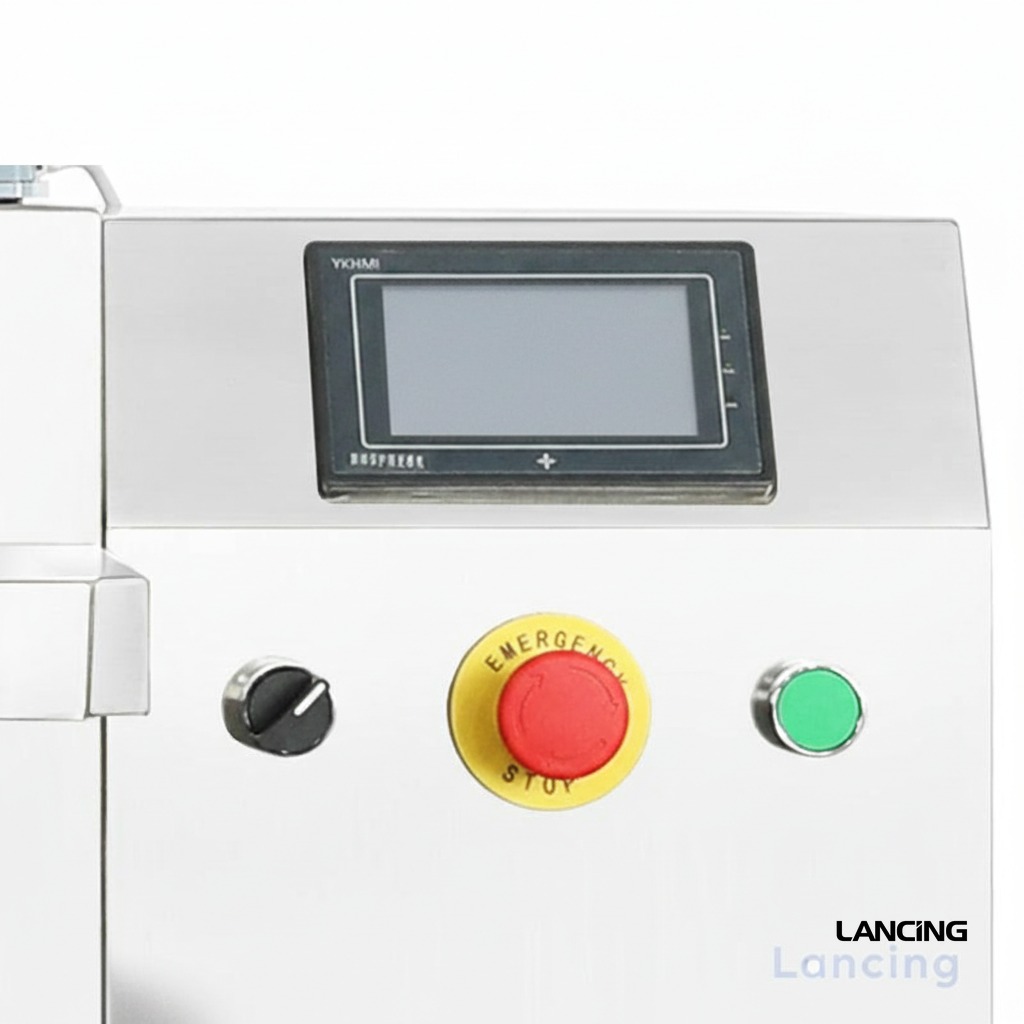

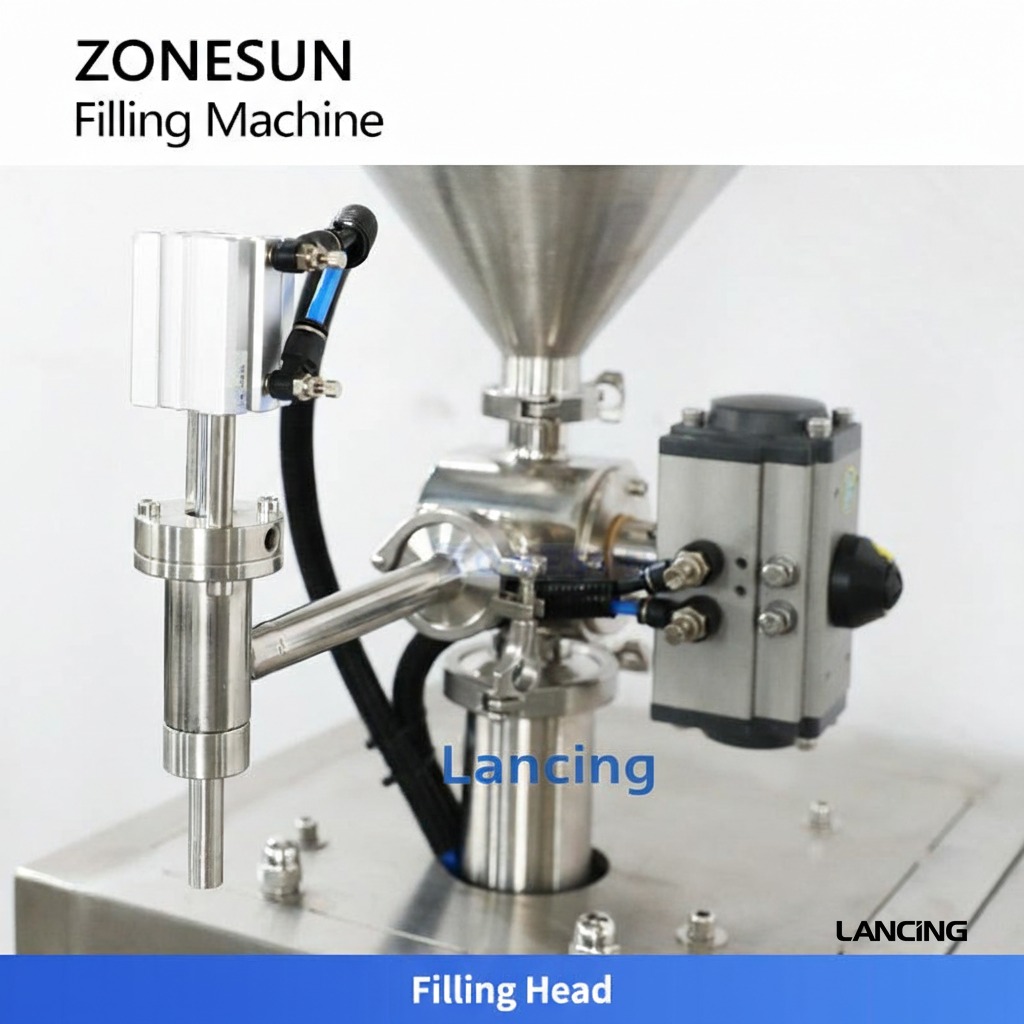

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | ZS‑GTSM1 |
| Voltage | 220 / 110 V, 50 / 60 Hz |
| Power | Approx. 950 W |
| Filling Accuracy | ≤ ± 0.5 % |
| Filling Speed | Approx. 10 – 25 bottles/min (depends on bottle size & liquid) |
| Filling Volume | 5 – 100 / 10 – 300 / 50 – 500 / 100 – 1000 ml |
| Equipped Air Pressure | 0.4 – 0.6 MPa |
| Air Consumption | ≥ 0.1 m³/min |
| Machine Size | Approx. 580 × 590 × 1590 mm |
| Machine Weight | Approx. 92 kg |
| Package Size | Approx. 700 × 1520 × 700 mm |
| Package Weight | Approx. 116 kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
