Machine overview
ZS-GY1C Pneumatic Paste & Liquid Filling Machine
Machine overview and key points for quotation.
The LU-GY1C filling machine is designed for efficient, semi-automatic filling of liquids and pastes such as water, lotion, honey, and cream. Equipped with a 2-meter conveyor belt, it integrates seamlessly with automatic capping and labeling machines, making it ideal for streamlined production lines in cosmetics, food, pharmaceuticals, and daily chemical industries.
Throughput
10–20 bottles/min
Target speed depends on product, pack and operator workflow.
Format range
5–100 ml / 10–300 ml / 50–500 ml / 100–1000 ml / 500–3000 ml / 1000–5000 ml (optional)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220V / 110V, 50/60Hz
We’ll confirm voltage, air and installation requirements for your site.

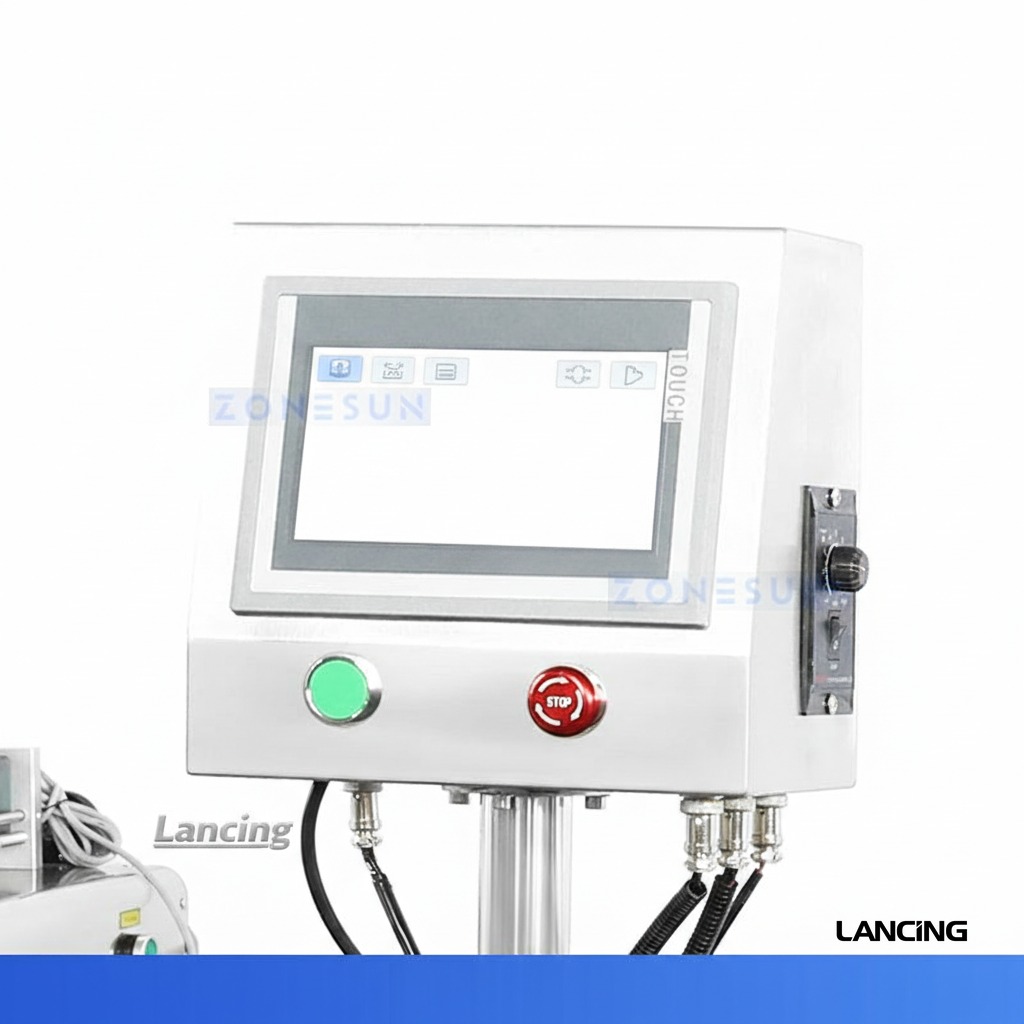

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-GY1C |
| Power Supply | 220V / 110V, 50/60Hz |
| Power | 130 W |
| Filling Accuracy | ≤ ±0.5% |
| Filling Speed | 10–20 bottles/min |
| Filling Volume Range | 5–100 ml / 10–300 ml / 50–500 ml / 100–1000 ml / 500–3000 ml / 1000–5000 ml (optional) |
| Conveyor Size (L×W) | 2000 × 100 mm |
| Filling Nozzle Diameter | Φ10 mm |
| Required Air Pressure | 0.4–0.6 MPa |
| Air Connector Size | OD 8 mm |
| Air Consumption | ≥ 0.1 m³/min |
| Machine Weight | 24 kg (filling machine) + 4 kg (hopper) + 61 kg (conveyor) |
| Packing Weight | 30 kg (filling machine) + 5.5 kg (hopper) + 89 kg (conveyor) |
| Packing Size | 113 × 35 × 30.5 cm (filling machine) / 46.5 × 47 × 52 cm (hopper) / 210 × 62 × 53 cm (conveyor) |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
