ZS-GYCR4A Automatic Corrosive Acids Disinfectants Liquid Filling Machine
Machine overview and key points for quotation.

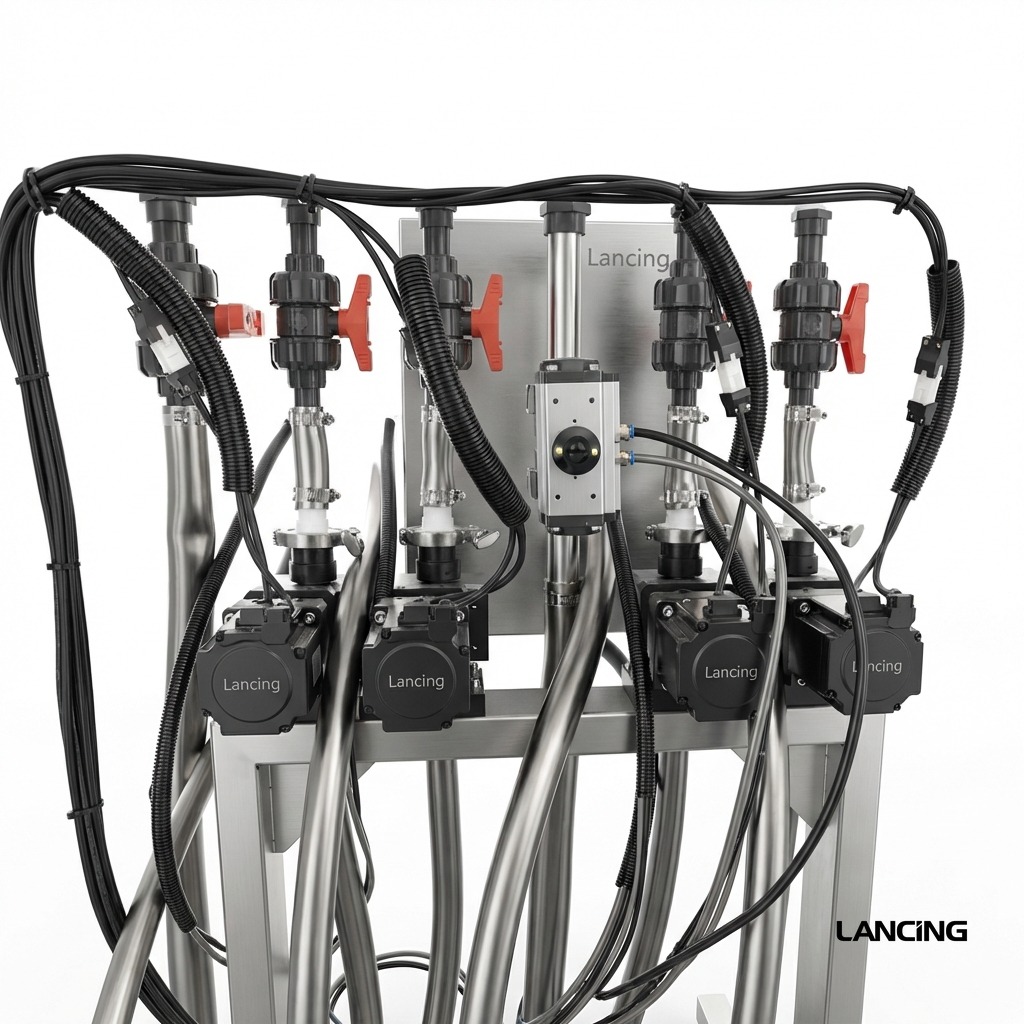

The Lancing UK LU-GYCR4A is an automatic 4-head servo-driven filling machine designed for corrosive liquids. Running at 200–2500 bottles per hour , it uses a corrosion-resistant PVDF magnetic pump for precise, stable, and leak-free filling. With adjustable filling heads, customizable anti-drip nozzles , a storage tank, a PP machine housing , and a corrosion-resistant conveyor system , it performs reliably in harsh chemical environments. Ideal for small to medium-scale production lines, it is suitable for filling acids, alkalis, bleach, disinfectants, detergents, fertilizer solutions, automotive chemicals, and other corrosive liquids.
Throughput
200–2500 BPH (based on filling volume)
Target speed depends on product, pack and operator workflow.
Format range
About 120 L
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110V / 220V, 50–60 Hz, 5000 W
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine Model | LU-GYCR4A |
| Voltage / Power | 110V / 220V, 50–60 Hz, 5000 W |
| Air Pressure Requirement | 0.4–0.7 MPa |
| Suitable Bottle Diameter | φ60–φ120 mm |
| Suitable Bottle Height | 60–300 mm |

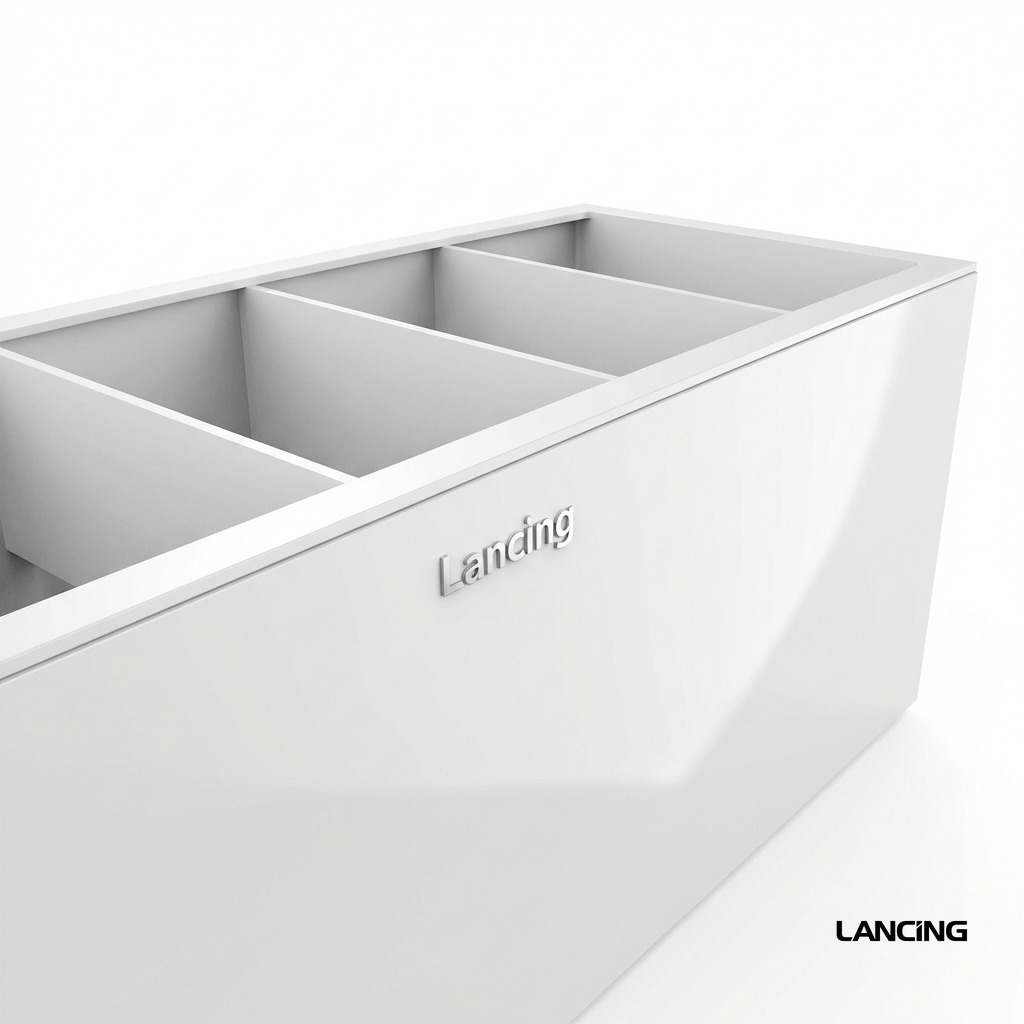

| Hopper Capacity | About 120 L |
| Filling Range | 300 ml – 20 L |
| Filling Speed | 200–2500 BPH (based on filling volume) |
| Machine Dimensions (L×W×H) | About 2000 × 1300 × 1900 mm |
| Machine Weight | About 280 kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
