Machine overview

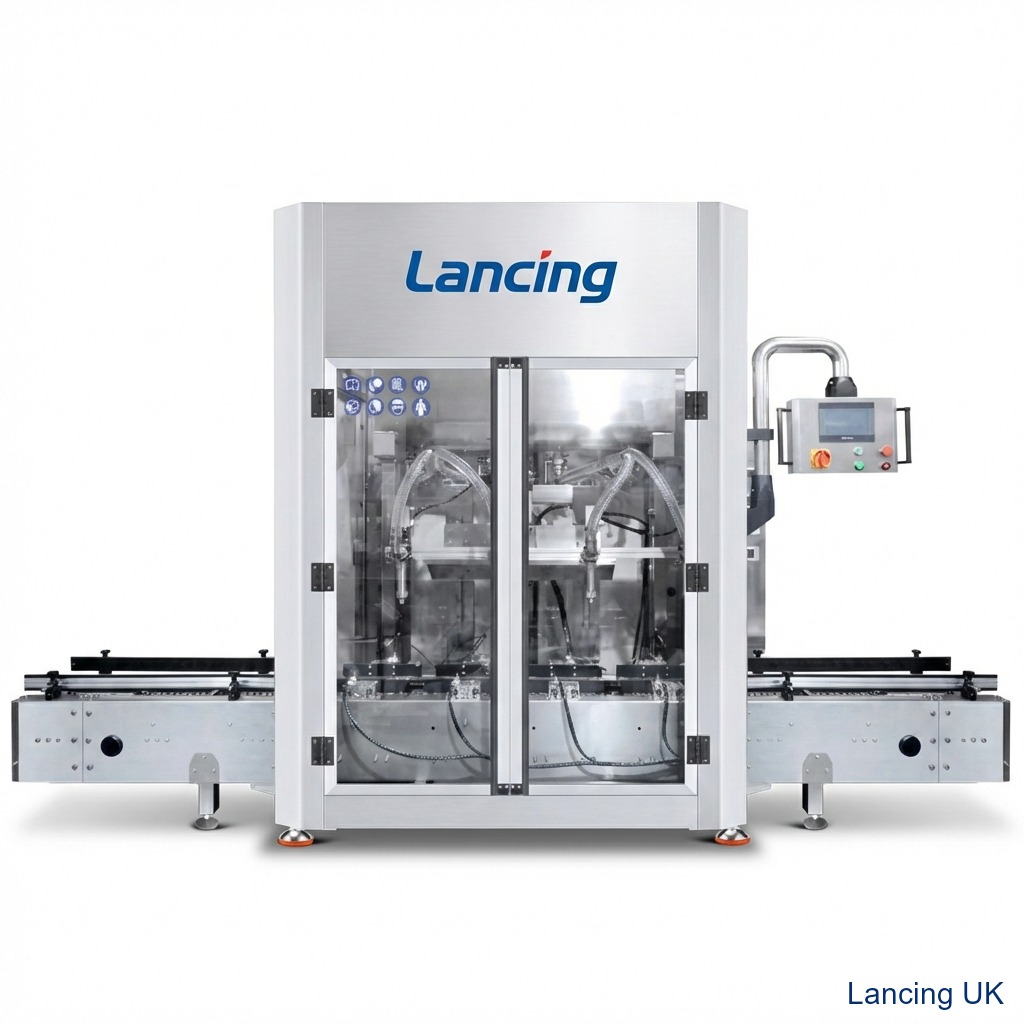

LU-GYW4 Automatic 4 Nozzles Paste Weighing Gallon Filling Machine
Machine overview and key points for quotation.
Automatic 4 Nozzles Paste Weighing Gallon Filling Machine This automatic paste liquid weighing filling machine can control filling volume by Electronic weighing, which is more convenient to adjust machine.It is the ideal choice for filling large volume products like cooking oil, engine oil, laundry detergent etc.
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
120-300BPH (based on 10L)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220/380V
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine model | LU-GYW4 |
| Power supply | 220/380V |
| Power | 2.8kw |
| Production capacity | 120-300BPH (based on 10L) |
| Filling range | 5-20L |
| Filling head number | 4 heads (can be customized) |
| Weighing error | ≤0.35% |
| Machine size | 3000×1000×1800mm |
| Weight | 330kg |
| Equipped | with pneumatic filling nozzles, these are more powerful when filling thicker liquid, or paste. |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
