Machine overview
Horizontal Tube Labeling Machine
Machine overview and key points for quotation.
Horizontal Tube Labeling Machine for Vials & Cosmetic Bottles , sales and related technical services of modern high-tech enterprises. Opens in a new window.
Throughput
0–100 bottles/min
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
AC 220V 50/60Hz
We’ll confirm voltage, air and installation requirements for your site.

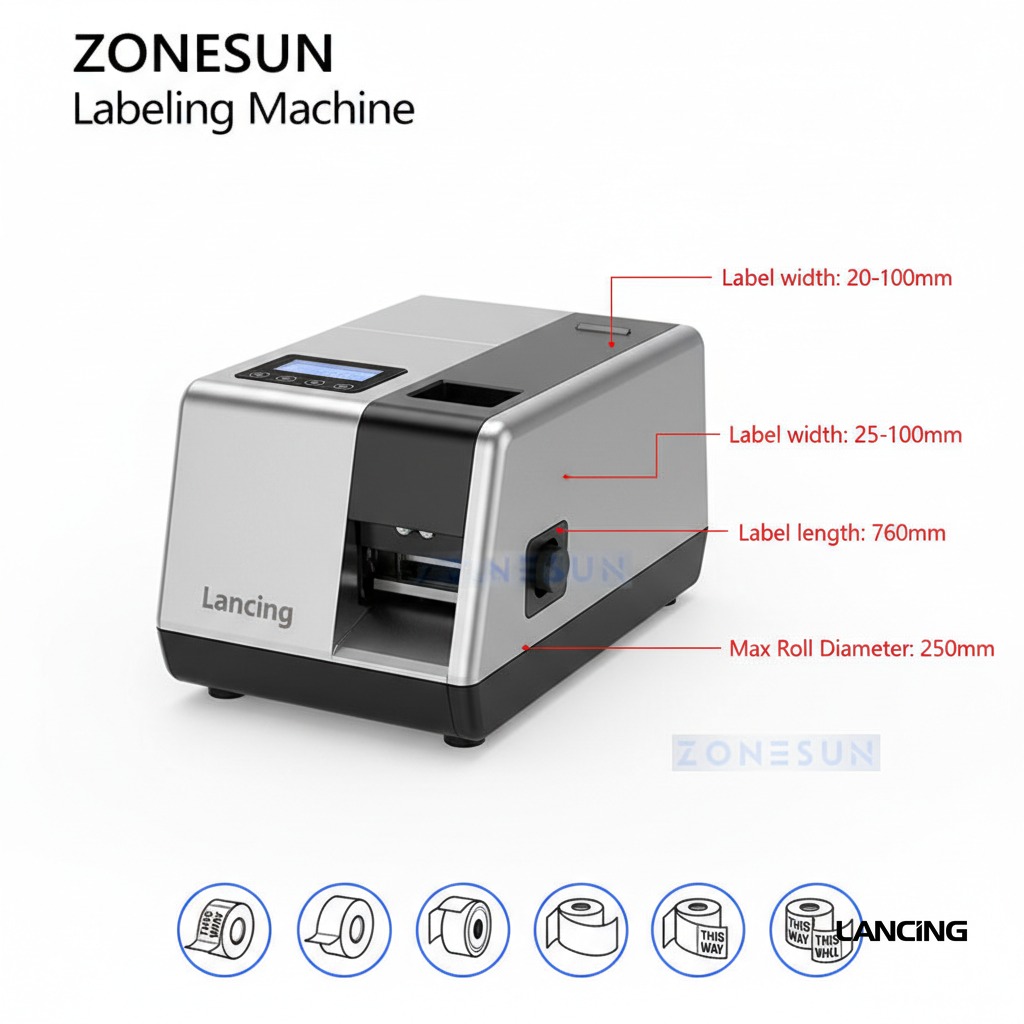

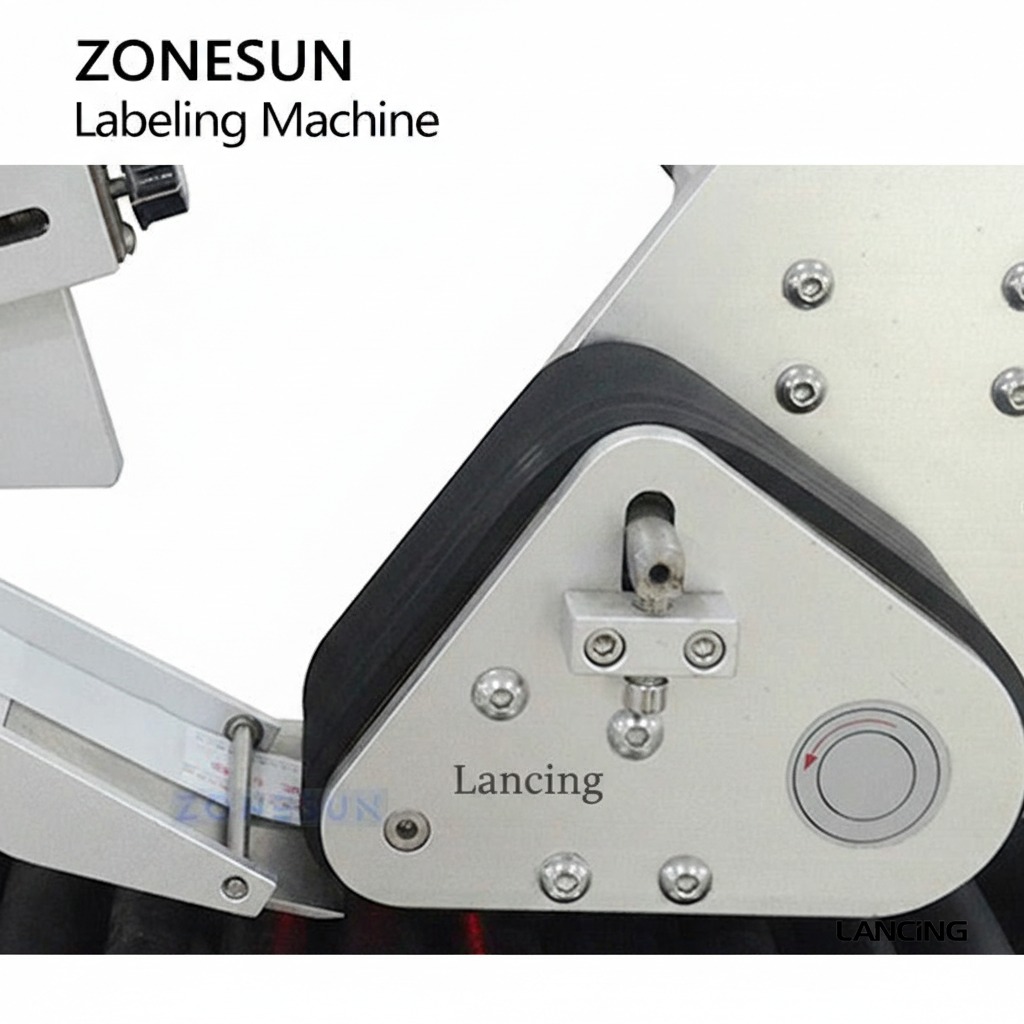

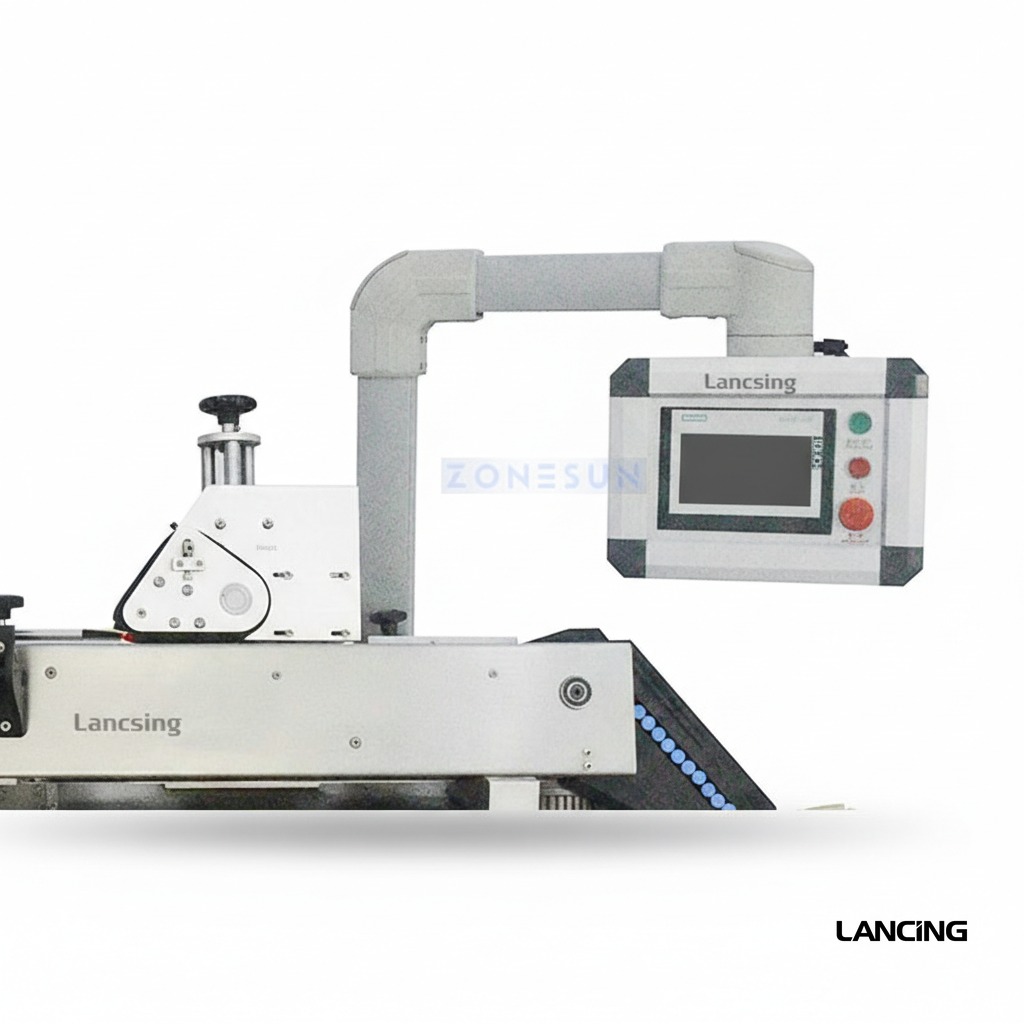

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-TBRH100 |
| Voltage specification | AC 220V 50/60Hz |
| Power consumption | 1.5KW |
| Labeling speed | 0–100 bottles/min |
| Labeling accuracy | ±1mm (excluding bottle-label mismatch) |
| Label supply | Diameter 350mm, inner diameter of paper roll 76mm |
| Printer speed | 0–400 times/min (synchronized with labeling) |
| Applicable tags | Height 20–90mm, length 25–100mm |
| Applicable containers | Length 25–120mm, diameter 10–30mm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
