Machine overview
ZS‑TB50D/T Semi Automatic Round Bottle Labeling Machine
Machine overview and key points for quotation.
The ZS‑TB50D/T semi‑automatic round bottle labeling machine combines precision and efficiency for both normal and transparent labels. Its stainless steel housing and imported fiber sensor deliver accurate label positioning, while the adjustable date coder mount enables direct printing on labels. With convenient setup and smooth operation, it’s ideal for cosmetics, food, beverage, and chemical packaging lines requiring consistent, professional results.
Throughput
20‑40 pcs/min
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220 V, 50/60 Hz, 100 W
We’ll confirm voltage, air and installation requirements for your site.

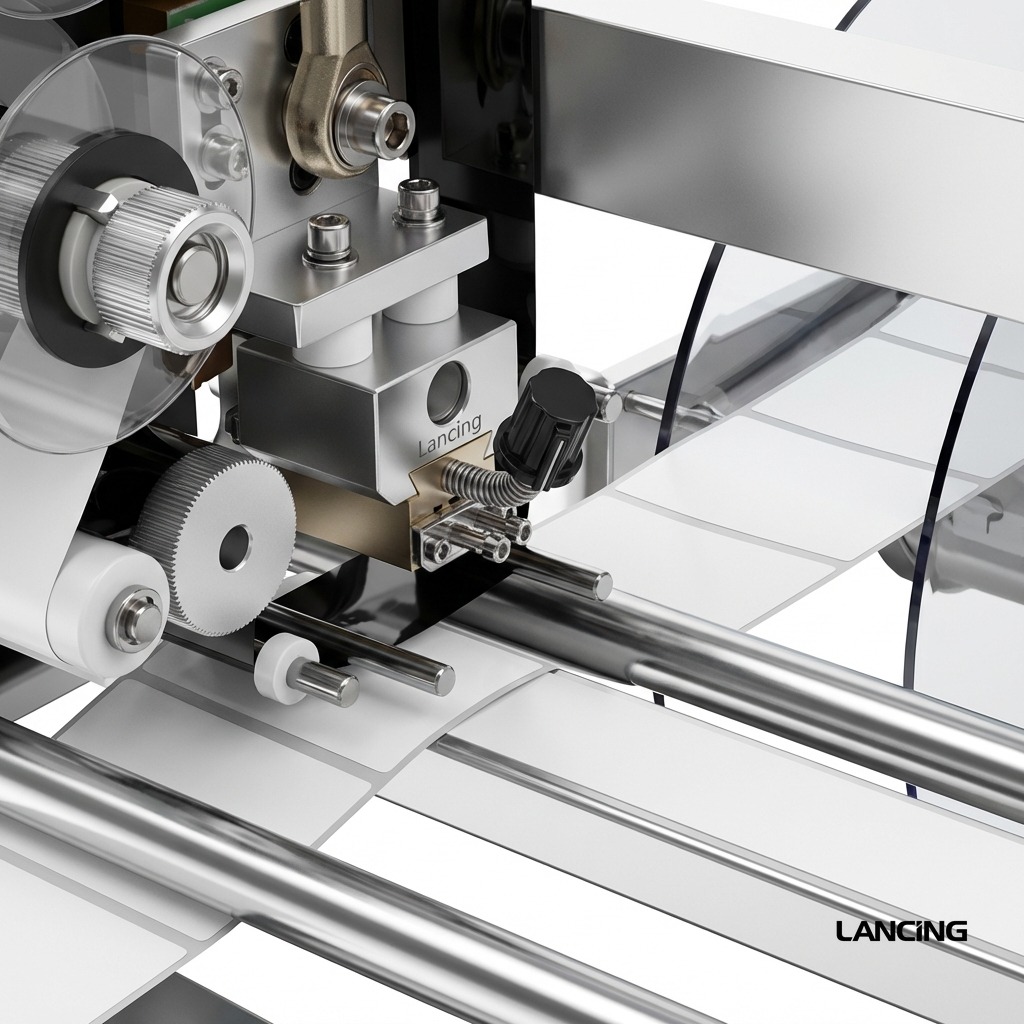

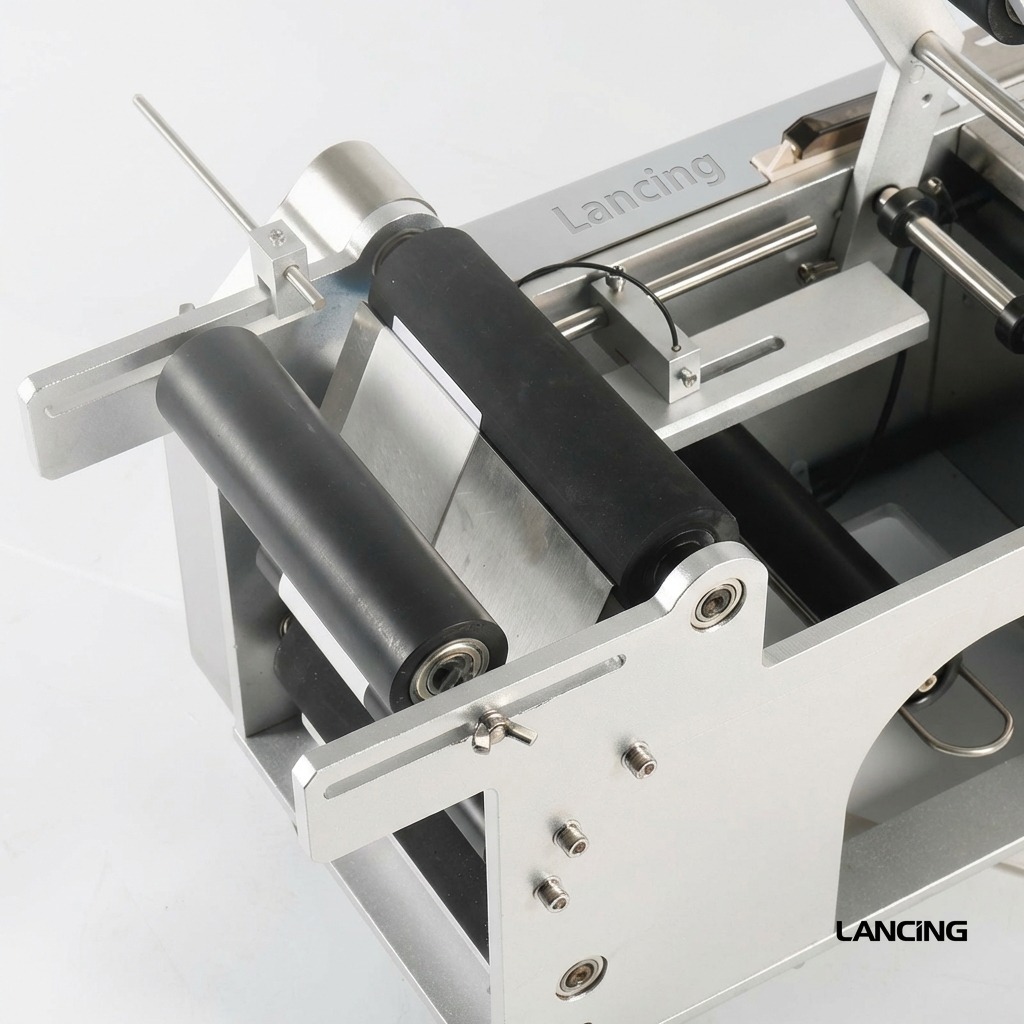

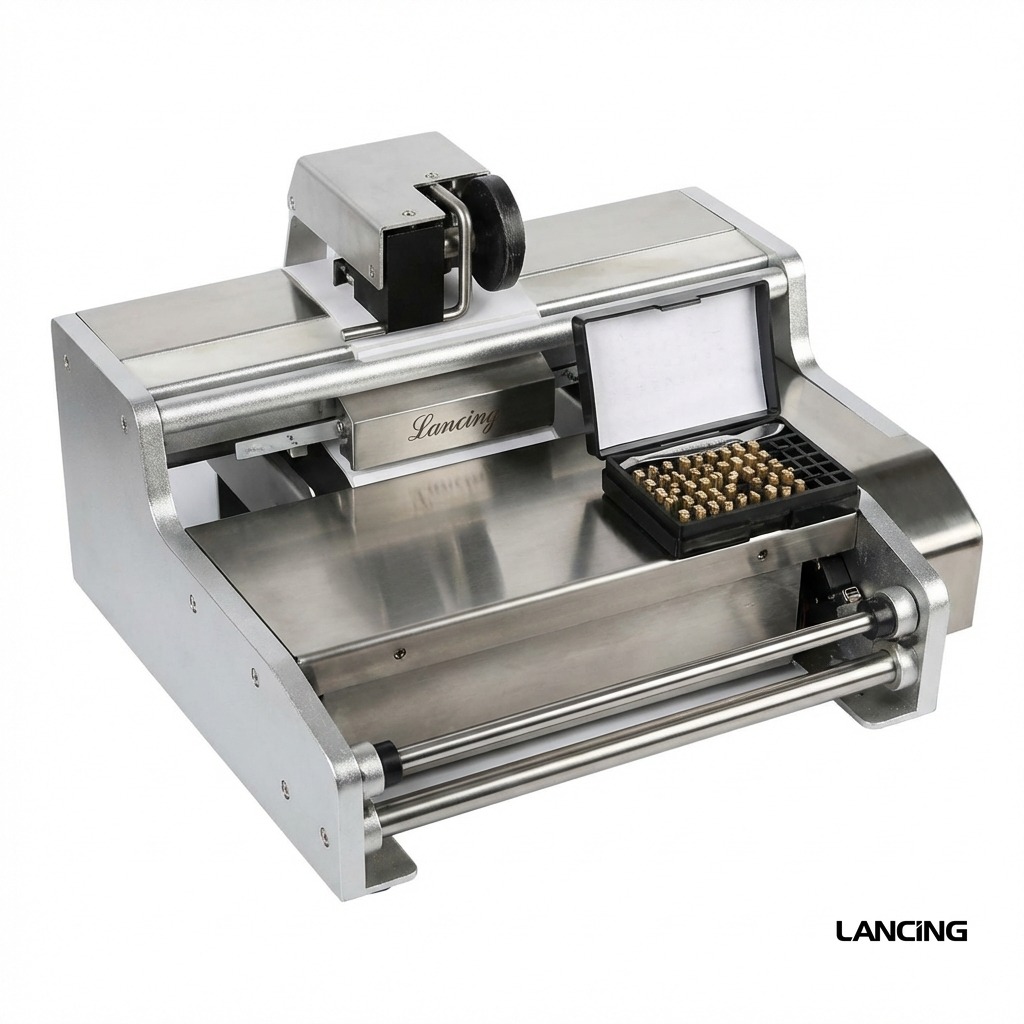

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | ZS‑TB50D & ZS‑TB50DT |
| Labeling speed | 20‑40 pcs/min |
| Diameter of bottle | 15‑130 mm |
| Min. label size Width | 30 mm × Length 30 mm |
| Max. label size Width | 130 mm × Length 300 mm |
| Outside diameter of label roll (max) | 260 mm |
| Inside diameter of label roll | 75 mm |
| Accuracy of labeling | ±0.5 mm |
| Voltage/Frequency | 110/220 V, 50/60 Hz, 100 W |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
