Machine overview
Perfume Filling & Capping Machine
Machine overview and key points for quotation.

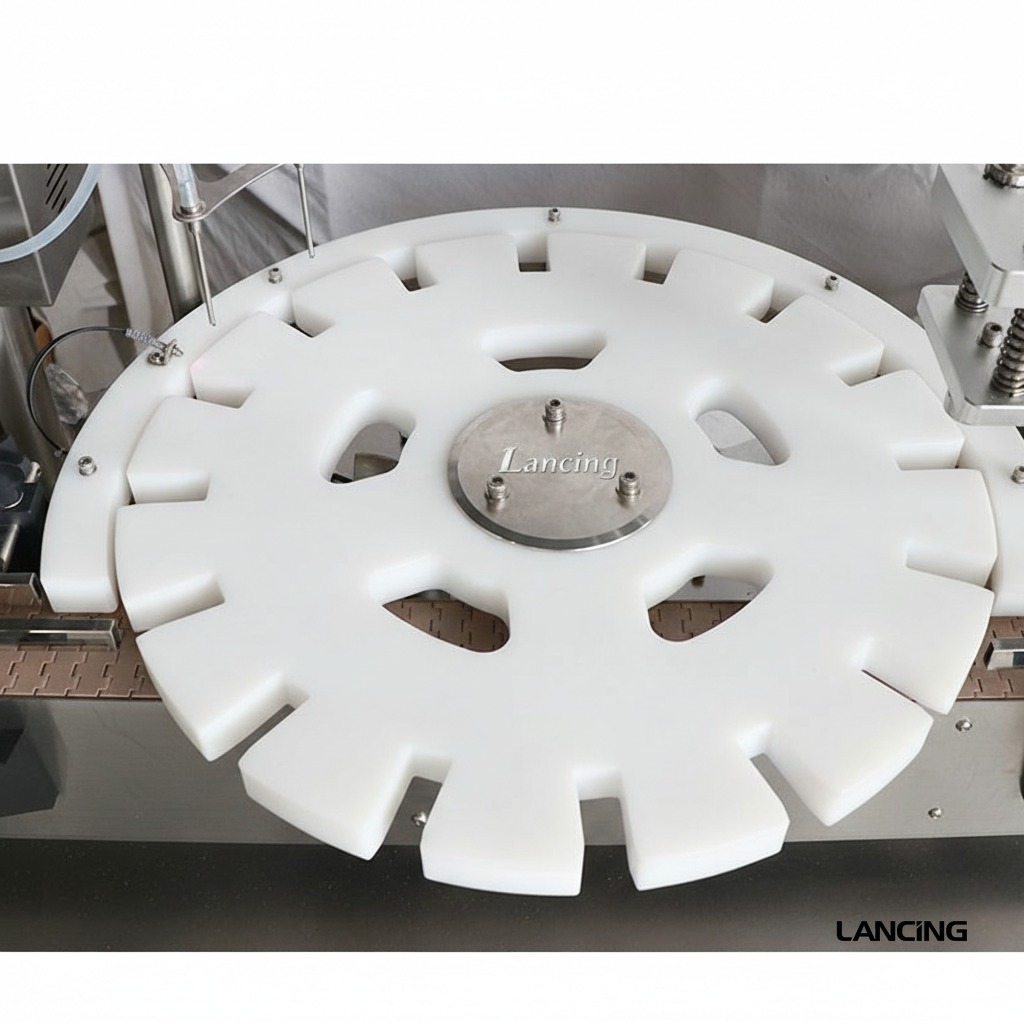

The Lancing UK LU-AFC42 is a semi-automatic monoblock perfume filling and capping machine designed for high-speed, precision packaging. Featuring a star wheel rotary system and dual-head peristaltic pump filling, it delivers up to 2100 bottles per hour with ±1% accuracy. The cam-driven sealing station automatically presses spray heads onto bottles, ensuring a secure seal. Manual cap placement follows filling, making it ideal for perfume manufacturers seeking a balance between automation and flexibility. Compact and efficient, it’s perfect for scaling up production while maintaining quality control.
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
30 ml (customizable)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220V 50-60HZ 5A
We’ll confirm voltage, air and installation requirements for your site.

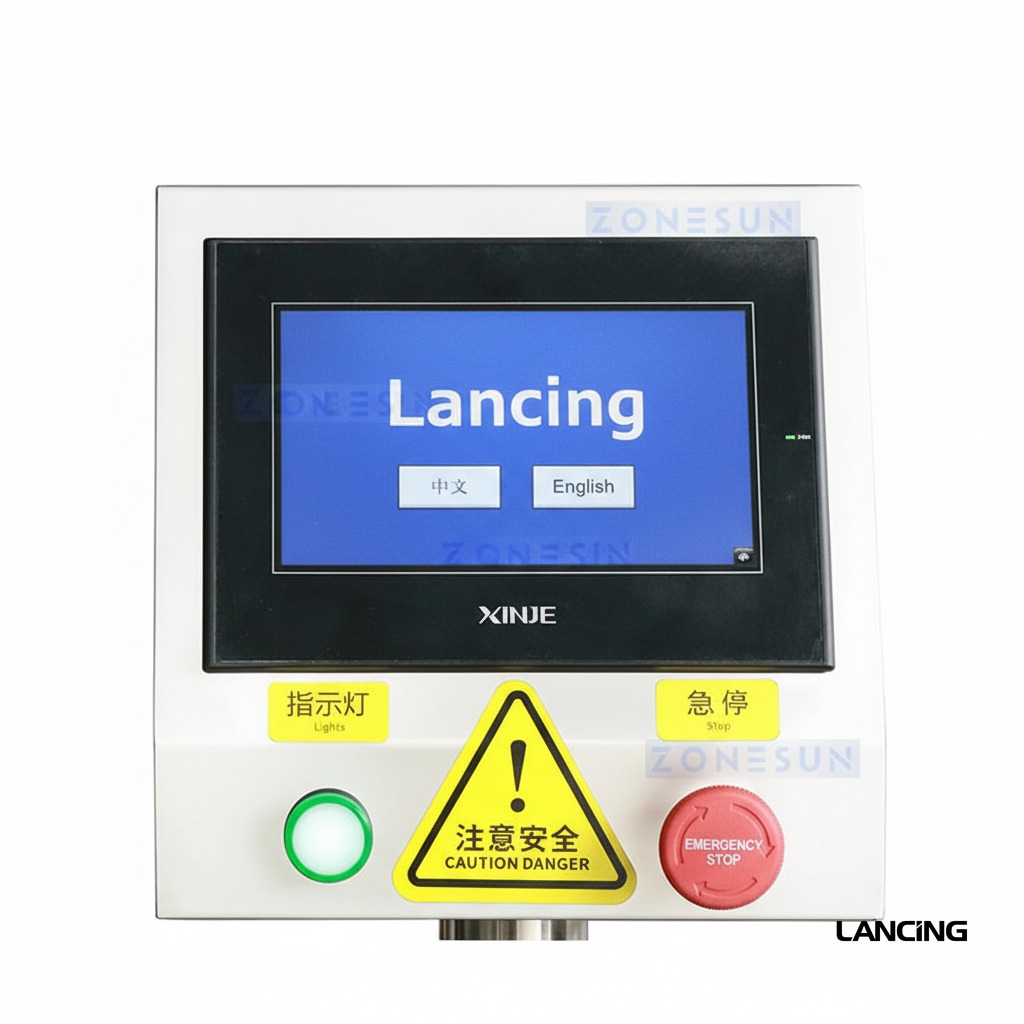

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine model | LU-AFC42 |
| Voltage | 110/220V 50-60HZ 5A |
| Filling accuracy | ±1% |
| Filling range | 30 ml (customizable) |
| Filling pump | Peristaltic Pump |
| Filling heads quantity | 2 |
| Working capacity | 35 BPM |
| Machine size | About 1800 1310 780 mm |
| Machine weight | About 400 kg |
| Package size | About 1820 850 1470 mm (L W H) |
| Package weight | About 436 kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
