Perfume Crimper Lids/Cap Capping Machine
Machine overview and key points for quotation.
Perfume Crimper Lids/Cap Capping Machine , sales and related technical services of modern high-tech enterprises. Opens in a new window.
Throughput
About 10-15 Bottles/min (depending on bottle and cap size)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220V/110V 50-60Hz
We’ll confirm voltage, air and installation requirements for your site.

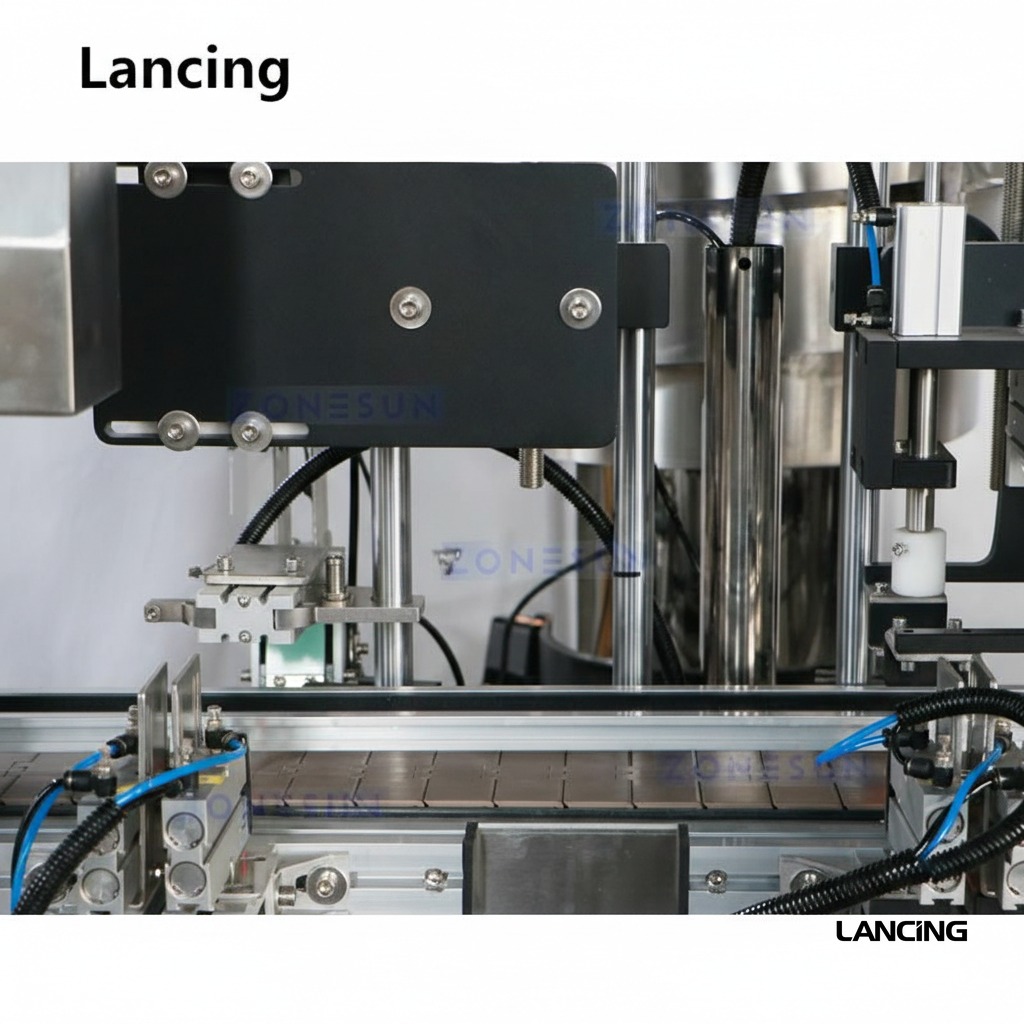

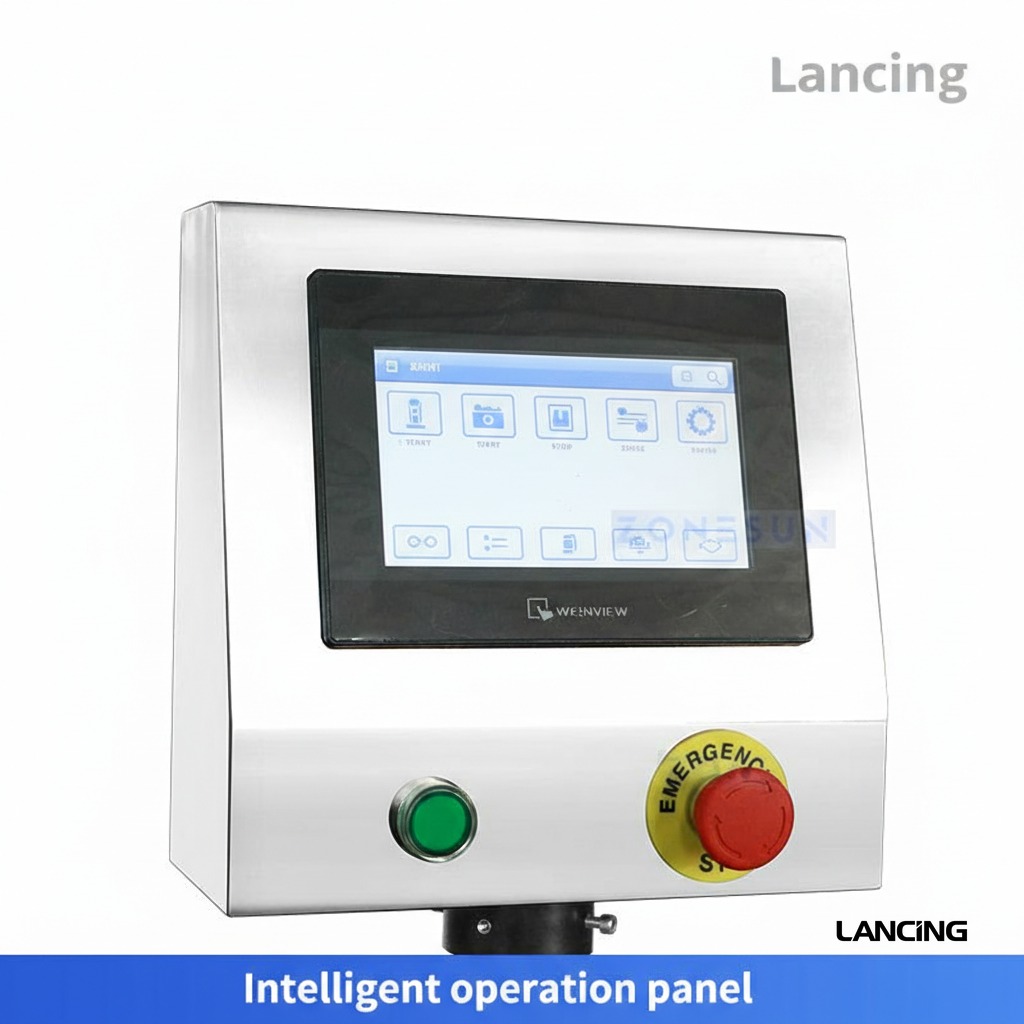

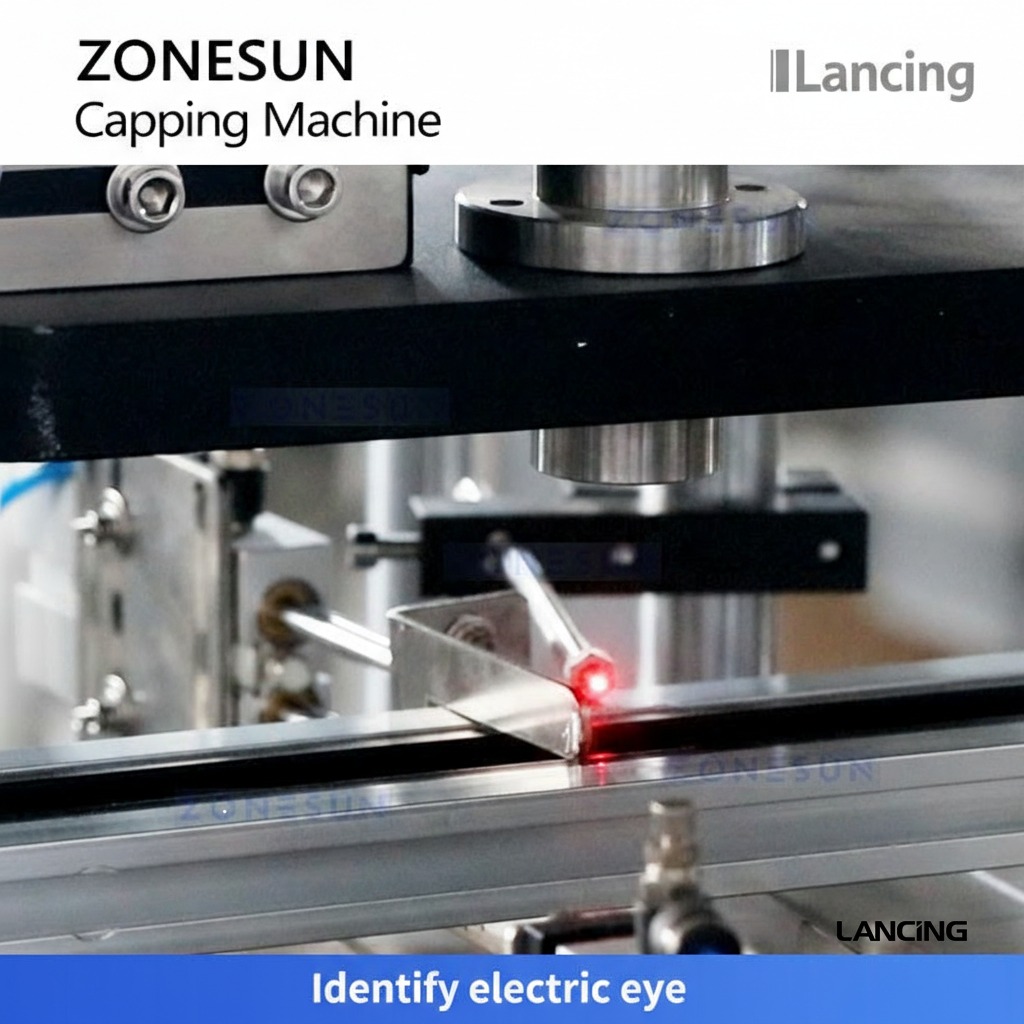

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine model | LU-DTYG11U |
| Voltage | 220V/110V 50-60Hz |
| Power | 1.5 kW |
| Capping Speed | About 10-15 Bottles/min (depending on bottle and cap size) |
| Suitable Bottle Height | 50-200 mm |
| Bottle Cap Diameter | 15-22 mm |
| Bottle Mouth Diameter | 14-20 mm |
| Suitable Bottle Diameter | 40-110 mm |
| Main Machine | About 2300 750 1780 (L W H) |
| Vibratory Bowl Sorter | About 440 440 1370 |
| Vibratory Bowl Sorter-1 | About 350 350 1270 |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
